The IP Endpoint Company

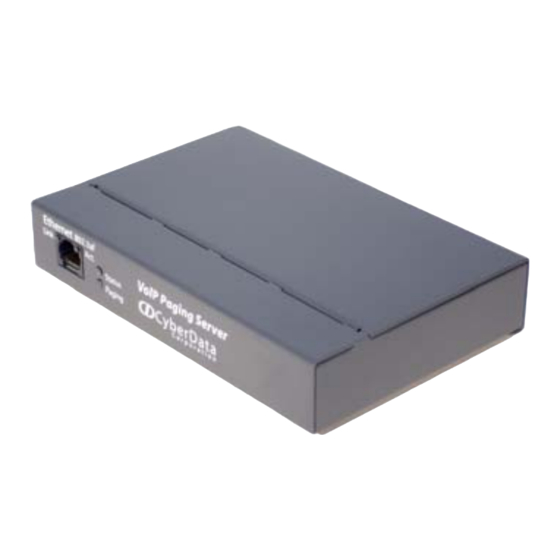

PoE VoIP Paging Server
Operations Guide
SiP Compliant
Part #010878
Document Part #930132G
for Firmware Version 1.2.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 010878 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberData 010878

Summary of Contents for CyberData 010878

  • Page 1 The IP Endpoint Company PoE VoIP Paging Server Operations Guide SiP Compliant Part #010878 Document Part #930132G for Firmware Version 1.2.0 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Section 2.3.3.1, “Confirm Power on, Network Connectivity, and Baud Rate”. Updates Section 2.3.4, “Restore the Factory Default Settings as Required”. Updates Figure 2-4, "Paging Server Indicator Lights". 11/06/2012 Updates Section 2.3.4, “Restore the Factory Default Settings as Required”. CyberData Corporation 930132F Operations Guide...

  • Page 4: Table Of Contents

    Appendix C How to Use the Multicast Extensions C.1 Sending IP Multicast Datagrams ...................... 27 C.2 Receiving IP Multicast Datagrams ....................29 C.3 Establishing a Default Multicast Interface ..................30 C.4 Mtest ..............................31 Index VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 5: Chapter 1 Product Overview

    1 Product Overview The VoIP Paging Server is a POE enabled, single SIP-endpoint enabling user defined paging zones through a multicasting connection to CyberData VoIP speakers. SIP compliant IP-PBX's that do not support grouping of SIP endpoints or paging can now support up to 100 different paging zones.
  • Page 6 FCC Class A, UL 60950, CE Power Requirement PoE or 48V DC Baud Rate 10/100 Mbps Protocol SiP compliant Part Number 010878 Dimensions 6.11”L x 4.05”W x 1.15” H Weight 1.2 pounds VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 7: Chapter 2 Implementing The Voip Paging Server

    Mounting Template (located on the last page of the Installation Quick Reference) Mounting Kit (part #070057A) which includes: (2) #4-6 x 7/8" Mounting Anchors (2) #4 x 1-1/4" Round Phillips Wood Screws VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 8: Typical Installation

    Figure 2-1 illustrates how the Paging Server is normally installed as part of a paging system. Figure 2-1. Typical Installation VoIP Phone Generic PoE Switch CyberData VoIP Speakers VoIP Paging Server SIP Server VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 9: Setting Up The Paging Server

    2.3.2 Connect to the Network Plug one end of a standard Ethernet cable into the Paging Server Ethernet port. Plug the other end into your network. Figure 2-3. Connecting to the Network 48V DC VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 10: Confirm That The Paging Server Is Up And Running

    The dark blue Paging light comes on after the device is booted and initialized. This light blinks ● when a page is in progress. 2.3.3.2 Verify Network Activity The square, yellow Act light blinks when there is network activity. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 11: Restore The Factory Default Settings As Required

    3. During the reset process, the Link LED will come on and the Activity LED will blink. After five seconds, the Status and Paging LEDs come back on. 4. The Paging Server settings are restored to the factory defaults. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 12: Configuring The Paging Server

    To work with the Paging Server configuration after the initial configuration, log in using the IP address you assign to the device. Section 2.4.3, "Configure the Network Parameters" provides instructions for entering the IP address. VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 13 DNS Server 1 Shows the DNS Server 1 address. DNS Server 2 Shows the DNS Server 2 address. Link to the Network Setup web page. Link to the Admin Settings web page. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 14: Configure The Network Parameters

    2.4.3 Configure the Network Parameters Configuring the network parameters enables your network to recognize the Paging Server and communicate with it. Click Network Setup on the Home page to open the Network Configuration page. VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 15 Click on this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved. Link to the Admin Settings web page. Link to the SIP Setup web page. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 16: Change The Default Username And Password

    On the Home page, click Admin Settings to open the Administator Settings page. After changing the Username and Password on this page, new browser requests will require you to log in using these new parameters. VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 17 Changing a parameter that has an asterisk next to it will cause a system reboot when saved. Link to the Network Setup web page. Link to the SIP Setup web page. Link to the PGROUPS Setup web page. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 18: Configure The Sip Parameters

    2.4.5 Configure the SiP Parameters The SIP parameters enable the Paging Server to contact and register with the SIP server. On the Home page, click SIP Setup to open the SIP Configuration page. VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 19 • Select Yes to automatically unregister the speaker when it is rebooted. • Select No to keep the speaker registered when it is rebooted. Register Expiration* Enter the SIP Registration lease time in minutes (default is 60 minutes). VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 20 6. In the Register Expiration field, enter the number of minutes the Paging Server registration lease remains valid with the SIP Server. The Paging Server automatically re-registers with the SIP server before the lease expiration timeout. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 21: Set Up The

    1. Click on the PGROUPS Setup button to open the PGROUPS Setup page. See Figure 2-10. Figure 2-10. PGROUPS Setup Other PGROUPS pages (1-100) VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 22 Link to the Admin Settings web page. Link to the SIP Setup web page. Link to the Upgrade Firmware web page. Link to the Home page. 3. After changing the parameters, click Save Settings. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 23: Operating The Paging Server

    100 zones that the paging server will support initially. Each speaker can still be part of 100 other paging zones in addition to the one page-all zone. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 24: Upgrading The Firmware

    Uploading the firmware files requires a host machine running a TFTP server. If you need to set up this server, Appendix A, “Setting up a TFTP server” provides instructions. Figure 2-11. Firmware Upgrade Page VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 25 2. Enter the TFTP Server IP address. 3. Enter the Kernel or Application New Filename for the firmware file you are uploading. Note You can obtain the latest Paging Server firmware from the CyberData website: http://www.cyberdata.net/products/voip/digitalanalog/pagingserver/downloads.html 4. Select the Partition to which the firmware is uploaded.

  • Page 26: Rebooting The Paging Server

    Figure 2-12. Firmware Upgrade Page 1. On the Home page, click Upgrade Firmware to open the Firmware Upgrade page. Go to the Reboot section on the right side of the page. 2. Click Reboot. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 27: Appendix A Setting Up A Tftp Server

    1. Install and start the software. 2. Select File Configure Security tab Transmit Only. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 28: Appendix B Troubleshooting/Technical Support

    Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside of the original shipping package. No product will be accepted for return without an approved RMA number. Send the product, in its original package, to the following address:...

  • Page 29: Warranty

    Warranty RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html B.3 Warranty CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.

  • Page 30: Spare In The Air Policy

    B.3.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html...

  • Page 31: Appendix C How To Use The Multicast Extensions

    The multicast router accompanying this release refuses to forward any multicast datagram with a destination address between 224.0.0.0 and 224.0.0.255, inclusive, regardless of its TTL. This range of addresses is reserved for the use of routing protocols and other low-level topology discovery or VoIP Paging Server Operations Guide 930132F CyberData Corporation...
  • Page 32 The loopback control option has no effect on such delivery. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 33: Receiving Ip Multicast Datagrams

    SOCK_RAW sockets do not require the SO_REUSEADDR option to share a single IP protocol type. The definitions required for the new, multicast-related socket options are found in <netinet/in.h>. All IP addresses are passed in network byte-order. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 34: Establishing A Default Multicast Interface

    ENETUNREACH error. If needed, these commands normally would be added to the /etc/rc.ip or /etc/rc.local file, to take effect every time the system is booted. VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 35: Mtest

    Mtest is useful for establishing targets for multicast ping testing. The results of mtest filter manipulation can be seen by using the "netstat -nia" command (see next section). VoIP Paging Server Operations Guide 930132F CyberData Corporation...

  • Page 36: Index

    5 ethernet cable 5 changing default username and password for configuration GUI 12 configurable parameters 9, 11, 15, 21 GUI username and password 12 configuration information 8 contact information 24 contact information for CyberData 24 Operations Guide 930132F CyberData Corporation...
  • Page 37 5 sales 24 server SIP 10 orange link light 6 TFTP 20, 23 server address, SIP 15 service 24 SIP configuration SIP Server 15 SIP configuration page 14 paging light 6 SIP registration 15 Operations Guide 930132F CyberData Corporation...
  • Page 38 & RMA returns within the United States 25 SIP server configuration 10 warranty and RMA returns page 26 SIP server parameters, configuring 8 warranty policy at CyberData 25 SIP setup button 10, 14 web configuration log in address 8 Spare in the Air Policy 26...
