F80
User Manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F80 and is the answer not in the manual?

Questions and answers

Related Manuals for Barco F80

Summary of Contents for Barco F80

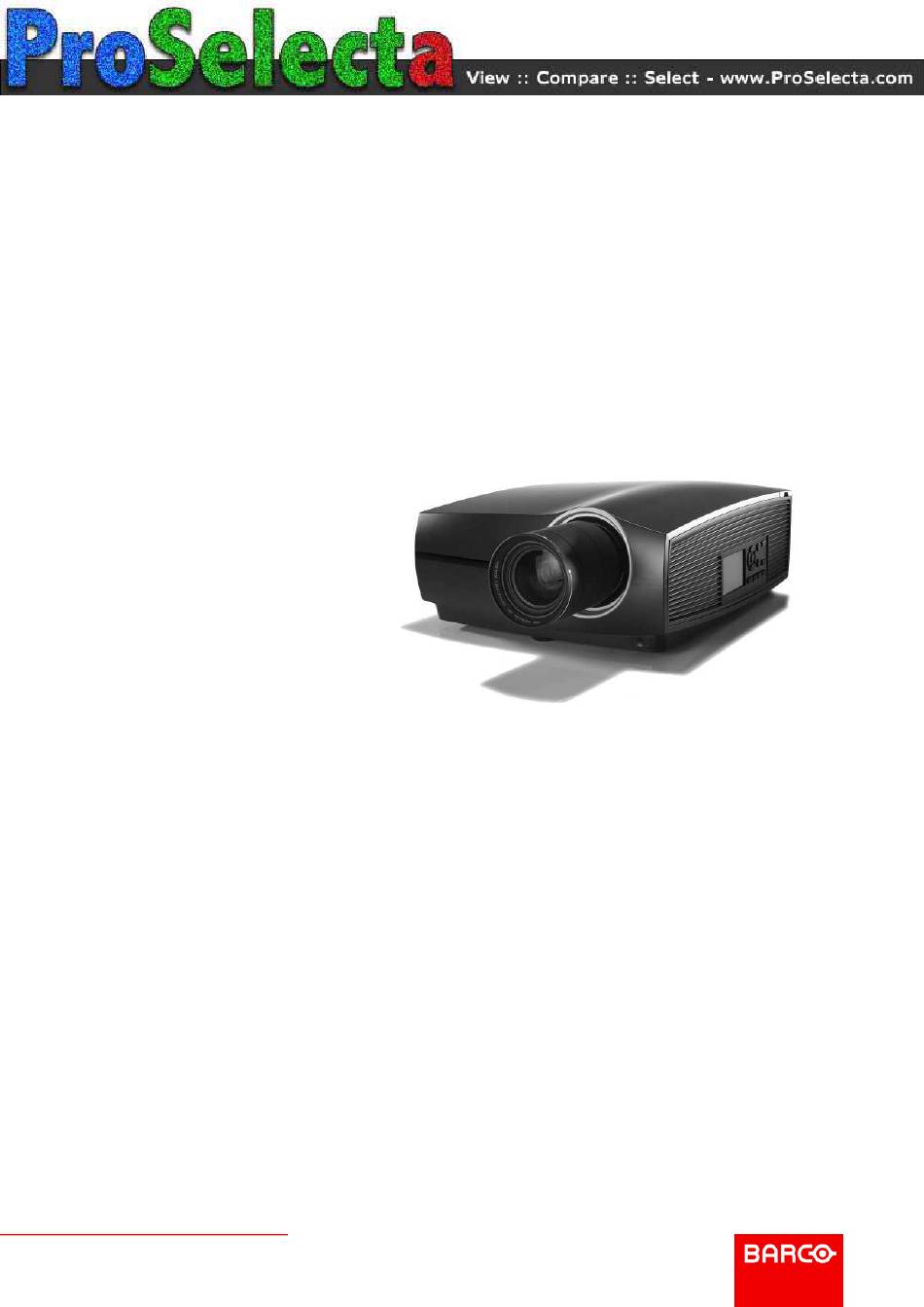

  • Page 1 User Manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Product revision Software Revision: 2.1 Barco Fredrikstad AS Habornveien 53, N-1630 Gamle Fredrikstad, Norway Support.fre@barco.com www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 Disclaimer for camera usage Barco provides a kit with a laser range finder and USB camera to help measure the distance from the front of the projector to the projected surface and to help monitor the performance of the projector. Barco disclaims any liability for any use of the USB camera outside this intended use.

  • Page 5: Table Of Contents

    Table of contents 1 Safety ........................................... 9 General considerations ................................10 Important safety instructions..............................11 Product safety labels..................................14 Risk Group 3 Safety ..................................16 1.4.1 General considerations............................16 1.4.2 High Brightness precautions: Hazard Distance (HD) ................17 1.4.3 HD for fully enclosed projection systems.......................19 1.4.4 HD in function of the lens Throw Ratio (TR) ....................20 2 Remote Control Unit ...................................21...
  • Page 6 4.3.1 General .....................................35 4.3.2 Power on projector ..............................35 4.3.3 Going from READY to ON............................36 4.3.4 Going from ON to READY............................36 4.3.5 Going from READY to ECO standby........................36 4.3.6 Going from ECO to ON ............................36 4.3.7 Wake on LAN (WOL) ..............................36 Status overview....................................37 Power off projector ..................................37 Increasing the projector life time ............................38...
  • Page 7 8.10.1 Basic blend ..................................91 8.10.2 Blend & Blend mask ..............................93 8.10.3 Blend Files ..................................95 8.10.4 Basic black level adjustment ..........................96 8.10.5 RGB gain adjustment..............................98 8.10.6 Black Level Files................................99 8.11 Illumination ...................................... 100 8.12 3D projection ....................................101 8.12.1 Active Stereo & Passive Stereo........................101 8.12.2 Setup process 3D projection ..........................
  • Page 8 12.3 Filters ........................................144 A Specifications ......................................145 Specifications of the F80-Q7 ..............................146 Specifications of the F80-Q9 ..............................147 Specifications of the F80-Q12 .............................. 149 Specifications of the F80-4K7............................... 150 Specifications of the F80-4K9............................... 152 Specifications of the F80-4K12 ............................153 Dimensions of a F80 .................................

  • Page 9: Safety

    Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the F80 projector. Clarification of the term “F80” used in this document When referring in this document to the term “F80” means that the content is applicable for following Barco products: •...

  • Page 10: General Considerations

    • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 11: Important Safety Instructions

    HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. Only Barco authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL.
  • Page 12 Do not place flammable or combustible materials near the projector! • Barco projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 13 Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.

  • Page 14: Product Safety Labels

    • Remove all power from the projector and refer servicing to Barco authorized repair center under the following conditions: When the power cord or plug is damaged or frayed.
  • Page 15 本投影机安装透射比大于3.5的可换镜头后，可成为RG3，操作前， 请参考手 册中镜头清单和危险距离。本投影机与镜头组合仅供专业使用，非普通消费者 使用。 For F80-Q9, F80-4K9 : For North America: THIS PRODUCT IS IN CONFORMITY WITH PERFORMANCE STANDARDS FOR LASER PRODUCTS UNDER 21 CFR 1040, EXCEPT WITH RESPECT TO THOSE CHARACTERISTICS AUTHORIZED BY VARIANCE NUMBER 2017-V-4837 EFFECTIVE September 13, 2017.

  • Page 16: Risk Group 3 Safety

    使用。 1.4 Risk Group 3 Safety 1.4.1 General considerations Notice on optical radiation from F80 Projector when it becomes Risk Group 3. • For RG3, no direct exposure to the beam shall be permitted. For RG3, operators shall control access to the beam within the hazard distance or install the product at a height that will prevent eye exposure within the hazard distance.

  • Page 17: High Brightness Precautions: Hazard Distance (Hd)

    Safety 1.4.2 High Brightness precautions: Hazard Distance (HD) Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the cornea or on the skin.
  • Page 18 The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.

  • Page 19: Hd For Fully Enclosed Projection Systems

    Safety Install one or more readily accessible controls to immediately terminate LIP projection light. The power input at the projector side is considered as a reliable disconnect device. When required to switch off the projector, disconnect the power cord at the projector side. In case the power input at the projector side is not accessible (e.

  • Page 20: Hd In Function Of The Lens Throw Ratio (Tr)

    1.4.4 HD in function of the lens Throw Ratio (TR) TR (Throw Ratio) The ratio of the distance to the screen (throw) to the screen width. HD versus Throw Ratio F80-Q12, F80-4K12 F80-Q9, F80-4K9 F80-Q7, F80-4K7 Throw Ra o Image 1–4...

  • Page 21: Remote Control Unit

    Remote Control Unit R5906852 /06...

  • Page 22: Remote Control, Battery Installation

    Remote Control Unit 2.1 Remote control, battery installation Where to find the batteries for the remote control ? The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a shorter battery life time. At delivery the batteries can be found in a separated bag attached to the remote control unit.

  • Page 23: Using The Mini-Jack Connector Of The Rcu

    Remote Control Unit CAUTION: Replace with the correct battery type. Use two AA size batteries. There is a risk of explosion if the battery is replaced with an incorrect type. CAUTION: Replace the battery as explained above. There is a risk of explosion if the battery is incorrectly installed.
  • Page 24 Remote Control Unit R5906852 /06...

  • Page 25: Input & Communication

    Input & Communication Introduction ..........................26 Connection Panel .........................26 Making connections ........................27 Connector specifications .......................27 Control interfaces .........................30 LED and Button indication chart.....................31 R5906852 /06...

  • Page 26: Introduction

    Input & Communication 3.1 Introduction General The Input & Communication features of the projector consists of a local keypad and a communication panel situated at the left side, and a connection panel (sources and control connections) located at the back side. Image 3–1 local keypad and a communication panel connection panel...

  • Page 27: Making Connections

    Input & Communication Description Purpose Nb.Name Standard display port For Projector Input DL-DVI-D 2 Dual DVI-I 1.0 (DVI_D For Projector Input. These connectors can also Functionallity). be used to form one uniform image by feeding half of the image into each connector. HDCP compliant for sources up 165 Mhz 10 HDMI Standard HDMI 2.0...

  • Page 28: Display Port 1.2

    Input & Communication Parameter Value EDID Supported HDCP Supported 3.4.2 Display Port 1.2 Specifications Parameter Value Connector Standard Display port Signal characteristics DP 1.2 Functionality Mandatory Max. cable length 2 m (24 AWG) - RBR; 2 m (24 AWG) – HBR1, HBR2 Supported Link Rate RBR, HBR1, HBR2 Scan format...

  • Page 29: Sdi

    Input & Communication 3.4.4 SDI Specifications Parameter 12G-SDI 3G-SDI Standard SMPTE ST-2082-1 and ST-2082-10 SMPTE 424M-2006 10bit level A standards Connector Samtec BNC7T-J-P-HN-RA-BH1 1x) BNC 75 ohm type IEC 60169-8, Amendment 2 1997, A Bandwidth 12GHz >3 GHz Return loss -6dB @ 12GHz >10dB at 3GHz Impedance...

  • Page 30: High-Bandwidth Digital Content Protection (Hdcp)

    Input & Communication 3.4.6 High-bandwidth Digital Content Protection (HDCP) About HDCP HDCP protocol is a form of digital copy protection to prevent copying of digital audio & video content as it travels across connections. Capability of a connector to accept HDCP content (revision v1.X or v2.X) can vary and depends of the FPGA resource mapping that manage connectors.

  • Page 31: Lan/Ethernet

    Input & Communication 3.5.2 LAN/Ethernet Specifications Parameter Value Ethernet connector 1 RJ45 Connector for projector control (not content) Protocols DHCP, TCP/IP, UDP/P Speed 10/100 Mbit/1000Mbit 3.5.3 USB-A port Specifications Parameter Value USB connector Type A Function Firmware upgrade using USB sticks Power Power 5V, max 1,5A (out) Standard...
  • Page 32 Input & Communication Description Button Color status Blinking BLUE Projector goes to ON mode Solid BLUE Projector is ON Blinking RED Error condition Shutter button Off (no color) Projector is OFF, starts up, or is in Standby mode. Solid WHITE Projector is ON, shutter is open Solid RED Projector is ON, shutter is closed...

  • Page 33: Getting Started

    Getting Started Local Keypad and LCD panel ......................34 Power modes ..........................34 Power mode transitions.........................35 Status overview ..........................37 Power off projector........................37 Increasing the projector life time ....................38 Operation in 24/7 Mode.........................38 Using the RCU ..........................38 Projector Address .........................40 4.10 Quick setup via Direct access ......................41 About this chapter This chapter describes how to power up, control and set up your projector setup when the physical installation process is complete.

  • Page 34: Local Keypad And Lcd Panel

    Toggle between the two indications by using the Menu button on the keypad, or on the remote control. The LCD Display will fade out 30 seconds after the last key operation. 4.2 Power modes General The table below details the F80 power modes. R5906852 /06...

  • Page 35: Power Mode Transitions

    Getting Started Description Mode ON (normal) Projector is booted up and the light source is on READY Projector is booted up but the light source is off ECO (Standby) Light source is switched off and projector electronics are powered down Energy consumption is significantly lowers in ECO (Standby) mode: only <0.5W if network is not plugged in and 2W with network (Wake-on-LAN).

  • Page 36: Going From Ready To On

    Getting Started The background image of the startup screen and info screens can be changed with Projector Toolset with an installed F80 plug-in. Description Plug the 3-prong plug of power cord into a grounded AC outlet. The projector will go to READY mode. During this stage the system boots and performs the internal check of the boards.

  • Page 37: Status Overview

    Getting Started 2. Wait for connection to façade/prospector (the unit does provide feedback when it’s ready). 3. Wait for ready state. 4. Sleep 5 seconds. 5. Send JSON “power on” command (to switch in ON mode). 4.4 Status overview Description Once the projector is started, go to Status menu to get an overview of parameters such as : •...

  • Page 38: Increasing The Projector Life Time

    25°C temp condition. 4.7 Operation in 24/7 Mode General When the projector is destined to be operated continuously 24 hours a day / 7 days a week, Barco has a number of recommendations to increase the projector life time: •...
  • Page 39 Getting Started Image 4–4 IR control via reflective screen Hardwired to the mini jack input Plug one end of the remote cable in the connector on the front side (3,5mm mini jack) of the RCU. Plug the other end in the connector on the communication interface of the projector, labelled ‘Remote CTRL’(reference 1, Image 4–5).

  • Page 40: Projector Address

    Getting Started Image 4–6 RCU to one of the IR sensors 4.9 Projector Address Projector address Address installed in the projector to be individually controlled. Broadcast address Projector will always execute the command coming from a RCU programmed with that broadcast address.

  • Page 41: Quick Setup Via Direct Access

    Getting Started 4.10 Quick setup via Direct access Quick source selection Press the Input button on the remote control or local keypad. Image 4–7 The Source selection menu opens on the LCD display. Image 4–8 Example of the input selection menu Use the arrow keys to select the desired source.
  • Page 42 Getting Started Image 4–9 The Test pattern menu opens on the LCD display. Use the arrow keys to select the desired test pattern. R5906852 /06...

  • Page 43: Gui - Introduction

    GUI – Introduction Overview .............................44 Navigation............................45 Test Patterns ..........................47 About this chapter This chapter gives an general overview of the Graphic User Interface. R5906852 /06...

  • Page 44: Overview

    GUI – Introduction 5.1 Overview Disclaimer on GUI images used in this manual The GUI images in this manual are example illustrations and should be treated as such. While the name of the projector displayed in the illustrations may be different from the projector model you are currently using, the menu lay-out and functionality is identical.

  • Page 45: Navigation

    GUI – Introduction Image 5–2 Example of a Dashboard status screen GUI – Main Menu overview The projector on-screen display (OSD) is the primary user interface (UI). From here, you can review and adjust all projector and display settings. The OSD interface uses buttons to display the main menu. Each main menu contains submenus. The OSD can be disabled by pressing the OSD on/off button.
  • Page 46 GUI – Introduction Image 5–4 To start up the menu structure, press MENU (1). Use the arrow keys (Menu Navigation buttons) to navigate to the desired menu item (2). The background color changes to light blue. Press the Menu Selection button (center key of the arrow keys), also called OK button, to activate that item and to jump one level deeper (3).

  • Page 47: Test Patterns

    GUI – Introduction To enter values with the local keyboard, use the arrow keys to select the first digit, press OK. Select the second digit and press OK. Continue until all digits are entered. Close the action by selecting the enter (↵) button and press OK.
  • Page 48 GUI – Introduction Image 5–7 Test patterns menu, test pattern off R5906852 /06...

  • Page 49: Gui - Source

    GUI – Source Displaying a single source ......................50 Displaying multiple sources: Stitched layouts ..................50 Connector Settings ........................51 About the Source menu This menu is used to select, review and configure sources into the projector. R5906852 /06...

  • Page 50: Displaying A Single Source

    GUI – Source 6.1 Displaying a single source About selecting a source Before a source can be projected, the source signal must be connected to the source input(s) of the device and a valid synchronization signal must be available along with the source signal on at least one of the input connectors.

  • Page 51: Connector Settings

    GUI – Source The table below describes the different Stitch Layouts and scan directions. Type of layout Description Available connectors Mode A single source is displayed in Mono / Active • full screen stereo • HDBaseT • DisplayPort (x2) • Dual link DVI-D (x2) : Single •...
  • Page 52 GUI – Source By default all options for every connector are set to automatic, together with the native Extended Display Identification Data (EDID). When entering the menu for each input connector, you can change the following: • Color Space • Signal Range •...
  • Page 53 GUI – Source Image 6–8 Example of connector settings for an HDMI connector You can change the following: • To force a limit on the used signal range, select one of the available signal ranges. • To force a limit on the color space, select one of the available color spaces. •...
  • Page 54 GUI – Source R5906852 /06...

  • Page 55: Gui - Image

    GUI – Image Setting image levels manually......................56 Adjusting the sharpness ........................57 Adjusting the gamma correction.....................58 Setting the desired Gamma type ....................59 Digital Shift & Zoom ........................61 RealColor P7..........................65 Setting the output resolution ......................67 BrilliantColor ..........................68 Displaying HDR content ........................69 R5906852 /06...

  • Page 56: Setting Image Levels Manually

    GUI – Image 7.1 Setting image levels manually Purpose Contrast: Change the contrast of the complete output signal (main and PiP window together) of the projected image. Brightness: Change the brightness of the complete output signal (main and PiP window together) of the projected image.

  • Page 57: Adjusting The Sharpness

    GUI – Image Image 7–4 Example of the image sliders, brightness is the second slider If necessary, use the ▲ or ▼ key to select the other image adjustment options. How to set up Saturation Level In the main menu, select Image → Saturation. Image 7–5 Image menu —...

  • Page 58: Adjusting The Gamma Correction

    GUI – Image Increasing the sharpness will have the best effect in high contrast images, eg a table with text and borders. In a natural picture, high sharpness can be perceived as noise, as all details in the picture will be amplified. Available range: -2 to 8.

  • Page 59: Setting The Desired Gamma Type

    GUI – Image Image 7–10 Image menu – Gamma Use the ▼ key to select the slider. Use the ◄ or ► key to change the gamma value between 1.0 and 2.8 . The default value is 2,2. Tip: The slider can be adjusted with a precision of 0.1. Image 7–11 Example of the gamma menu 7.4 Setting the desired Gamma type About the alternate gamma types...
  • Page 60 GUI – Image Exception when using an HDR source The only alternate color gamma that can not be selected in this menu is PQ/HDR. Because the color output of HDR is dependant on extra factors such as screen luminance, a separate menu has been made available for this (PQ).

  • Page 61: Digital Shift & Zoom

    GUI – Image Image 7–15 Example of selecting a gamma type Tip: If not sure what gamma type to select, keep the default value auto selected. This automatic mode will determine the used gamma type based on the incoming signal. However: keep in mind when using the automatic mode, your media player needs to be configured correctly as well.
  • Page 62 GUI – Image Image 7–16 Originally picture, not digitally zoomed Image 7–17 Picture digitally zoomed in Image 7–18 Picture digitally zoomed out The effect of Digital Shift This function will shift the picture digitally, meaning that the picture will be moved in any direction. As a result, some parts of the picture might be shifted outside the DMD range.
  • Page 63 GUI – Image Image 7–19 Original Picture, not digitally shifted Image 7–20 Picture shifted horizontally Image 7–21 Picture shifted vertically Digital Shift & Zoom In the main menu, select Image → Digital Zoom Shift. Image 7–22 Image menu, digital zoom and shift The Digital Zoom Shift menu is displayed.
  • Page 64 GUI – Image Image 7–23 Example of the digital zoom and shift menu In order to optimize the digital zoom, enable the Zoom slider. In order to optimize the digital shift, enable the Shift slider. When one or both of the modes are enabled, use the arrow keys to select the mini-keypad in this menu. Use the enter key to activate this mini-keypad.

  • Page 65: Realcolor P7

    GUI – Image • Use the ▲ or ▼ key to shift the lens (image) in vertical direction. • Use the enter key to transform the keypad to digital zoom mode (if enabled). • Use the return key to exit without saving. If digital zoom is enabled, you can now do the following: •...
  • Page 66 GUI – Image Choose how to determine the Whitepoint. Choose one of the following: • Coordinates: Configure the white point via specific coordinates. The white point is specified using an x, y coordinate in the CIE 1931 Chart. • Temperature: Configure the white point via a color temperature slider. The white point is specified on a Kelvin scale between 3200K and 13000K tracking along the black body curve.

  • Page 67: Setting The Output Resolution

    Use the Reset icon to return to the default values of the chosen preset. 7.7 Setting the output resolution Setting the output resolution is limited to F80-4K7, F80-4K9 and F80-4K12 projectors. This settings is not available for F80-Q7, F80-Q9 and F80-Q12 version.

  • Page 68: Brilliantcolor Tm

    GUI – Image Image 7–32 Example of the available output resolutions The list of output resolutions varies depending on the projector type. To obtain complete list of output resolutions available for a specific projector, please refer to the concerned projector in “Specifications”, page 145.

  • Page 69: Displaying Hdr Content

    GUI – Image Select the desired BrilliantColor mode. 7.9 Displaying HDR content About HDR and PQ Perceptual Quantizer (PQ) is a non–linear electro-optical transfer function (EOTF) that allows for the display of High Dynamic Range (HDR) content with a luminance level of up to 10 000 cd/m² and can be used with the Rec.
  • Page 70 GUI – Image Image 7–37 Example of the HDR menu Select the desired Screen luminance unit (nits or foot-Lambert). Enter the Screen luminance (which is measured in nits or foot-Lambert). Alter the HDR boost if necessary. You can modify this value to somewhere between 0.8 and 1.2. R5906852 /06...

  • Page 71: Gui - Installation

    GUI – Installation Configuring the lens, optical zoom-focus ..................72 Configuring the lens, shift ......................72 Configuring the lens, Shift to center....................73 Configuring the lens, tilt sensor ......................74 Manipulating the rigging frame ......................74 Manipulating the rigging frame, center position ................76 Orientation ...........................77 Scaling modes..........................77 Warping ............................79 8.10 Blending &...

  • Page 72: Configuring The Lens, Optical Zoom-Focus

    GUI – Installation 8.1 Configuring the lens, optical zoom-focus What can be done? If a motorized lens has been mounted onto the projector, you can fine-tune the projected image. Zoom - Focus In the main menu, select Installation → Lens → Zoom focus. Image 8–1 Lens menu, Zoom &...

  • Page 73: Configuring The Lens, Shift To Center

    GUI – Installation Image 8–3 Lens menu, lens shift The Lens shift menu is displayed. Image 8–4 Example of the lens shift menu Use the ◄ and ► keys to shift the lens (image) in horizontal direction. Use the ▲ and ▼ keys to shift the lens (image) in vertical direction. 8.3 Configuring the lens, Shift to center What can be done? The lens can be forced back to the center position by selecting Shift to center.

  • Page 74: Configuring The Lens, Tilt Sensor

    GUI – Installation 8.4 Configuring the lens, tilt sensor When to use the tilt sensor menu The projector has a built-in tilt sensor that detects the angle at which the projector is mounted. If you are in a situation where you need to fine-tune the projector because you want to achieve a picture at a specific angle (e.
  • Page 75 GUI – Installation Image 8–8 Lens menu – Motorized frame The Motorized frame menu is displayed. Image 8–9 Example of the Motorized frame menu Press the OK key or button to activate the frame shift motors. Image 8–10 Example of horizontal and vertical frame shift Use the ▲...

  • Page 76: Manipulating The Rigging Frame, Center Position

    GUI – Installation Image 8–11 Example of frame rotation Use the ◄ or ► button to rotate the rigging frame (image) either clockwise or counterclockwise. Confirm with the OK button to return to the frame shift menu, or use the Menu back button to return to the Lens menu.

  • Page 77: Orientation

    GUI – Installation Confirm to reset the frame to its center position. Wait until the frame motors have stopped before doing other actions. 8.7 Orientation What can be done? The way of physical installation of the projector can be defined to the projector. The following installation are possible: •...
  • Page 78 GUI – Installation Scaling Mode Explanation Example image Fill aspect Default scaling mode. Stretches the image to the native resolution of the DMD, while respecting the original aspect ratio. An exact rendering of the source signal, which may be smaller than the native resolution Fill screen Fills the screen to the screen size defined in the Screen Size menu, while respecting the original aspect ratio.

  • Page 79: Warping

    GUI – Installation Image 8–17 Example of the scaling mode menu In the Scaling menu, select the desired scaling mode and confirm. 8.9 Warping About warping Image warping is the process of digitally manipulating an image to compensate for the distortion of the screen. Consequently, it can also be used to generate an image with irregular shape.

  • Page 80: Warping - Screen Size

    GUI – Installation Image 8–19 Example of the Warp menu In the Warp menu, click Warp to toggle between On and Off. Image 8–20 Image 8–21 8.9.2 Warping – Screen Size About (Warp) Screen Size adjustment If the used source aspect ratio is different than the projector aspect ratio, e.g. source is 16:9 and projector is 16:10, then black bars will be projected.
  • Page 81 GUI – Installation Image 8–23 Warp menu, screen size The Screen Size menu is displayed. Image 8–24 Example of the screen size menu Select either Screen width or Screen height. Set the new value to shrink either the width or height of the warp outline so that the outline is equal with the active source.

  • Page 82: Warping - 4 Corners Adjustment

    GUI – Installation 8.9.3 Warping – 4 corners adjustment About 4 Corners adjustment 4 corner adjustment is typically used when the mechanical installation of the projector prevents it from pointing perpendicularly at the screen. For example, you can overshoot the screen and use 4 corner adjustment to pull your projected image corners back into the screen.

  • Page 83: Warping - Bow

    GUI – Installation Image 8–29 Example of 4 corners warping menu, with helper lines active on the edges of the screen To set warping on one of the four corners, select one of the four corners and confirm. Set the desired X and Y coordinates for this corner, using the arrow keys, and confirm. After confirming, the helper lines for that corner will jump to the entered XY coordinate (if helper lines were enabled).
  • Page 84 GUI – Installation Image 8–31 Bow distortion Definition of angle and linearity (length) in the bow warp procedure Image 8–32 Symmetric bow correction In the main menu, select Installation → Warp → Bow. Image 8–33 Warp menu, Bow The bow menu is displayed. To enable bow correction, make sure the Bow slider is enabled (visible by the blue highlight).
  • Page 85 GUI – Installation Image 8–34 Both the Bow and Symmetric sliders are set to on Use the arrow keys to select the helping lines that represent the picture and confirm. The helping lines that represent the projected picture are now colored blue, while the others are colored white.
  • Page 86 GUI – Installation The correction will occur symmetrically on each side of the center of the highlighted side. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has been achieved. Image 8–37 Example of a symmetric bow correction Asymmetric bow correction In the Bow menu, enable the Bow slider and disable the symmetric slider.
  • Page 87 GUI – Installation Image 8–39 Select the desired slider and confirm. Image 8–40 Adjust angle and linearity (length) individually to obtain the correct correction. Press enter to confirm and to switch between angle and length. Tip: Adjust the angle by using the up and down arrow keys. Adjust the linearity by using the left and right arrow keys.

  • Page 88: Warping - Warp Files

    GUI – Installation To reset the bow adjustments, select Reset and confirm. 8.9.5 Warping – Warp files About custom Warp Files Next to setting your specific warp configuration in the GUI, you can also upload or download a custom warp grid in XML format to/from the projector.

  • Page 89: Warping - Latency Control In A Multi Projector Setup

    GUI – Installation Image 8–44 Example of the Warp files menu Make sure the Enable slider is set to right. Select the desired warp file. Image 8–45 Example of the Warp files menu 8.9.6 Warping – Latency control in a multi projector setup Transport latency The added delay in the image processing chain.
  • Page 90 GUI – Installation Image 8–46 Example of the Transport delay in the status menu Identify the projector with the longest delay. For each projector in the setup, select Installation → Warp in the main menu. Image 8–47 Installation menu, Warp In the Warp menu, select Transport Delay.

  • Page 91: Blending & Masking

    GUI – Installation Click “Apply” to confirm the value. Repeat this process for every projector in the setup. 8.10 Blending & masking About blending Blending is used in multi channel installation to have a seamless transition between the channels. Image blending gives the appearance of a single view, thus achieving realistic immersion for the majority of wide screen applications.
  • Page 92 GUI – Installation Image 8–52 Example of the basic blend menu To enable blending, put the Enable switch to the right. The color of the switch becomes blue when enabled. To project masking lines on the screen, put the Show lines switch to the right. The color of the switch becomes blue when enabled.

  • Page 93: Blend & Blend Mask

    GUI – Installation Do not forget to disable the Show lines button after you achieved the desired blend zone. 8.10.2 Blend & Blend mask About masking and blending width or height Offset is used to clip the image on one or multiple sides (masking). This is used to hide parts of the picture that should not be shown on the screen.
  • Page 94 GUI – Installation Image 8–56 Start position (mask) Blending width Select one of the four starting positions values with the arrow keys and confirm. Use the arrow keys or remote digits to change the value of the mask and confirm. Repeat this process for all other desired sides.

  • Page 95: Blend Files

    GUI – Installation Image 8–57 Set up for projector 1 Image 8–58 Set up for projector 2 8.10.3 Blend Files About custom Blend Files Next to setting your specific Blending configuration in the GUI, you can also upload or download a custom Blend configuration file in png, jpg or tiff format to/from the projector.

  • Page 96: Basic Black Level Adjustment

    GUI – Installation Image 8–59 Blend and mask menu, Blend files The Blend Files menu is displayed. Image 8–60 Example of the blend files menu If any custom Blend files are available, select the desired file. Image 8–61 To enable the selected blend file, make sure the Enable slider is set to the right. The color of the slider becomes blue when enabled.
  • Page 97 GUI – Installation You can also specify the offsets manually by turning off the automatic calculation. The black level value is adjusted in a 16–bit resolution from 0 to 65535. The following figure shows how this occurs in a side by side configuration without any correction of the black level.

  • Page 98: Rgb Gain Adjustment

    GUI – Installation Move the cursor to Level, press enter and adjust this level until the black level equals the level in the blend zone. This value can also be entered by the numeric keys on the remote control. Repeat the same procedure for any other projector connected to this projector, but on the opposite side. Note: Do not forget to disable the Show lines button after you achieved the desired blend zone.

  • Page 99: Black Level Files

    GUI – Installation Image 8–67 Example of the default black level menu Select one of the three sliders on the bottom of the menu (Red, Green or Blue). Use the left and right arrow keys to modify the gain of the chosen color. Repeat for every slider until the desired result is achieved on screen.

  • Page 100: Illumination

    GUI – Installation Image 8–69 Example of the black level files menu If any custom Black Level adjustment files are available, select the desired file. Image 8–70 Example of custom black level files selected Make sure the Enable slider is set to the right to activate the selected black level file 8.11 Illumination What can be done? Within a certain percentage, the light output of the light source can be reduced by reducing the power slider.

  • Page 101: Projection

    GUI – Installation How to reduce the power In the main menu, select Installation → Illumination. Image 8–71 Installation menu, illumination The Illumination menu is displayed. Image 8–72 Example of the Illumination menu Use the Slider to change the power value. Enable the Constant light output slider if you want to enable CLO mode.

  • Page 102: Setup Process 3D Projection

    GUI – Installation The viewer wears glasses which contain a pair of opposite polarizing filters. As each filter only passes light which is similarly polarized and blocks the opposite polarized light, each eye only sees one of the images, and the effect is achieved.

  • Page 103: Setup

    Why change the 3D setup? While Barco can provide a 3D emitter and active shutter glasses as options to this projector, you are also free to use a 3D emitter and active shutter glasses of your own choice. Since glasses and emitter can have various specifications compared to the ones Barco can provide, the 3D setup menu allows you to configure the output image to the specifications of your glasses and emitter.
  • Page 104 GUI – Installation Image 8–73 Installation menu, 3D setup The 3D setup menu is displayed. Image 8–74 Example of the 3D setup menu on a UDX If it is necessary to invert the stereo sync output, enable the Swap eyes option. If the projected moving 3D content doesn’t look smooth enough, enable the Swap frame pair option to help improve this.

  • Page 105: Gui - Macro's And Projector Profiles

    GUI – Macro’s and projector profiles Saving the current projector settings in a profile ................106 Assigning a created projector profile to a preset ................108 Deleting a projector profile......................109 About macro’s and projector profiles Projectors can have different settings, depending on different environments (e. g. playing video games in a bright environment or playing a movie in a dark environment), or using different mediums (e.g.

  • Page 106: Saving The Current Projector Settings In A Profile

    GUI – Macro’s and projector profiles 9.1 Saving the current projector settings in a profile Which settings can be saved to a profile? Profile setting Settings saved name Source Active source selection & EDID Image • All basic image settings: contrast, brightness, saturations, sharpness & gamma •...
  • Page 107 GUI – Macro’s and projector profiles Image 9–1 Profiles menu, edit The Profile edit menu is displayed. Image 9–2 Profile edit menu Use the arrow keys to select New Profile... and confirm. The New Profile pane is expanded and fully displayed. Image 9–3 Example of the new profile pane Use the arrow keys and the okay key to select any of the settings you wish to save in this macro.

  • Page 108: Assigning A Created Projector Profile To A Preset

    GUI – Macro’s and projector profiles 9.2 Assigning a created projector profile to a preset This procedure assumes you have created at least one projector profile. For more info on saving projector settings to a profile, see “Saving the current projector settings in a profile”, page 106.

  • Page 109: Deleting A Projector Profile

    GUI – Macro’s and projector profiles The preset slot is now shown next to the profile name. Image 9–7 Example of projector profiles allocated to preset slots (here slot 00 and 04) 9.3 Deleting a projector profile How to delete a profile In the main menu, select Profiles →...
  • Page 110 GUI – Macro’s and projector profiles Image 9–10 Example of a projector profile with available preset slots Use the arrow keys to select Delete and confirm. confirm the delete action. R5906852 /06...

  • Page 111: Gui - System Settings

    GUI – System Settings 10.1 Communication .......................... 112 10.2 IR control ........................... 114 10.3 Setting a custom projector name....................117 10.4 DMX ............................118 10.5 Changing the User Interface language ..................119 10.6 Themes ............................. 120 10.7 Setting the measurement system ....................120 10.8 ECO mode ..........................

  • Page 112: Communication

    GUI – System Settings 10.1 Communication About a network connection Network connection is required to communicate with the projector via LAN or Internet. The setup could be done manually (set address, subnet mask and default gateway according to network specification), or automatically assign (DHCP).
  • Page 113 GUI – System Settings Image 10–1 Communication menu, LAN The LAN menu is displayed. Image 10–2 Example of the LAN menu To enable Automatic, make sure the Automatic slider is set to the right. The color of the slider will be blue. An IP address will be automatically assigned if it can make a connection to the network..

  • Page 114: Ir Control

    GUI – System Settings Image 10–4 Example of the LAN menu Disable the Automatic slider. The slider becomes gray. Use the arrow keys to select Address and press OK button to activate the input box. Image 10–5 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address.

  • Page 115: Projector Address

    The following choices are possible: • Generic IR (address 0) • Barco broadcast IR (address 1) Select APPLY and click OK to apply the changes. 10.2.2 Projector address About individual projector address As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or with a computer using serial communication.

  • Page 116: Ir Sensors

    GUI – System Settings The IR control menu is displayed. Image 10–9 Example of the IR control menu Select the current projector address and enter a new address. Select APPLY and click OK to apply the changes. From now on the projector will only listen to this new address and to its broadcast address. 10.2.3 IR sensors What can be done? Each IR sensor can be individually disabled or enabled.

  • Page 117: Setting A Custom Projector Name

    GUI – System Settings Image 10–11 Example of the IR control menu To disable an IR sensor, select the slider and drag to the left. A blue slider means an active IR sensor. A gray slider means an inactive IR sensor. Select APPLY and click OK to apply the changes.

  • Page 118: Dmx

    GUI – System Settings Press confirm to edit the Host name field. Use the digital keyboard to change the Hostname to the desired custom name. Press the OK key, or press the enter icon to confirm the typed name. Click Apply to update the host name. 10.4 DMX About the ways to control the projector via DMX DMX signals can be connected to the DMX In port on the communicator interface when using a standard DMX...

  • Page 119: Changing The User Interface Language

    GUI – System Settings Image 10–15 Example of the DMX menu Choose the desired DMX mode. Choose the desired starting channel. Choose whether or not you want the Auto power-down feature to be enabled. If enabled, determine the time-out. If required, enable Art-Net. If enabled, determine the desired Art-Net Universe and Art-Net channel. If a front XLR connector is available on your projector, you can enable the output voltage on this connector.

  • Page 120: Themes

    GUI – System Settings Select the desired language. You can choose between the following: • German (DE) • English (EN-US) • Spanish (ES) • French (FR) • Japanese (JA) • Korean (KO) • Portuguese (PT-BR) • Russian (RU) • Chinese (ZH) 10.6 Themes About Themes Themes are used to apply a predefined functionality to the OSD display.

  • Page 121: Eco Mode

    GUI – System Settings The Units menu is displayed. Image 10–20 Example of the Units menu Select the desired Temperature unit and Length unit and confirm. 10.8 ECO mode About Standby ECO When the ECO mode is enabled, the projector will automatically go to ECO standby mode after a time-out (default 15 minutes).

  • Page 122: Lens Features

    GUI – System Settings How to change the power saving features? In the main menu, select Settings → Power settings. Image 10–22 Settings menu, Power settings The power settings menu is displayed. Image 10–23 Example of the power settings menu To change the time the projector goes to stand-by mode, select the desired Standby time-out.

  • Page 123: Controlling The Backlight Of The Lcd Display

    GUI – System Settings Image 10–25 Example of the lens features menu Depending on the mounted lens type, different functions may or may not be available such as: • Focus • Horizontal lens shift • Vertical lens shift • Zoom To enable/disable a feature, click on the slider and drag it to the left to disable the feature or the right to enable the feature.

  • Page 124: Factory Reset

    GUI – System Settings Image 10–27 Example of the backlight menu Choose the desired setting for the backlights. Select one of the predetermined options, or a custom value. 10.12 Factory reset What can be done? All settings and values on the projector can be reset to its default values. This can be done for one or more settings separately, or all settings together (factory reset).
  • Page 125 GUI – System Settings Option Setting Factory setting Aspect Ratio 16:9 Scaling Fill Aspect ratio Image Orientation Orientation Table, Front Image RealColor P7 P7 Realcolor all set to native Image Resolution Output Resolution (if applicable) 4K UHD Image Source Source files Standard Image 3D Sync delay...

  • Page 126: Lens Calibration

    GUI – System Settings Image 10–29 Example of the reset menu In the Reset menu, select RESET ALL and confirm with OK. How to reset one or more projector settings In the main menu, select Settings → Maintenance → Reset. Image 10–30 Settings menu, factory reset The Reset menu is displayed.
  • Page 127 GUI – System Settings Image 10–32 Maintenance menu, lens calibration The Lens Calibration menu is displayed, alongside the status of each Image 10–33 Example of the lens calibration menu In the Lens Calibration menu, select the desired calibration action and click OK. You can select one of the following functions, depending on the type of mounted lens: •...

  • Page 128: Operational Mode

    10.14 Operational mode Overview The F80 range now offers you a possibility to choose the most relevant user mode for your application. You can select, setup and tweak the mode which you need, while a smart monitoring algorithm in the background keeps on balancing and optimizing between illumination output power, minimal noise level and optimized temperature household.

  • Page 129: Advanced Settings

    GUI – System Settings 10.15 Advanced Settings About the Advanced Settings menu The Advanced Settings and Remote access menus are hidden by default for the regular user. you can only make these menus visible after entering a Service code with the remote control. If you have a service code, navigate to the Maintenance menu.

  • Page 130: Remote Access - Enable Camera Preview

    GUI – System Settings The Remote access menu is displayed. Image 10–39 Example of the Remote access menu Enable the slider to enable the source preview feature. Image 10–40 Remote access menu, Source preview is enabled 10.15.2 Remote access – Enable camera preview Camera preview Up until Pulse software 2.0.x, you were able to see the footage of the camera when you remotely accessed the projector.

  • Page 131: Service - Color Wheel

    10.15.3 Service – Color Wheel About Color Wheel F80 is equipped with only one color wheel, which is controlled by the software. Using the advanced settings menu, a Slider makes it possible to fine-tune the color wheel for variation. How to fine-tune the color wheel In the main menu, select Settings →...

  • Page 132: Advanced Settings - Color

    GUI – System Settings Image 10–46 Example of the Color wheel menu Change the slider to the desired position. 10.15.4 Advanced Settings – Color CAUTION: The native colors have been measured and set during factory production. Do not change them, unless parts of the optical path have been replaced due to servicing. If you need to change the native colors on the device, make sure to also perform a P7 calibration, using the Projector Toolset and a chroma meter.

  • Page 133: Advanced Settings - Statistics

    GUI – System Settings Image 10–49 Example of the RealColor calibration menu Select the desired value to change and confirm. Change the values to the desired position, taking into account the color gamut values. Select APPLY and confirm. 10.15.5 Advanced Settings – Statistics What can be seen? The statistics screen displays the general information about the projector, spread over different tab pages.

  • Page 134: Advanced Settings - Pixel Shift

    GUI – System Settings The Statistics menu will be displayed. Image 10–52 Use the left and right keys to shift between Fan statistics, System statistics and Light source statistics. 10.15.6 Advanced Settings – Pixel Shift About Pixel Shift The 4k projector variants use an actuator to achieve a 4k resolution. This actuator can be calibrated by using the XPR test pattern and subsequently adjusting parameters in the Pixel shift menu until the desired result is achieved.

  • Page 135: Checking The Status Of The Laser Banks

    GUI – System Settings Image 10–54 Advanced settings, Pixel shift The Pixel Shift menu will be displayed. Image 10–55 Example of the pixel shift menu Use the Gain and Resonance sliders to fine tune the actuator until the center marker hits the bullseye. Use Align both following images with the sliders available in this menu.
  • Page 136 GUI – System Settings Image 10–57 Maintenance menu, Advanced Enter the service code. In the Service menu, select Laser Banks. Image 10–58 Advanced menu, Laser banks The Laser group statistics menu is displayed. Image 10–59 Example of the Laser group statistics menu Select the desired laser group.

  • Page 137: Advanced Settings - Tilt Sensor Calibration

    GUI – System Settings If you want notifications to be disabled for a specific group of laser banks, disable the Enable notifications for this group slider. 10.15.8 Advanced settings – Tilt sensor calibration CAUTION: The calibration procedure resets the values of the tilt sensor to 0 in the current position of the projector.
  • Page 138 GUI – System Settings The tilt sensor will be set to zero in the current position of the projector. R5906852 /06...

  • Page 139: Gui - Status Menu

    GUI – Status menu 11.1 Status menu overview......................... 140 No settings can be modified in the status menu. Its only for consulting. R5906852 /06...

  • Page 140: Status Menu Overview

    GUI – Status menu 11.1 Status menu overview How to access the status menu While in the main menu, press Status. Image 11–1 Main menu, status The status menu is displayed. Image 11–2 Example of a status menu Swipe the screen to switch between the Status and About page. Image 11–3 Example of the About page in the Status menu What can be seen on the Status page? •...
  • Page 141 GUI – Status menu What can be seen on the About page? • Projector information, e.g. firmware version, serial number and projector article number • Mounted lens: Type and description • Basic statistics, e.g. light source run time, projector runtime R5906852 /06...
  • Page 142 GUI – Status menu R5906852 /06...

  • Page 143: Maintenance

    Maintenance 12.1 Cleaning the lens........................144 12.2 Cleaning the exterior of the projector .................... 144 12.3 Filters ............................144 About this chapter This chapter contains general maintenance procedures. R5906852 /06...

  • Page 144: Cleaning The Lens

    General info regarding Air intake and filters. The F80 is shipped without any filters. The air intake is just protected by a mesh. This mesh has to be vacuum cleaned occasionally when needed. There is no specific interval for this operation.

  • Page 145: A Specifications

    Specifications Specifications of the F80-Q7......................146 Specifications of the F80-Q9......................147 Specifications of the F80-Q12...................... 149 Specifications of the F80-4K7 ...................... 150 Specifications of the F80-4K9 ...................... 152 Specifications of the F80-4K12 ....................153 Dimensions of a F80 ........................155 Technical Regulations .........................

  • Page 146: Specifications Of The F80-Q7

    Specifications A.1 Specifications of the F80-Q7 Overview Projector type Single-chip DLP laser phosphor projector Resolution 2,716 x 1,600 (WQXGA+ native) Brightness 7,000 center lumen* 6,600 ansi lumen 7,500 ISO lumen Contrast ratio 1,200:1 sequential, 10,000:1 dynamic** Brightness uniformity > 90%...

  • Page 147: Specifications Of The F80-Q9

    Warranty Limited 3 years parts and labor. Extendable up to 5 years * When measured with the GLD 1.43-2.12:1 lens in Wide Angle ** SW upgradable. Please contact an authorized Barco representative for details. A.2 Specifications of the F80-Q9 Overview...
  • Page 148 CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO Warranty Limited 3 years parts and labor. Extendable up to 5 years * When measured with the GLD 1.43-2.12:1 lens in Wide Angle ** SW upgradable. Please contact an authorized Barco representative for details. R5906852 /06...

  • Page 149: Specifications Of The F80-Q12

    Specifications A.3 Specifications of the F80-Q12 Overview Projector type Single-chip DLP laser phosphor projector Technology 0.67" DMDTM x1 Resolution 2,716 x 1,600 (WQXGA+ native) Brightness 11,300 center lumens 10,700 ANSI lumens 12,000 ISO lumens Contrast ratio 1,200:1 sequential, 10,000:1 dynamic** Brightness uniformity >...

  • Page 150: Specifications Of The F80-4K7

    Class A, RoHS Warranty 3 years* Notes * except on light source: 20.000 hrs in normal mode or 3 years ** SW upgradable. Please contact an authorized Barco representative for details. A.4 Specifications of the F80-4K7 Overview Projector type Single-chip DLP laser phosphor projector...
  • Page 151 Specifications Aspect ratio 16:10 Lens type GLD/FLDX/FLD+(lens adapter needed) Optical lens shift Vertical up to 125%, depending on lens Horizontal up to 50%, depending on lens Motorized zoom and focus (with lens memory on GLD and FLDX lenses) Motorized lens shift (with position memory on all lenses) Color correction P7 RealColor™...

  • Page 152: Specifications Of The F80-4K9

    Warranty Limited 3 years parts and labor. Extendable up to 5 years * When measured with the GLD 1.43-2.12:1 lens in Wide Angle ** SW upgradable. Please contact an authorized Barco representative for details. A.5 Specifications of the F80-4K9 Overview...

  • Page 153: Specifications Of The F80-4K12

    Warranty Limited 3 years parts and labor. Extendable up to 5 years * When measured with the GLD 1.43-2.12:1 lens in Wide Angle ** SW upgradable. Please contact an authorized Barco representative for details. A.6 Specifications of the F80-4K12 Overview...
  • Page 154 Specifications Screen size max 20m Optical lens shift Vertical up to 125%, depending on lens Horizontal up to 50%, depending on lens Motorized zoom and focus (with lens memory on GLD and FLDX lenses) Motorized lens shift (with position memory on all lenses) Color correction P7 RealColor™...

  • Page 155: Dimensions Of A F80

    FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS Warranty 3 years* Notes *except on light source: 20.000 hrs in normal mode or 3 years ** SW upgradable. Please contact an authorized Barco representative for details. A.7 Dimensions of a F80 Overview 107,5 110,5...

  • Page 156: Technical Regulations

    Specifications Fixation points Image A–2 CAUTION: Take care to use adapted screws when the projector is mounted with fixing screws (e.g. ceiling mount configuration). Follow the exact mounting instructions as explained on underside the projector. Longer screws may damage internal parts of the projector. A.8 Technical Regulations Certificates Image A–...

  • Page 157: B Environmental Information

    Environmental information Disposal information ........................158 China RoHS compliance ......................158 Taiwan RoHS compliance......................160 Turkey RoHS compliance......................161 Production address........................161 Contact information........................161 Product Info (Taiwan) ........................162 Download Product Manual ......................162 R5906852 /06...

  • Page 158: Disposal Information

    Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 159 Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 160: Taiwan Rohs Compliance

    Environmental information B.3 Taiwan RoHS compliance 限用物質含有情況標示聲明書 (Declaration of the Presence Condition of the Restricted Substances Marking) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercu- Cadmi- Hexava- Polybromi- Polybromi- lent nated nated (Pb) chromi-...

  • Page 161: Turkey Rohs Compliance

    傳真 (Fax)：02-7715 0298 電話 (Tel)：02-7715 0299 E-mail: service.taiwan@barco.com Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. Contact information Norway Barco Fredrikstad as...

  • Page 162: Product Info (Taiwan)

    型號: GPC B.8 Download Product Manual Download Product Manual Product manuals and documentation are available online at www.barco.com/td. Registration may be required; follow the instructions given on the website. IMPORTANT! Read Installation Instructions before connecting equipment to the mains power supply.

  • Page 163: C Overview Video Timings For Video Interfaces

    Overview video timings for video interfaces Overview video timings ....................... 164 Overview video timings SDI Inputs ....................165 Overview video timings HDMI 2.0 inputs..................166 Overview video timings DisplayPort 1.2 inputs ................167 Overview video timings HDBaseT input ..................169 Overview video timings DVI Inputs ....................

  • Page 164: Overview Video Timings

    C.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.

  • Page 165: Overview Video Timings Sdi Inputs

    Overview video timings for video interfaces Compatible signal Vertical refresh rate Resolution HDMI 2.0 DisplayPort HDBaseT DVI Inputs (Hz) 12G SDI Input 1.2 Inputs Input 2048 x 1080 2048 x 1080 — — — — 2560 x 1600 — 2560 x 1600 —...

  • Page 166: Overview Video Timings Hdmi 2.0 Inputs

    Overview video timings for video interfaces Video timing Vertical refresh rate Type Port Type (active pixels x active (Hz) lines) 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 3G-SDI Single Link & Quad Link 1920 x 1080 3G-SDI Single Link &...

  • Page 167: Overview Video Timings Displayport 1.2 Inputs

    Overview video timings for video interfaces Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) 1280 x 960 1280 x1024 1400 x 1050 1600 x 1200 1920 x 1080 Frame packing Top – bottom 1920 x 1080 1920 x 1080 1920 x 1080 Side by Side (SbS) progressive...
  • Page 168 Overview video timings for video interfaces Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines)

  • Page 169: Overview Video Timings Hdbaset Input

    Overview video timings for video interfaces Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 2048 x 2160 2 Column mode (2 x 1 Active 3D layout) 2560 x 1080...

  • Page 170: Overview Video Timings Dvi Inputs

    Overview video timings for video interfaces Video timing Vertical refresh rate (Hz) 3D Support (active pixels x active lines) 1280 x1024 1400 x 1050 1600 x 1200 1920 x 1080 Frame Packing. Top – Bottom 1920 x 1080 1920 x 1080 1920 x 1080 Side by Side (SbS) progressive 1920 x 1080...
  • Page 171 Overview video timings for video interfaces Available layout modes, other Video timing Vertical refresh rate (Hz) than standard layout (1 x 1 (active pixels x active lines) layout) 640 x 480 800 x 600 1024 x 768 1280 x 720 1280 x 720 1280 x 800 1280 x 960...
  • Page 172 Overview video timings for video interfaces Available layout modes, other Video timing Vertical refresh rate (Hz) than standard layout (1 x 1 (active pixels x active lines) layout) 4096 x 2160 4096 x 2160 R5906852 /06...

  • Page 173: D Dmx Chart

    DMX chart R5906852 /06...

  • Page 174: Dmx Chart, Basic

    DMX chart D.1 DMX chart, Basic Overview Cha- Function Value Default Action nnel Shutter + Intensity 0 - 7 Close shutter 8 - 255 Adjust intensity Function select 0 - 7 No function 8 - 15 Activate default macro (full screen) (If held for 1 second) 16 - 23 Activate macro 2 (If held for 1 second) 24 - 31...
  • Page 175 DMX chart Cha- Function Value Default Actions nnel 8 - 15 Activate default macro (full screen) (If held for 1 second) 16 - 23 Activate macro 2 (If held for 1 second) 24 - 31 Activate macro 3 (If held for 1 second) 32 - 39 Activate macro 4 (If held for 1 second) 40 - 47...
  • Page 176 DMX chart Cha- Function Value Default Actions nnel 16 - 20 Set light source to 80% 21 - 23 Set light source to 75% 24 - 27 Set light source to 70% 28 - 31 Set light source to 65% 32 - 35 Set light source to 60% 36 - 39...
  • Page 178 R5906852 /06 | 2021-02-22 www.barco.com...
