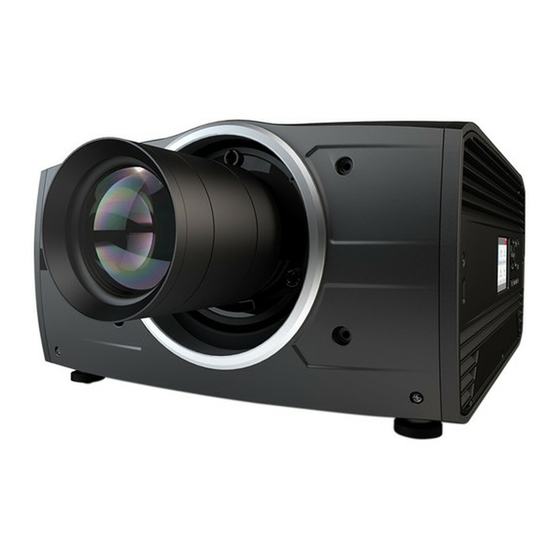

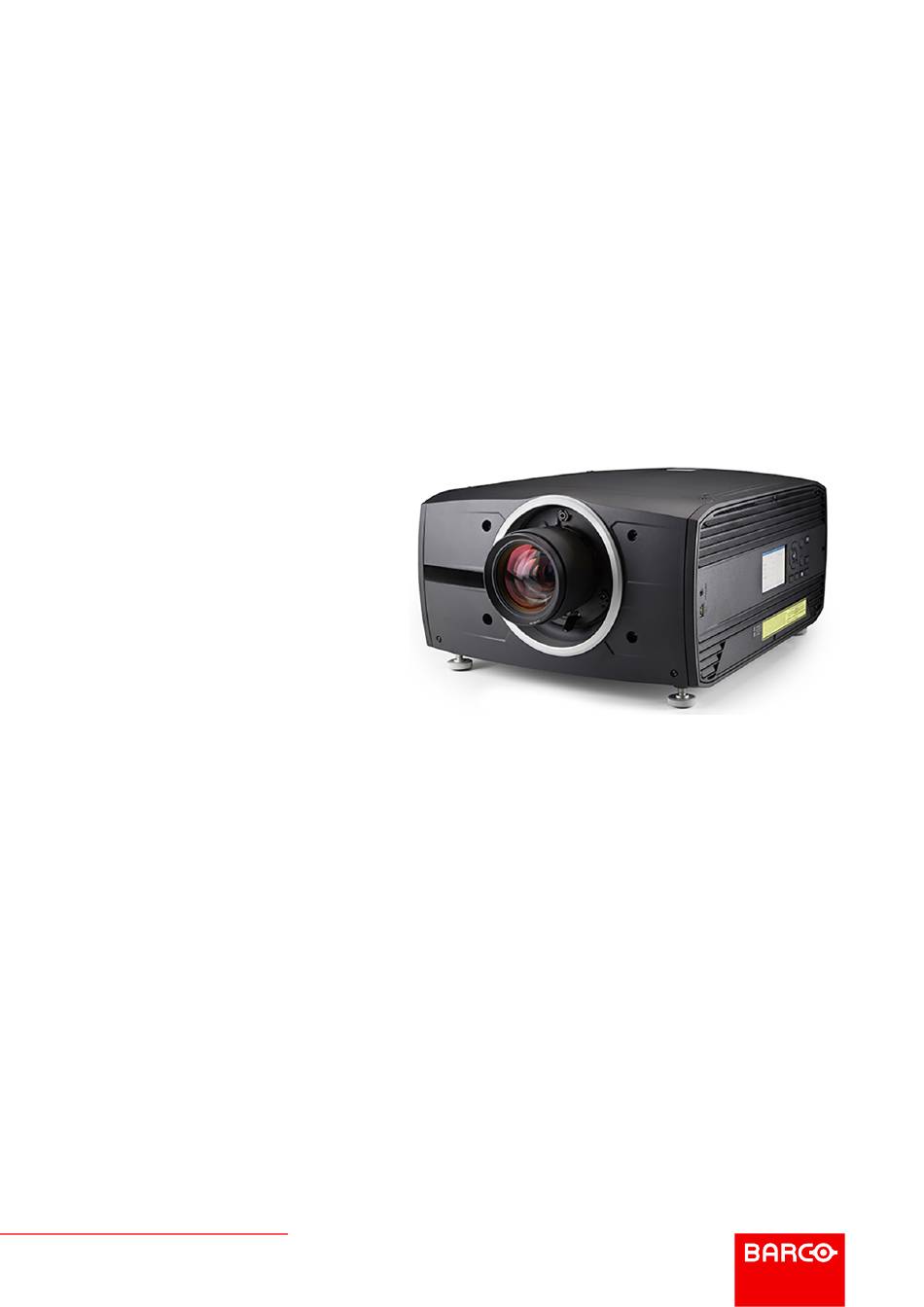

Page 1 F70 Series User Manual ENABLING BRIGHT OUTCOMES...
Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
Page 4 This software and the accompanying files are sold “as is” and without warranties as to performance or merchantability or any other warranties whether expressed or implied. In no event shall Barco be liable for damage of any kind, loss of data, loss of profits, business interruption or other pecuniary loss arising directly or indirectly.
Page 5: Table Of Contents
2.9.5 Pulse RCU, function of the “RGB filter” button ...................36 2.9.6 Enable / Disable Remote Control........................36 2.9.7 Wired RC connection..............................37 2.10 Projector Address ...................................37 2.10.1 Controlling the projector ............................37 2.11 Connector panel ....................................38 2.12 Color Wheels.....................................39 601–426 /15 F70 Series...
Page 6 Going from READY to ECO standby........................79 5.4.6 Going from ECO to ON ............................79 5.4.7 Wake On LAN (WOL) ...............................79 Power modes ....................................80 Customize projector settings..............................80 User interface....................................80 5.7.1 On Screen Display (OSD) ............................80 6 Source menu......................................83 601–426 /15 F70 Series...
Page 7 Basic blend setup procedure..........................127 8.5.5 Black level setup procedure..........................128 8.5.6 Color level adjustment procedure........................129 8.5.7 Black level files................................130 8.5.8 Blend files..................................131 8.5.9 Advanced blend ................................ 132 CLO feature..................................... 132 8.6.1 Introduction.................................. 132 601–426 /15 F70 Series...
Page 8 10.15 Lens calibration..................................... 158 10.16 Reset........................................159 10.17 Controlling the backlight of the LCD Display ........................ 161 11 GUI – Status menu................................... 163 11.1 Status menu overview................................164 12 3D ............................................. 167 12.1 Setup 3D mode..................................... 168 601–426 /15 F70 Series...
Page 9 E Regulatory information................................. 205 Product compliance..................................206 Turkey RoHS compliance................................ 206 China RoHS compliance................................207 Taiwan RoHS compliance ............................... 208 Contact information..................................209 Production address..................................209 Product Info..................................... 210 Disposal Information .................................. 210 Disposal of batteries................................... 210 Index ..........................................211 601–426 /15 F70 Series...
Page 10 601–426 /15 F70 Series...
Page 11: Safety
Defining the GP6 platform The F90 series products in general, are all products within the Barco GP6 Platform. Defining the GP7 platform The F70 series products in general, are all products within the Barco GP7 Platform 601–426 /15 F70 Series...
Page 12: General Considerations
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation. Notice on optical radiation F70 Series • The projector is Class 1 laser product that conforms with IEC EN 60825-1:2014. The projector conforms with IEC 60825–1:2007, and with performance standards for laser products under 21 CFR 1040, except...
Page 13: Important Safety Instructions
HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. Only Barco authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL.
Page 14 To prevent fire hazard • Barco projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe. Exposing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that material, resulting in a fire.
Page 15 Never use water on an electrical fire. • Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
Page 16: Projector Hazard Distances
See table below for a definition of hazardous distances versus the throw ratio of the lens. For F70 Series: WARNING. This may be a RG3 laser Product, dependent on which lens used. This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 4.7 is installed.
Page 17 (RZ) in the theater must be established. This can be done by using physical barrier, like a red rope as illustrated in image 1-2. The restricted area sticker can be replaced by a sticker with only the symbol. 601–426 /15 F70 Series...
Page 18 The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.
Page 19: Hazard Distance For Fully Closed Projection System
To determine the HD distance for the used lens and projector model see graphs in chapter "HD in function of the lens Throw Ratio (TR)", page 8 . HDreflection = 25% (HD – PD) 601–426 /15 F70 Series...
Page 20: Hd In Function Of The Lens Throw Ratio (Tr)
TR (Throw Ratio) The ratio of the distance to the screen (throw) to the screen width. HD versus Throw Ratio Image 1–4 Hazard Distance in meters versus Throw ratio of the lens for the F90 projectors 601–426 /15 F70 Series...
Page 21: Safety Symbols
FOR LASER PRODUCTS UNDER 21 CFR 1040, EXCEPT RESPECT TO THOSE CHARACTERISTICS AUTHORIZED BY VARIANCE NUMBER 2016-V-0144 EFFECTIVE ON DECEMBER 12, 2019. For F70 Series: Warning label Caution! With Interchangeable lens with throw ratio greater then 4.7, 601–426 /15 F70 Series...
Page 22 Refer User manual. pour des applications grand public. For F70 Series: FDA Label THIS PRODUCT IS IN CONFORMITY WITH PERFORMANCE STANDARDS FOR LASER PRODUCTS UNDER 21 CFR 1040, EXCEPT...
Page 23: Getting To Know The Projector
Local keypad..........................29 Shortcut buttons ...........................30 Basic remote control unit .......................31 Platinum remote control unit ......................32 2.10 Projector Address .........................37 2.11 Connector panel ...........................38 2.12 Color Wheels ..........................39 2.13 Color Wheel Type .........................39 2.14 Optional Accessories ........................39 601–426 /15 F70 Series...
Page 24: Main Components
Image 2–1 Projector Items Overview Image 2–2 Item Description Item No. LED Warning Indicator Adjustable Feet Lens Lens Holder IR Receiver. For receiving remote control signals LCD Display Keypad Panel. Used for local operation of the projector. 601–426 /15 F70 Series...
Page 25: Service And Maintenance
2.2 Service and Maintenance General The F70 series does not have any user serviceable parts. All service tasks must only be carried out by the manufacturer, or a Barco authorized service personnel or Barco technicians. 2.3 LED Status Light About The F70 Status Led is located on the rear top of the Projector During normal operation, the LED is not illuminated.
Page 26: Lcd Panel
Dashboard: The main overview. This screen displays all the chosen options on the projector (chosen source, blending/masking, display mode, etc). • About: General info about the projector. This includes serial number, software version, mounted lens and light source runtime. 601–426 /15 F70 Series...
Page 27 • Preview: A preview pane of the projected image. If no image is being projected, a test image is displayed instead. Image 2–1 Dashboard page Image 2–2 About page Image 2–3 Notifications page 601–426 /15 F70 Series...
Page 28 The picture will be limited by the LCD resolution, 800x480pixels. The projector performance will drop when the LCD monitoring the input, due to use of resources. Exit the input monitoring when not in use. 601–426 /15 F70 Series...
Page 29: Dashboard
The Keypad gives direct access to several functions, in addition to access to the menu system. The keypad and remote control functions are equal. The keypad has a back light that can be switched on and off manually. The light turns off automatically after a preset time. 601–426 /15 F70 Series...
Page 30: Shortcut Buttons
When the test pattern or input shortcut button is pressed, a pop up menu will show up on the LCD screen. Make a selection by the arrow keys, and confirm. 601–426 /15 F70 Series...
Page 31: Basic Remote Control Unit
About the basic remote In order to make sure you can control your projector remotely, Barco has provided a basic remote control unit in case the Pulse RCU is not available to you. While this remote control has a more limited amount of available features, it will be able to help you out with basic controls.
Page 32: Platinum Remote Control Unit
Before using your remote control, install the batteries first. How to install Push the battery cover tab with the fingernail a little backwards (1) and pull, at the same time, the cover upwards (2). 601–426 /15 F70 Series...
Page 33: Remote Control, Protocol Setup
The protocol is the code send out by the remote control when a button is pressed. Depending on this code, the projector can decode the signals. The remote control can be used with two different protocols, RC5 and NEC. Depending on the projector to control, the remote control can be switched between these protocols. 601–426 /15 F70 Series...
Page 34 Getting to know the projector. Which protocol to use • The NEC protocol have to be used for Barco projectors based on the Pulse platform: Loki, Balder, F40. F70, F80, F90, HDX 4K, UDX, UDM and more.. • The RC5 protocol have to be use all other Barco projectors: HDX W, HDF W, HDQ 2K, ...
Page 35: Functionality Overview
RCU off will extend the battery life time of the remote control. To activate the remote control, press the on/off button. To deactivate the remote control, press the on/off button again. Default after (re)placing batteries, is “ON”. 601–426 /15 F70 Series...
Page 36: Pulse Rcu, Function Of The "Rgb Filter" Button
Image 2–6 When all sensors are turned off, the projector will not receive any signals from the remote control. To enable the sensors again, use the keypad on the projector. Select which sensors to be disabled. 601–426 /15 F70 Series...
Page 37: Wired Rc Connection
The set up of a projector address can be done via the software. Projector controlling When the address is set, the projector can be controlled now: • with the RCU: only for addresses between 1 and 31. 601–426 /15 F70 Series...
Page 38: Connector Panel
HDCP compliant for sources up 165 Mhz HDMI Standard HDMI 2.0 For Projector Input HDBaseT Standard RJ45 8P8C For Projector Control Connector SDI1 is Input, SDI 2 is pass For Projector Input through. (out) 601–426 /15 F70 Series...
Page 39: Color Wheels
The F70 Projector is delivered with a standard Color wheel, that is suitable for most applications. Other colorwheels are available upon request. Consult Barco sales office or a service partner in order to find the most suitable colorwheel for the specific application.
Page 40 The F70 Flight Case is a custom designed container, that is suitable for shipping the projector, including flight frame, signal and power cords and up to two lenses. The case is fully-lined to protect the projector and lenses during transit and storage. 601–426 /15 F70 Series...
Page 41: Lenses, Handling And Features
Installing the lens safety cable .......................48 Preparing the FLDX lens (0.38:1) UST ...................51 Mounting the FLDX lens (0.38:1) UST lens with a lens support............55 Mounting a safety cable to the FLDX lens (0.38:1) UST lens ............58 About 601–426 /15 F70 Series...
Page 42: Approved Lenses
The electrical connection to the lens motors is via a spring probe contact (pogo) pin array on the bayonet mount. The projector will automatically detect and identify the lens when it is installed. Automatic detection is not available for 3rd party lenses. EN11 EN12 EN13 EN14 EN15 EN16 EN33 Image 3–1 601–426 /15 F70 Series...
Page 43 The electrical connection to the lens motors is via a spring probe contact (pogo) pin array on the bayonet mount. The projector will automatically detect and identify the lens when it is installed. Automatic detection is not available for 3rd party lenses. 601–426 /15 F70 Series...
Page 44 1.5 - 15 1.7 - 2.5 : 1 (NV41) FLD+ Lens 0.8 Yes 2.1-6.5 16.12 0.7 - 7 : 1 (EN42) FLD+ Lens 1.2 2.4-2.7 Yes 2.4-6.5 1.42 23.95-34.02 1.5 - 15 - 1.7 : 1 (EN43) 601–426 /15 F70 Series...
Page 45: Replace A Lens
The reverse scenario will happen when changing from a lens with no motorized positioning support, to a lens with motorized positioning support. The iris position will not be showed with a correct value. The functionality is still present, but the displayed value is not correct. 601–426 /15 F70 Series...
Page 46 Support the lens with one hand. Use the other hand to slide the lens release lever to the far left position. Pull the lens straight out of the projector lens mount. Replace with another lens, or install the projector lens cap. 601–426 /15 F70 Series...
Page 47: Lens Calibration
Select the first item to be calibrated, and confirm with enter on the remote, keypad or by the touch function.. When the calibration is OK, the question mark changes to a checkmark. Image 3–7 Select item to be calibrated 601–426 /15 F70 Series...
Page 48: Installing The Lens Safety Cable
Only four pieces are needed to assemble the safety cable to a lens. When the safety cable is used on another lens, you should not remove the cable clips. Instead, use four new ones. There are enough cable clips in the kit to secure up to five different lenses. 601–426 /15 F70 Series...
Page 49 Pull the lasso tight around the lens body and install the U-bolt on the lens holder, with the open ends oriented outwards (reference 3). Make sure that both a part of the loop end and the outgoing part of the safety cable are placed in the enclosure. 601–426 /15 F70 Series...
Page 50 Paste two cable clips on both sides of the lens as illustrated (reference 1). Orient the open side of the clips towards the outside of the lens. Image 3–14 Image 3–15 Paste two extra cable clips on the motor block of the lens. Orient the open side to the outside of the lens. 601–426 /15 F70 Series...
Page 51: Preparing The Fldx Lens (0.38:1) Ust
Snap the shackle to the straight part of the cable. Secure the shackle by screwing the safety ring of the shackle over the open end. 3.6 Preparing the FLDX lens (0.38:1) UST Overview • For F70: facing up and to the left 601–426 /15 F70 Series...
Page 52 Place the lens on a table. Turn out the 6 screws (1). Use an Allen key with a long shaft so that you do not damage the screw head. These screws will not be reused. Note: Always use the correct tool (delivered with the kit) to avoid damage to the screw heads ! 601–426 /15 F70 Series...
Page 53 Image 3–21 Slide the motor housing a few mm to the backside of the lens (2) to disengage focusing gear and motor gear. Disengage Slide range: 5mm max Motor gear Focusing gear Motor unit Image 3–22 601–426 /15 F70 Series...
Page 54 Use again a tool with a long shaft (Allen key 2 mm, delivered with the kit). The lens is ready to be mounted on the projector. How your image is displayed Projection to the side for any projector: 601–426 /15 F70 Series...
Page 55: Mounting The Fldx Lens (0.38:1) Ust Lens With A Lens Support
Turn the projector on its side or on its top cover. Place the bottom support plate on the bottom plate of the projector. Make sure that the fixation holes match the holes in the bottom plate. 601–426 /15 F70 Series...
Page 56 Turn the projector back on its feet. Slide the lens locking system to the left. Insert the lens. Make sure the electric contact points (C) on the lens match the contact points on the lens holder. Image 3–28 Mount the lens 601–426 /15 F70 Series...
Page 57 Image 3–30 Mount the 2nd plate Mount the 3th plate on the 2nd plate. Use the upper mounting holes in the 2nd plate. Drive in both screws but do not fasten yet. 601–426 /15 F70 Series...
Page 58: Mounting A Safety Cable To The Fldx Lens (0.38:1) Ust Lens
When mounting the UST lens in a projector without using the mounting support (not recommended), it is mandatory to use the safety cable set provided by Barco instead. Failing to use either the correct type of safety cable or the mounting support may damage the lens and/or projector, and can also cause serious injury to persons.
Page 59 Place the shackle through the free loop end of the safety cable. Mount the lens in the projector. Secure the safety cable around the truss and secure the shackle by turning the safety ring of the shackle over the open end. 601–426 /15 F70 Series...
Page 60 Lenses, Handling and features 601–426 /15 F70 Series...
Page 61: Physical Installation
Likewise, any images or graphical representations shown here are for illustrative purposes only. If you require further information and assistance during the installation process, contact a qualified projection technician or your local support office for advice. 601–426 /15 F70 Series...
Page 62: Installation Process
4.2 Installation conditions Environmental Conditions Barco projectors are manufactured according to specific design standards, which also include environmental conditions. Failing to follow the terms and conditions outlined in this chapter can result in loss of product warranty The table below summarize the physical environments in which the projector may be safely operated or stored.
Page 63: Initial Inspection
Upon receipt of the projector, we recommend that customers inspect the projector for any signs of damage that may have occurred in transit. If damage is found, file a claim with the shipping carrier immediately. Notify the Barco Sales and Service office, or your preferred Barco agent, of the damage as soon as possible. Box Contents Your projector box should contain the following: •...
Page 64: Positioning The Projector
The projector has features for mounting into various system environments using 3rd party mounts. The feet can be removed, and the threads can be used as anchor points. Max Hole Depth Application Item Thread dimension Removable feet 18mm Anhorpoint / ceiling / rig mount 601–426 /15 F70 Series...
Page 65 Twisting the adjustable feet in either direction, left or right, allows you to fine-adjust the projector position for precise vertical mechanical alignment. Raise Lower Image 4–2 Mounting to a ceiling Install the projector in to an approved rigging frame. Install the rigging frame to the desired location. 601–426 /15 F70 Series...
Page 66: Projector Safe Attachment Points
Note that there is only this 4 selected attachment points, in addition to the mounting holes for the feet that is approved as anchor points for the unit. Anchorpoints. For attaching to rigging frame or similar. Image 4–3 601–426 /15 F70 Series...
Page 67: Throw Distance
9.00 5.50 10.00 8.00 5.00 9.00 4.50 7.00 8.00 4.00 6.00 3.50 6.00 5.00 3.00 5.00 2.50 4.00 4.00 2.00 3.00 3.00 1.50 2.00 2.00 1.00 1.00 1.00 0.50 0.00 0.00 0.00 Projection distance Image 4–4 601–426 /15 F70 Series...
Page 68 9.00 5.50 10.00 5.00 8.00 9.00 4.50 7.00 8.00 4.00 6.00 3.50 6.00 5.00 3.00 5.00 2.50 4.00 4.00 2.00 3.00 3.00 1.50 2.00 2.00 1.00 1.00 0.50 1.00 0.00 0.00 0.00 Projection distance Image 4–5 601–426 /15 F70 Series...
Page 69: Scheimpflug (Boresight) Introduction
DMD plane. This can be achieved by turning the lens holder to remove the tilt (or swing) between lens plane and DMD plane (Lp3→Lp4). (Scheimpflug) Image 4–7 Scheimpflug principle 601–426 /15 F70 Series...
Page 70: Scheimpflug Adjustment Procedure
3,0 m EN76* 2,5 m All other approved 2,0 m lenses* * With one of these lenses installed, ensure that the white dot (reference 1) on the focus ring is oriented 60 degrees counterclockwise from vertical. 601–426 /15 F70 Series...
Page 71 Image 4–8 Preparation Prepare the test area. Barco recommends a projector-screen according to the table “Lens distance” above to be used for all Scheimpflug adjustments. Verify that the throw ratio of the installed lens matches the requirements of the installation area (projection distance and screen size).
Page 72 If there are any deviations to sharpness, repeat steps 2 to 6 until the image is correct. Tighten the three set screws in the following order: left (1b), right (2b) and then top (3b). Use a size 6 hex key to do this. 601–426 /15 F70 Series...
Page 73: Getting Started
Power down the projector......................78 Power mode transitions.........................78 Power modes ..........................80 Customize projector settings ......................80 User interface..........................80 About this chapter This chapter describes how to set up and optimize your projector setup when the physical installation process is complete. 601–426 /15 F70 Series...
Page 74: Projector Source And Control Connections
Value Connector Standard Display port Signal characteristics DP 1.2 Functionality Mandatory Max. cable length 2 m (24 AWG) - RBR; 2 m (24 AWG) – HBR1, HBR2 Supported Link Rate RBR, HBR1, HBR2 Scan format Progressive 601–426 /15 F70 Series...
Page 75: Specifications Hdmi 2.0
If both are connected simultaneously it might lead to undefined behavior where traffic is not being sent on the link indicated by the IPaddress. This is only valid when the projector has a firmware version 2.1 or higher installed. 601–426 /15 F70 Series...
Page 76: Control Interface Specifications
The HDBaseT input can also be used as a regular network port. See “Connector specifications”, page 74, HDBaseT specification. About This section gives information about interfaces used to control the projector. 5.1.3.1 RS-232 Specifications Parameter Value RS-232 connector 1 female DB9 connector (RS232-in) for projector control and debug 601–426 /15 F70 Series...
Page 77: Lan/Ethernet
CAUTION: Sources should always be connected before the projector is powered up CAUTION: Ensure that the main power cord complies with the national regulations where the equipment is used. Do not use unauthorized replacements. Do not use power cords which are damaged. 601–426 /15 F70 Series...
Page 78: Power Down The Projector
5.4 Power mode transitions 5.4.1 General Transition Diagram This diagram shows all modes available on the projector (unplug, ON, READY, ECO), and the actions necessary to change mode. Stby ASCII JSON Powr READY JSON ASCII JSON JSON Image 5–1 601–426 /15 F70 Series...
Page 79: Power On Projector
5.4.7 Wake On LAN (WOL) About The projector has WOL functionality, that can be used for the projector to go from ECO mode to READY mode. Use a json command for transition from READY to ON. 601–426 /15 F70 Series...
Page 80: Power Modes
The projector’s software platform uses access levels to define what each user can do. There are two user access levels: Standard User and Power User. In addition, there is a Service user access for certified Service personnel. 601–426 /15 F70 Series...
Page 81 ENTER 79 ENTER. Changes to values are implemented dynamically. Menu memory The OSD menu remembers the last selected sub–item as long as the projector is running. The menu memory is reset when restarting the projector from standby. 601–426 /15 F70 Series...
Page 82 Getting started 601–426 /15 F70 Series...
Page 83: Source Menu
This menu is used to select, review and configure sources into the projector. Enables either via the source menu, or the shortcut key. By navigate through the Source menu, it will be visible also on the OSD. By using the shortcut key, the menu occurs only on the LCD display. Image 6–1 601–426 /15 F70 Series...
Page 84: Connector Selection
By default all options for every connector are set to automatic, together with the native Extended Display Identification Data (EDID). When entering the menu for each input connector, you can change the following: • Color Space • Signal Range • EDID 601–426 /15 F70 Series...
Page 85 The Source menu is displayed with the actual available sources filled out. Image 6–4 Source menu Scroll down to the bottom of the list of available sources and select Connector Settings. Image 6–5 The available input connectors are displayed. Select the desired connector. 601–426 /15 F70 Series...
Page 86: Using Dual Inputs
To enable this mode, select the source that fits in the Menu/Source Dual input modes There are four ways to connect dual input. • Dual Displayport Columns • Dual Displayport Sequential • Dual DVI Columns • Dual DVI Sequential 601–426 /15 F70 Series...
Page 87 Change the EDID for each channel to the correct value. See chapter “Connector Settings” for EDID setup. Dual Sequential Input1 2560 3840 1920 1920 1600 1600 2400 2400 2560 Dual Column Input1 Dual Column Input 2 Dual Sequential Input 2 Image 6–8 Dual Column Setup Image 6–9 601–426 /15 F70 Series...
Page 88 Source menu 601–426 /15 F70 Series...
Page 89: Image Menu
The operation of the menus can be done with both the remote control or the arrows on the keypad. It is also possible to switch between the different adjustments by using the up and down arrows, instead of exit one menu and then enter the next one. Image 7–1 601–426 /15 F70 Series...
Page 90 When pressing enter on the value slider, this icon will show up on the OSD (depending which setting that is enabled, contrast showed here). When in this mode, use the up and down arrow keys to navigate between the different settings. Image 7–3 OSD menu 601–426 /15 F70 Series...
Page 91: Contrast
The brightness function is used to adjust the black level in the input picture. It adds or subtracts an offset, or bias in to the red, green and blue signals. Available range: –1.00 to 1.00 Default value: 0.00 Image 7–5 Brightness OSD menu 601–426 /15 F70 Series...
Page 92: Saturation
Increasing the sharpness will have the best effect in high contrast images, eg a table with text and borders. In a natural picture, high sharpness can be perceived as noise, as all details in the picture will be amplified. Available range —2 to 8. Default value: 0 Image 7–7 Sharpness OSD menu 601–426 /15 F70 Series...
Page 93: Gamma Adjustment
Use the arrow keys to select the most suitable gamma type. Select the gamma slider and tune the gamma value. Note: The Gamma slider in the Gamma menu will be disabled when DICOM, SIM or SRGB values is selected. 601–426 /15 F70 Series...
Page 94: Gamma Types
DICOM gamma type will not make the projector a fully certified as a medical display. For that purpose, a type of calibration must be performed, which the projector does not support.. Because of that, this function is mainly intended for educational and lecture purposes. 601–426 /15 F70 Series...
Page 95: Digital Zoom Shift
The combined menu is showed below. The symbols on the lower part of the menu are symbols showing how to operate the keypad / remote control for the digital shift / digital zoom modes.. Image 7–1 601–426 /15 F70 Series...
Page 96: Digital Zoom
See the illustrations below. The red lines in the figures represent the DMD outline Enter the menu showed above and toggle the Digital shift switch. Select the slider according to the instructions in the menu and move it to the desired shift level. 601–426 /15 F70 Series...
Page 97: Advanced Image Adjustments
The selection of the presets will vary, depending on the projector type, and the color wheel installed. How to choose one of the P7 presets In the main menu, select Image → Advanced → P7 Realcolor. 601–426 /15 F70 Series...
Page 98 Note: When choosing one of the presets, All other options in the P7 menu are disabled. How to set custom P7 values In the main menu, select Image → Advanced → P7 Realcolor. Image 7–4 The P7 menu is displayed. 601–426 /15 F70 Series...
Page 99: Edit The Realcolor Presets
The values are stored for the preset, until the “Reset” button is enabled, or when a factory reset is performed. There is also a possibility to store the values in the custom presets.. Press the “Copy preset to custom” button to save. 601–426 /15 F70 Series...
Page 100: Output Resolution 4K
7.8.3 Output resolution 4K About With this function, the projector output resolution can be changed between 4K UHD resolution and WQXGA resolution. Refer to the chapter “Projector source and control connections” regarding use of input sources in 4K mode. 601–426 /15 F70 Series...
Page 101: Smear Reduction
Changes the color rendering, by adding secondary colors. This has the effect of increasing the color intensity, and by that also the perceived light intensity. Enter the menu, and select the option that give the best result 601–426 /15 F70 Series...
Page 102 WQXGA @60Hz BSI (Black Sub Frame Insertion) Native Video Graphics SRP Half BSI Native SRP Half Plus BSI Native Video SRP Off Native Video Graphics SRP Half WQXGA@120Hz / 4K mode Native SRP Half Plus Native Video 601–426 /15 F70 Series...
Page 103 Menu choices of SRP and Brilliant Color matrix with VizSim colorwheel installed. Mode Brilliant Color SRP Off Native Video SRP Half Native Video WQXGA @60Hz SRP Full Native Video SRP Half Plus Native Video SRP Off WQXGA@120Hz 601–426 /15 F70 Series...
Page 104: Displaying Hdr Content- Perceptual Quantizer (Pq)
HDR Boost: A variable “booster” that may amplify or downplay the HDR output. How to set the PQ? In the main menu, select Image / Advanced settings / HDR Image 7–11 The HDR menu is displayed. 601–426 /15 F70 Series...
Page 105: Hdr Status
When using e.g. displayport 1 as daylight image input, and displayport 2 as night vision input, this option make it possible to swap these two channels in the image processing in order to synchronize with the NV goggles. 601–426 /15 F70 Series...
Page 106 How to swap channels Select the Menu/ Image / Advanced / Night Vision. menu Toggle the Swap channel function on / off by pressing the OK button on the remote control or the keypad. Image 7–15 601–426 /15 F70 Series...
Page 107: Installation Menu
Installation menu Lens ............................108 Orientation ..........................111 Scaling modes..........................112 Warping ............................. 114 Blending ............................ 125 CLO feature ..........................132 IR / Night vision functionality......................136 IG pixel shift ..........................137 Menu overview Image 8–1 601–426 /15 F70 Series...
Page 108: Lens
The projector allows for horizontal and vertical shift in both directions. Always place the projector perpendicular to the screen, and use the lens shift to align the picture. Use the Remote control or the keypad on the Projector to adjust the lens shift mechanism. 601–426 /15 F70 Series...
Page 109: Shift To Center
Due to restrictions in light output for the EN 68 lens, the mid position for this lens will not be the mechanical mid position, but the mid position of the area where max light output is allowed. 601–426 /15 F70 Series...
Page 110: Iris
Use the arrow keys to adjust Iris until preferred rendering is obtained. The numeric value in the menu indicates the degree of opening of the iris. Value = 0, full opening. (No iris activated). Increased numeric value indicates decreasing in the iris opening. (Iris activated). 601–426 /15 F70 Series...
Page 111: Orientation
There are four installationoptions, as illustrated below: • Front/table • Front/ceiling • Rear/table • Rear/ceiling • Auto front • Auto rear Default: Table Front. Image 8–5 How to set the correct orientation Select Orientation from the menu The orientation menu is displayed 601–426 /15 F70 Series...
Page 112: Scaling Modes
This mode utilizes as much as possible of the native size of the DMD, and keeps the aspect ratio. Input signal (Source): 4 : 3 DMD Capacity: 1,6 : 1 (2560 x 1600 pixels) Screen: 2,35 : 1 (Cinemascope) Image 8–7 601–426 /15 F70 Series...
Page 113 This mode stretch the rendered picture to utilizes the defined screen size. The rendered picture will then be stretched / distorted compared with the source signal. Input signal (Source): 4 : 3 DMD Capacity: 1,6 : 1 (2560 x 1600pixels) Screen: 2,35 : 1 (Cinemascope) Image 8–10 601–426 /15 F70 Series...
Page 114: Warping
The image will then typically occur as shown inImage 8–1. While an image can be transformed in various ways, pure warping doesn’t affect the colors. 601–426 /15 F70 Series...
Page 115: Warping - On/Off
About warping on/off By toggling between on and off the warping functionality can be enabled or disabled. How to toggle In the main menu, select Installation → Warp. Image 8–2 Installation menu, warp The Warp menu is displayed. 601–426 /15 F70 Series...
Page 116: Warping - Screen Size
By moving the outline of the warp screen size to the active image information, the corner points of the warp area are now exactly on the corner points of the active image information and makes warping much easier. Image 8–6 Warp outline example How to adjust the image? In the main menu, select Installation/Warp/Screensize. 601–426 /15 F70 Series...
Page 117: Warp - 4 Corners Adjustment
To have a successful Warp correction, the size of the screen must be entered. See “Warping – Screen size”, page 116 Some examples of pictures when the projector axis is not perpendicular to the screen.: 601–426 /15 F70 Series...
Page 118 If the picture still has a trapezoid shape, warp is not enabled. Select the Installation / Warp menu, and press enter. The slider moves to the right, and the warp status changes to “On”. Image 8–11 601–426 /15 F70 Series...
Page 119: Warping - Bow
When the bow menu is selected, a grid will occur in the screen picture in order to visualize the adjustments performed. To enable Bow correction, make sure the Bow slider is set to On. The slider is enabled when set to the right and when it is highlighted blue. 601–426 /15 F70 Series...
Page 120 The correction will occur symmetrically on each side of the center of the highlighted side. When corrected with the values in the image above, the picture will occur as shown below. Repeat this step for all sides of the picture that has to be corrected. Image 8–17 Symmetric bow corection 601–426 /15 F70 Series...
Page 121 Image 8–19 Right vector of the upper side of the picture. When corrected with values in the illustrations above, the picture will occur as shown below. Observe that the upper side of the picture now has an asymmetric correction. Image 8–20 Asymmetric bow correction 601–426 /15 F70 Series...
Page 122: Warping - Warp Files
There will be no error messages or warnings in the display when this occurs. The above mentioned symptoms is the only indication of this case. How to activate an uploaded Warp grid? In the main menu, select Installation → Warp. Image 8–22 Installation menu, Warp In the Warp menu, select Warp files. 601–426 /15 F70 Series...
Page 123: Warping - Latency Control In A Multi Projector Setup
The total time from the first pixel is coming in on an input source, until the first light representing that pixel is visible on the screen. This includes the transport delay. The value is normally given in milliseconds. 601–426 /15 F70 Series...
Page 124 For each projector in the setup, select Installation → Warp in the main menu. Image 8–27 Installation menu, Warp In the Warp menu, select Transport Delay. Image 8–28 Warp menu, Transport delay The Transport delay menu is displayed. 601–426 /15 F70 Series...
Page 125: Blending
The offset adjustments are used to cut the image on each side. Normally used to hide parts of the picture that shall not be shown on the screen. An example can be: If the source is a pc, you may want to hide the menu bar at the bottom of the screen. 601–426 /15 F70 Series...
Page 126: Set Up The System
The numeric value of the width is shown on both the LCD screen and the OSD. (The number entered represent the blend width expressed in number of pixels). Use the enter key to move the cursor to the next position that has to be masked. 601–426 /15 F70 Series...
Page 127: Basic Blend Setup Procedure
Repeat step 4 and 5 to adjust the rest of the blending zones. Exit the menu by using the exit button on the remote control. For horizontal blending, use the left/right arrow keys to adjust. For vertical blending, use the up/down arrow keys to adjust. 601–426 /15 F70 Series...
Page 128: Black Level Setup Procedure
Black level adjustment procedure Select the menu Installation/Blend and mask/Black level. Enable the ”Black level” and “Show lines” buttons. A line that indicates the blend zones will be visible on the screen when “Show lines” is enabled. 601–426 /15 F70 Series...
Page 129: Color Level Adjustment Procedure
So if the projected image of the projectors overlap, there will be 3 601–426 /15 F70 Series...
Page 130: Black Level Files
For more information on uploading/downloading Black Level files using the Prospector, refer to the Prospector user manual. For more information on uploading/downloading Black Level files using curl or other tools that supports HTTP upload, refer to the Pulse API Reference Guide. 601–426 /15 F70 Series...
Page 131: Blend Files
For more information on uploading/downloading Blend files using curl or other tools that supports HTTP upload, refer to the Pulse API Reference Guide. How to activate an uploaded Blend configuration file? In the main menu, select Installation / Blend and mask / Blend files 601–426 /15 F70 Series...
Page 132: Advanced Blend
8.6.1 Introduction Introduction The CLO (Constant Light Output) is a Barco Pulse software feature for maintaining a stable light output from the projector over time, by automatically adjusting the light source. The CLO feature utilizes a light sensor placed internally in the projectors light path.
Page 133: Using The Clo Features
Explanation: The light source power is at its maximum and can no longer maintain the desired light output • L8000d Illumination cli light measuring failed Explanation: The CLO failed while trying to measure the light on the light sensor, either when enabling the CLO or during CLO operation 601–426 /15 F70 Series...
Page 134: Example For Using He Clo Feature For Maintaining Brightness Over Time
The same prerequisites apply for this feature regarding the degradation of the light source and the initial set- point chosen for the light source power. The CLO scale can be set and / or monitored using the property: • illumination.clo.scale 601–426 /15 F70 Series...
Page 135: Example: Clo Scale With One Projector
10 seconds shall not differ more than 0.75% from the set-point". This to maintain the desired light output. From a user perspective no interaction has been made with the projector, so a change to the hasstabilized signal in this case would not make sense. The functionality presented in a Given-When-Then format. 601–426 /15 F70 Series...
Page 136: Ewma
8.6.7 Setpoint Setpoint This feature enables the user to set the desired value directly. As no max value is given Barco recommends using the CLO scale if different output power settings are needed when using the CLO. The setpoint can be set and/or monitored using the property: •...
Page 137: Ig Pixel Shift
1, and channel 2 is displayed with position 2. The result is a 4K rendering of the displayed image. Max frequency pr channel is 60 Hz. Only DVI or Displayport inputs on the projector can be used for this purpose. 601–426 /15 F70 Series...
Page 138 Use the left/right arrow key to scroll to IG pixelshift. Select by pressing enter. Status menu When IG pixelshift is enabled, it will be visible in the Status Menu. (Scroll down a bit to see it), and also in the LCD Information display. 601–426 /15 F70 Series...
Page 139: Ig Pixelshift Night Vision
IR channel being DVI1/DP1 and visible light being DVI2/DP2 as it is today This can be useful to swap those two due to the fact that the input DVI1/DP1 has a lower latency than the DVI2/DP2. Image 8–4 601–426 /15 F70 Series...
Page 140: Autostereo (3D) Setup
Installation menu Image 8–5 8.8.3 AutoStereo (3D) Setup Enabling 3D mode See chapter “3D”, page 167 for 3D mode setup 601–426 /15 F70 Series...
Page 141: Gui - Profiles
GUI – Profiles Profiles introduction ........................142 Profiles setup parameters......................142 Saving settings to a new profile....................143 Deleting a projector profile......................145 601–426 /15 F70 Series...
Page 142: Profiles Introduction
Output resolution Display (3D • 3D Display mode used settings) • Swap eyes on / off • Swap frame pair on / off • Dark time and sync delay values Realcolor • Brilliant Color mode (if available) 601–426 /15 F70 Series...
Page 143: Saving Settings To A New Profile
Adjust the necessary projector set up values for the actual user case as described in the specific topics in this manual. Enter the menu Profiles Image 9–2 Select the Edit button only valid if recalled with same lens Only if external cooler is installed 601–426 /15 F70 Series...
Page 144 MACRO and then 01 on the remote control. It is not a requirement to use this function, just an option. Note: The maximum number of profile presets is 30. Select the domains in the menu that shall be stored in the profile. 601–426 /15 F70 Series...
Page 145: Deleting A Projector Profile
The stored profiles will be visible in the menu. Select the actual profile. Image 9–7 Select the numeric shortcut from the remote control. 9.4 Deleting a projector profile How to delete a profile In the main menu, select Profiles → Edit. 601–426 /15 F70 Series...
Page 146 Image 9–9 Profile edit menu Select the undesired projector profile and confirm to expand it. Image 9–10 Example of a projector profile with available preset slots Use the arrow keys to select Delete and confirm. confirm the delete action. 601–426 /15 F70 Series...
Page 147: System Settings Menu
10.11 Power settings..........................156 10.12 Lens features ..........................156 10.13 24/7 Mode..........................157 10.14 Maintenance ..........................157 10.15 Lens calibration .......................... 158 10.16 Reset............................159 10.17 Controlling the backlight of the LCD Display.................. 161 Menu overview Image 10–1 601–426 /15 F70 Series...
Page 148: Communication
Broadcast address is a common address that can be set on the projector. That can be “0” or “1”. The default broadcast address is '0'. Any command coming from an RCU programmed with that common address will be executed. How to the broadcast address In the main menu, select Settings → Communication → Remote control. 601–426 /15 F70 Series...
Page 149: Projector Address
The following choices are possible: • Generic IR (address 0) • Barco broadcast IR (address 1) Select APPLY and click OK to apply the changes. 10.2.2 Projector address About individual projector address As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or with a computer using serial communication.
Page 150: Ir Sensors
How to disable In the main menu, select Settings → Communication → IR Control. Image 10–5 Communication menu, Remote Control The IR control menu is displayed. Image 10–6 Example of the Remote control menu 601–426 /15 F70 Series...
Page 151: Host Name - Custom Projector Name Setup
DMX signals can be connected to the DMX In port on the communicator interface when using a standard DMX cable equipped with XLR connector. The DMX out can be used to create a chain of DMX devices. One universe can control up to 512 channels. 601–426 /15 F70 Series...
Page 152 For full mapping of each used channel, refer to the DMX chart in the appendices, see User guide. How to set up DMX? In the main menu, select Settings / Communications / DMX. Image 10–9 The DMX menu is displayed. Image 10–10 601–426 /15 F70 Series...
Page 153: Trigger
The trigger outputs can be individually set to active low or active high by entering the menu Settings / Communication / Triggers Image 10–11 F40 series trigger menu The time of trigger output is defined via an API code. Contact Barco support for detailed info. 10.6 Language Setting the menu language The menu language can be changed to a suitable language.
Page 154: Themes
Units are used to set the preferred units of measurements for temperature and distance. Enter the menu and select the preferred units by the arrow keys on the remote control. Temperature units: Celsius (C) and Fahrenheit (F). Distance units: Meter (M), Centimeters (C), Feet (FT) and Inches (IN) 601–426 /15 F70 Series...
Page 155: Backlight
When the ECO mode is enabled, the projector will automatically go to ECO standby mode after a time-out (default 15 minutes). All electronics (including fans, pumps, ...) go down except for a very small wake-up controller. See section dedicated to the Power Mode transitions for further details. 601–426 /15 F70 Series...
Page 156: Power Settings
Enter the menu shown below, and disable the desired functions by toggling the desired buttons. The menu below shows all lens options in enabled position. 601–426 /15 F70 Series...
Page 157: 24/7 Mode
By entering a service code (or advanced user code), more features are available. This features will be visualized via the new tiles that shows up after entering the code. See the Service Manual for detailed information regarding service issues. 601–426 /15 F70 Series...
Page 158: Lens Calibration
This function will calibrate the position of the iris and the horizontal and vertical lens shift. The purpose is to have an accurate feedback to the system Calibration Enter the menu Settings / Maintenance / Lens calibration. Select the feature that shall be calibrated, and press enter on the remote control 601–426 /15 F70 Series...
Page 159: Reset
Warp files Disabled, no files selected ImageBlend Blend/Mask size disabled, all value to zero Black Level Black Level Files Disabled, no files selected Blend Files ImageRealColor P7 Realcolor all set to native ImageStereo Sync delay 0 µs 601–426 /15 F70 Series...
Page 160 Navigate to the checkbox next to the settings that need to be reset and press OK. Multiple selections are possible. Select RESET and press OK to reset all selected settings. Domains with * will also delete any uploaded files for that domain. 601–426 /15 F70 Series...
Page 161: Controlling The Backlight Of The Lcd Display
In the main menu, Settings → User interface → Backlight. Image 10–24 Settings menu, backlight The Backlight menu will be displayed. Image 10–25 Example of the backlight menu Choose the desired setting for the backlights. Select one of the predetermined options, or a custom value. 601–426 /15 F70 Series...
Page 162 System settings menu 601–426 /15 F70 Series...
Page 163: Gui - Status Menu
GUI – Status menu 11.1 Status menu overview......................... 164 No settings can be modified in the status menu. Its only for consulting. 601–426 /15 F70 Series...
Page 164: Status Menu Overview
Projector power and environmental details (e.g. power, temperature, pressure, etc) • Network status (e.g. host name, IP address, software version) • Active function icons (e.g. warp, blend, files, etc). Active functions are highlighted, while inactive functions are muted. 601–426 /15 F70 Series...
Page 165 Mounted lens: Lens type and Lens description (if available). • Installation information: Altitude, pitch angle, roll angle, distance (only if applicable for your device) • Basic statistics, Light source run time, light source strikes, projector runtime. 601–426 /15 F70 Series...
Page 166 GUI – Status menu 601–426 /15 F70 Series...
Page 167: 167
Passive stereo input. Use two channel input (two cables), one for each eye. Update frequency limited to 60 Hz for each channel. Dual Sequential input source (DVI or Displayport) must be used. No external sync signal required. 601–426 /15 F70 Series...
Page 168: Setup 3D Mode
Put on the 3D goggles, and verify by looking through the goggles with one eye at the time that only one image is visible in each eye. A double picture or a shade of the picture from the other side shall not be 601–426 /15 F70 Series...
Page 169 Why change the 3D setup? While Barco can provide a 3D emitter and active shutter glasses as options to this projector, you are also free to use a 3D emitter and active shutter glasses of your own choice. Since glasses and emitter can have various specifications compared to the ones Barco can provide, the 3D setup menu allows you to configure the output image to the specifications of your glasses and emitter.
Page 170 601–426 /15 F70 Series...
Page 171: Upgrade Projector Firmware
Upgrade projector firmware 13.1 Upgrade procedure........................172 601–426 /15 F70 Series...
Page 172: Upgrade Procedure
The LCD display will show the progression and status of the upgrade during the process. Update • Go to www.barco.com and select your product. All available firmware downloads are filed under the Technical Downloads tab. • Download the firmware. Extract and save the file to a USB stick with FAT file system. Use the eject function on your PC to safely remove the device from the computer.
Page 173: User Maintenance - Cleaning The Projector
User maintenance — Cleaning the projector 14.1 Projector lenses.......................... 174 14.2 Projector cabinet ........................174 14.3 Filters ............................174 601–426 /15 F70 Series...
Page 174: Projector Lenses
Remove the filter from the projector then use a vacuum to remove excess dust from the filter. Do not wet or soak the filter. Cleaning of the projector filter should be done in a separate room to avoid dust contamination. 601–426 /15 F70 Series...
Page 175: Technical Specifications
Technical Specifications About The information in this section is subject to changes without any notice. For current technical information, visit the product website, or contact your sales support representative. 601–426 /15 F70 Series...
Page 176 3,840 x 2,160 @ 60Hz 4,096 x 2,160 @ 60Hz 2,560 x 1,600 @ 120Hz refresh rates: 24Hz to 120Hz for WQXGA (2560x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400) Software tools Projector Toolset 601–426 /15 F70 Series...
Page 177 Motorized lens shift (with position memory on all lenses) Color correction P7 RealColorTM CLO (constant light output) Light source Laser phosphor Light source lifetime Up to 60,000 hours, depending on mode of operation Sealed DLP™ core 601–426 /15 F70 Series...
Page 178 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in Weight 37 kg / 81,5 lbs Standard accessories Power cord, wireless remote control Certifications CE, FCC Class A and cNus Warranty Limited 3 years parts and labor. Extendable up to 5 years 601–426 /15 F70 Series...
Page 179: Fs70 4K6
Up to 60,000 hours, depending on mode of operation Sealed DLP™ core Orientation 360° rotation, no restrictions Active stereoscopic 3D Image processing Embedded warp & blend engine (Barco Pulse) Keystone correction Inputs HDSDI 2x DP1.2 2x dual link DVI-I HDBaseT HDMI 2.0 (HDCP2.2, HDR10)
Page 180: Fs70 W6
Motorized lens shift (with position memory on all lenses) Color correction P7 RealColorTM CLO (constant light output) Light source Laser phosphor Light source lifetime Up to 60,000 hours, depending on mode of operation Sealed DLP™ core Orientation 360° rotation, no restrictions 601–426 /15 F70 Series...
Page 181 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in Weight 37 kg / 81,5 lbs Standard accessories Power cord, wireless remote control Certifications CE, FCC Class A and cNus Warranty Limited 3 years parts and labor. Extendable up to 5 years 601–426 /15 F70 Series...
Page 182 Technical Specifications 601–426 /15 F70 Series...
Page 183: A Color Component Mapping
Color component mapping Introduction ..........................184 How infrared is displayed ......................184 Default setup..........................184 Cloned image with full RGB input ....................185 Cloned inputs with only green content for IR ................. 186 601–426 /15 F70 Series...
Page 184: Introduction
IR channel has full black/white content if displayed on a regular monitor. This is not a clone or spitted image even if the content in the example below indicates the same image on both inputs. Display port 1 (VL) Color mapping Image A–1 601–426 /15 F70 Series...
Page 185: Cloned Image With Full Rgb Input
IR channel and fully saturate the DMD with this component. Display port 1 (VL) Color mapping Image A–3 Displayport 2 (IR) Image A–4 To achieve this result, use the following settings: 601–426 /15 F70 Series...
Page 186: Cloned Inputs With Only Green Content For Ir
Display port 1 (VL) Color mapping Image A–5 Display port 2 (IR) Image A–6 Property Value image.connector.displayport1.colorcomponent.red GREEN_IN image.connector.displayport1.colorcomponent.green image.connector.displayport1.colorcomponent.blue image.connector.displayport2.colorcomponent.red GREEN_IN image.connector.displayport2.colorcomponent.green GREEN_IN image.connector.displayport2.colorcomponent.blue GREEN_IN 601–426 /15 F70 Series...
Page 187: B Image Settings And Adjustments For Optimal Latency
Image settings and adjustments for optimal latency Introduction ..........................188 Latency............................188 DMD display device ........................188 Image display ..........................188 Image positioning ........................190 601–426 /15 F70 Series...
Page 188: Introduction
DMD display device Barco projectors uses a DMD device from Texas Instruments to display the image. A DMD device displays the intensity of a pixel by time multiplexing the time it is on over the frame time. If one pixel is 50% grey, it is on for 50% of the time for that frame.
Page 189 Therefore, the black pixels at the bottom of the image directly adds to latency since the image cannot be display until all the extra black pixels have been transmitted to the DMD. 601–426 /15 F70 Series...
Page 190: Image Positioning
DMD with black lines before the actual content. Note that for a 60Hz system, latency will never go below 16.66667ms because the DMD is displaying the image synchronously with the refresh of the incoming image. 601–426 /15 F70 Series...
Page 191: C Dmx Chart
DMX Chart DMX chart, Basic........................192 DMX chart, Extended........................193 601–426 /15 F70 Series...
Page 192: Dmx Chart, Basic
Power down / Light source off (if held for 5 seconds) 224 - 255 Reserved for future functionality Only when the Quad Combo input board is installed in slot L1 Only when the Quad DisplayPort input board is installed in slot L2 601–426 /15 F70 Series...
Page 193: Dmx Chart, Extended
Focus (LSB) 0 - 255 Set fine lens focus adjustment Zoom (MSB) 0 - 255 Set coarse lens zoom adjustment Zoom (LSB) 0 - 255 Set fine lens zoom adjustment Only when lens has been calibrated 601–426 /15 F70 Series...
Page 194 Calibrate lens (zoom, focus and shift) (if held for 5 seconds) 32 - 255 Reserved for future functionality If the Light Source is forced to an output below its minimum value, it will remain at its minimum output value 601–426 /15 F70 Series...
Page 195: D Overview Video Timings For Video Interfaces
About resolution in this chapter Resolutions and video timings indicated in the following sections are resolutions accepted in input of the projector, but the output stays limited to the maximum resolution indicated in the specifications of the device. 601–426 /15 F70 Series...
Page 196: Overview Video Timings
D.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.
Page 197: Overview Video Timings Sdi Inputs
1280 x 720 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link Support for refresh rates 24.00, 30.00 and 60.00 Hz automatically includes support of 1/1.001 x those refresh rates. 601–426 /15 F70 Series...
Page 198: Overview Video Timings Hdmi 2.0 Inputs
Top – bottom 1280 x 720 Frame packing Support for refresh rates 24.00, 30.00 and 60.00 Hz automatically includes support of 1/1.001 x those refresh rates. 10. 12G SDI board only, and only on Channel A 601–426 /15 F70 Series...
Page 199 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2400 3840 x 2400 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 601–426 /15 F70 Series...
Page 200: Overview Video Timings Displayport 1.2 Inputs
2 Column mode (2 x 1 Active 3D layout) 1920 x 2400 2 Column mode (2 x 1 layout) 1920 x 2400 Active 3D 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 601–426 /15 F70 Series...
Page 201: Overview Video Timings Hdbaset Input
Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates. Video timing Vertical refresh rate (Hz) 3D Support (active pixels x active lines) 640 x 480 720 x 480 720 x576 800 x 600 1024x 768 601–426 /15 F70 Series...
Page 202 2048 x 1080 2048 x 1080 2048 x 2160 2048 x 2160 2560 x 1600 2560 x 1600 3840 x 2160 3840 x 2160 3840 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 601–426 /15 F70 Series...
Page 203: Overview Video Timings Dvi Inputs
2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 2160 2 - column mode 2560 x 1600 2560 x 1600 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 601–426 /15 F70 Series...
Page 204 Video timing Vertical refresh rate (Hz) than standard layout (1 x 1 (active pixels x active lines) layout) 3840 x 2400 3840 x 2400 3840 x 2400 4096 x 2160 4096 x 2160 4096 x 2160 601–426 /15 F70 Series...
Page 205: E Regulatory Information
Product compliance ........................206 Turkey RoHS compliance......................206 China RoHS compliance ......................207 Taiwan RoHS compliance......................208 Contact information........................209 Production address........................209 Product Info ..........................210 Disposal Information ........................210 Disposal of batteries ........................210 601–426 /15 F70 Series...
Page 206: Product Compliance
30097 Duluth GA, United States Tel: +1 678 475 8000 UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom EN55032/CISPR32 Class A MME (MultiMedia Equipment) Warning : This equipment is compliant with Class A of CISPR 32.
Page 207: China Rohs Compliance
Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
Page 208: Taiwan Rohs Compliance
Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...
Page 209: Contact Information
傳真 (Fax)：02-7715 0298 電話 (Tel)：02-7715 0299 E-mail：service.taiwan@barco.com Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. Contact information Norway factory Barco Fredrikstad as...
Page 210: Product Info
For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco. com/AboutBarco/weee...
Page 211: Index
Basic blend setup 127 CLO feature Basic remote control unit 31 API 133 Battery OSD 133 Disposal 210 Prospector 133 Black level adjustment 128 CLO scale Blend 125 3 projectors 135 Blend mask setup 126 One projector 135 601–426 /15 F70 Series...
Page 212 DMD display device saturation 92 Image settings and adjustments for optimal Image display latency 188 Image settings and adjustments for optimal DMX 77, 151 latency 188 DMX chart Image menu 89 Basic 192 Image positioning Extended 193 601–426 /15 F70 Series...
Page 213 Going from READY to ECO standby 79 LED 25 Going from READY to ON 79 Lens 108 Plugging power cord 79 change 45 Power on projector 79 install 45 Power on 77 range 42 Power on button 25 601–426 /15 F70 Series...
Page 214 Rig attachment 66 System settings menu 147 RS-232 76 Throw distance 67 Safety 11–12, 16, 19–20 Touch panel 26 Servicing 15 Trigger 153 Safety cable Turkey RoHS compliance 206 Lens 48 UST lens 58 Safety instructions 13 601–426 /15 F70 Series...
Page 215 Video Timings SDI Inputs 197 Video Timings DVI Inputs 203 Wake On LAN (WOL) 79 Warp 114 Warp – 4 Corners adjustment 117 WEEE 210 Wired RC connection 37 Zoom adjust 108 Zoom / Focus 108 601–426 /15 F70 Series...
Page 216 Index 601–426 /15 F70 Series...
Page 218 601–426 /15 | 2023-02-01 www.barco.com...

This manual is also suitable for:

F70 4k6 F70 w6 Fs70 4k6 Fs70 w6

Barco F70 Series User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Barco F70 Series

Summary of Contents for Barco F70 Series

This manual is also suitable for:

Table of Contents
