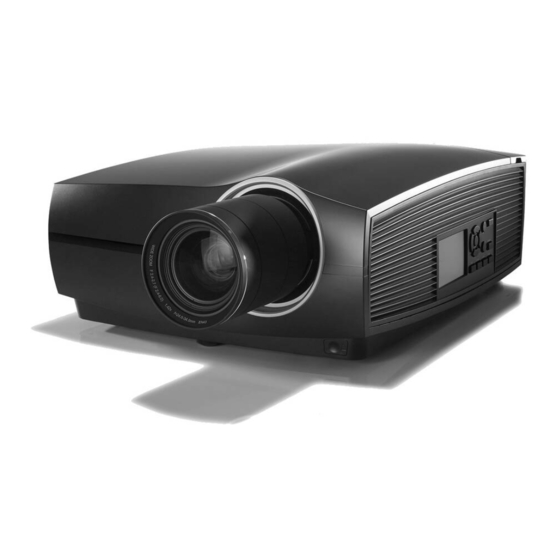

Barco F80-Q12 User Manual
  1. Manuals
  2. Brands
  3. Barco Manuals
  4. Projector
  5. F80-Q12
  6. User manual

Barco F80-Q12 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F80
User Manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F80-Q12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco F80-Q12

Summary of Contents for Barco F80-Q12

  • Page 1 User Manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Product revision Software Revision: 2.1.x Barco Fredrikstad AS Habornveien 53, N-1630 Gamle Fredrikstad, Norway Support.fre@barco.com www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 Furthermore, strengthen your network security to protect the projector against unauthorized access by third parties. To the maximum extent permitted by law, Barco disclaims any liability for the use of the projector in an open network environment.

  • Page 5: Table Of Contents

    Table of contents 1 Safety ........................................... 9 General considerations ................................10 Important safety instructions..............................11 Product safety labels..................................14 Risk Group 3 Safety ..................................17 1.4.1 General considerations............................17 1.4.2 High Brightness precautions: Hazard Distance (HD) ................17 1.4.3 HD for fully enclosed projection systems.......................19 1.4.4 HD in function of the lens Throw Ratio (TR) ....................20 2 Getting Started......................................23...
  • Page 6 4 Input & Communication ...................................45 Introduction......................................46 Connection Panel ...................................46 Making connections..................................47 LED and Button indication chart .............................47 5 GUI – Introduction....................................49 Overview......................................50 Navigation ......................................52 Test Patterns......................................54 6 GUI – Source ......................................57 Displaying a single source .................................58 Displaying multiple sources: Stitched layouts.........................58 Connector settings ..................................60 7 GUI –...
  • Page 7 Cleaning the exterior of the projector..........................162 13.3 Filters ........................................162 A Specifications ......................................163 Specifications of the F80-Q7 ..............................164 Specifications of the F80-Q9 ..............................165 Specifications of the F80-Q12 .............................. 167 Specifications of the F80-4K7............................... 169 R5906852 /09...
  • Page 8 Specifications of the F80-4K9............................... 170 Specifications of the F80-4K12 ............................172 Dimensions of a F80 ................................. 174 B Connector specifications................................177 Specifications DVI-I inputs..............................178 Specifications DisplayPort 1.2 inputs ..........................178 Specifications HDMI 2.0................................178 Specifications SDI inputs................................. 179 Specifications HDBase T input............................. 179 High-bandwidth Digital Content Protection (HDCP)....................

  • Page 9: Safety

    Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the F80 projector. Clarification of the term “F80” used in this document When referring in this document to the term “F80” means that the content is applicable for following Barco products: •...

  • Page 10: General Considerations

    • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 11: Important Safety Instructions

    HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. Only Barco authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL.
  • Page 12 Do not place flammable or combustible materials near the projector! • Barco projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 13 Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.

  • Page 14: Product Safety Labels

    Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.
  • Page 15 Safety Label image Label description Label location Hazard RG3: optical radiation warning symbol. For F80-Q7, F80-4K7: For North America: THIS PRODUCT IS IN CONFORMITY WITH PERFORMANCE STANDARDS FOR LASER PRODUCTS UNDER 21 CFR 1040, EXCEPT WITH RESPECT TO THOSE CHARACTERISTICS AUTHORIZED BY VARIANCE NUMBER 2017-V-4837 EFFECTIVE September 13, 2017.
  • Page 16 本投影机安装透射比大于2.8的可换镜头后，可成为RG3，操作前， 请参考手 册中镜头清单和危险距离。本投影机与镜头组合仅供专业使用，非普通消费者 使用。 For F80-Q12, F80-4K12 : For North America: THIS PRODUCT IS IN CONFORMITY WITH PERFORMANCE STANDARDS FOR LASER PRODUCTS UNDER 21 CFR 1040, EXCEPT WITH RESPECT TO THOSE CHARACTERISTICS AUTHORIZED BY VARIANCE NUMBER 2017-V-4837 EFFECTIVE September 13, 2017.

  • Page 17: Risk Group 3 Safety

    Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation. FOR PROFESSIONAL USE ONLY means installation can only be carried out by Barco AUTHORIZED PERSONNEL familiar with potential hazards associated with high intensity light beams.
  • Page 18 Safety For example, projectors that have a HD greater than 1 m and emit light into an uncontrolled area where persons may be present should be positioned in accordance with “the fixed projector installation” parameters, resulting in a HD that does not extend into the audience area unless the beam is at least 2.0 meter above the floor level.

  • Page 19: Hd For Fully Enclosed Projection Systems

    The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.

  • Page 20: Hd In Function Of The Lens Throw Ratio (Tr)

    1.4.4 HD in function of the lens Throw Ratio (TR) TR (Throw Ratio) The ratio of the distance to the screen (throw) to the screen width. HD versus Throw Ratio F80-Q12, F80-4K12 F80-Q9, F80-4K9 F80-Q7, F80-4K7 Throw Ra o Image 1–4...
  • Page 21 Safety Graph shows Hazard Distance in meters versus Throw ratio of the lens R5906852 /09...
  • Page 22 Safety R5906852 /09...

  • Page 23: Getting Started

    Getting Started Overview .............................24 Projector air inlets and outlets......................25 Local Keypad and LCD panel ......................25 Power modes ..........................26 Power mode transitions.........................26 Status overview ..........................28 Power off projector........................29 Increasing the projector life time ....................29 Operation in 24/7 Mode.........................30 2.10 Using the RCU ..........................30 2.11 Projector Address .........................31 2.12 Quick setup via Direct access ......................32 About this chapter...

  • Page 24: Overview

    Getting Started 2.1 Overview Orientation Image 2–1 Left Right Front Back Main components Image 2–2 LED status light Lens button Top IR Receiver: for remote control communication LCD panel Front IR Receiver: for remote control communication Keypad Adjustable feet Connector panel Projector lens R5906852 /09...

  • Page 25: Projector Air Inlets And Outlets

    Getting Started 2.2 Projector air inlets and outlets Air inlets and outlets Image 2–3 The F80 has 1 air inlet channel and 1 air outlet. The air outlet is located at the right side of the projector. The air inlet is located at the left side of the projector. 2.3 Local Keypad and LCD panel Overview Image 2–4...

  • Page 26: Power Modes

    Getting Started 2. Information regarding the status of the projector showing this data: • Projector status • Network address • Active source • Current firmware version • Operation Data • Active functions (Enabled Functions). Toggle between the two indications by using the Menu button on the keypad, or on the remote control. The LCD Display will fade out 30 seconds after the last key operation.
  • Page 27 Getting Started Stby ASCII JSON Powr READY JSON ASCII JSON JSON Image 2–5 Wake on LAN (WOL) Projector mains powered Auto transition after x minutes if ECO mode enables JSON command (Power on, Power off, Go to Eco) Stby Press power On/Off button, remote On/Off button JSON ASCII ASCII command (power, stby) received via RS-232...

  • Page 28: Status Overview

    Getting Started Going from READY to ECO standby If ECO Standby mode is enabled in the service menu (refer to the section "GUI - system settings/Standby ECO", in User Guide) the projector will automatically go to ECO standby mode after a time-out (default 15 minutes).

  • Page 29: Power Off Projector

    CAUTION: Never switch off the projector by means of unplugging mains cord or by cut down of mains power. Barco advises to keep the projector always powered and use the ECO mode for low power consumption. How to unplug the projector Follow the procedure above to Switch Off the projector.

  • Page 30: Operation In 24/7 Mode

    Getting Started Typical life time of the projector could be up to double if the laser output is dimmed to 75% and if the projector operate in 25°C temp condition. 2.9 Operation in 24/7 Mode General When the projector is destined to be operated continuously 24 hours a day, 7 days a week, the following recommendations should be followed: •...

  • Page 31: Projector Address

    Getting Started Note: Plugging the remote control will switch the broadcast address of the remote control to the default value '0'. This is the only broadcast address that will work when hardwired. If you want to change the broadcast address after disconnecting the remote control, see “Projector Address”, page Pointing directly to the IR sensor...

  • Page 32: Quick Setup Via Direct Access

    Getting Started Broadcast Address Every projector has a broadcast (common) address '0' or '1'. The default address is '0'. The choice between '0' and '1' can be selected in the GUI: “System Settings” → “Communication” →“IR Control “. Placing new batteries in the remote control or plugging the remote to a projector via a cable will automatically reset the address back to its default value '0'.
  • Page 33 Getting Started Image 2–12 The Test pattern menu opens on the LCD display. Use the arrow keys to select the desired test pattern. R5906852 /09...
  • Page 34 Getting Started R5906852 /09...

  • Page 35: Remote Control Unit

    Remote Control Unit Basic remote control unit .......................36 Pulse RCU, battery installation ......................37 Pulse RCU, protocol setup ......................38 Pulse RCU, Functionality overview ....................39 Pulse RCU, function of the “button pressed indicator” ..............39 Pulse RCU, function of the “RGB filter” button .................40 Using the mini-jack connector of the RCU..................40 Pulse RCU, function of the on/off button ..................40 Using the RCU ..........................41...

  • Page 36: Basic Remote Control Unit

    About the basic remote In order to make sure you can control your projector remotely, Barco has provided a basic remote control unit in case the Pulse RCU is not available to you. While this remote control has a more limited amount of available features, it will be able to help you out with basic controls.

  • Page 37: Pulse Rcu, Battery Installation

    Remote Control Unit 3.2 Pulse RCU, battery installation Where to find the batteries for the remote control ? The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a shorter battery life time. At delivery the batteries can be found in a separated bag attached to the remote control unit.

  • Page 38: Pulse Rcu, Protocol Setup

    Depending on the projector to control the remote control can be switched between these protocols. Which protocol to use • The NEC protocol has to be used for Barco projectors based on the Pulse platform: F70, F80, F90, HDX 4K, UDX, UDM, XDL, etc. •...

  • Page 39: Pulse Rcu, Functionality Overview

    Remote Control Unit 3.4 Pulse RCU, Functionality overview Remote Control Unit buttons Image 3–6 Button pressed indicator Backspace (while entering values) Shutter open XLR connector Shutter close Decimal mark (while entering values) LCD panel on / off Macro button Project OSD on / off Menu back Lens zoom Default value button...

  • Page 40: Pulse Rcu, Function Of The "Rgb Filter" Button

    Remote Control Unit 3.6 Pulse RCU, function of the “RGB filter” button Filtering the color of the projected image By pressing the RGB filter button on the RCU you can place a color filter on the output of the projector. This feature can be useful during the installation and configuration of a multi-projector or multi-channel setup.

  • Page 41: Using The Rcu

    Remote Control Unit Default after (re)placing batteries, is “ON”. Image 3–8 3.9 Using the RCU Pointing to the reflective screen Point the front of the RCU to the reflective screen surface. Image 3–9 Hardwired to the mini jack input Plug one end of the remote cable in the connector on the front side (3,5mm mini jack) of the RCU. Plug the other end in the connector on the communication interface of the projector, labelled ‘Remote CTRL’(reference 1, Image...

  • Page 42: Pulse Rcu, Silicone Protection Sleeve (Optional)

    (optional) Introduction Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it comfortably, non slip and soft touch. All buttons and holes remain accessible. The sleeve is quick and easy installed. For ordering information see Barco website.
  • Page 43 Remote Control Unit Image 3–12 Place back side (XLR side) of the RCU into the sleeve and pull the other side of the sleeve over the front side of the RCU. Image 3–13 R5906852 /09...
  • Page 44 Remote Control Unit R5906852 /09...

  • Page 45: Input & Communication

    Input & Communication Introduction ..........................46 Connection Panel .........................46 Making connections ........................47 LED and Button indication chart.....................47 R5906852 /09...

  • Page 46: Introduction

    Input & Communication 4.1 Introduction General The Input & Communication features of the projector consists of a local keypad and a communication panel situated at the left side, and a connection panel (sources and control connections) located at the back side. Image 4–1 local keypad and a communication panel connection panel...

  • Page 47: Making Connections

    Input & Communication Description Purpose Nb.Name Standard display port For Projector Input DL-DVI-D 2 Dual DVI-I 1.0 (DVI_D For Projector Input. These connectors can also Functionallity). be used to form one uniform image by feeding half of the image into each connector. HDCP compliant for sources up 165 Mhz 10 HDMI Standard HDMI 2.0...
  • Page 48 Input & Communication LED Status The LED status is located on the top side of the projector, near the IR receiver. During normal operation the LED is unlit. In the event of a critical error or high temperature, the LED will display red.

  • Page 49: Gui - Introduction

    GUI – Introduction Overview .............................50 Navigation............................52 Test Patterns ..........................54 About this chapter This chapter gives an general overview of the Graphic User Interface. R5906852 /09...

  • Page 50: Overview

    GUI – Introduction 5.1 Overview Disclaimer on GUI images used in this manual The GUI images in this manual are example illustrations and should be treated as such. While the name of the projector displayed in the illustrations may be different from the projector model you are currently using, the menu lay-out and functionality is identical.
  • Page 51 GUI – Introduction Image 5–2 Example of a Dashboard status screen GUI – Main Menu overview The projector on-screen display (OSD) is the primary user interface (UI). From here, you can review and adjust all projector and display settings. The OSD interface uses buttons to display the main menu. Each main menu contains submenus. The OSD can be disabled by pressing the OSD on/off button.

  • Page 52: Navigation

    GUI – Introduction GUI – Software menu tree Source Image Installation Pro les Settings Test patterns Status Pro le Edit Connector x Date and time Status screen Contrast Motorized frame Test pattern x New Pro le Custom test Center motorized About Standby mode Stitched options...
  • Page 53 GUI – Introduction Image 5–5 To start up the menu structure, press MENU (1). Use the arrow keys (Menu Navigation buttons) to navigate to the desired menu item (2). The background color changes to light blue. Press the Menu Selection button (center key of the arrow keys), also called OK button, to activate that item and to jump one level deeper (3).

  • Page 54: Test Patterns

    GUI – Introduction To enter values with the local keyboard, use the arrow keys to select the first digit, press OK. Select the second digit and press OK. Continue until all digits are entered. Close the action by selecting the enter (↵) button and press OK.
  • Page 55 GUI – Introduction Example of test Type Explanation pattern icon Standard Standard test patterns. See previous list to see all test patterns test available for your device. patterns Warped test Available from software 2.2 onward. Every test pattern will have a patterns “warped”...
  • Page 56 GUI – Introduction R5906852 /09...

  • Page 57: Gui - Source

    GUI – Source Displaying a single source ......................58 Displaying multiple sources: Stitched layouts ..................58 Connector settings........................60 About the Source menu This menu is used to select, review and configure sources into the projector. R5906852 /09...

  • Page 58: Displaying A Single Source

    GUI – Source 6.1 Displaying a single source About selecting a source Before a source can be projected, the source signal must be connected to the source input(s) of the device and a valid synchronization signal must be available along with the source signal on at least one of the input connectors.
  • Page 59 GUI – Source The table below describes the different Stitch Layouts and scan directions. Type of layout Description Available connectors Mode A single source is displayed in Mono / Active • full screen stereo • HDBaseT • DisplayPort (x2) • Dual link DVI-D (x2) : Single •...

  • Page 60: Connector Settings

    GUI – Source 6.3 Connector settings About connector settings The Connector Settings menu allows you to change settings for each input connector of the projector. By default all options for every connector are set to automatic, together with the native Extended Display Identification Data (EDID).
  • Page 61 GUI – Source Image 6–8 Example of connector settings for one of the connectors You can change the following: • To force a limit on the used signal range, select one of the available signal ranges. • To force a limit on the color space, select one of the available color spaces. •...
  • Page 62 GUI – Source R5906852 /09...

  • Page 63: Gui - Image

    GUI – Image Setting image levels manually......................64 Adjusting the sharpness ........................65 Adjusting the gamma correction.....................66 Setting the desired Gamma type ....................67 Digital shift & zoom ........................69 RealColor P7..........................73 Setting the output resolution ......................75 BrilliantColor ..........................75 Displaying HDR content ........................76 R5906852 /09...

  • Page 64: Setting Image Levels Manually

    GUI – Image 7.1 Setting image levels manually Purpose Contrast: Change the contrast of the complete output signal of the projected image. Brightness: Change the brightness of the complete output signal of the projected image. Saturation: Change the saturation of the complete output signal of the projected image. How to set up Contrast In the main menu, select Image →...

  • Page 65: Adjusting The Sharpness

    GUI – Image Image 7–4 Example of the image sliders, brightness is the second slider If necessary, use the ▲ or ▼ key to select the other image adjustment options. How to set up Saturation Level In the main menu, select Image → Saturation. Image 7–5 Image menu —...

  • Page 66: Adjusting The Gamma Correction

    GUI – Image Increasing the sharpness will have the best effect in high contrast images, eg a table with text and borders. In a natural picture, high sharpness can be perceived as noise, as all details in the picture will be amplified. Available range: -2 to 8.

  • Page 67: Setting The Desired Gamma Type

    GUI – Image Image 7–10 Image menu – Gamma Use the ▼ key to select the slider. Use the ◄ or ► key to change the gamma value between 1.0 and 2.8 . The default value is 2,2. Tip: The slider can be adjusted with a precision of 0.1. Image 7–11 Example of the gamma menu 7.4 Setting the desired Gamma type About the alternate gamma types...
  • Page 68 GUI – Image If the source signal is HDR encoded an HDR icon will be visible next to the source signal. This is visible both in the Source selection menu, as well as the status menu. Image 7–12 Example of the HDR icon on the status menu For more info on PQ and HDR, refer to “Displaying HDR content”, page How to adjust the gamma type?

  • Page 69: Digital Shift & Zoom

    GUI – Image Image 7–15 Example of selecting a gamma type Tip: If not sure what gamma type to select, keep the default value auto selected. This automatic mode will determine the used gamma type based on the incoming signal. However: keep in mind when using the automatic mode, your media player needs to be configured correctly as well.
  • Page 70 GUI – Image Image 7–16 Originally picture, not digitally zoomed Image 7–17 Picture digitally zoomed in Image 7–18 Picture digitally zoomed out The effect of digital shift This function will shift the picture digitally, meaning that the picture will be moved in any direction. As a result, some parts of the picture might be shifted outside the DMD range.
  • Page 71 GUI – Image Image 7–19 Original Picture, not digitally shifted Image 7–20 Picture shifted horizontally Image 7–21 Picture shifted vertically Digital shift and zoom In the main menu, select Image → Digital Zoom and Shift. Image 7–22 Image menu, digital zoom and shift The digital zoom and shift menu is displayed.
  • Page 72 GUI – Image Image 7–23 Example of the digital zoom and shift menu In order to optimize the digital zoom, enable the Zoom slider. In order to optimize the digital shift, enable the Shift slider. When one or both of the modes are enabled, use the arrow keys to select the mini-keypad in this menu. Use the enter key to activate this mini-keypad.

  • Page 73: Realcolor P7

    GUI – Image • Use the ▲ or ▼ key to shift the lens (image) in vertical direction. • Use the enter key to transform the keypad to digital zoom mode (if enabled). • Use the return key to exit without saving. If digital zoom is enabled, you can now do the following: •...
  • Page 74 GUI – Image • Temperature: Configure the white point via a color temperature slider. The white point is specified on a Kelvin scale between 3200K and 13000K tracking along the black body curve. Define the coordinates for each available color. Click on a coordinate value and select the current value.

  • Page 75: Setting The Output Resolution

    7.7 Setting the output resolution Setting the output resolution is limited to F80-4K7, F80-4K9 and F80-4K12 projectors. This settings is not available for F80-Q7, F80-Q9 and F80-Q12 version. How to choose the output resolution In the main menu, select Image → Advanced → Output resolution.

  • Page 76: Displaying Hdr Content

    GUI – Image Image 7–32 Advanced settings menu, BrilliantColor The BrilliantColor menu is displayed. Image 7–33 Example of the BrilliantColor menu Select the desired BrilliantColor mode. 7.9 Displaying HDR content About HDR and PQ Perceptual Quantizer (PQ) is a non–linear electro-optical transfer function (EOTF) that allows for the display of High Dynamic Range (HDR) content with a luminance level of up to 10 000 cd/m²...
  • Page 77 GUI – Image How to properly display HDR content? If your provided HDR content has been mastered with PQ (e.g. HDR10 and Dolby Vision), a few changes can be made in order to project the intended mastering on screen. These changes are necessary because HDR content has been mastered specifically for HDR capable displays that are watched in living rooms.
  • Page 78 GUI – Image R5906852 /09...

  • Page 79: Gui - Installation

    GUI – Installation Configuring the lens, optical zoom-focus ..................80 Configuring the lens, shift ......................80 Configuring the lens, Shift to center....................81 Configuring the lens, tilt sensor ......................82 Manipulating the rigging frame ......................83 Manipulating the rigging frame, center position ................84 Orientation ...........................85 Scaling modes..........................86 Warping ............................87 8.10 Blending &...

  • Page 80: Configuring The Lens, Optical Zoom-Focus

    GUI – Installation 8.1 Configuring the lens, optical zoom-focus What can be done? If a motorized lens has been mounted onto the projector, you can fine-tune the projected image. Zoom - Focus In the main menu, select Installation → Lens → Zoom focus. Image 8–1 Lens menu, Zoom &...

  • Page 81: Configuring The Lens, Shift To Center

    GUI – Installation Image 8–3 Lens menu, lens shift The Lens shift menu is displayed. Image 8–4 Example of the lens shift menu Use the ◄ and ► keys to shift the lens (image) in horizontal direction. Use the ▲ and ▼ keys to shift the lens (image) in vertical direction. 8.3 Configuring the lens, Shift to center What can be done? The lens can be forced back to the center position by selecting Shift to center.

  • Page 82: Configuring The Lens, Tilt Sensor

    GUI – Installation Image 8–6 Example of the Shift to center action The lens will calibrate itself and return to the center position. 8.4 Configuring the lens, tilt sensor When to use the tilt sensor menu The projector has a built-in tilt sensor that detects the angle at which the projector is mounted. If you are in a situation where you need to fine-tune the projector because you want to achieve a picture at a specific angle (e.

  • Page 83: Manipulating The Rigging Frame

    GUI – Installation If you notice the tilt sensor isn’t working correctly (e.g. when compared to a level), you can calibrate the sensor in the settings menu. For more info, see “Advanced settings – Tilt sensor calibration”, page 154. 8.5 Manipulating the rigging frame When can you manipulate the rigging frame? You can manipulate the rigging frame in the Pulse menu when projector is mounted in a motorized rigging frame, otherwise this menu is not present.

  • Page 84: Manipulating The Rigging Frame, Center Position

    GUI – Installation Image 8–11 Example of horizontal and vertical frame shift Use the ▲ or ▼ button to shift the rigging frame (image) in vertical direction. Use the ◄ or ► button to shift the rigging frame (image) in horizontal direction. Confirm with the OK button.

  • Page 85: Orientation

    GUI – Installation Image 8–13 Lens menu, Center motorized frame A confirm action prompt will be displayed. Image 8–14 Example of the Center motorized frame action prompt Confirm to reset the frame to its center position. Wait until the frame motors have stopped before doing other actions. 8.7 Orientation What can be done? The way of physical installation of the projector can be defined to the projector.

  • Page 86: Scaling Modes

    GUI – Installation Image 8–15 Installation menu, orientation The Orientation menu is displayed. Image 8–16 Example of the orientation menu Use the ◄ or ► keys to select the projector orientation mode and press OK to activate. 8.8 Scaling modes About scaling modes While the default mode of projection is to fill the screen while respecting the aspect ratio (fill aspect), it is also possible to stretch the image in a different way.

  • Page 87: Warping

    GUI – Installation Scaling Mode Explanation Example image Fill screen Fills the screen to the screen size defined in the Screen Size menu, while respecting the original aspect ratio. For more info on adjusting the Screen Size menu, see “Warping – Screen size”, page Stretch This mode stretches the image to the screen size defined in the Screen Size menu, while ignoring the...

  • Page 88: Warping - On/Off

    GUI – Installation 8.9.1 Warping – On/Off About warping on/off By toggling between on and off the warping functionality can be enabled or disabled. How to toggle In the main menu, select Installation → Warp. Image 8–19 Installation menu, warp The Warp menu is displayed.
  • Page 89 GUI – Installation Image 8–23 Warp outline example Using the screen aspect ratio presets In the main menu, select Installation → Warp → Screen size. Image 8–24 Warp menu, screen size The Screen Ssize menu is displayed. Image 8–25 Example of the screen size menu Click on one of the predefined presets for the screen aspect ratio.
  • Page 90 GUI – Installation Image 8–26 Example of the screen size menu, with preset “3:2” selected. The selected ratio is filled out next to Screen width and Screen height. Click Apply. How to adjust the image with pixels? In the main menu, select Installation → Warp → Screen size. Image 8–27 Warp menu, screen size The Screen size menu is displayed.

  • Page 91: Warping - 4 Corners Adjustment

    GUI – Installation Image 8–29 Example of the Screen size menu, editing the screen width Tip: A red border will be projected along with the current image. The border is a visual tool, showing the result of the adjusted outline. Image 8–30 Tip: The value can also be entered by the numeric keys on the remote control.
  • Page 92 GUI – Installation Image 8–31 4 corner adjustment How to adjust the image? In the main menu, select Installation → Warp → 4 Corners. Image 8–32 Warp menu, 4 corners The 4 corners menu is displayed. Image 8–33 Example of the 4 corners menu To enable 4 Corners warping, enable the 4 corner slider.

  • Page 93: Warping - Bow

    GUI – Installation Image 8–34 Example of 4 corners warping menu, with helper lines active on the edges of the screen To set warping on one of the four corners, select one of the four corners and confirm. Set the desired X and Y coordinates for this corner, using the arrow keys, and confirm. After confirming, the helper lines for that corner will jump to the entered XY coordinate (if helper lines were enabled).
  • Page 94 GUI – Installation Image 8–36 Bow distortion Definition of angle and linearity (length) in the bow warp procedure Image 8–37 Symmetric bow correction In the main menu, select Installation → Warp → Bow. Image 8–38 Warp menu, Bow The bow menu is displayed. To enable bow correction, make sure the Bow slider is enabled (visible by the blue highlight).
  • Page 95 GUI – Installation Image 8–39 Both the Bow and Symmetric sliders are set to on Use the arrow keys to select the helping lines that represent the picture and confirm. The helping lines that represent the projected picture are now colored blue, while the others are colored white.
  • Page 96 GUI – Installation The correction will occur symmetrically on each side of the center of the highlighted side. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has been achieved. Image 8–42 Example of a symmetric bow correction Asymmetric bow correction In the Bow menu, enable the Bow slider and disable the symmetric slider.

  • Page 97: Warping - Warp Files

    GUI – Installation Select the desired slider and confirm. Image 8–45 Adjust angle and linearity (length) individually to obtain the correct correction. Press enter to confirm and to switch between angle and length. Tip: Adjust the angle by using the up and down arrow keys. Adjust the linearity by using the left and right arrow keys.
  • Page 98 GUI – Installation For more information on uploading/downloading Warp files using curl or other tools that supports HTTP upload, refer to the Pulse API Reference Guide. When uploading a warp file that is too big, or with warp parameters outside the limits of the projector, some irregularities can occur.

  • Page 99: Warping - Latency Control In A Multi Projector Setup

    GUI – Installation Image 8–50 Example of the Warp files menu 8.9.6 Warping – Latency control in a multi projector setup Transport latency The added delay in the image processing chain. The value is the number of lines relative to the output resolution.

  • Page 100: Blending & Masking

    GUI – Installation Image 8–52 Installation menu, Warp In the Warp menu, select Transport Delay. Image 8–53 Warp menu, Transport delay The Transport delay menu is displayed. Image 8–54 Example of the Transport delay menu Enter the value either by the arrow keys (one step at a time) or directly by the numeric keys on the remote control.

  • Page 101: Basic Blend

    GUI – Installation Width, Projector 1 Width, Projector 2 Picture frame Picture frame Projector 1 Projector 2 Overlap / Blend Zone Image 8–55 From the start (mask) position, you can blend zone size per edge (left, top, right, bottom). For each edge there will be a drop-off curve for the blend zone.
  • Page 102 GUI – Installation Image 8–57 Example of the basic blend menu To enable blending, drag the Enable slider to the right. The color of the slider becomes blue when enabled. To project masking lines on the screen, drag the Show lines slider to the right. The color of the slider becomes blue when enabled.

  • Page 103: Blend & Blend Mask

    GUI – Installation Do not forget to disable the Show lines slider after you achieved the desired blend zone. 8.10.2 Blend & Blend mask About masking and blending width or height Offset is used to clip the image on one or multiple sides (masking). This is used to hide parts of the picture that should not be shown on the screen.
  • Page 104 GUI – Installation Image 8–61 Start position (mask) Blending width Select one of the four starting positions values with the arrow keys and confirm. Use the arrow keys or remote digits to change the value of the mask and confirm. Repeat this process for all other desired sides.

  • Page 105: Blend Files

    GUI – Installation Image 8–62 Set up for projector 1 Image 8–63 Set up for projector 2 8.10.3 Blend files About custom blend files Next to setting your specific blending configuration in the GUI, you can also upload or download a customblend configuration file in png, jpg or tiff format to/from the projector.

  • Page 106: Basic Black Level Adjustment

    GUI – Installation How to activate an uploaded Blend configuration file? In the main menu, select Installation → Blend and Mask → Blend files. Image 8–64 Blend and mask menu, Blend files The Blend files menu is displayed. Image 8–65 Example of the blend files menu If any custom blend files are available, select the desired file.
  • Page 107 GUI – Installation The size of the black level area is calculated automatically from the blend zones. This is done by using the start position and size of each edge of the blend and adding an additional size of 8 pixels to reduce the effect known as "sea of mirrors".

  • Page 108: Rgb Gain Adjustment

    GUI – Installation enter the black level value with the numeric keys in the remote control. Move the cursor to Level, press enter and adjust this level until the black level equals the level in the blend zone. This value can also be entered by the numeric keys on the remote control. Repeat the same procedure for any other projector connected to this projector, but on the opposite side.

  • Page 109: Black Level Files

    GUI – Installation Image 8–72 Example of the default black level menu Select one of the three sliders on the bottom of the menu (Red, Green or Blue). Use the left and right arrow keys to modify the gain of the chosen color. Repeat for every slider until the desired result is achieved on screen.

  • Page 110: Illumination

    GUI – Installation Image 8–74 Example of the black level files menu If any custom black level adjustment files are available, select the desired file. Image 8–75 Example of custom black level files selected Make sure the Enable slider is set to the right to activate the selected black level file 8.11 Illumination What can be done? Within a certain percentage, the light output of the light source can be reduced by reducing the power slider.

  • Page 111: Projection

    GUI – Installation CLO can not be used when the light source is off, the shutter is closed or if the Dynamic Black feature is active (if available). How to reduce the power In the main menu, select Installation → Illumination. Image 8–76 Installation menu, illumination The Illumination menu is displayed.

  • Page 112: Setup Process 3D Projection

    GUI – Installation To present stereoscopic pictures, two images are projected superimposed onto the same screen through polarizing filters or presented on a display with polarized filters. For Digital Cinema, a silver screen is used so that polarization is preserved. On most passive displays every other row of pixels are polarized for one eye or the other.

  • Page 113: Setup

    Why change the 3D setup? While Barco can provide a 3D emitter and active shutter glasses as options to this projector, you are also free to use a 3D emitter and active shutter glasses of your own choice. Since glasses and emitter can have various specifications compared to the ones Barco can provide, the 3D setup menu allows you to configure the output image to the specifications of your glasses and emitter.
  • Page 114 GUI – Installation Image 8–78 Installation menu, 3D setup The 3D setup menu is displayed. Image 8–79 Example of the 3D setup menu on a UDX If it is necessary to invert the stereo sync output, enable the Swap eyes option. If the projected moving 3D content doesn’t look smooth enough, enable the Swap frame pair option to help improve this.

  • Page 115: Gui - Projector Profiles

    GUI – Projector profiles Saving the current projector settings in a profile ................116 Assigning a created projector profile to a preset ................118 Deleting a projector profile......................119 About projector profiles The profile function makes it possible to store different profiles / projector setups for different use cases, and quickly recall them when needed.

  • Page 116: Saving The Current Projector Settings In A Profile

    GUI – Projector profiles 9.1 Saving the current projector settings in a profile Which settings can be saved to a profile? Profile domain Settings saved name Illumination • Illumination power for each source • Light sensor enabled / disabled • Light sensor set point Source Active source selection &...
  • Page 117 GUI – Projector profiles How to save the current projector settings? In the main menu, select Profiles → Edit. Image 9–1 Profiles menu, edit The Profile edit menu is displayed. Image 9–2 Profile edit menu Use the arrow keys to select New Profile... and confirm. The New Profile pane is expanded and fully displayed.

  • Page 118: Assigning A Created Projector Profile To A Preset

    GUI – Projector profiles 9.2 Assigning a created projector profile to a preset This procedure assumes you have created at least one projector profile. For more info on saving projector settings to a profile, see “Saving the current projector settings in a profile”, page 116.

  • Page 119: Deleting A Projector Profile

    GUI – Projector profiles The preset slot is now shown next to the profile name. Image 9–7 Example of projector profiles allocated to preset slots (here slot 00 and 04) 9.3 Deleting a projector profile How to delete a profile In the main menu, select Profiles →...
  • Page 120 GUI – Projector profiles Image 9–10 Example of a projector profile with available preset slots Use the arrow keys to select Delete and confirm. confirm the delete action. R5906852 /09...

  • Page 121: Gui - System Settings

    GUI – System Settings 10.1 Remote control........................... 122 10.2 Host name - custom projector name setup..................124 10.3 LAN Communication ........................125 10.4 DMX ............................129 10.5 Trigger outputs control ........................ 131 10.6 Changing the User Interface language ..................132 10.7 Themes .............................

  • Page 122: Remote Control

    The following choices are possible: • Generic IR (address 0) • Barco broadcast IR (address 1) Select APPLY and click OK to apply the changes. 10.1.2 Projector address About individual projector address As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or with a computer using serial communication.

  • Page 123: Ir Sensors

    GUI – System Settings How to change In the main menu, select Settings → Communication → IR control. Image 10–3 Communication menu, Remote Control The Remote control menu is displayed. Image 10–4 Example of the Remote control menu Select the current projector address and enter a new address. Select APPLY and click OK to apply the changes.

  • Page 124: Host Name - Custom Projector Name Setup

    GUI – System Settings Image 10–6 Example of the Remote control menu To disable an IR sensor, select the slider and drag to the left. A blue slider means an active IR sensor. A gray slider means an inactive IR sensor. Select APPLY and click OK to apply the changes.

  • Page 125: Lan Communication

    GUI – System Settings Image 10–8 Example of the host name menu Press confirm to edit the Host name field. Use the digital keyboard to change the Host name to the desired custom name. Press the OK key, or press the enter icon to confirm the typed name. Click Apply to update the host name. 10.3 LAN Communication About a network connection Network connection is required to communicate with the projector via LAN or Internet.

  • Page 126: Wired Ip Address Set Up

    GUI – System Settings What should be set up for an Ethernet address? Two ways can be used to assign an address: • use the Automatic setting so that an automatic address will be assigned. • Assign manually an IP address, Net-mask (subnet-mask), (default) gateway address. Set the IP-Address field to the desired value.
  • Page 127 GUI – System Settings Image 10–11 Communication menu, LAN The LAN menu is displayed Image 10–12 Example of the LAN menu Disable the Automatic slider. The slider becomes gray. Use the arrow keys to select Address and press OK button to activate the input box. Image 10–13 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address.

  • Page 128: Lan Over Hdbaset Ip Address Set Up

    GUI – System Settings 10.3.3 LAN over HDBaseT IP address set up About LAN over HDBaseT When a LAN cable is mounted in the HDBaseT input, the HDBaseT menu will appear in the Settings menu. Using the menu, you can assign a custom IP address, or leave the automatic IP address setup. Keep into account that the HDBaseT network will be unavailable if the projector is in Standby mode or ECO mode (whichever is applicable to your projector).

  • Page 129: Dmx

    GUI – System Settings The HDBaseT menu is displayed. Image 10–17 Example of the HDBaseT menu Disable the Automatic slider. The slider becomes gray. Use the arrow keys to select Address and press OK button to activate the input box. Image 10–18 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address.
  • Page 130 GUI – System Settings If you are using a DMX console and other automated lighting products compatible with Art-Net, the Ethernet network can serve as the link for DMX control. All DMX controls can be sent over the Ethernet cable. Multiple universes are possible.

  • Page 131: Trigger Outputs Control

    GUI – System Settings Image 10–20 Example of the DMX menu Choose the desired DMX mode. Choose the desired starting channel. Choose whether or not you want the Auto power-down feature to be enabled. If enabled, determine the time-out. If required, enable Art-Net. If enabled, determine the desired Art-Net Universe and Art-Net channel. If a front XLR connector is available on your projector, you can enable the output voltage on this connector.

  • Page 132: Changing The User Interface Language

    GUI – System Settings Image 10–22 Example of Triggers menu Use the slider for each trigger individually to set them to “active low” or “active high”. 10.6 Changing the User Interface language How to change the language of the user interface In the main menu, select Settings →...

  • Page 133: Themes

    GUI – System Settings • Portuguese (PT-BR) • Russian (RU) • Chinese (ZH) 10.7 Themes About Themes Themes are used to apply a predefined functionality to the OSD display. There are two options: light or dark (default). How to select a different interface theme In the main menu, select Settings →...

  • Page 134: Controlling The Backlight Of The Lcd Display

    GUI – System Settings Image 10–27 Example of the Units menu Select the desired Temperature unit and Length unit and confirm. 10.9 Controlling the backlight of the LCD Display What lighting can be controlled? You can choose how quickly the backlight of the LCD turns off. You can select one of the default values, or enter a custom value.

  • Page 135: Date And Time Setup - Automatically

    GUI – System Settings Image 10–29 Example of the backlight menu Choose the desired setting for the backlights. Select one of the predetermined options, or a custom value. 10.10 Date and time setup - automatically Date is displayed by default as: day / month / year. Time is displayed by default as: hour : minutes : seconds, in the 24–hour clock.

  • Page 136: Power Settings - Standby Mode (Eco Mode)

    GUI – System Settings Select Server and click OK. Image 10–32 Enter the name or the IP address of the NTP server. Tip: In case you cannot connect to an external NTP server although you can PING this server, the connection is blocked by the local firewall policy.

  • Page 137: Operational Mode

    GUI – System Settings How to change the power saving features? In the main menu, select Settings → Standby mode. Image 10–34 Settings menu, Standby mode The Standby mode menu is displayed. Image 10–35 Example of the Standby mode menu Select the desired ECO mode Time-out timeframe, or disable standby mode all together by selecting Ready.

  • Page 138: Lens Features

    GUI – System Settings keeps on balancing and optimizing between illumination output power, minimal noise level and optimized temperature household. These are the presets being offered to start from: 1. “Normal mode”: This is the standard mode delivering highest possible brightness while ensuring a life time of 20.000 hours and keeping the noise level below 40 dB.

  • Page 139: Factory Reset

    GUI – System Settings How to enable/disable In the main menu, select System Settings → Lens Features. Image 10–39 Settings menu, Lens features The Lens features menu is displayed. Image 10–40 Example of the lens features menu Depending on the mounted lens type, different functions may or may not be available such as: •...
  • Page 140 GUI – System Settings Option / Domain Setting Factory setting Auto power down Disabled Art-net XLR Connector PIN State Unconfirmed Illumination Power 100% Constant light output (CLO) Disabled ImageActuator 4K Actuator enabled / disabled Enabled Blend Blend / Mask size Disabled, all value to zero Black Level Black Level Files...
  • Page 141 GUI – System Settings Option / Domain Setting Factory setting Note: All uploaded custom test patterns will be deleted Uniformity DynaBlack Warp Screen size 5120x3200 / 2560x1600 4 corner Warp disabled, no warp Warp files Disabled Note: all uploaded warp files will be deleted Network Communication...
  • Page 142 GUI – System Settings Image 10–41 Settings menu, factory reset The Reset menu is displayed. Image 10–42 Example of the reset menu In the Reset menu, select RESET ALL and confirm with OK. How to reset one or more projector settings In the main menu, select Settings →...

  • Page 143: Lens Calibration

    GUI – System Settings Multiple selections are possible. Select RESET SELECTED and confirm with OK to reset all selected settings. 10.15 Lens Calibration How to calibrate In the main menu, Settings → Maintenance → Lens Calibration. Image 10–45 Maintenance menu, lens calibration The Lens Calibration menu is displayed, alongside the status of each Image 10–46 Example of the lens calibration menu In the Lens Calibration menu, select the desired calibration action and click OK.

  • Page 144: Rigging Frame Calibration

    GUI – System Settings Image 10–47 example of calibration in progress When an error is detected, the message Calibration Error is displayed next to function. 10.16 Rigging frame Calibration How to calibrate the motorized rigging frame In the main menu, select Settings → Maintenance → Frame Calibration. Image 10–48 Maintenance menu, Frame calibration The Frame calibration menu is displayed.
  • Page 145 GUI – System Settings The text Calibrating will be displayed until the calibration is completed. Image 10–50 Example of a calibration in progress When an error is detected, the message Calibration Error is displayed next to function. R5906852 /09...
  • Page 146 GUI – System Settings R5906852 /09...

  • Page 147: Advanced Settings

    Advanced Settings 11.1 Remote access – Enable source preview ..................148 11.2 Service – Color Wheel ........................ 149 11.3 Advanced Settings – Color ......................149 11.4 Advanced Settings – Statistics..................... 150 11.5 Advanced Settings – Pixel Shift ....................151 11.6 Checking the status of the Laser Banks ..................153 11.7 Advanced settings –...

  • Page 148: Remote Access - Enable Source Preview

    Advanced Settings 11.1 Remote access – Enable source preview Source preview Up until Pulse software 2.0. x, you were able to see a preview of the connected source when you remotely accessed the projector. This was a feature you could disable using Projector Toolset. However, from Pulse 2.1.

  • Page 149: Service - Color Wheel

    Advanced Settings 11.2 Service – Color Wheel About Color Wheel F80 is equipped with only one color wheel, which is controlled by the software. Using the advanced settings menu, a Slider makes it possible to fine-tune the color wheel for variation. How to fine-tune the color wheel In the main menu, select Settings →...

  • Page 150: Advanced Settings - Statistics

    Advanced Settings How to adjust the P7 native settings In the main menu, navigate to Settings → Maintenance → Advanced, while you are logged in. Image 11–8 Maintenance menu, Advanced In the Advanced Settings menu, select Native RealColor. Image 11–9 Advanced Settings, Native Realcolor The RealColor calibration menu will be displayed.

  • Page 151: Advanced Settings - Pixel Shift

    Advanced Settings • Laser on time • Laser shut time • System uptime How to display the statistics In the main menu, navigate to Settings → Maintenance → Advanced, while you are logged in. Image 11–11 Maintenance menu, Advanced In the Advanced Settings menu, select Statistics. Image 11–12 Advanced settings, Statistics The Statistics menu will be displayed.
  • Page 152 Advanced Settings How to fine-tune the actuator Use Projector Toolset to project the Cross hatch test pattern. In order to do so, go to the service menu → Run pixel shift. For more info on how to project the cross hatch test pattern, refer to the Projector Toolset user guide.

  • Page 153: Checking The Status Of The Laser Banks

    Advanced Settings Image 11–17 The alternating XPR test pattern 11.6 Checking the status of the Laser Banks About failing laser banks The projector is powered by a laser light source, which has multiple laser banks. The light output and color performance is dependant on the number of active laser banks.

  • Page 154: Advanced Settings - Tilt Sensor Calibration

    Advanced Settings Image 11–20 Example of the Laser group statistics menu Select the desired laser group. In the laser banks group page, you can see which laser banks are part of this specific group. You can also see which laser banks are operational and which have failed. Image 11–21 Example of the laser bank group menu If you want notifications to be disabled for a specific group of laser banks, disable the Enable notifications for this group slider.
  • Page 155 Advanced Settings Image 11–22 Maintenance menu, Advanced Enter the service code. In the Service menu, select Tilt sensor calibration. Image 11–23 Advanced menu, Tilt sensor calibration Confirm your action. Image 11–24 Example of the Advanced menu with the Tilt sensor menu The tilt sensor will be set to zero in the current position of the projector.
  • Page 156 Advanced Settings R5906852 /09...

  • Page 157: Gui - Status Menu

    GUI – Status menu 12.1 Status menu overview......................... 158 No settings can be modified in the status menu. Its only for consulting. R5906852 /09...

  • Page 158: Status Menu Overview

    GUI – Status menu 12.1 Status menu overview How to access the status menu While in the main menu, press Status. Image 12–1 Main menu, status The status menu is displayed. Image 12–2 Example of the first page of the status menu Swipe the screen left of right to swap between the Status pages.
  • Page 159 GUI – Status menu What can be seen on the About page? • Projector information, e.g. firmware version, serial number, projector article number and registration status (only if applicable for your device) • Mounted lens: Lens type and Lens description (if available). •...
  • Page 160 GUI – Status menu R5906852 /09...

  • Page 161: Maintenance

    Maintenance 13.1 Cleaning the lens........................162 13.2 Cleaning the exterior of the projector .................... 162 13.3 Filters ............................162 About this chapter This chapter contains general maintenance procedures. R5906852 /09...

  • Page 162: Cleaning The Lens

    Maintenance 13.1 Cleaning the lens To minimize the possibility of damage to optical coatings, or scratches to lens surfaces follow the cleaning procedure as described here precisely. Required tools • Compressed air • Clean micro fiber lens cleaning cloth (e.g. Toraysee® cloth(s)) •...

  • Page 163: A Specifications

    Specifications Specifications of the F80-Q7......................164 Specifications of the F80-Q9......................165 Specifications of the F80-Q12...................... 167 Specifications of the F80-4K7 ...................... 169 Specifications of the F80-4K9 ...................... 170 Specifications of the F80-4K12 ....................172 Dimensions of a F80 ........................174...

  • Page 164: Specifications Of The F80-Q7

    Specifications A.1 Specifications of the F80-Q7 Overview Projector type Single-chip DLP laser phosphor projector Resolution 2,716 x 1,600 (WQXGA+ native) Brightness 7,000 center lumen* 6,600 ansi lumen 7,500 ISO lumen Contrast ratio 1,200:1 sequential, 10,000:1 dynamic* Brightness uniformity > 90% Aspect ratio 16:10 Lens type...

  • Page 165: Specifications Of The F80-Q9

    Specifications Standby power <0.5W 24/7 operation Yes** Noise level (typical at 25°C/ 35 dB(A) 77°F) Operating temperature 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95° F) (up to 3000m altitude) Storage temperature -20 to 60 °C Operating humidity 20 - 80% RH (non-condensed) Storage humidity...
  • Page 166 Specifications Light source Laser phosphor Light source lifetime > 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode Sealed DLP™ core Orientation 360° rotation, no restrictions Active stereoscopic 3D / Passive stereo compatible Image processing Embedded warp &...

  • Page 167: Specifications Of The F80-Q12

    ** For optimal performance, switch off the projector regularly. For details please consult the manual. *** Except on light source: 20,000 hours in normal mode, or 3 years, whichever comes first. A.3 Specifications of the F80-Q12 Overview Projector type Single-chip DLP laser phosphor projector Technology 0.67"...
  • Page 168 Specifications Active stereoscopic 3D / Passive stereo compatible max WQXGA @120Hz Keystone correction Inputs HDMI2.0 (HDCP2.2, HDR10) / 2x DP 1.2 / 12G-SDI /2x dual link DVI-D / HDBaseT / RJ 45 Ethernet / DMX in-out / RS232 in / 2x USB / 12V out Input resolutions Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz refresh rates:...

  • Page 169: Specifications Of The F80-4K7

    Specifications A.4 Specifications of the F80-4K7 Overview Projector type Single-chip DLP laser phosphor projector Resolution 3,840 x 2,400 (4K UHD) / 2,716 x 1,600 (WQXGA+ native) Brightness 7,000 center lumen* 6,600 ansi lumen 7,500 ISO lumen Contrast ratio 1,200:1 sequential, 10,000:1 dynamic * Brightness uniformity >...

  • Page 170: Specifications Of The F80-4K9

    Specifications Standby power <0.5W 24/7 operation Yes** Noise level (typical at 25°C/ 35 dB(A) 77°F) Operating temperature 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95° F) (up to 3000m altitude) Storage - transport -20 to 60 °C temperature Operating humidity 20 - 80% RH (non-condensed)
  • Page 171 Specifications CLO (constant light output) Light source Laser phosphor Light source lifetime > 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode Sealed DLP™ core Orientation 360°...

  • Page 172: Specifications Of The F80-4K12

    Specifications Warranty Limited 3 years on parts and labor(***) Extendable up to 5 years. * When measured with the GLD 1.43-2.12:1 lens in Wide Angle ** For optimal performance, switch off the projector regularly. For details please consult the manual. *** Except on light source: 20,000 hours in normal mode, or 3 years, whichever comes first.
  • Page 173 Specifications Active stereoscopic 3D / Passive stereo compatible max WQXGA @120Hz Keystone correction Inputs HDMI2.0 (HDCP2.2, HDR10) / 2x DP 1.2 / 12G in (and 12G loop through) /2x dual link DVI-D / HDBaseT Input resolutions From VGA up to 4K (4096 x 2160) refresh rates: 24Hz to 120Hz for WQXGA+ (2716x1600) and 24Hz to 60Hz for 4K/ 4KUHD (4096 x 2160/ 3860 x 2400)

  • Page 174: Dimensions Of A F80

    Specifications A.7 Dimensions of a F80 Overview 107,5 110,5 4x M6 (Fixation Points on 400 X 400 Rectangle) 3x M8 (O32 Feet screwed in hole) Image A–1 Dimensions, in mm CAUTION: Take care to not exceed the maximum recommended tightening torque on the fixing screws.
  • Page 175 Specifications CAUTION: Take care to use adapted screws when the projector is mounted with fixing screws (e.g. ceiling mount configuration). Follow the exact mounting instructions as explained on underside the projector. Longer screws may damage internal parts of the projector. R5906852 /09...
  • Page 176 Specifications R5906852 /09...

  • Page 177: B Connector Specifications

    Connector specifications Specifications DVI-I inputs......................178 Specifications DisplayPort 1.2 inputs.................... 178 Specifications HDMI 2.0 ......................178 Specifications SDI inputs......................179 Specifications HDBase T input..................... 179 High-bandwidth Digital Content Protection (HDCP) ............... 180 R5906852 /09...

  • Page 178: Specifications Dvi-I Inputs

    Connector specifications B.1 Specifications DVI-I inputs Specifications Parameter Value Connector DVI- I female digital RGB ( DVI-D functionality) Signal characteristics DVI 1.0, Digital, TMDS Max. cable length 25 m (24 AWG) Max. pixel rate 330 MHz (dual link), 165 MHz (single link) Scan format Progressive Max.

  • Page 179: Specifications Sdi Inputs

    Connector specifications Parameter Value Connector Standard HDMI Signal characteristics Digital, TMDS Max. cable length 2 m (24 AWG) Max. pixel rate 594 MHz Max. input data resolution 3840x2160 @60Hz Bit depth 8, 10, 12 bits EDID Supported HDCP Supported Ethernet Audio return HDCP Supported...

  • Page 180: High-Bandwidth Digital Content Protection (Hdcp)

    Connector specifications Parameter Value 70 m (Cat5e/6), Pixel Clock >225HHz, Video Datarate >5.3Gbps 100 m (Cat6a/7), Pixel Clock >225HHz, Video Datarate >5.3Gbps Max TMDS Clock Frequency 270 MHz Max video resolution supported 4096x2160 @30Hz HDCP Pass-Through Yes, from Source to Projector IR Extension Not Supported RS-232 Extension...
  • Page 181 Connector specifications Image B–1 HDCP revision information R5906852 /09...
  • Page 182 Connector specifications R5906852 /09...

  • Page 183: C Control Interface Specifications

    Control interface specifications RS-232 ............................184 LAN/Ethernet ..........................184 USB-A port..........................184 DMX ............................184 The HDBaseT input can also be used as a regular network port. See “Connector specifications”, page 177, HDBaseT specification. About This section gives information about interfaces used to control the projector. R5906852 /09...

  • Page 184: Lan/Ethernet

    Control interface specifications C.1 RS-232 Specifications Parameter Value RS-232 connector 1 female DB9 connector (RS232-in) for projector control and debug C.2 LAN/Ethernet Specifications Parameter Value Ethernet connector 1 RJ45 Connector for projector control (not content) Protocols DHCP, TCP/IP, UDP/P Speed 10/100 Mbit/1000Mbit C.3 USB-A port Specifications...
  • Page 185 Control interface specifications DMX-512 Lighting protocol over RS-485 interface. Carries information of 512 channels from a lighting controller to lighting devices. Standardized by USITT. R5906852 /09...
  • Page 186 Control interface specifications R5906852 /09...

  • Page 187: D Regulatory Information

    Regulatory information Product compliance ........................188 Disposal information ........................189 China RoHS compliance ......................189 Taiwan RoHS compliance......................191 Turkey RoHS compliance......................192 Production address........................192 Contact information........................192 Product Info (Taiwan) ........................193 Download Product Manual ......................193 R5906852 /09...

  • Page 188: Product Compliance

    Regulatory information D.1 Product compliance UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom EurAsian Conformity (EAC) This product complies with the Safety of Low-Voltage Equipment (LVE Technical Regulation 004/...

  • Page 189: Disposal Information

    Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 190 Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 191: Taiwan Rohs Compliance

    Regulatory information D.4 Taiwan RoHS compliance 限用物質含有情況標示聲明書 (Declaration of the Presence Condition of the Restricted Substances Marking) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercu- Cadmi- Hexava- Polybromi- Polybromi- lent nated nated (Pb) chromi-...

  • Page 192: Turkey Rohs Compliance

    Barco Fredrikstad as Habornveien 53, N1630 Gamle Fredrikstad, Norway Phone: +476930 4550 Support:Support.fre@barco.com Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. R5906852 /09...

  • Page 193: Product Info (Taiwan)

    型號: GPC D.9 Download Product Manual Download Product Manual Product manuals and documentation are available online at www.barco.com/td. Registration may be required; follow the instructions given on the website. IMPORTANT! Read Installation Instructions before connecting equipment to the mains power supply.
  • Page 194 Regulatory information R5906852 /09...

  • Page 195: E Overview Video Timings For Video Interfaces

    Overview video timings for video interfaces Overview video timings ....................... 196 Overview video timings SDI Inputs ....................197 Overview video timings HDMI 2.0 inputs..................198 Overview video timings DisplayPort 1.2 inputs ................200 Overview video timings HDBaseT input ..................201 Overview video timings DVI Inputs ....................

  • Page 196: Overview Video Timings

    E.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.

  • Page 197: Overview Video Timings Sdi Inputs

    Overview video timings for video interfaces Compatible signal Vertical refresh rate Resolution HDMI 2.0 DisplayPort HDBaseT DVI Inputs (Hz) 12G SDI Input 1.2 Inputs Input 2048 x 1080 2048 x 1080 — — — — 2560 x 1600 — 2560 x 1600 —...

  • Page 198: Overview Video Timings Hdmi 2.0 Inputs

    Overview video timings for video interfaces Video timing Vertical refresh rate Type Port Type (active pixels x active (Hz) lines) 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 3G-SDI Single Link &...
  • Page 199 Overview video timings for video interfaces Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) Top – bottom 1280 x 800 1280 x 960 1280 x1024 1400 x 1050 1600 x 1200 1920 x 1080 Frame packing Top –...

  • Page 200: Overview Video Timings Displayport 1.2 Inputs

    Overview video timings for video interfaces E.4 Overview video timings DisplayPort 1.2 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates Video timing Available layout modes,...

  • Page 201: Overview Video Timings Hdbaset Input

    Overview video timings for video interfaces Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 2048 x 1080 2048 x 1080 2048 x 2160 2 Column mode (2 x 1 layout) 2048 x 2160...
  • Page 202 Overview video timings for video interfaces Video timing Vertical refresh rate (Hz) 3D Support (active pixels x active lines) 1280 x720 Frame Packing. Top – Bottom 1280 x 720 Frame Packing. Top – Bottom 1280 x 800 1280 x 960 1280 x1024 1400 x 1050 1600 x 1200...

  • Page 203: Overview Video Timings Dvi Inputs

    Overview video timings for video interfaces E.6 Overview video timings DVI Inputs Overview The following standard video formats are available for the projector. Available layout modes, other Video timing Vertical refresh rate (Hz) than standard layout (1 x 1 (active pixels x active lines) layout) 640 x 480 800 x 600...
  • Page 204 Overview video timings for video interfaces Available layout modes, other Video timing Vertical refresh rate (Hz) than standard layout (1 x 1 (active pixels x active lines) layout) 3840 x 2400 3840 x 2400 3840 x 2400 4096 x 2160 4096 x 2160 4096 x 2160 R5906852 /09...

  • Page 205: F Dmx Chart

    DMX chart R5906852 /09...

  • Page 206: Dmx Chart, Basic

    DMX chart F.1 DMX chart, Basic Overview Cha- Function Value Default Action nnel Shutter + Intensity 0 - 7 Close shutter 8 - 255 Adjust intensity Function select 0 - 7 No function 8 - 15 Activate default macro (full screen) (If held for 1 second) 16 - 23 Activate macro 2 (If held for 1 second) 24 - 31...
  • Page 207 DMX chart Cha- Function Value Default Actions nnel 8 - 15 Activate default macro (full screen) (If held for 1 second) 16 - 23 Activate macro 2 (If held for 1 second) 24 - 31 Activate macro 3 (If held for 1 second) 32 - 39 Activate macro 4 (If held for 1 second) 40 - 47...
  • Page 208 DMX chart Cha- Function Value Default Actions nnel 21 - 23 Set light source to 75% 24 - 27 Set light source to 70% 28 - 31 Set light source to 65% 32 - 35 Set light source to 60% 36 - 39 Set light source to 55% 40 - 43...
