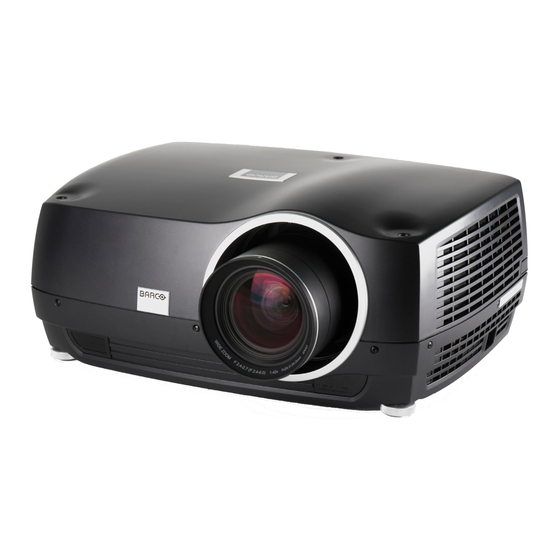

Barco F35 Reference Manual
Hide thumbs
Also See for F35:
- User manual (54 pages) ,
- User manual (54 pages) ,
- Quick start manual (2 pages)
Related Manuals for Barco F35
Summary of Contents for Barco F35
- Page 1 All manuals and user guides at all-guides.com F(L)35, FS35 IR, F85 ASCII Commands Protocol Reference Manual 601–0381–00/00 21/10/2015...
- Page 2 All manuals and user guides at all-guides.com Barco Fredrikstad AS Habornveien 53, N-1630 Gamle Fredrikstad, Norway Phone: +47 6930 4550 Fax: +47 6930 4580 Support: Support.fre@barco.com Visit us at the web: www.barco.com Printed in NO...
- Page 3 Changes Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war- ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
- Page 4 All manuals and user guides at all-guides.com...
-
Page 5: Communication Settings
All manuals and user guides at all-guides.com 1. Communication settings 1. COMMUNICATION SETTINGS Overview • Set up LAN Communication • Set up RS232 communication Set up LAN Communication General The supported RS232 settings are as follows: Parameter Data Baud rate 19200 Data bits Parity... - Page 6 All manuals and user guides at all-guides.com 1. Communication settings Maximum length of the RS-232 cable is 15.25m (50ft). 601–0381–00 F(L)35, FS35 IR, F85 21/10/2015...
-
Page 7: Serial Communications Protocol
All manuals and user guides at all-guides.com 2. Communication protocol definitions 2. COMMUNICATION PROTOCOL DEFINITIONS About This section describes the definitions used in the communications protocol. When the projectors are connected to either RS232 or LAN you can control the projectors through this ASCII based protocol. Some commands will generate OSD feedback. - Page 8 All manuals and user guides at all-guides.com 2. Communication protocol definitions Mnemonic Modifier Value Target Limitations 4 bytes 1 byte N bytes, max 6 bytes N bytes, max 4 Inclusion Required Optional Optional Optional Example POWR Mnemonic bytes (4 bytes) The mnemonic is a 4 byte ASCII command (key identifier).
-
Page 9: Set Commands
All manuals and user guides at all-guides.com 2. Communication protocol definitions Error code Error message Description !00002 Not available Logic conflict prevents command being available. For example, contrast is not available when the projector is searching for sources. !00003 Not implemented Command not available for this projector configuration. - Page 10 All manuals and user guides at all-guides.com 3. ASCII Command Sets Operations Command Description Platforms Level Value Target Comments supported Power POWR Power GP3, GP4 Get, Set End User 0 - power off, 1 - power on Power state GP3, GP4 End User See value table POST POST...
- Page 11 All manuals and user guides at all-guides.com 3. ASCII Command Sets Picture->Advanced Horizontal positon GP3, GP4 End User Only for analog sources HPOS Get, Set VPOS Vertical position GP3, GP4 Get, Set End User Only for analog sources Frequency GP3, GP4 End User Only for analog sources FREQ...
- Page 12 All manuals and user guides at all-guides.com 3. ASCII Command Sets Desired Yellow Gain GP3, GP4 End User DSYG Get, Set Desired White Gain GP3, GP4 End User DSWG Get, Set DFRX Factory Desired Red X GP3, GP4 Get, Set Manufacturing Factory Desired Red Y GP3, GP4...
- Page 13 All manuals and user guides at all-guides.com 3. ASCII Command Sets Factory Measured Blue X GP3, GP4 Manufacturing MFBX Get, Set Factory Measured Blue Y GP3, GP4 Manufacturing MFBY Get, Set MFBL Factory Measured Blue GP3, GP4 Get, Set Manufacturing Luminance Factory Measured White X GP3, GP4...
- Page 14 All manuals and user guides at all-guides.com 3. ASCII Command Sets Installation->Lamp Eco Mode GP3, GP4 End User 0 - disable, 1 - enable ECOM Get, Set LPW1 Lamp1 Power GP3, GP4 Get, Set End User Lamp2 Power GP3, GP4 End User LPW2 Get, Set...
- Page 15 All manuals and user guides at all-guides.com 3. ASCII Command Sets Settings->Set date and time Real Time Clock Hour GP3, GP4 End User RTCH Get, Set RTCM Real Time Clock Minute GP3, GP4 Get, Set End User Real Time Clock Second GP3, GP4 End User RTCS...
- Page 16 All manuals and user guides at all-guides.com 3. ASCII Command Sets IR control->IR adjustments IR LED power GP3 LED IR End User AUXD Get, Set GAB1 Set Gamma abs value IR channel GP3 LED IR Get, Set End User See value table GABS WUXGA sub channel mapping GP3 LED IR...
- Page 17 All manuals and user guides at all-guides.com 3. ASCII Command Sets Menu navigate Menu Navigate Toggle OSD GP3, GP4 End User MENU Menu NVUP Menu Navigate Up GP3, GP4 End User Menu Navigate Down GP3, GP4 End User NVDW Menu Navigate Left GP3, GP4 End User NVLF...
- Page 18 All manuals and user guides at all-guides.com 3. ASCII Command Sets Internal sensor duration value GP3 LED Power User INDG green Internal sensor duration value GP3 LED Power User INDB blue Thermal Thermal Status GP3, GP4 Power User THRM FAN1 Fan Speed 1 GP3, GP4 Power User...
- Page 19 All manuals and user guides at all-guides.com 3. ASCII Command Sets Lamp data Lamp data mailbox Manufacturing Data 0 - Lamp 1, 1 LMBX Get, Set - Lamp 2 LMBP Lamp data mailbox position Get, Set Manufacturing Data 0 - Lamp 1, 1 - Lamp 2 Lamp data mailbox checksum Manufacturing Data...
- Page 20 All manuals and user guides at all-guides.com 3. ASCII Command Sets Value tables IABS Set source abs values Value Description VGA 1 VGA 2 DVI 1 Component HDMI 1 DVI 2 HDMI 2 Dual Head DVI Dual Head HDMI Dual Head XP2 XP2 A XP2 B SABS...
- Page 21 All manuals and user guides at all-guides.com 3. ASCII Command Sets DSCR Desired Coords Mode Value Description RGBCMY ORIE Select Orientation abs value Value Description Desktop front Ceiling rear Desktop rear Ceiling front OSDC OSD Enable Value Description OSD off OSD show only warnings OSD on LMOD...
- Page 22 All manuals and user guides at all-guides.com 3. ASCII Command Sets LEST Status LED state Value Description Green/Blue On Green/Blue Flash Yellow On Yellow Flash Red On Red Flash DCSP Digital colorspace Value Description YPbPr 709 YpbPr 601 TRGx Trigger mode Value Description Screen...
- Page 23 All manuals and user guides at all-guides.com 3. ASCII Command Sets BAUD Trigger mode Value Description 4800 4800 9600 9600 19200 19200 38400 38400 57600 57600 115200 115200 TBOS 3D BNC sync-out signal Value Description 3D glass sync 3D display sync Passthrough FLSS Framelock signal status...
- Page 24 All manuals and user guides at all-guides.com 3. ASCII Command Sets LVCE bit wise error code for LED voltage calibration Description Set red input voltage failed Read red ADC current failed Read red drop out voltage failed Desired red input voltage out of range Red loop count exceed max value Set green input voltage failed Read green ADC current failed...
