Description

The KBR MULTIGATE-Profibus / multisys 1D3-ESDP connects the KBR energy bus to a Profibus. The two
interfaces are isolated galvanically from each other.
The gateway allows the KBR multimess 1F96-0-LED-ES-US1, multicount basic LCD bus, BK12 Basic or
a multicomp 96 LCD bus to be read out via the Profibus. Communication between the device and the gateway
takes place via the KBR Energy Bus. Either a multimess 1F96-0-LED-ES-US1, multicount basic LCD bus
BK12 Basic or a multicomp 96 LCD bus can be connected with the fixed energy bus address 1. The Profibus
address can be configured via DIP switches on the gateway. The gateway here is configured as the master on the
energy bus side, generates a memory map for the corresponding device and makes this available as data points
for the Profibus. The number and type of the data points can be conveniently configured via the GSD file.

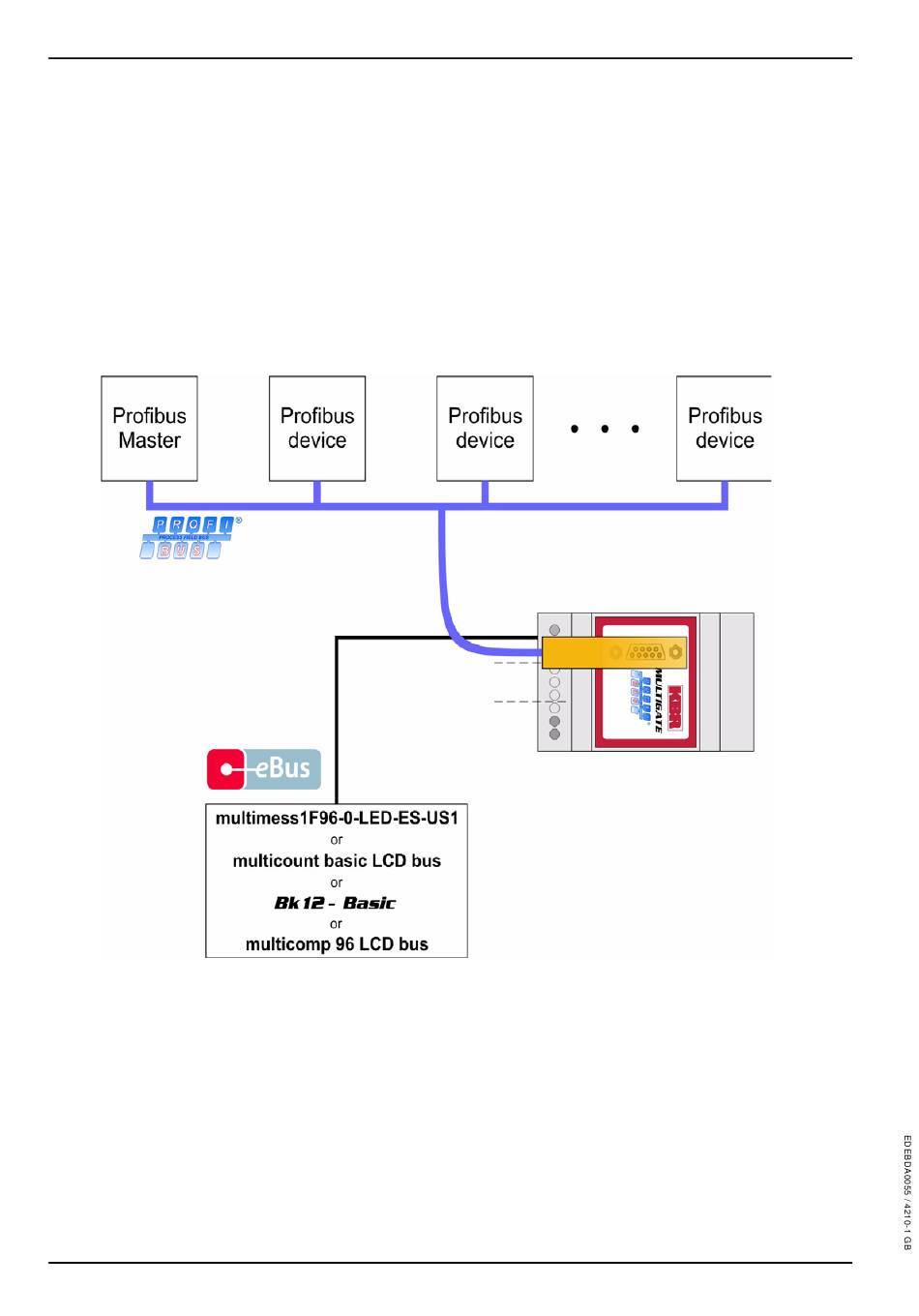

Figure 1: Principal system design
