Function

The MULTIGATE-Profibus / multisys 1D3-ESDP continually polls its connected multimess 1F96-0-LED-
ES-US1, multicount basic LCD bus, BK12 Basic or multicomp 96 LCD bus to receive its measured values.
It then saves these in the internal memory. The measured values are now ready for retrieval by the Profibus. After
the device has been configured by a Profibus master, it makes available the values in the cyclic data exchange.
3

Connection

The power supply for the MULTIGATE-Profibus / multisys 1D3-ESDPis provided by a power pack with 24V
AC/DC supplied by the customer. 24V are connected to the 24V AC/DC input.
The Energy Bus is wired up in accordance with the KBR eBus guideline. Connection to the Profibus DP network
is estabilshed via 9-pole standard Profibus plugs.
Version 1.0
PROFIBUS-DP

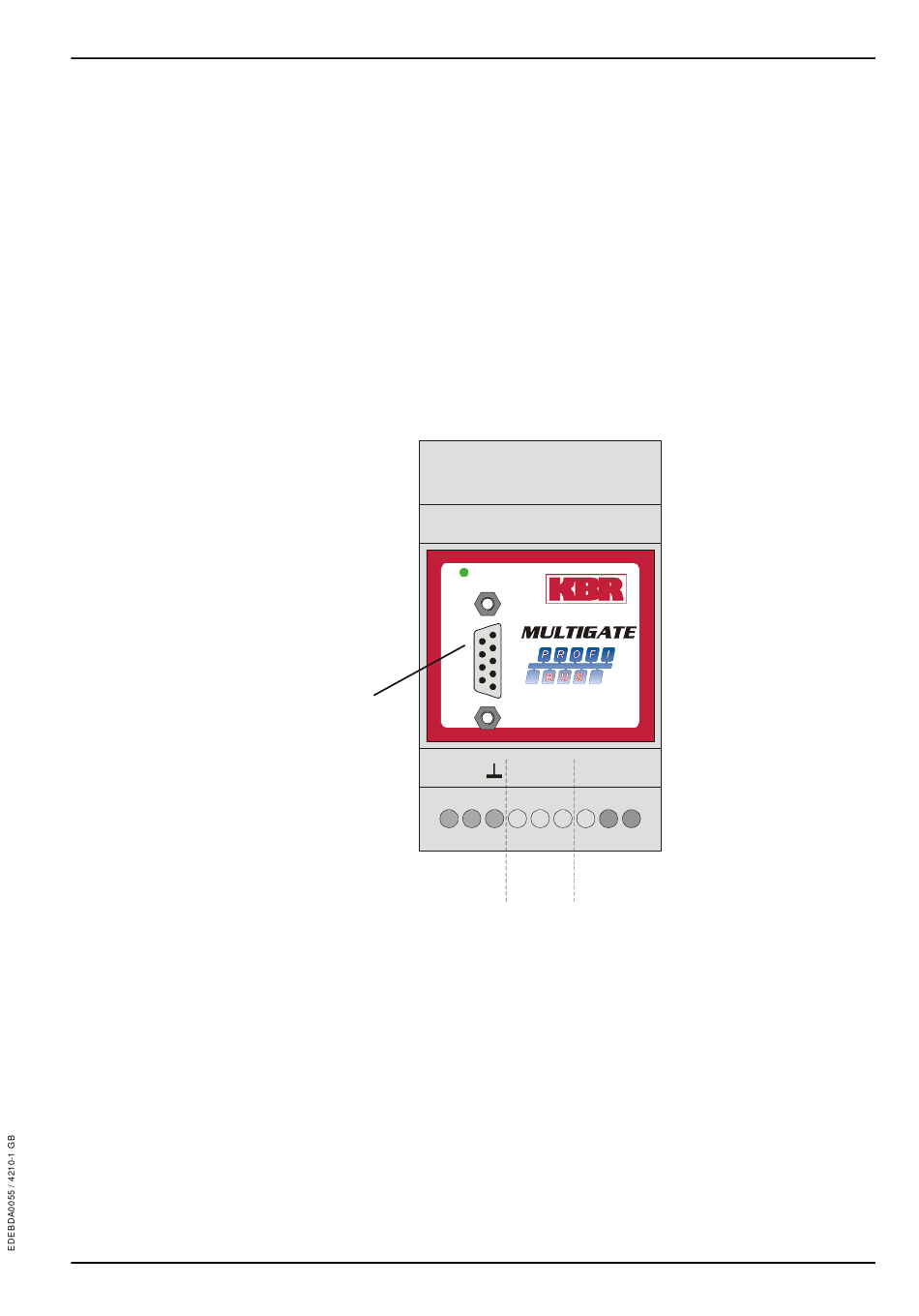

Figure 2: Pin assignment
MULTIGATE-Profibus / multisys 1D3-ESDP
PROCESS FIELD BUS
B A
24V
1
1 1
EBUS Power
supply
®
ac/dc
