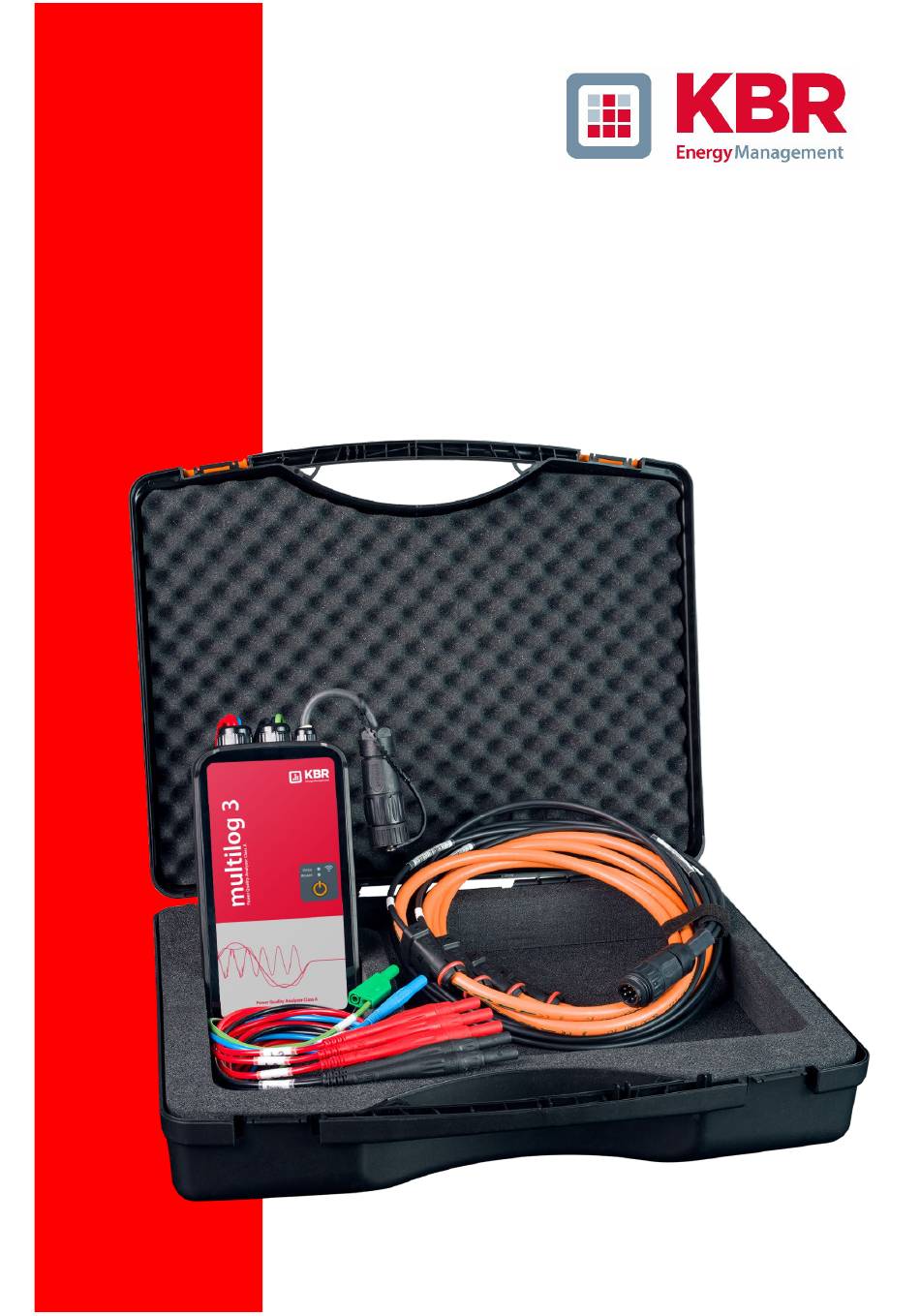

- Page 1 Operating Manual Network Analyzer multilog 3 multilog 3...
- Page 2 E-Mail info@kbr.de Internet: www.kbr.de KBR GmbH cannot be held liable for any damage or losses, resulting from printing errors or changes to this operating manual. Furthermore, KBR GmbH does not assume responsibility for any damage or losses resulting from defective devices or from devices altered by the user.
-
Page 3: Table Of Contents
Updated documentation ......................6 Safety Instructions ......................7 Safety instructions ........................7 Meaning of the symbols used on the device ................8 Scope of Delivery/Order Codes multilog 3 ................ 9 Scope of Delivery ........................9 Order Codes ..........................9 Technical data ......................... 11 Accessories for current measurement ................ - Page 4 We take care of it multilog 3 App ....................... 28 Connection to multilog......................28 Maintenance/Cleaning ....................29 Calibration ........................29 Disposal ........................29 Product Warranty ......................30...
-
Page 5: User Guidance
We take care of it User Guidance Target group The User Manual is intended for skilled technicians as well trained and certified operators. The contents of this User Manual must be accessible to people tasked with the installation and operation of the system. Warnings Structure of the warnings Warnings are structured as follows:... -
Page 6: Other Symbols
Keeping Keep the user manual, including the supplied documentation, readily accessible near the system. Updated documentation The most recent versions of the documents can be obtained at https://www.kbr.de... -
Page 7: Safety Instructions
Safety Instructions Safety instructions Follow the operating instructions. Keep the operating instructions with the device. Ensure that the device is operated only in a perfect condition. Never open the device. When opening the battery compartment, disconnect the power supply. ... -
Page 8: Meaning Of The Symbols Used On The Device
We take care of it Meaning of the symbols used on the device Nature and source of the danger! Read the safety instructions inside the manual! Voltage ground USB-interface CE marking guarantees compliance with the European directives and regulations regarding EMC The unit is fully protected by double or reinforced insulation. -
Page 9: Scope Of Delivery/Order Codes Multilog 3
EN50160, IEC61000-2-2/2-4 for public and industrial power systems are automatically generated. multilog 3 expert This version is additionally equipped with comprehensive trigger functions for oscilloscope and ½ cycle RMS records. With a licence code, the multilog 3 can be upgraded, B1 light or B2 expert. - Page 10 ½ cycle RMS recorder ( U, I, P, Q, S, frequency) Oscilloscope recorder ( U, I) Phase shift trigger, wave shape trigger Interval-trigger Automatic trigger With a licence code, the multilog 3 can be upgraded from lower version to a higher version.
-
Page 11: Technical Data
Technical data CE- conformity Interference multilog 3 (4U/4I) immunity DC 848V ⎓ 4 voltage inputs (AC/DC): L1, L2, L3, N, E; – EN 61326 – Maximum input voltage: EN 61000-6-2 Emittedinterference AC 1039V/600V – EN 61326 1.2 MΩ impedance EN 61000-6-4... - Page 12 We take care of it Measurement quantity Error limits according IEC 61000-4-30, Class A ±0.1% of U Fundamental oscillation: r.m.s. over 10% ~ 150% of U Fundamental oscillation: Phase ± 0.15° over 50% ~ 150% of U over f ±15% ±5% of display over U = 1% ~ 16% of U 2nd ...
-
Page 13: Accessories For Current Measurement
Accessories for current measurement - Standard accessories are automatically recognized by the meter. - The conversion factor is automatically adjusted for the connected accessory. 4.1.1 Rogowski current clamps Rogowski current clamp 4~: Up to 3000 A Rogowski current clamp 4~: Up to 6000 A Model Up to 3000 A Pro Flex 3000 4~ Up to 6000 A Pro Flex 6000 4~... -
Page 14: Current Clamps
100-200 A/<1 ° 200 A Measurement range up to 20/200 A Adjustment of the power converter factor to x10. For the clamp with two ranges the automatic factor detection of the multilog 3 does not work for the second. - Page 15 Mu-Metal Mini-Current clamp 0…5A 1~: Up to 5 A Current range: 5mA to 5A AC RMS Frequency range: 40Hz to 20kHz Free current adapter set necessary AC/DC Current clamp 1~: AC/DC up to 60/600 A AC/DC hall sensor clamp. Set with power supply and 2 pcs. 4mm connectors Current range 60A/600A (two ranges) AC/DC up to 60/600 A Measurement range...
-
Page 16: Accessories For Current Measurement
We take care of it 4.1.3 Accessories for current measurement Free Adapter set for connecting 4 clamps: Adapter set for connecting 4 clamps or shunt with 4mm connectors. 2m length CAUTION! Damage to the device from external current clamps Do not use clamps with A or mA output ... -
Page 17: Intended Use
Ensure that the device is not operated above the rated data Description The Network Analyzer multilog 3 is suitable for analysis in low, medium and high-voltage networks. It meets all the requirements of the measurement equipment standard IEC61000-4-30 Ed. 3 class A. -
Page 18: Hardware Multilog 3
We take care of it Hardware multilog 3 multilog 3 Hardware 2 leads power supply + reference earth Stackable to voltage leads 1) 4 voltage leads L1, L2, L3, N input for 4 current clamps Measurement Start/ Stopp USB interface... - Page 19 Connect device to maximum AC voltage of 980V AC / 1380V DC L-L. Current clamp connection (Amphenol plug 7-pole) 3) The multilog 3 is equipped with an internal extremely robust wide-range power supply. The power supply is designed for the high immunity of 300V CAT IV and complies with the pro- tection class IP65.
-
Page 20: Accumulator
A glowing WLAN icon indicates if this interface is active and accessible. Accumulator The multilog 3 is equipped with a lithium-ion battery and intelligent charging electronic. The aim is to achieve a long battery life time. At 80% capacity, the PQ-Box can run approximately 2 hours without mains supply. -
Page 21: Network Connection Multilog 3
Network connection multilog 3 8.1.1 Direct connection to a 3-phase low voltage network Connection in a 3-phase 4-wire AC network Voltage connection Ensure that voltage measurement cable PE is connected for every measurement. If no PE connection is available, connect E and N together. -
Page 22: Connection To A Single-Phase Low Voltage Network
We take care of it Connection to a single-phase low voltage network Connection for single-phase measurements Voltage connection Ensure that voltage measurement cable E is connected for every measurement. If no PE connection is available, connect E and N together. ... -
Page 23: Connection To An Isolated It Network
Connection to an isolated IT network Connections Connect terminals E and N together and connect it to a ground potential. Ensure that switching (3-wire) is selected. (Setting via display or software) The input impedance of a measuring input is 1,2 mega ohms. If the high-resistance ground connection is not desired, it is also possible to interconnect the terminals E and N and to hang open. -
Page 24: Connection To Secondary Transformer
We take care of it Connection to secondary transformer Connections Ensure that voltage measurement cable E is connected for every measurement. If no PE connection is available, connect E and N together. Ensure that switching (3-wire) is selected. (Setting via display or software) ... -
Page 25: Special Circuit Types
Special circuit types Configurations such as a V connection or aron connection can be parameterized. – V connection (parameterization through the evaluation software or device setup) – Aron connection (parameterization through the evaluation software or device set- Isolated networks Connections ... -
Page 26: Starting A Measurement
So that the recorder data does not fill the whole memory when a too sensitive or incorrect trigger level is set and thus the long-term recording is stopped, at the start of the measurement the multilog 3 reserves a maximum size of the free space for all fault records. -
Page 27: Wlan Multilog 3
For connection you have to enter the WPA2 Key on your PC or mobile phone. SSID and password for a WPA2 connection can be found on the nameplate of the network analyzer (Example: for „SSID: PQBox50AP_1804-204“ the password would be „1804-204“). The WLAN IP address of the multilog 3 is pre-set to 192.168.2.4 and cannot be parameterized. -
Page 28: Multilog 3 App
...) is only possible via the WinPQ mobil software. Connection to multilog 3 The multilog 3 acts as a WLAN router. SSID and password for a WPA2 connection can be found on the nameplate of the network analyzer (Example: for „SSID: PQBox50AP_1804-204“ the password would be „1804-204“). -
Page 29: Maintenance/Cleaning
Am Kiefernschlag 7 D-91126 Schwabach Calibration We recommend a calibration interval of three years for the network analyzer multilog 3 to maintain the accuracy of GEFOR-made-IEC61000-4-30 Class A instruments. Disposal To dispose of the device and its accessories, send all components to KBR GmbH. -
Page 30: Product Warranty
We take care of it Product Warranty KBR GmbH guarantees that this product will remain free of defects in material and work- manship for a period of three years from the date of purchase. For accessories like current clamps and the battery the period is one year. - Page 32 We take care of it KBR GmbH Am Kiefernschlag 7 D-91126 Schwabach Tel.: 09122 / 6373-0 Fax: 09122 / 6373-83 E-Mail info@kbr.de Internet: www.kbr.de 28230_EDEBDA0324-3123-1_EN_multilog 3_Hardware...
