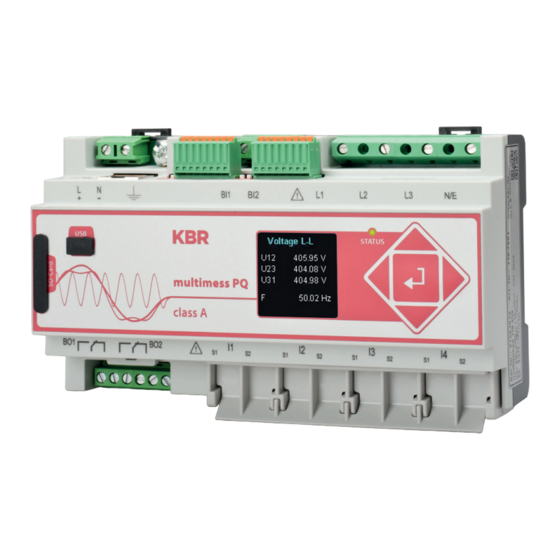

- Page 1 Quick guide Installation guidelines Power Quality Analyser multimess D9-PQ In our download center you will find the System english appropriate instructions for KBR devices. https://www.kbr.de/de/dienstleistungen/ download-center...
-
Page 2: Table Of Contents
Electrical safety ..........................31 Connection / terminals ......................32 KBR Kompensationsanlagenbau GmbH does not accept any liability for any loss or damage resulting from printing errors in or changes to this manual. In addition, KBR Kompensationsanlagenbau GmbH does not accept any liability for any loss or damage caused by defective devices or devices manipulated by the user. -
Page 3: Notes
The company KBR Kompensationsanlagenbau GmbH does not accept any liability for damage or loss of any kind resulting from faulty devices or from devices that have been modified by the user. -
Page 4: Safety
Introduction Safety Safety Instructions IT IS IMPORTANT FOR PERSONAL SAFETY TO FOLLOW THESE INSTRUCTIONS. THESE INSTRUCTIONS MUST BE KEPT IN A SAFE PLACE! Observe operating instructions. Always keep the operating instructions with the appliance. Ensure that the machine is only operated in perfect condition. ... -
Page 5: Structure Of The Warnings
Introduction Structure of the warnings Warnings are structured as follows: Nature and source of the danger! Consequences if not observed. SIGNAL WORD Steps to avoid the danger. Graduation of warnings Warnings differ according to the type of danger as follows: Warns of an imminent danger which, if not avoided, will result in death or serious injury. -
Page 6: Intended Use
All technical connection values and rated data must be observed! The multimess D9-PQ is suitable for the following installation location and should, should only be operated in this environment. -
Page 7: Cleaning
Introduction Cleaning Use a soft, slightly moistened and lint-free towel. Make sure that no moisture penetrates the housing. Do not use window cleaners, household cleaners, sprays, solvents, cleaners containing alcohol, ammonia solutions or scouring agents for cleaning. Please use only water for cleaning. -
Page 8: Commissioning
The multimess D9-PQ can be used as a Power Quality Interface according to powerquality standards such as IEC61000-2-2 / EN50160 or to check the technical connection guide- lines such as DIN VDE AR 4110 and DIN VDE 4120 and many more. -
Page 9: Fitting
Mounting in a control cabinet and small distribution board The multimess D9-PQ can be installed in any position of use by snap-on mounting with three mounting elements on a 35 mm wide top-hat rail to EN60715. For mounting, the device is guided at an angle to the top-hat rail from above and snapped in at the bottom. -
Page 10: Functional Earth
Commissioning Functional earth The device is provided with a functional earth, which also serves as reference potential for the voltage inputs. The functional earth is marked witht uand terminal X1 / 13 on the measuring instrument. Connect the grounding cable to terminal X1 / 13 on the meter and tighten the screw. Use an eyelet terminal for the connection and make sure it is tight! Danger to life due to electric shock! DANGER! -
Page 11: Supply Voltage
Commissioning Supply voltage The multimess D9-PQ is available with two different supply voltage characteristics. Please take the correct supply voltage from the type label before connection. Example of connection to 230V AC After connecting and switching on the power supply, the status LED lights up red, changes to green and the display starts in the commissioning wizard. - Page 12 Commissioning Material damage due to non-observance of the NOTICE! connection conditions or impermissible overvoltage! Failure to comply with the connection conditions or exceeding the permissible voltage range may damage or destroy your device. Before applying the supply voltage to the device, the following points must be observed: ...
-
Page 13: Mains Connection For Multimess D9-Pq
Commissioning Mains connection for multimess D9-PQ The mains connection of the multimess D9-PQ depends on the type of mains in which the measurement is to be made. The multimess D9-PQ is designed for direct measurement in low voltage (3 phase / 4 wire connection) for low voltage networks (TN, TT and IT networks) or for residential and industrial applications. - Page 14 Commissioning 3.6.1 3-phase / 4-wire connection Example of a connection for a multimess D9-PQ in a three-phase four-wire system Voltage connections The voltage connections must be made as shown in the circuit diagram above If no N conductor connection is available, connect connections Eand N together. .
- Page 15 Attention dangerous contact voltage! Flashover and high short-circuit currents possible in CAT III and CAT IV! Ensure that the PE conductor (earthing) is connected to the multimess D9-PQ. Before starting work, check that no voltage is present! Provide protective equipment for CAT II, CAT III or CAT IV.
- Page 16 Current connections If no neutral conductor current is available in the 3-phase 4-wire network, the S2 current inputs of the multimess D9-PQ must all be short-circuited and the S2 terminals of the current transformers used must be connected to S1 (terminal X6:67) ...
- Page 17 Attention dangerous contact voltage! Flashover and high short-circuit currents possible in CAT III and CAT IV! Ensure that the PE conductor (earthing) is connected to the multimess D9-PQ. Before starting work, check that no voltage is present! Provide protective equipment for CAT II, CAT III or CAT IV.
- Page 18 Enter the nominal voltage of the conductor-conductor voltage. Current connections Set current transformer ratio. Connection multimess D9-PQ current I in 3-wire network If a current is connected to input IN in the 3-wire network, it is not physically measured. The current IN is always calculated...
- Page 19 AAttention dangerous contact voltage! Flashover and high short-circuit currents possible in CAT III and CAT IV! Ensure that the PE conductor (earthing) is connected to the multimess D9-PQ. Before starting work, check that no voltage is present! Provide protective equipment for CAT II, CAT III or CAT IV.
-
Page 20: Operation Of The Multimess D9-Pq
Operation of the multimess D9-PQ Getting started When the power analyser multimess D9-PQ is put into operation for the first time, the instrument will appear in a guided “Wizard „ mode. The operator is automatically guided through the initial commissioning of the instrument. This Wizard must be performed... -
Page 21: First Commissioning - Wizard - Procedure
Parameterization First commissioning - wizard - procedure Wizard setting Language & PQ-Standard Setup-Wizzard Language Selection of display language multimess D9-PQ English Selection of the Power Quality standard PQ-Standard – Low-voltage grid / TN system => EN 50160-LV EN50160-LV –... - Page 22 Parameterization Wizard setting Voltage Transformer Valtage Transform. primary Voltage Primary Voltage: [V] P-P 20000 Corresponds to the primary rated voltage of the voltage transformer. sec.Voltage [V] P-P 100.00 Sec. Voltage: Corresponds to the secondary rated voltage of the voltage transformer. The voltage transformer factor is calculated automatically! If Power Quality standard for low voltage net-...
- Page 23 Secondary nominal current of the connected current transformer. The current voltage transformer factor is calculated automatically! The page is hidden for multimess D9-PQ with the features C40 (current inputs Rogowski) and C44/C45 (current inputs current clamps). Feature C30/C31 Wizard setting System Load...
- Page 24 Parameterization Feature C40 Rated Current: Setting the nominal current of the system. System Load Rated Current Trans.Fact.Equipm.: 3000.0 Setting the transformer factor of Rogowski coils connected to the current input. Trans.Fact.Equipm. [mV/A] Rated Current: Feature C44/C45 Setting the nominal current of the system. System Load ...
- Page 25 Entry of a fixed IP address as specified by IT Subnetzmaske Subnetmask: 255.255.0.0 Entering the subnet mask. Gateway 192.168.0.1 Gateway: Entering a gateway. In the factory setting, the multimess D9-PQ is factory preset with the IP address 192.168.56.95 and the subnet mask 255.255.0.0...
- Page 26 Parameterization Wizard setting Security mode (with Firmware >v2.0) Setup-Wizzard Security mode Security Mode: activ Active: high security mode WinPQ version The device is set up in security mode. Communication is >5.0 requierd! encrypted and device access is protected. The completion of the commissioning in security mode requires the setup of the necessary user accounts and must be completed with the soft- ware WinPQ or WinPQ lite withversion 5.0 or higher.
- Page 27 Parameterization Wizzard Menu Password Setup-Wizzard Menu Password Menu Password: 0000 Input of a 4-digit menu password to lock the device setup.. is page is only displayed in the active Security Mode. Wizard Final Page Setup-Wizzard Accept settings: Apply settings? At this point all settings for the device can be accepted or the setup wizard can be cancelled.
-
Page 28: Technical Data
Technical Data Technical Data Dimensions / Weight Dimensons: (L x B x H) 160 x 90 x 58 mm Weight: 502 g Electrical safety – environmental parameter Environmental parameter Storage and transport Operation Ambient temperature: IEC 60721-3-1 / 1K5 -40 ... IEC 60721-3-3 / 3K6 -25 ... -
Page 29: Voltage Inputs
Technische Daten Voltage Inputs Voltage input Channels U1, U2, U3, UN/E/4 Electrical safety 300V CAT IV DIN EN 61010 600V CAT III Input reference level Impedance -> PE 10 MΩ || 25pF Nominal input voltage Un 230 V Full scale range (FSR) 0…480 V Waveform Jede AC / DC... -
Page 30: Current Inputs
Technical Data Current Inputs Option Channels I1, I2, I3, IN/4 Electrical safety IEC 61010-1:2010 300 V CAT III Input type Differential, isoliert Impedance ≤ 4 mΩ Nominal input current I Full scale range (FSR) 10 A Overload capacitypermanent 20 A ≤... -
Page 31: Binary Outputs
Technical Data Binary outputs Binärausgänge (BO) Contact specification ( (EN60947-4-1, -5-1) Configuration SPDT Nominal current 250 VAC Nominal voltage Nominal load AC1 1500 VA Nominal load AC15, 230 VAC 300 VA Interrupting power 6/0,2/0,12 A DC1, 30/110/220 V Number of switching operations AC1 ≥... -
Page 32: Connection / Terminals
Technical Data Connection / terminals Please observe the safety guidelines and regulations in the chapter „Connection“! Ter- Designation Function Terminal Cross Strip- minal section ping- strip [mm²] length [mm] Auxiliary voltage L (+) 0,75 – 1,5 N (-) 0,75 – 1,5 Ground 1,5 –... - Page 33 Technical Data Connection cables to be used Provide safety devices (fuse) for CAT II. Do not mix touchable and dangerous active circuits. Connection cables must be designed for a temperature of at least 62°C. multimess D9-PQ...
- Page 34 Notes...
- Page 35 Notes...
- Page 36 KBR Kompensationsanlagenbau GmbH Am Kiefernschlag 7 T +49 (0) 9122 6373 - 0 www.kbr.de D-91126 Schwabach F +49 (0) 9122 6373 - 83 E info @ kbr.de...
