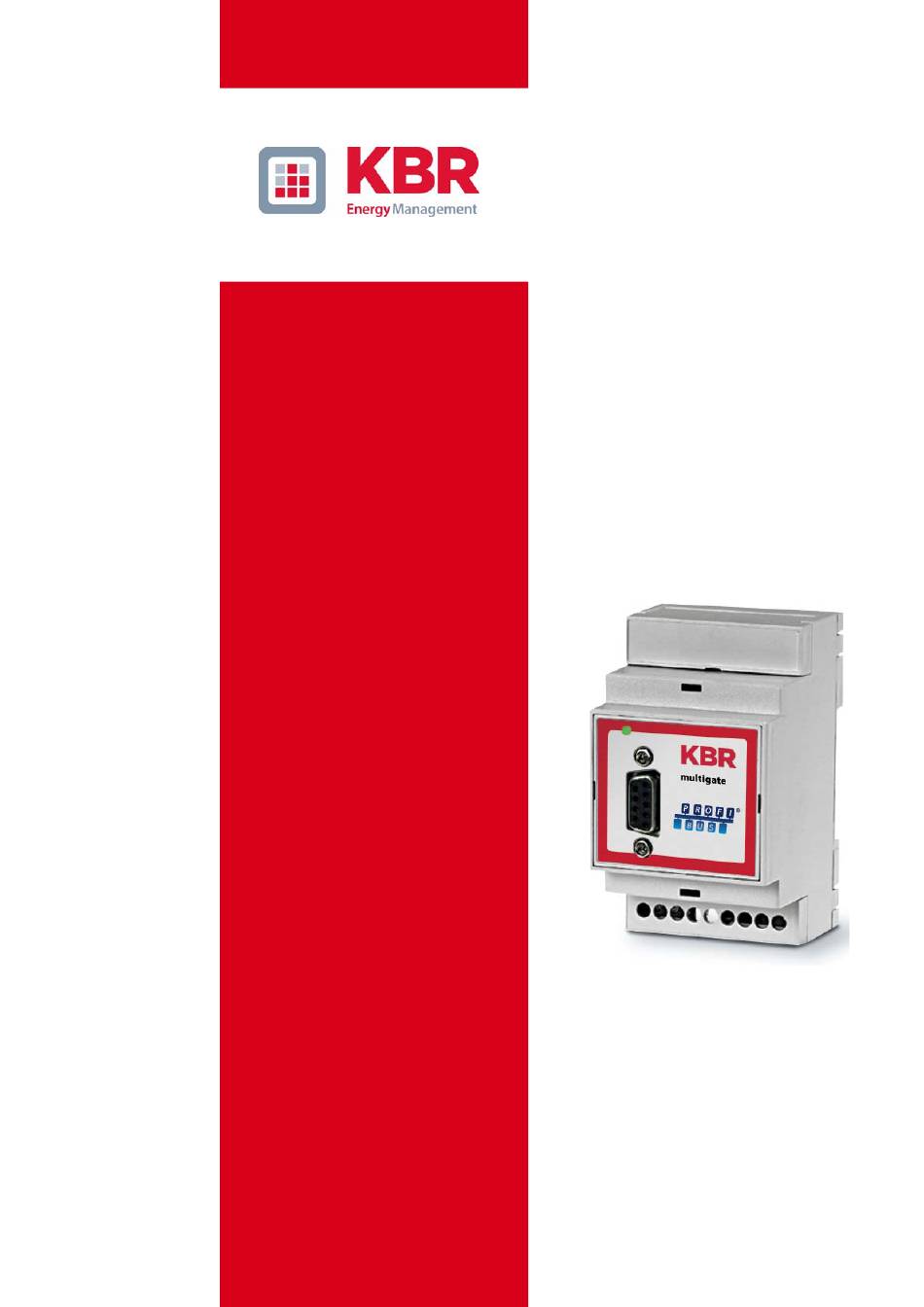

  • Page 1 Operating Instructions Technical Parameters multisys 1D3-ESDP Your Partner for Network Analyzing...
  • Page 2 KBR GmbH Am Kiefernschlag 7 D-91126 Schwabach T +49 (0) 9122 6373-0 F +49 (0) 9122 6373-83 E info@kbr,de www.kbr.de...
  • Page 3 Preface Dear Customer We would like to thank you for choosing a KBR GmbH quality product. In order to familiarize yourself with the operation and programming of the device and always be able to use the whole functionality of this high-quality product, we recommend that you read this manual thoroughly.
  • Page 4 The specifications made in this manual are checked on a regular basis, necessary corrections are included in the next revision. We appreciate your corrections and comments. © KBR-GmbH Subject to change Page II von IV...
  • Page 5 Safety Precautions General Safety Precautions In order to prevent operating errors, handling of the device is kept as simple as possible. This way, you will be able to use the device very soon. In your own interest, however, you should read the following safety precautions carefully. Warning During installation, the applicable DIN / VDE regulations must be obser- ved!
  • Page 6 Product Liability / Disposal Product Liability With these product, you have acquired a quality product. In its manufacture, only components of the highest reliability and quality were used. Each device is subject to long-term testing before it is delivered. For information on product liability, please refer to our General Terms and Conditions for electronic devices. The warranted properties of the device apply only if it is operated in accordance with its intended use! Disposal Please dispose of defective, outdated or no longer used devices properly.

  • Page 7: Table Of Contents

    MULTIGATE-Profibus / multisys 1D3-ESDP Table of Contents 1 Description ....................2 2 Function .......................3 3 Connection ....................3 4 Configuration ....................4 4.1 Profibus address ....................4 5 Commissioning ...................6 6 Data formats ....................6 7 GSD file ......................9 7.1 Example for integration into a Simatic S7-300 control ........9 8 multimess 1F96-0-LED-ES-US1 ..............10...

  • Page 8: Description

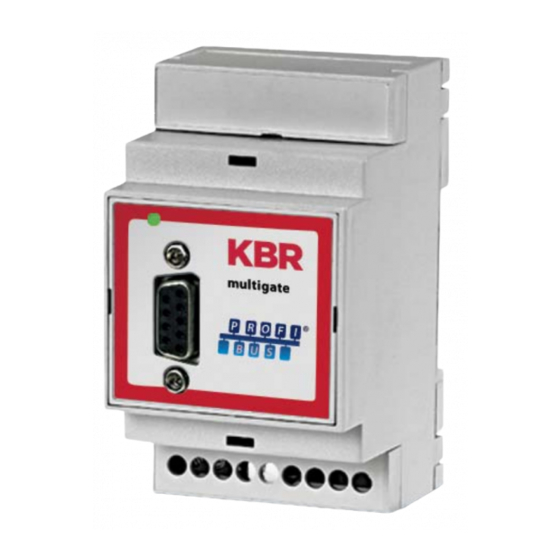

    MULTIGATE-Profibus / multisys 1D3-ESDP Description The KBR MULTIGATE-Profibus / multisys 1D3-ESDP connects the KBR energy bus to a Profibus. The two interfaces are isolated galvanically from each other. The gateway allows the KBR multimess 1F96-0-LED-ES-US1, multicount basic LCD bus, BK12 Basic or a multicomp 96 LCD bus to be read out via the Profibus.

  • Page 9: Function

    The power supply for the MULTIGATE-Profibus / multisys 1D3-ESDPis provided by a power pack with 24V AC/DC supplied by the customer. 24V are connected to the 24V AC/DC input. The Energy Bus is wired up in accordance with the KBR eBus guideline. Connection to the Profibus DP network is estabilshed via 9-pole standard Profibus plugs.

  • Page 10: Configuration

    MULTIGATE-Profibus / multisys 1D3-ESDP Configuration On the side of the housing opposite the connections the DIP switch S1 is located under a cover. This is used to set the Profibus address: 1 2 3 4 5 6 7 8 Figure 3: DIP switch for parametrization...
  • Page 11 MULTIGATE-Profibus / multisys 1D3-ESDP DIP switch 1 DIP switch 1 Profibus Profibus address address OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF...

  • Page 12: Commissioning

    After the configuration and all the wiring have been successfully completed, the MULTIGATE-Profibus / multisys 1D3-ESDP can be put into operation. Here it should be ensured that the gateway is the final device to be switched on, or that the KBR eBus device and gateway are supplied with power at the the same time. The gateway can now be found on the Profibus under the address set, and it can be parametrized and configured via a suitable configuration tool.
  • Page 13 MULTIGATE-Profibus / multisys 1D3-ESDP Example 1: -12.5 decimal = 0xC1480000 hex M: 24-bit mantissa E: Exponent with an offset of 127 S: Sign for mantissa (S=1 neg.; S=0 pos.) Address Format SEEEEEEE EMMMMMMM MMMMMMMM MMMMMMMM Binary 1 1 0 0 0 0 0 1...
  • Page 14 MULTIGATE-Profibus / multisys 1D3-ESDP Example 3: 45.354 decimal = 0x42356A7F hex Address Format SEEEEEEE EMMMMMMM MMMMMMMM MMMMMMMM Binary 0 1 0 0 0 0 1 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 1 0 0 1 1 1 1 1 1 1 Table 7: Example float 45.354...

  • Page 15: Gsd File

    MULTIGATE-Profibus / multisys 1D3-ESDP GSD file The functionality of the device is described by the GSD file. The MULTIGATE Profibus / multisys 1D3-ESDP represents its connected KBR device as a modular device. By lining up the desired modules using the configuration data, the input and output data can be put together any way you like.

  • Page 16: Multimess 1F96-0-Led-Es-Us1

    MULTIGATE-Profibus / multisys 1D3-ESDP multimess 1F96-0-LED-ES-US1 GSD file for multimess 1F96-0-LED-ES-US1 ;-----------------------------------------------------------------------------; ; GSD Multimess 96 for PROFIBUS DP ; Fa. KBR GmbH, Am Kiefernschlag 7 , 91126 Schwabach ; Tel.: 09122/6373-0 ; Date: 30.04.2004 ;-----------------------------------------------------------------------------; #Profibus_DP ; <Prm-Text-Def-List> PrmText=1 Text(0)= "do not rotate float/REAL"...
  • Page 17 MULTIGATE-Profibus / multisys 1D3-ESDP ; <Parameter-Definition-List> ;User_Prm_Data_Len = 4 ;User_Prm_Data = 0x00,0x00,0x00,0x00 Max_User_Prm_Data_Len = 4 Ext_User_Prm_Data_Ref(3)=1 Module="device status (read and reset)" 0x91,0xA0 ; reset status with <> 0 in Outputdata EndModule Module="clear-commands" 0xA0 ; Bit0: reserved ; Bit1: reserved ; Bit2: reset endless active work counter consumption ;...
  • Page 18 MULTIGATE-Profibus / multisys 1D3-ESDP Module="min: active power L1-L3" 0x41,0x8B, 26 float EndModule Module="min: reactive power (Q1) L1-L3" 0x41,0x8B, 27 kvar float EndModule Module="min: reactive power (Qn) L1-L3" 0x41,0x8B, 28 kvar float EndModule Module="min: cos Phi L1-L3" 0x41,0x8B, 29 float EndModule Module="min: powerfactor L1-L3"...

  • Page 19: Output Data Multimess-96-Basic

    MULTIGATE-Profibus / multisys 1D3-ESDP Output data multimess 1F96-0-LED-ES-US1 2 modules exist with output data which can be used if required. The status flags of the device can be read and deleted, various values such as extremes or meter counts can be reset and certain switching operations can be performed.

  • Page 20: Input Data Multimess 1F96-0-Led-Es-Us1

    MULTIGATE-Profibus / multisys 1D3-ESDP Input data multimess 1F96-0-LED-ES-US1 The desired input data for the Profibus slave can be defined through any combination of the modules listed below. Module name Config. Description Unit Format voltage PH-N L1-L3 0x41,0x8B, 1 voltage PH-N L1...
  • Page 21 MULTIGATE-Profibus / multisys 1D3-ESDP Module name Config. Description Unit Format max: current average. L1-L3 0x41,0x8B, 14 Maximum: current average L1 float Maximum: current average L2 float Maximum: current average L3 float max: apparent power L1-L3 0x41,0x8B, 15 Maximum: apparent power L1...
  • Page 22 MULTIGATE-Profibus / multisys 1D3-ESDP Module name Config. Description Unit Format min: cos Phi L1-L3 0x41,0x8B, 29 Minimum: cos Phi L1 float Minimum: cos Phi L2 float Minimum: cos Phi L3 float min: power factor L1-L3 0x41,0x8B, 30 Minimum: power factor L1...

  • Page 23: Multicount Basic Lcd Bus

    MULTIGATE-Profibus / multisys 1D3-ESDP multicount basic LCD bus GSD file for multicount basic LCD bus ;-----------------------------------------------------------------------------; ; GSD Multicount Energy Counter for PROFIBUS DP ; Fa. KBR GmbH, Am Kiefernschlag 7 , 91126 Schwabach ; Tel.: 09122/6373-0 ; Date: 30.04.2004 ;-----------------------------------------------------------------------------; #Profibus_DP ;...
  • Page 24 MULTIGATE-Profibus / multisys 1D3-ESDP Max_Output_Len ; <Parameter-Definition-List> ;User_Prm_Data_Len = 4 ;User_Prm_Data = 0x00,0x00,0x00,0x00 Max_User_Prm_Data_Len = 4 Ext_User_Prm_Data_Ref(3)=1 Module="device status (read and reset)" 0x91,0xA0 ; reset status with <> 0 in Outputdata EndModule Module="clear-commands" 0xA0 ; Bit0: reserved ; Bit1: reserved ;...
  • Page 25 MULTIGATE-Profibus / multisys 1D3-ESDP Module="inst.period value P consumption" 0x41,0x83, 20 float EndModule Module="inst.period value Q consumption" 0x41,0x83, 21 float EndModule Module="inst.period value P recovery" 0x41,0x83, 22 float EndModule Module="inst.period value Q recovery" 0x41,0x83, 23 float EndModule Module="time to finish period"...

  • Page 26: Output Data Multicount Basic Lcd Bus

    MULTIGATE-Profibus / multisys 1D3-ESDP Output data multicount basic LCD bus 3 modules exist with output data which can be used if required. The status flags of the device can be read and deleted, various values such as extremes or meter counts can be reset and certain switching operations can be performed.

  • Page 27: Input Datamulticount Basic Lcd Bus

    MULTIGATE-Profibus / multisys 1D3-ESDP Input datamulticount basic LCD bus The desired input data for the Profibus slave can be defined through any combination of the modules listed below. Module name Config. Description Unit Format voltage PH-N L1-L3 0x41,0x8B, 1 voltage PH-N L1...
  • Page 28 MULTIGATE-Profibus / multisys 1D3-ESDP Module name Config. Description Unit Format inst.period value P 0x41,0x83, 20 current period active power float consumption consumption inst.period value Q 0x41,0x83, 21 current period reactive power float consumption consumption inst.period value P 0x41,0x83, 22 current period active power...

  • Page 29: Reactive Energy Controller Bk12 Basic

    MULTIGATE-Profibus / multisys 1D3-ESDP 10 Reactive energy controller BK12 Basic 10.1 GSD file for BK12 Basic ;-----------------------------------------------------------------------------; ; GSD BK12 reactive energy controller PROFIBUS DP ; Fa. KBR GmbH, Am Kiefernschlag 7 , 91126 Schwabach ; Tel.: 09122/6373-0 ; Date: 30.04.2004 ;-----------------------------------------------------------------------------; #Profibus_DP ;...
  • Page 30 MULTIGATE-Profibus / multisys 1D3-ESDP Max_Output_Len ; <Parameter-Definition-List> ;User_Prm_Data_Len = 4 ;User_Prm_Data = 0x00,0x00,0x00,0x00 Max_User_Prm_Data_Len = 4 Ext_User_Prm_Data_Ref(3)=1 0123456789abcdef0123456789ABCDEF" Unit Format Size Module="voltage after transformation" 0x41,0x83, float EndModule Module="current after transformation" 0x41,0x83, float EndModule Module="induced current after transformation" 0x41,0x83, float EndModule Module="power frequency"...

  • Page 31: Output Data Bk12

    MULTIGATE-Profibus / multisys 1D3-ESDP Module="K6: Number switching operations (*10)" 0x41,0x83, 31 unsigned long EndModule Module="K7: Number switching operations (*10)" 0x41,0x83, 32 unsigned long EndModule Module="K8: Number switching operations (*10)" 0x41,0x83, 33 unsigned long EndModule Module="K9: Number switching operations (*10)" 0x41,0x83, 34...
  • Page 32 MULTIGATE-Profibus / multisys 1D3-ESDP Module name Config. Description Unit Format 3rd harmonic current 0x41,0x83, 20 3rd harmonic current float 5th harmonic current 0x41,0x83, 21 5th harmonic current float 7th harmonic current 0x41,0x83, 22 7th harmonic current float 9th harmonic current...
  • Page 33 MULTIGATE-Profibus / multisys 1D3-ESDP Module name Config. Description Unit Format error flags 0x41,0x83, 39 error flags, defined as follows: unsigned 0x0001 no measurement voltage long 0x0002 no main current 0x0004 no induced current 0x0008 excess voltage 0x0010 excess current 0x0020 harmonic wave error...

  • Page 34: Reactive Power Controller Multicomp 96 Lcd Bus

    11 Reactive power controller multicomp 96 LCD bus 11.1 GSD file for multicomp 96 LCD bus -----------------------------------------------------------------------------; ; GSD MULTICOMP Compensation Controller for PROFIBUS DP ; Company KBR GmbH, Am Kiefernschlag 7 , 91126 Schwabach ; Tel.: 09122/6373-0 ; Date: 26. Nov. 2008 ;-----------------------------------------------------------------------------;...
  • Page 35 MULTIGATE-Profibus / multisys 1D3-ESDP Max_Input_Len = 244 Max_Output_Len ; <Parameter-Definition-List> ;User_Prm_Data_Len = 4 ;User_Prm_Data = 0x00,0x00,0x00,0x00 Max_User_Prm_Data_Len = 4 Ext_User_Prm_Data_Ref(3)=1 0123456789abcdef0123456789ABCDEF" Unit Format Size Module="voltage PH-N L" 0x41,0x83, float EndModule Module="voltage PH-PH L" 0x41,0x83, float EndModule Module="apparent current L" 0x41,0x83,...

  • Page 36: Output Data Multicomp 96 Lcd Bus

    MULTIGATE-Profibus / multisys 1D3-ESDP EndModule Module="current 11.Harm" 0x41,0x83, 31 float EndModule Module="current 13.Harm" 0x41,0x83, 32 float EndModule Module="current 15.Harm" 0x41,0x83, 33 float EndModule Module="current 17.Harm" 0x41,0x83, 34 float EndModule Module="current 19.Harm" 0x41,0x83, 35 float EndModule Module="powerfactor 3-phase" 0x41,0x83, 36 float EndModule Module="max.
  • Page 37 MULTIGATE-Profibus / multisys 1D3-ESDP Module name Config Description Unit Format power factor 0x41,0x83, 15 Power factor float THD voltage 0x41,0x83, 16 Total distortion factor float voltage 3rd harmonic 0x41,0x83, 17 3rd harmonic voltage float voltage 5th harmonic 0x41,0x83, 18 5th harmonic voltage...
  • Page 38 MULTIGATE-Profibus / multisys 1D3-ESDP Module name Config Description Unit Format error status 0x41,0x83, 45 Error flags, defined as follows: unsigned 0x0001 Operating cycles of a stage long exceeded 0x0002 Phase relation deviation 0x0004 Current direction wrong 0x0008 Facility too small...
  • Page 39 ERKLÄRUNG DER KONFORMITÄT DECLARATION OF CONFORMITY DÉCLARATION DE CONFORMITÉ KBR GmbH Schwabach We/Nous (Name des Anbieters / supplier´s name / norm du fournisseur) Am Kiefernschlag 7 D-91126 Schwabach (Anschrift / address / addresse) erklären in alleiniger Verantwortung, dass das (die) Produkt(e) / declare under our sole responsibility that the product(s) / Déclarons sous notre seule responsabilité, ques le(s) produit(s) multisys 1D3-ESDP (Bezeichnung, Typ oder Modell oder Seriennummer / name, type or model or serial number / nom, type ou modèle, N° de lot ou de série) mit folgenden Europäischen Richtlinien übereinstimmt (übereinstimmen) is (are) in conformity with the following directives / Répondet(ent) aux directives suivantes Niederspannungsrichtline Nr. EMV-Richtlinie Nr. Low Voltage Directive No. EMV Directive No. Directive Basse Tension N°...
  • Page 40 KBR GmbH KBR GmbH Abteilung Entwicklung Development Am Kiefernschlag 7 Am Kiefernschlag 7 D-91126 Schwabach D-91126 Schwabach / Germany Vorschläge: Suggestions: Korrekturen: Corrections: Betrifft Gerät: Device concerned Sollten Sie beim Lesen dieser Bedienungsanleitung oder If you come across misprints in this user manual or prin- Druckschrift auf Druckfehler gestoßen sein, bitten wir...
