User manual
Technical parameters
Energy measuring device
multimess
1D4
Your partner for
network analysis
I
System
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the multimess 1D4 and is the answer not in the manual?

Questions and answers

Related Manuals for KBR multimess 1D4

Summary of Contents for KBR multimess 1D4

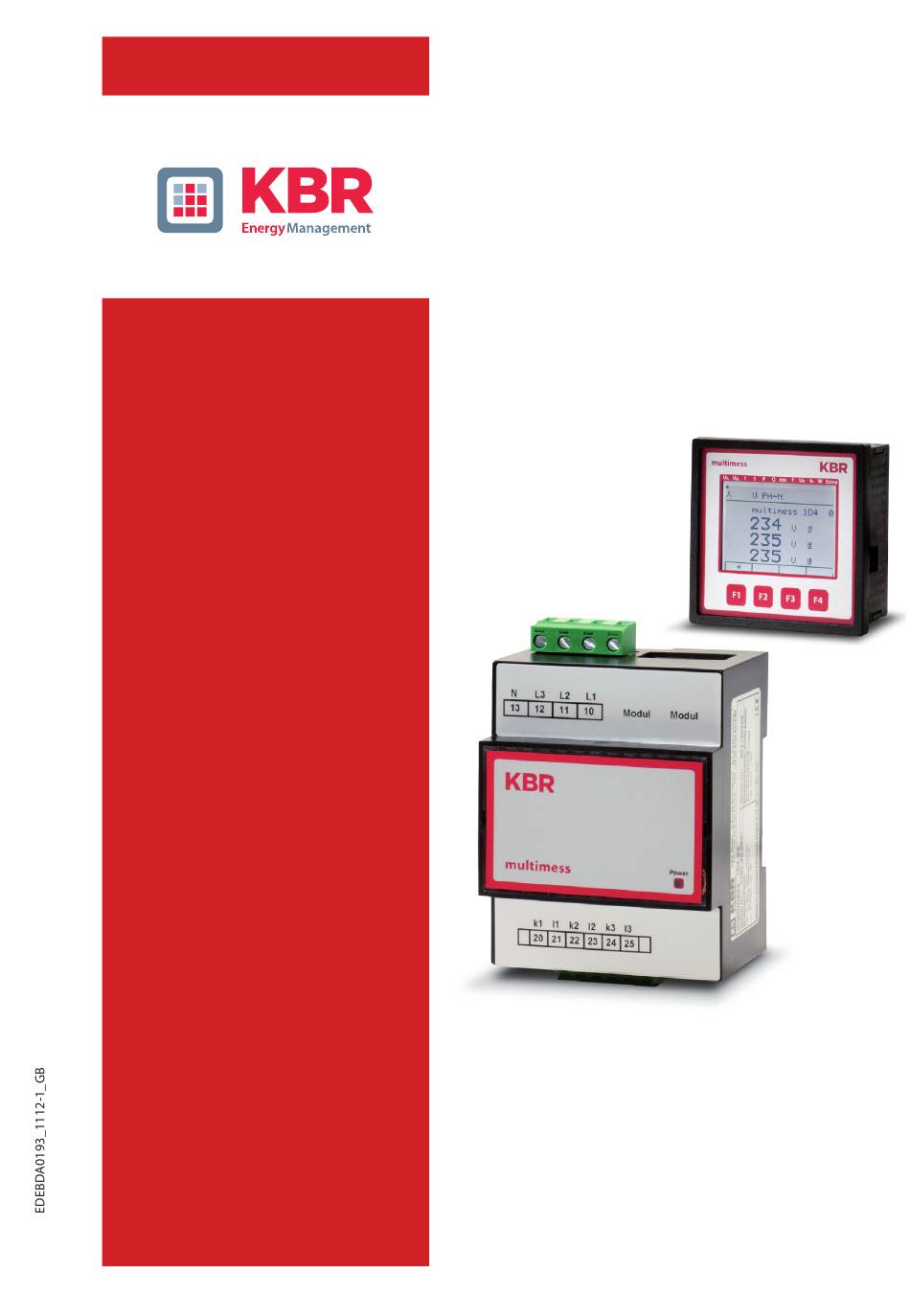

  • Page 1 User manual Technical parameters Energy measuring device multimess Your partner for network analysis System English...
  • Page 2 © KBR Kompensationsanlagenbau GmbH Subject to technical changes...

  • Page 3: Table Of Contents

    Safety notes ........................ 7 Product liability ......................8 Disposal ........................8 Range of functions ....................9 multimess 1D4-BS with multimess 1F96-DS ..........9 multimess 1D4-BS with multisio 6D6 and multisio 6F96-DS ....................10 multimess 1D4-BS with multisys 3D2-ESBS ..........10 Device overview ....................11 Installation ........................14...
  • Page 4 KBR multimess 1D4 Standards and miscellaneous ................31 Technical data of the measuring module ............. 32 Power supply ......................32 Hardware inputs and outputs ................32 Electrical connection.....................32 Mechanical data ......................32 Standards and miscellaneous ................33 Protective measures ....................33 Overvoltage and lightning protection ............33 Index ..........................

  • Page 5: Introduction

    KBR multimess 1D4 Introduction 1 Introduction Thank you for choosing this KBR quality product. In order to familiarize yourself with the operation and configuration of the device, we recommend that you read this manual thoroughly, so that you are able to make use of the entire range of functions of this high-quality product.

  • Page 6: Explanation Of Safety Relevant Symbols

    KBR multimess 1D4 Introduction 1.3 Explanation of safety relevant symbols This user manual contains notes that must be observed for your personal safety and to avoid damage to equipment. These notes are identified by an or information symbol, depending on the degree of hazard they represent.

  • Page 7: Safety Notes

    Introduction KBR multimess 1D4 1.4 Safety notes In order to prevent operating errors, operation of this device is  kept as simple as possible. This way, you will be able to quickly start working with the device. In your own interest, however, you should read the following ...

  • Page 8: Product Liability

    Regarding product liability, we refer to our general terms and conditions for electronic equipment, which you can find at www.kbr.de . The warranted characteristics of the device only apply for operation in accordance with its intended use! 1.6 Disposal...

  • Page 9: Range Of Functions

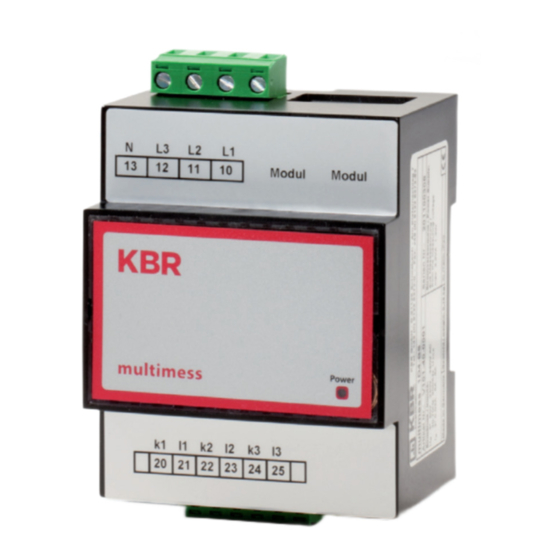

    Insert battery KBR multimess 1D4 2 Range of functions multimess 1D4 is a multimeter for busbar mounting. On the output side, it can measure all typical alternating and direct current parameters of consumers. The following device expansion stages are possible, featuring different ranges of function: “multimess 1D4-BS with multimess 1F96-DS”...

  • Page 10: Multimess 1D4-Bs With Multisio 6D6 And Multisio 6F96-Ds

    KBR multimess 1D4 2.2 multimess 1D4-BS with multisio 6D6 and multisio 6F96-DS If the multimess 1D4 is connected to the multisio 6D6 instead of to the display, the multisio 6D6 creates a load profile memory (P+ P-/ Q+ Q-) and an eBus interface. Five measuring modules can be connected to each central storage module Connection between the modules is established via ready-made RJ12 cables.
  • Page 11 KBR multimess 1D4 multimess 1F96-DS Display illumination (Dot Matrix 128x96) Brightness and contrast adjustable Display dimming time adjustable (energy saving function) Operation via sensor buttons Mounting depth 40 mm Door assembly cut-out 92x92 mm Module bus connection RJ12 for measuring...
  • Page 12 KBR multimess 1D4 3.1 Operating structure Instantaneous value display The following overview gives U PH-N measuring module 1 you an idea of the multimess Additional 1D4 operating structure with the Module name measuring 1F96-DS display. For a detailed Voltage channel 1...
  • Page 13 KBR multimess 1D4   Active power meas. module 1 Additional Module name measuring Active power channel 1 modules Active power channel 2 Active power channel 3   Reactive power meas. module 1 Additional Module name measuring Reactive power channel 1...

  • Page 14: Installation

    KBR multimess 1D4 4 Installation In this chapter, you will find a description of: “Device assembly” on page 14 “Connections” on page 15 “Commissioning” on page 16 4.1 Device assembly During installation, the applicable DIN / VDE regulations must be observed! Before connecting the device to the power supply, check whether the local power supply conditions comply with the specifications on the nameplate.

  • Page 15: Connections

    KBR multimess 1D4 4.2 Connections Measuring voltage. The power supply Terminals 10 - 13 (L1, L2, L3, N) of the device is also provided by the measuring voltage. For technical data, please refer to the nameplate. Measuring inputs for current. The...

  • Page 16: Start-Up

    4.3 Start-up The following section describes the start-up procedure for the different device versions. 4.3.1 Start-up of the multimess 1D4 with multimess 1F96-DS display For starting up the multimess 1D4 with multimess 1F96-DS display, please proceed as follows: 1. Connect the measuring module to the multimess 1F96-DS display via the module bus interface.
  • Page 17 The display can manage a maximum number of ten modules. Set-up diagram for operation of the multimess 1D4 with multimess 1D4-DS (example): multisys Measuring module 1 1D4-PS-24V...
  • Page 18 KBR multimess 1D4 Configuration Extras menu Display of the firmware version and release of the display display 01.00 version release Previous menu Display of measuring module version, Display configuration Start commissioning Next menu Display of the firmware version and release of the measuring...

  • Page 19: Start-Up Of The Multimess 1D4 At The Multisio 6D6 With Multisio 6F96-Ds

    KBR multimess 1D4 4.3.2 Start-up of the multimess 1D4 at the multisio 6D6 with multisio 6F96-DS For starting up the multimess 1D4 at the multisio 6D6, please proceed as follows: 1. Connect the measuring module to the multisio 6D6 via the module bus interface.

  • Page 20: Start-Up Of The Multimess 1D4 With Multisys 3D2-Esbs

    KBR multimess 1D4 4.3.3 Start-up of the multimess 1D4 with multisys 3D2-ESBS For starting up the multimess 1D4 at the KBR eBus via the multisys 3D2-ESBS gateway, please proceed as follows: 1. Connect the measuring module to the multisys 3D2 gateway via the module bus interface.
  • Page 21 KBR multimess 1D4 The following signs and abbreviations will be used in the display:  Scroll forward (through main menu or submenu)  Scroll backwards (through main menu or submenu)  Return  Next measuring module  Previous measuring module ...

  • Page 22: Commi Function

    KBR multimess 1D4 5.1.1 Commi function With the "commi" start-up function, up to 10 measuring modules connected can be integrated. This includes: Password protection for configuration Assigning names to individual measuring modules Scan menu for reading in measuring modules connected...
  • Page 23 KBR multimess 1D4 The respective module name is included on each screen, depending on the measuring module selected. The following momentary values can be displayed: screen: Voltage Ph-N for phase L1, L2 and L3 individually screen: Voltage Ph-Ph for phase L1-2,...

  • Page 24: Menu Overview

    KBR multimess 1D4 6 Menu overview In this chapter, you will find a complete overview of all menus and menu items of the multimess. Display of momentary measuring voltage for Phase L1-N Phase L2-N Phase L3-N Display of momentary measuring voltage for...
  • Page 25 KBR multimess 1D4 Display of momentary apparent current for Phase L1 Phase L2 Phase L3 Display of total values of Apparent power Active power Reactive power Display of momentary apparent power for Phase L1 Phase L2 Phase L3 V1.00...
  • Page 26 KBR multimess 1D4 Display of momentary active power for Phase L1 Phase L2 Phase L3 Display of momentary reactive power for Phase L1 Phase L2 Phase L3 Display of momentary values of cosine Phi for Phase L1 Phase L2 Phase L3...
  • Page 27 KBR multimess 1D4 Display of momentary network frequency Display of the continuous energy meter for active energy (total value). (  ) In the submenus , the values of the individual phases can be seen. Display of the continuous energy meter for reactive energy (total value).

  • Page 28: Technical Data Of The Measuring Module

    Display of the firmware version of the display. Furthermore, the Commissioning and Configuration submenus are included. 7 Technical data 7.1 Technical data of the multimess 1D4 measuring module 7.1.1 Measuring accuracy Current ± 0.5 % / ± 1 digit Voltage ±...

  • Page 29: Device Memory

    KBR multimess 1D4 7.1.3 Device memory Main and data memory 16kB RAM unbuffered Program / parameter memory 256 kB Flash / 4kB EEP Energy counter P+, P-, Q+, Q- saved in EEP Limit violation Time for 8 min. for average current...

  • Page 30: Electrical Connection

    Input via measuring voltage control voltage Module bus Connection material ready-made KBR system cable (6 pole connection modular cable, unshielded), max. length 30m if placed accordingly 7.1.7 Mechanical data Busbar...

  • Page 31: Standards And Miscellaneous

    KBR multimess 1D4 7.1.8 Standards and miscellaneous Environmental Standards and DIN EN 60721-3-3/A2: 1997; 3K5+3Z11; conditions (IEC721-3-3; 3K5+3Z11) amendments Operating temperature -5°C … +55°C Humidity 5% … 95% non-condensing Storage temperature -25°C … +70°C Electrical Standards and DIN EN 61010: 2001 +B1: 2002; +B2:...

  • Page 32: Technical Data Of The Measuring Module

    KBR multimess 1D4 7.2 Technical data of the multimess 1D4-DS display 7.2.1 Power supply Power supply ext. 24VDC, 1W, via RJ12 module bus connector 7.2.2 Hardware inputs and outputs Serial Module bus RS485 via RJ12 interface interface Baud rate 38400 7.2.3 Electrical connection...

  • Page 33: Standards And Miscellaneous

    KBR multimess 1D4 7.2.5 Standards and miscellaneous Environmental Standards and DIN EN 60721-3-3/A2: 1997; 3K5+3Z11; conditions subsequent (IEC721-3-3; 3K5+3Z11) amendments Operating temperature -5°C … +55°C Humidity 5% … 95%, non-condensing Storage temperature -25°C … +70°C Electrical Standards and DIN EN 61010-1/A2: 1996-05;...

  • Page 34: Index

    Set-up diagram multisio 6D6 and multisio 6F96-DS ..10 multimess 1D4 with multimess 1D4-DS 17 multimess 1D4-BS with multisys 3D2-ESBS ..... 10 Disclaimer .
  • Page 36 KBR Kompensationsanlagenbau GmbH www.kbr.de Am Kiefernschlag 7 Phone +49 9122 6373 - 0 D-91126 Schwabach, +49 9122 6373 - 83 Germany E-mail info@kbr.de...
