1.2

Features

The Model Mini-ICS analyzer module is designed to be flush mounted to a panel or console.
Packaging options available from Neutronics Inc. include General Purpose and Explosion Proof
surface-mount enclosures, and custom rack-mount designs. Because of the small size of the
Model Mini-ICS analyzer, the basic panel-mount unit can be integrated into a variety of equipment
or control panels.

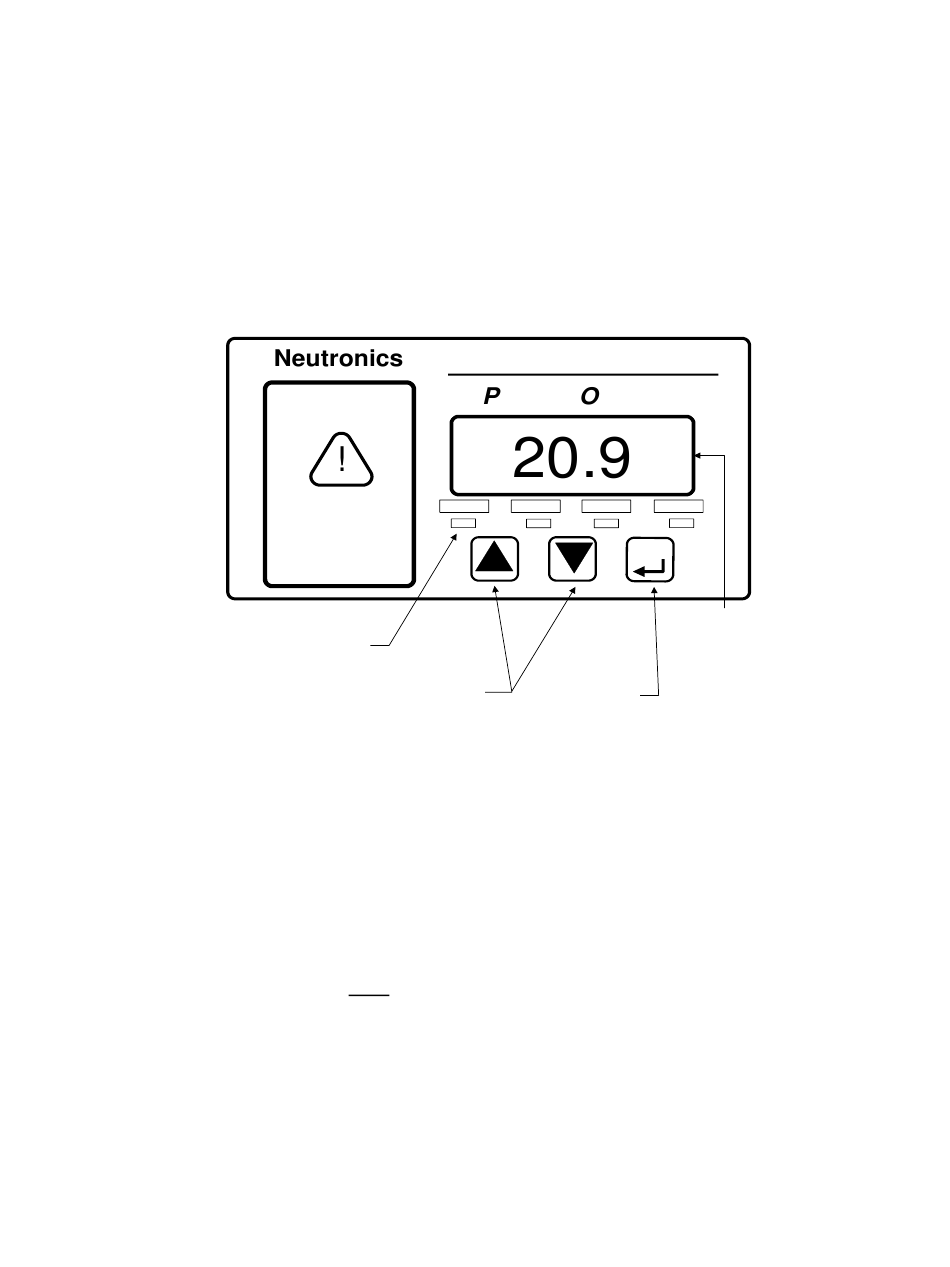

Figure 2 – Analyzer features
Other Features Include:
•
User-adjustable Oxygen Alarm with relay output for process control use
•
User-adjustable Inert Gas Control function with relay output for process control use. Inert Gas
Control features user-adjustable high and low set point hysteresis
•
Loss of Flow indication for extractive process sampling applications
•
Double Redundant system configuration backup file, with automatic repair function
•
Convenient Remote calibration relay output for "one-man" calibration in applications where the
Oxygen sensor is a long distance from the Mini-ICS Analyzer
•
Two Analog Outputs: 4-20 mA AND 0-1, 0-5, or 0-10 VDC
•
Auto Ranging or Fixed Range Oxygen Measurement (VDC output provided for auto-range
identification)
•
Bi-directional RS-232 Serial Interface for connection to a PC, terminal, or printer
Manual Part Number:
5-06-4900-53-0
Reference Manual for
Installation and
Operation Instructions
Color Coded LED's:
NORMAL = Green
FAULT = Yellow
Low Flow = Red
Large Buttons
O2 Alarm = Red
for Ramp Up and
Ramp Down for
Display and
Mode Control
Revision Level: C
ECO 044952
MODEL Mini-ICS O
2
ERCENT XYGEN
NORMAL FAULT Low Flow
Large Mode Select
Button for easy
scrolling through
menu options
Revision Date:
May 08, 2018
System Hardware Overview
Analyzer
O2 Alarm
MODE
Large LED
Digital Display
Page 1-2
