System Hardware Overview
1.3.5 Control Panel
The Control Panel serves as the main user interface. The Control Panel features the keypad
(ramp-UP, ramp-DOWN, and MODE keys) and the status LED's. The control panel is designed to
be splash and water-resistant. At the four corners of the panel are the #8-32 mounting studs,
which allow flush mounting of the instrument to a control or equipment panel. The gasketed panel
is suitable for NEMA type 4 / IP20 environments when properly installed.
1.3.6 Chassis
The chassis is manufactured of specially coated steel. It is designed to provide a general level of
protection against mechanical damage from the local environment.
It is also an important
component of the ESD shielding design. Since the Model Mini-ICS is a flush mounted system, the
portion of the instrument housed in the chassis will be located behind the control panel or
embedded within the customer equipment enclosure. The enclosure is general purpose and is not
watertight.

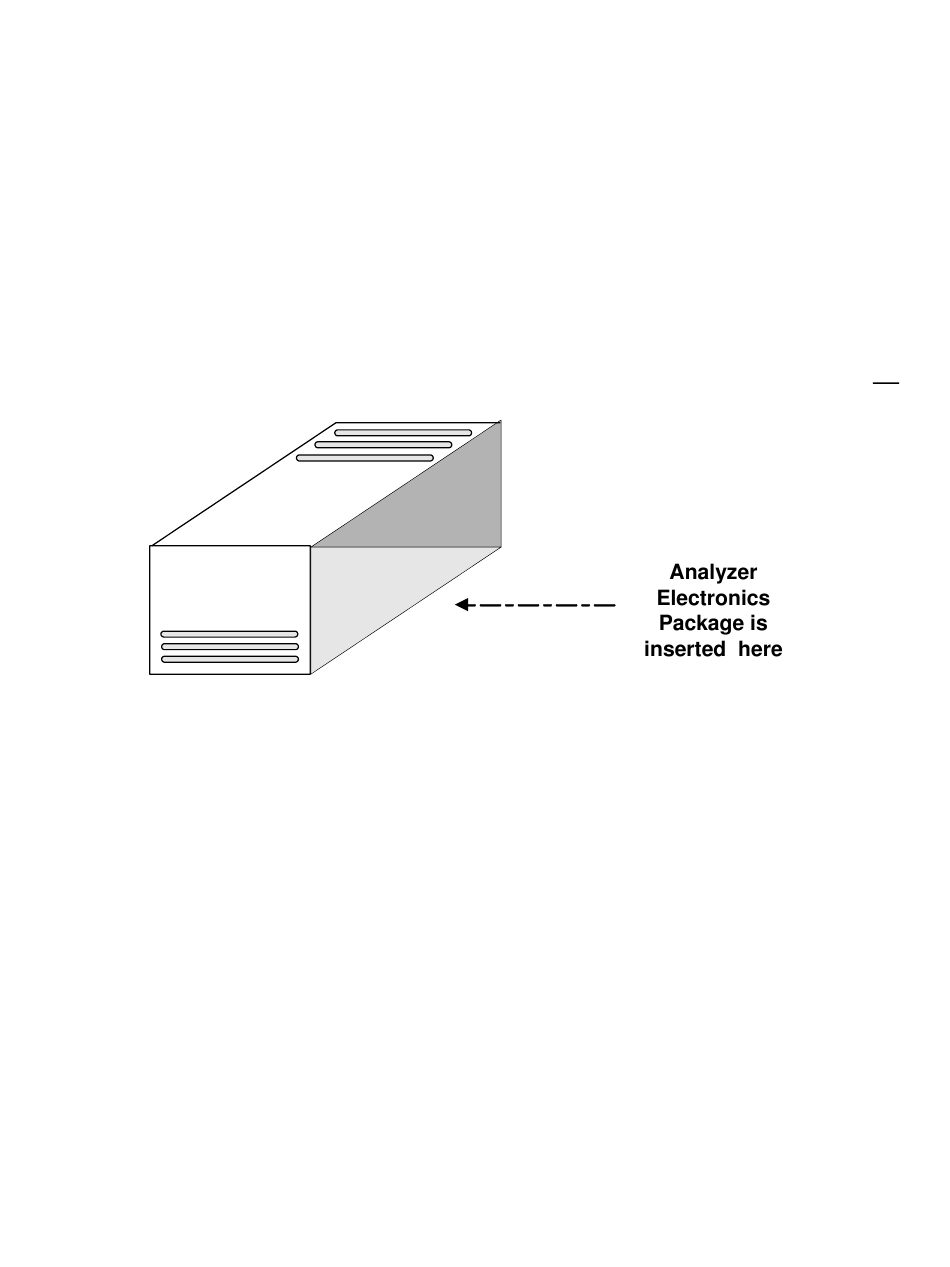

Figure 4 – Analyzer chassis
Manual Part Number:
Revision Level: C
Revision Date:
Page 1-4
5-06-4900-53-0
ECO 044952
May 08, 2018
