APPENDIX G – Mounting Configurations
5.7
The enclosure requirement for the Model Mini-ICS will be determined by the area classification in
which it will be installed. The enclosure type will also affect the user interface with the front panel.
The following figures will depict how the interface changes with each enclosure type.

5.7.1 Wall Mount Enclosure

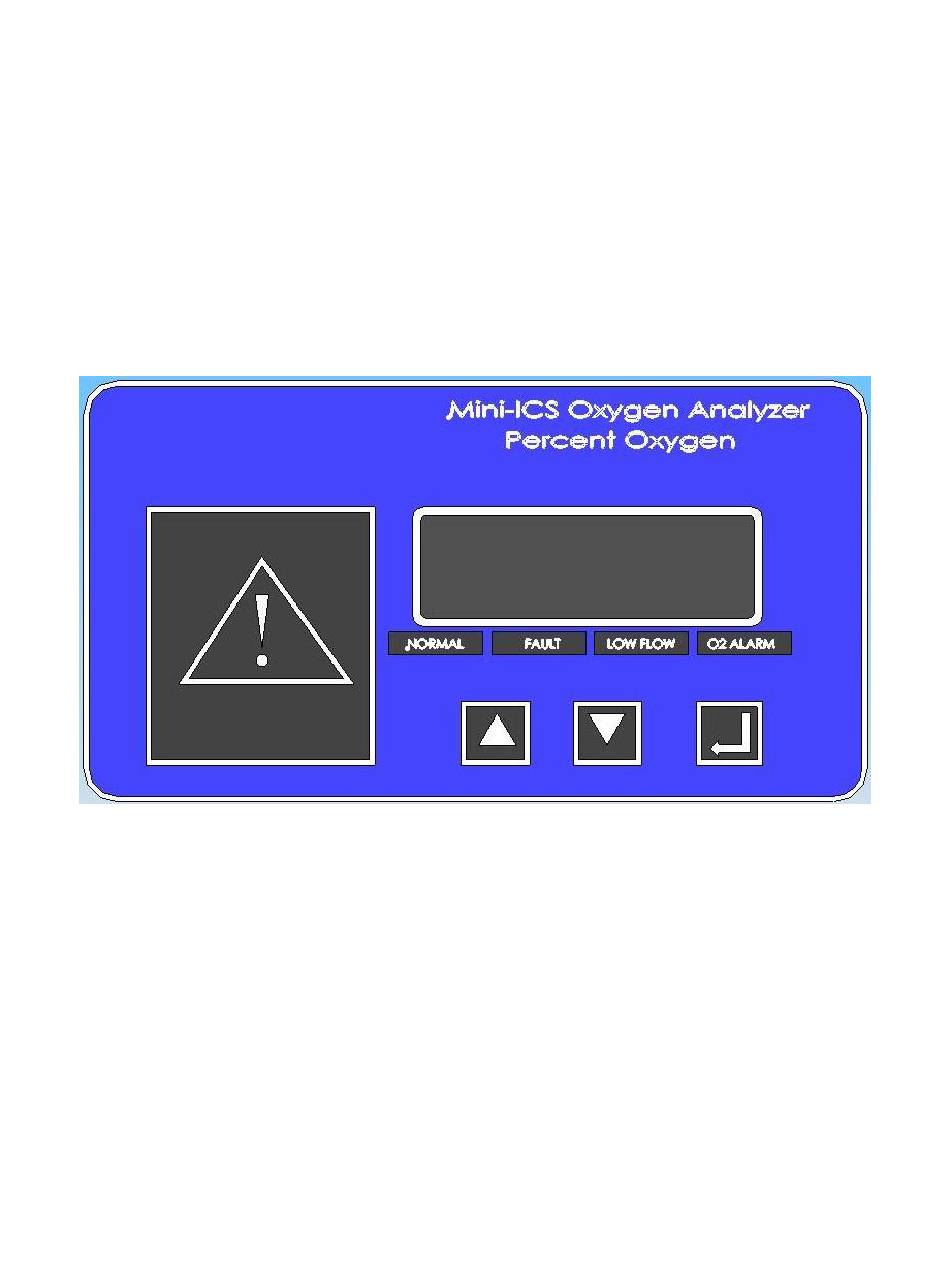

Users can access the front panel directly and use the interface as described in the manual.
