2.1.1 Step 1 – Locate and Mount the Analyzer unit
The Model Mini-ICS is designed to be mounted flush to the surface of equipment or on a control
panel. Select a suitable location for the Model Mini-ICS analyzer unit where the digital display and
status LED's will be easy to read, and the interface buttons on the display panel will be easy to
access.
The analyzer should not be exposed to water, adverse temperature, or shock. Ensure the analyzer
unit is mounted in an area of free airflow to prevent the chassis from exceeding the operating
temperature specifications. Do not mount the analyzer or sensor against hot surfaces. Do not
block the ventilation louver on the analyzer chassis.
To maintain a watertight seal on the control panel, ensure that all burrs and deformities at the
cutout and mounting holes are removed before insertion of the analyzer unit into the cutout.
Ensure that a proper seal is made at the gasket on the model Mini-ICS control panel.
Installation of the analyzer chassis requires four clearance holes for the #8-32 threaded studs and
a cutout in the control panel to allow the chassis to slide flush to the panel. Make sure there are no
burrs or sharp edges in the cutout or mounting-holes, which would interfere with the gasket on the
analyzer control panel. The gasket ensures a watertight seal around the control panel. The
control panel, when properly installed is suitable for NEMA Type 4, IP66 environments. The rear
electronics enclosure is suitable for NEMA Type 1, IP 20 environments.
2.91"
Figure 7 – analyzer
mounting
Manual Part Number:
5-06-4900-53-0

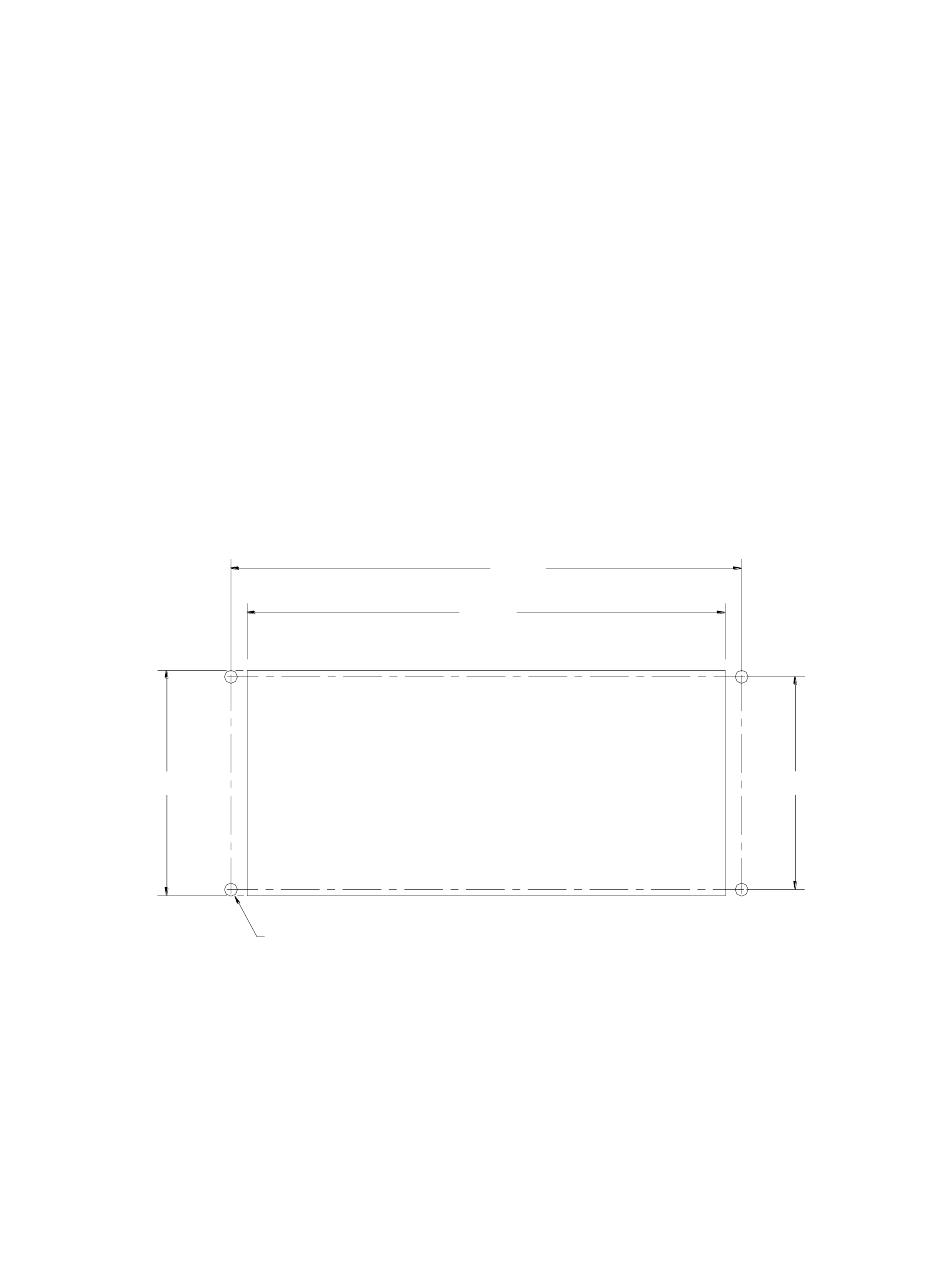

PANEL CUTOUT & DRILL PATTERN
.169 DIA. HOLE
4 PLACES
Revision Level: C
ECO 044952
6.62"
6.20"
Revision Date:
May 08, 2018
Installing the Analyzer
2.75"
Page
2-3
