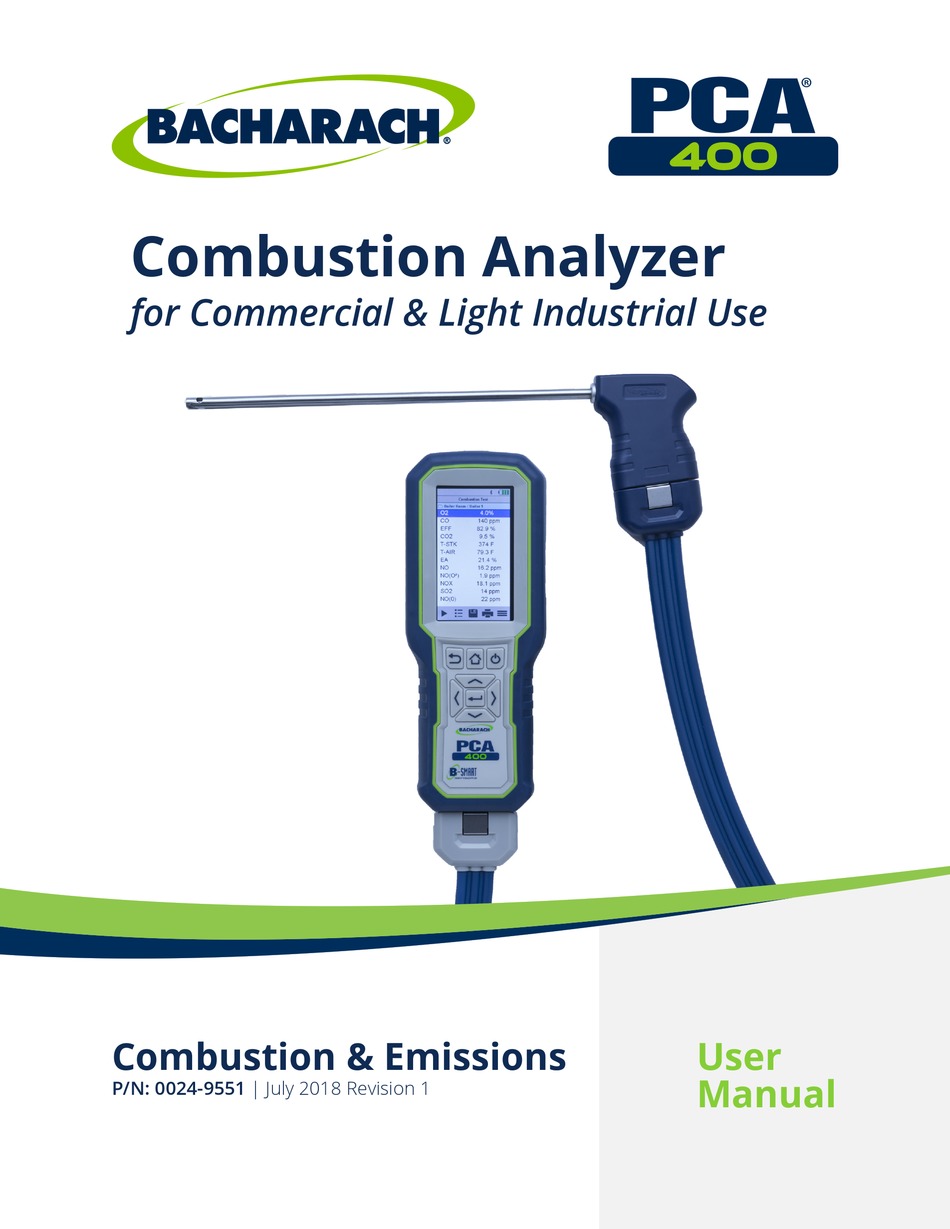

Combustion Analyzer
for Commercial & Light Industrial Use
Combustion & Emissions
P/N: 0024-9551 | July 2018 Revision 1
®
User
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCA 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bacharach PCA 400

Summary of Contents for Bacharach PCA 400

  • Page 1 ® Combustion Analyzer for Commercial & Light Industrial Use Combustion & Emissions User Manual P/N: 0024-9551 | July 2018 Revision 1...
  • Page 2 Bacharach, Inc. warrants to buyer that it will convey good title to this product. Bacharach’s liability and buyer’s remedy under this warranty of title are limited to the removal of any title defects or, at the election of Bacharach, to the replacement of this product or parts thereof that are defective in title.

  • Page 3: Table Of Contents

    400 User Manual ® Table of Contents Introduction ............. 6 About this Manual ......................6 Conventions ........................6 1.2.1 Short Form Instructions..........................6 1.2.2 Iconography ..............................7 General Safety Statements ..................... 7 Product Overview ......................8 Product Description ......... 9 Combustion & Emissions Analyzer ................10 2.1.1 Overview ..............................10 2.1.2...
  • Page 4 400 User Manual ® Settings & Features ........32 Language Selection ......................32 Date & Time ........................32 Username ........................33 Button Sound ......................... 34 Inactivity Timeout ......................34 Post-Purge Period ......................34 Carbon Monoxide (CO) Zero ..................34 Sensor Setup ........................35 Bluetooth Setup ......................
  • Page 5 Service Center Locations ....................72  Service Center Locations Location Contact Information Shipping Address Phone: +1 724 334 5000 Bacharach, Inc. Toll Free: +1 800 736 4666 621 Hunt Valley Circle United States Fax: +1 724 334 5001 New Kensington, PA 15068, USA Email: help@mybacharach.com...

  • Page 6: Introduction

    Iconography ..............................7 General Safety Statements ....................7 Product Overview ......................8 1.1 About this Manual Thank you for investing in a Bacharach PCA 400 Combustion Analyzer. To ensure operator ® safety and the proper use of the PCA 400, please read the contents of this manual for ®...

  • Page 7: Iconography

    400 User Manual ® 1.2.2 Iconography Alert Icon Description Imminently hazardous situation which, if not avoided, will result DANGER in death or serious injury. Potentially hazardous situation which, if not avoided, could WARNING result in death or serious injury. Potential electrical shock hazard which, if not avoided, could WARNING result in death or serious injury.

  • Page 8: Product Overview

    ® CAUTION: Except for sensor and battery replacement, this analyzer should only be opened and / or serviced by authorized Bacharach personnel. Failure to comply may void the warranty. CAUTION: When the instrument is used in an inefficient furnace or boiler application where there is a high soot concentration, the probe’s sample filter may become...

  • Page 9: Product Description

    400 User Manual ® 2. Product Description Combustion & Emissions Analyzer ................10 2.1.1 Overview ..............................10 2.1.2 Keypad .................................11 2.1.3 Display .................................11 2.1.4 Instrument Connections ..........................13 2.1.5 Interfaces ..............................14 2.1.6 Components ...............................15 Sample Line & Probe Assembly ..................16 2.3 Power Configurations ..................... 17 Fig.

  • Page 10: Combustion & Emissions Analyzer

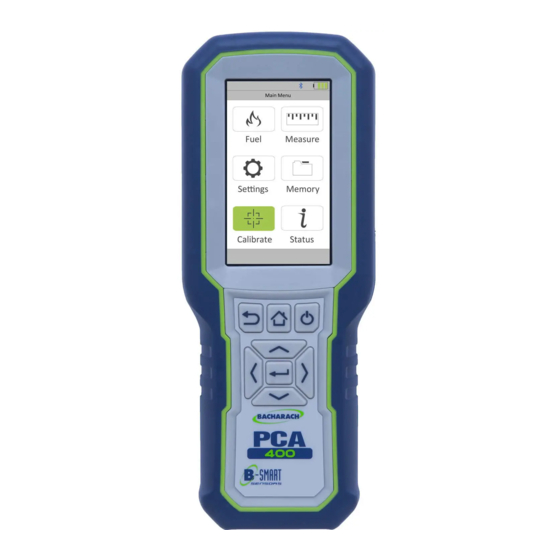

    400 User Manual ® 2.1 Combustion & Emissions Analyzer The PCA 400 is designed for use in commercial and light industrial applications. ® The analyzer is capable of measuring O , CO, NO, NO or SO , stack / ambient temperatures, and pressure.
