Installing the Analyzer
2.1.3.12

Mains Power

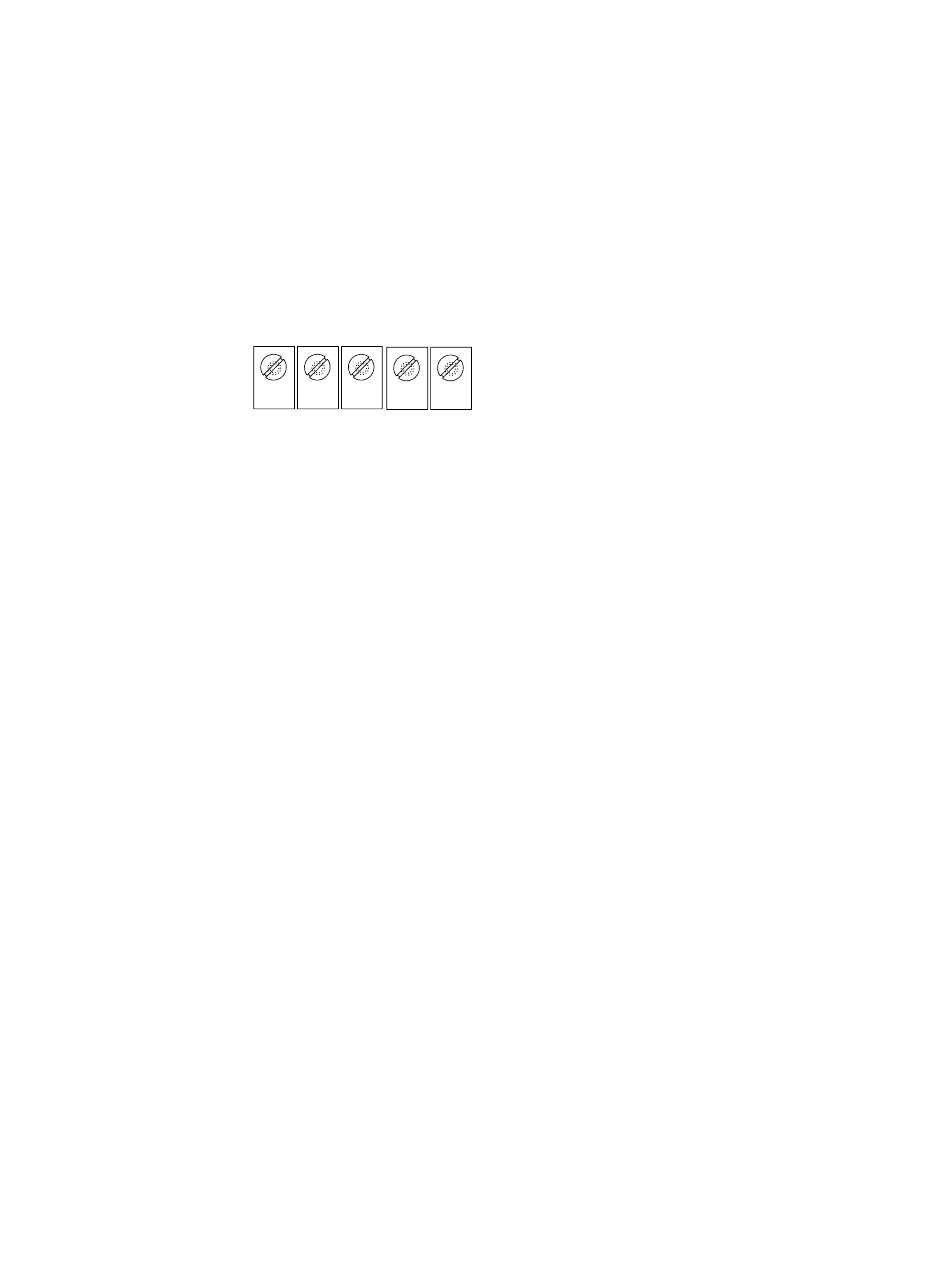

Connections for Mains Power input are made at terminal block TB1 on the rear of the analyzer
chassis. Be certain to match the terminal pins against the terminal ID label on the top of the
analyzer chassis.
For VAC versions, use minimum16-AWG, 3-conductor, stranded-wire, for the connections. Supply
single-phase 110/220VAC, 50/60Hz to the unit. For VDC versions, use 18-AWG, 3-conductor,
stranded-wire, for the connections. Supply 12/24VDC to the unit. Refer to Appendix F – reference
drawings.
10-30 VDC INPUT, 10W
VDC+
GND
COM
TB1
2
4
1
3
5
90-264 VAC INPUT, 20VA
AC-L
GND
AC-N
Manual Part Number:
Revision Level: C
Revision Date:
Page
5-06-4900-53-0
ECO 044952
May 08, 2018
2-10
