SETTING UP THE MODEL Mini-ICS – The RS-232 User Setup Menu
4.1.2.7
The RS-232 User Setup menu U00 is the "Home" screen in Advanced Level-1 access (section
4.1.2.5), and provides access to all the parameters that may need to be adjusted by the user. The
interactive menu is initiated by typing "setup" and pressing the "Enter" key on the RS-232 terminal;
as in entering Advanced Level-1 access. To navigate backwards, use the <Esc> or "Q" key on the
RS-232 terminal.
4.1.2.8

System Information Display

The System Information Display U10 is a list of all the current settings for the Mini-ICS analyzer. It
is accessed from the Setup Main Menu by typing "1" or "I" on the RS-232 Terminal.
4.1.2.9

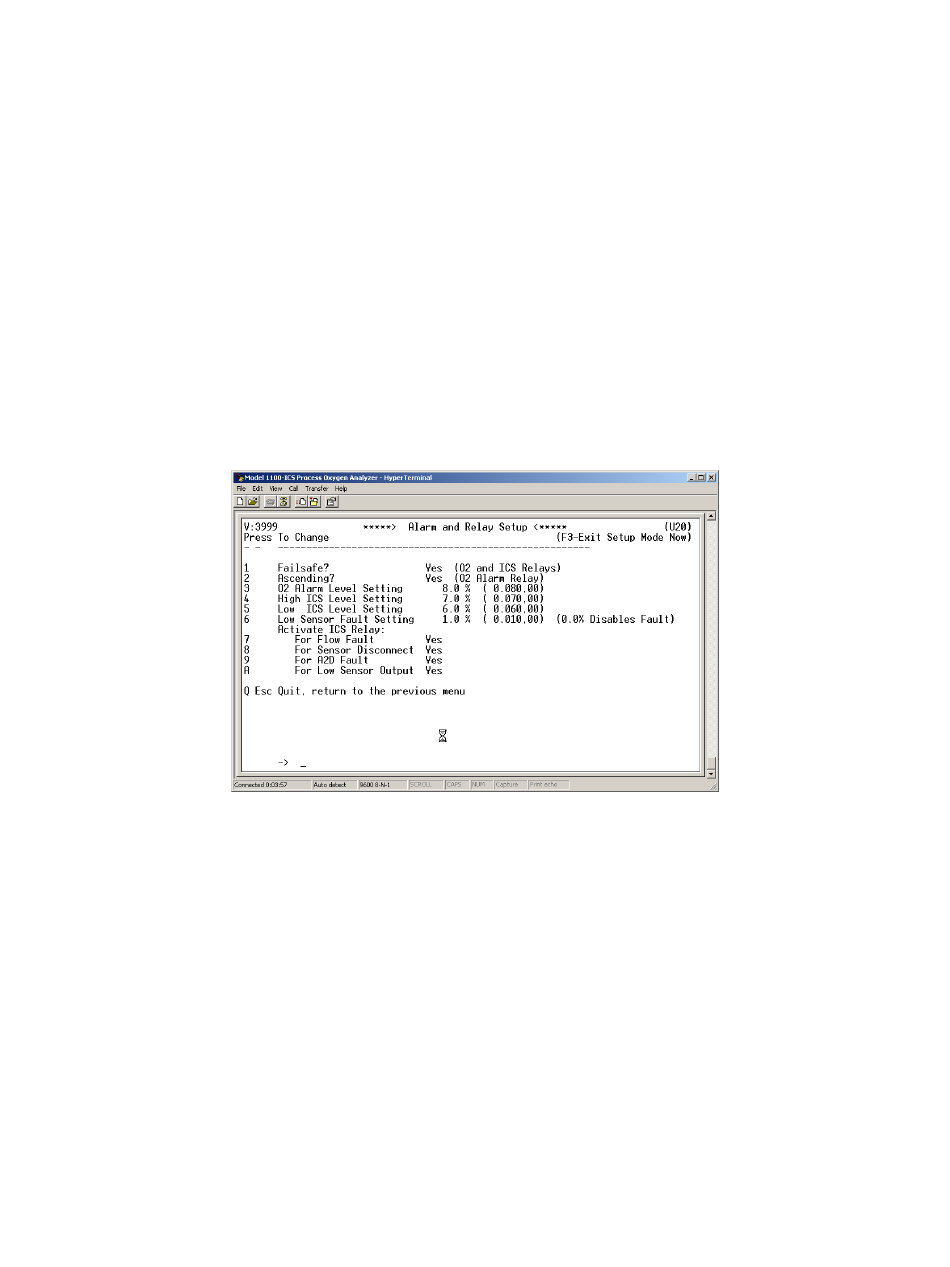

(U20) Alarm and Relay Setup Menu

The RS-232 Alarm/Relay Setup menu U20 provides access to all of the settings related to the
Alarms, controls, and relays on the Model Mini-ICS analyzer. It is accessed from the Setup Main
Menu by typing "2" on the RS-232 Terminal. To navigate backwards, use the <Esc> or "Q" key on
the RS-232 terminal.
4.1.2.9.1 O2 Alarm and ICS Relays Failsafe
This setting sets O
2
as; the active state of the relay is similar to the not powered state. Non-Failsafe is defined as; the
active state is opposite to the not powered state. The failsafe setting may be set to "YES" or "NO".
This setting is accessed from the Alarm and Relay Setup Menu by typing "1" on the RS-232
terminal
4.1.2.9.2 O
Alarm Ascending
2
This setting sets the O
Alarm relay active when the Oxygen concentration is above the O2 Alarm level. Descending is
defined as; when as; O
Level. The ascending setting may be set to "YES" or "NO". This setting is accessed from the
Alarm and Relay Setup Menu by typing "2" on the RS-232 terminal.
Manual Part Number:
5-06-4900-53-0
Alarm and ICS Relays to either Failsafe or Non-Failsafe. Failsafe is defined
Alarm to either ascending or descending. Ascending is defined as O
2
Alarm relay active when the Oxygen concentration is below the O
2
Revision Level: C
ECO 044952
Revision Date:
May 08, 2018
System Setup
2
Alarm
2
Page
4-9
