5.7.3 Explosion Proof Enclosure

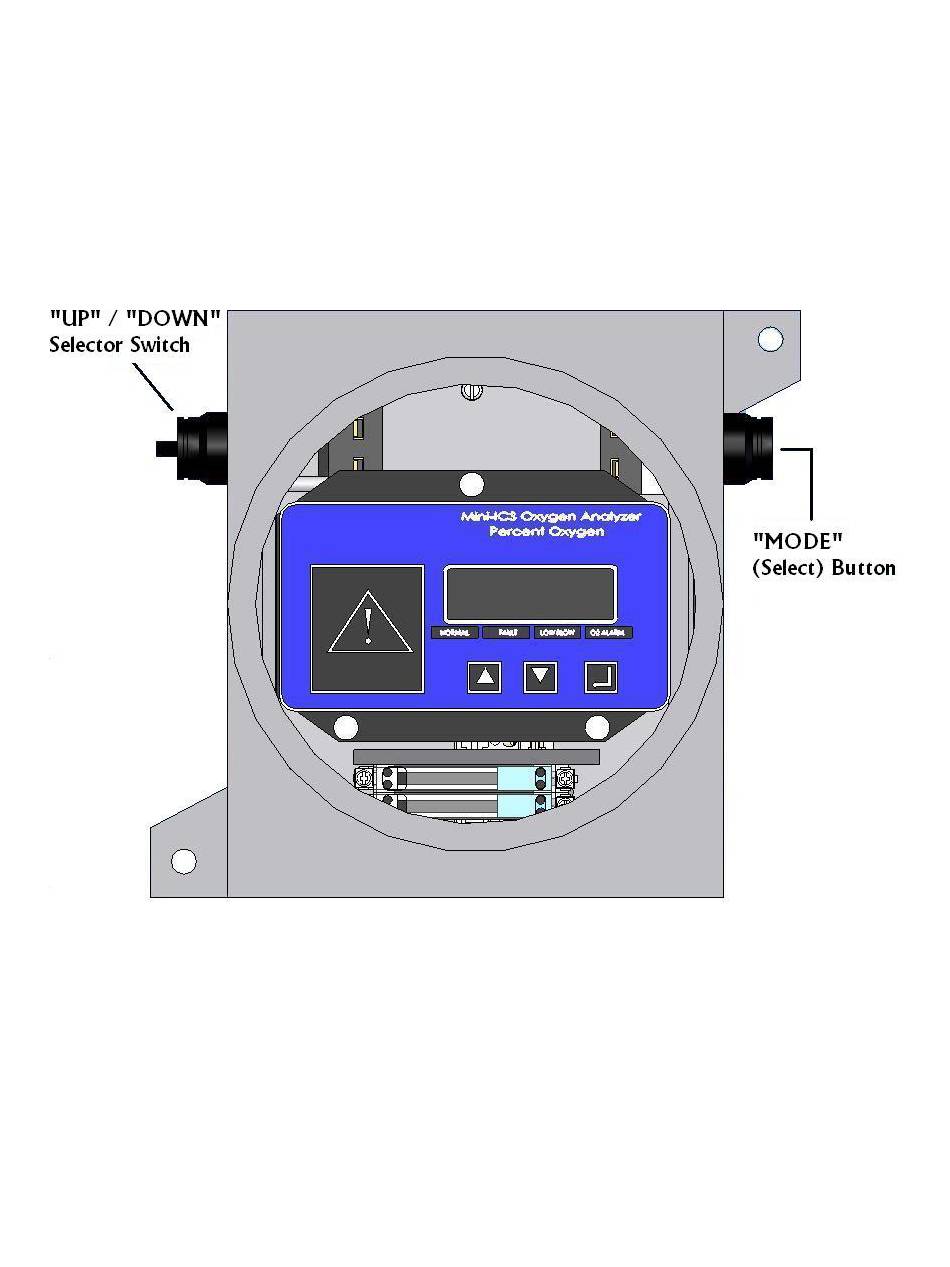

Model Mini-ICS modules housed in explosion proof enclosures have only two switches to interface
with the unit. The left side has a three-position spring return to center from left or right switch.
Turning the switch counter clockwise (and releasing) corresponds to incremental up ("UP"), and
turning it clockwise (and releasing) corresponds to incremental down ("DOWN"). The right side of
the enclosure has a momentary push button, which corresponds to pressing the "MODE" button.
The enclosure cover is removed for clarity purposes.
