2.1.3.7

Analog Voltage Output

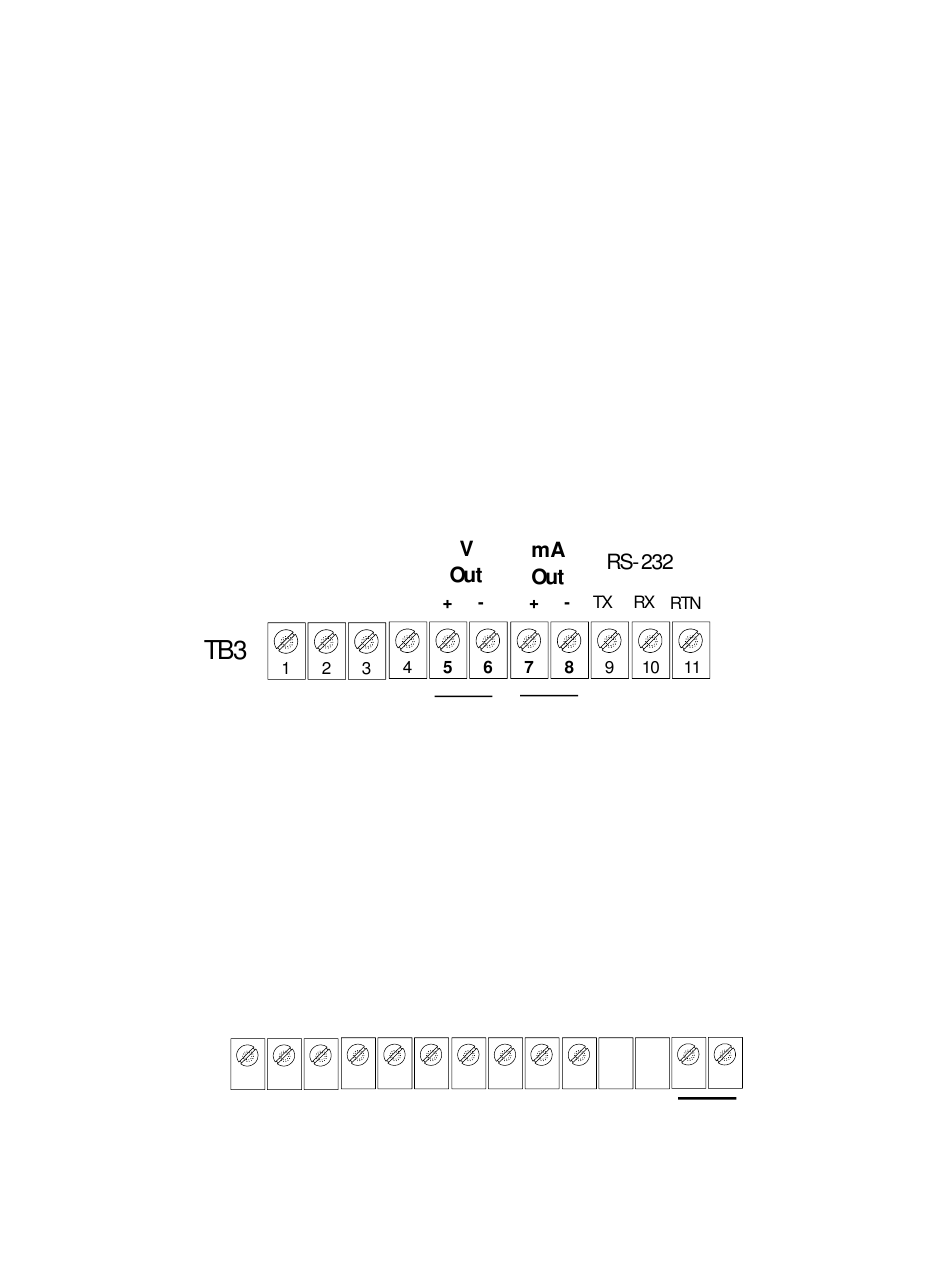

Connections from the Analog Voltage output to the user's auxiliary equipment are made at terminal
block TB3 on the rear of the analyzer chassis. Be certain to match the terminal pins against the
terminal ID label on the top of the analyzer chassis.
Use 20-AWG, 2-conductor, stranded-wire, twisted pairs for the connections. It is not necessary to
use shielded cable for the Analog Voltage output, with or without electrical barriers. If shielded
cable is used, it should be drained to dc ground at the auxiliary equipment. Refer to Appendix F –
reference drawings.
2.1.3.8

Analog Current Output

Connections from the Analog Current output to the user's auxiliary equipment are made at terminal
block TB3 on the rear of the analyzer chassis. The Analog current output is a negative ground,
non-isolated 0-20mA, or 4-20 mA current loop. 24VDC Power is supplied by the Model Mini-ICS
analyzer. Be certain to match the terminal pins against the terminal ID label on the top of the
analyzer chassis.
Use 20-AWG, 2-conductor, stranded-wire, twisted pairs for the connections. It is not necessary to
use shielded cable for the Analog Current output, with or without electrical barriers. If shielded
cable is used, it should be drained to dc ground at the auxiliary equipment. Refer to Appendix F –
reference drawings.
2.1.3.9

Range ID Output

Connections from the Range ID output to the user's auxiliary equipment are made at terminal block
TB2 on the rear of the analyzer chassis. Be certain to match the terminal pins against the terminal
ID label on the top of the analyzer chassis.
Use 20-AWG, 2-conductor, stranded-wire, twisted pairs for the connections. It is not necessary to
use shielded cable for the Range ID output, with or without electrical barriers. If shielded cable is
used, it should be drained to dc ground at the auxiliary equipment. Refer to Appendix F –
reference drawings.
TB2
Manual Part Number:
5-06-4900-53-0
CAL
Valve
Fault
O2 Alarm
C
C NO
C NO
4
5
1
2
3
Revision Level: C
ECO 044952
ICS Valve
NC NO
C
NC NO
6
7
8
9
10
Revision Date:
May 08, 2018
Installing the Analyzer
Range
V-Out
+
-
11
13
12
14
Page
2-8
