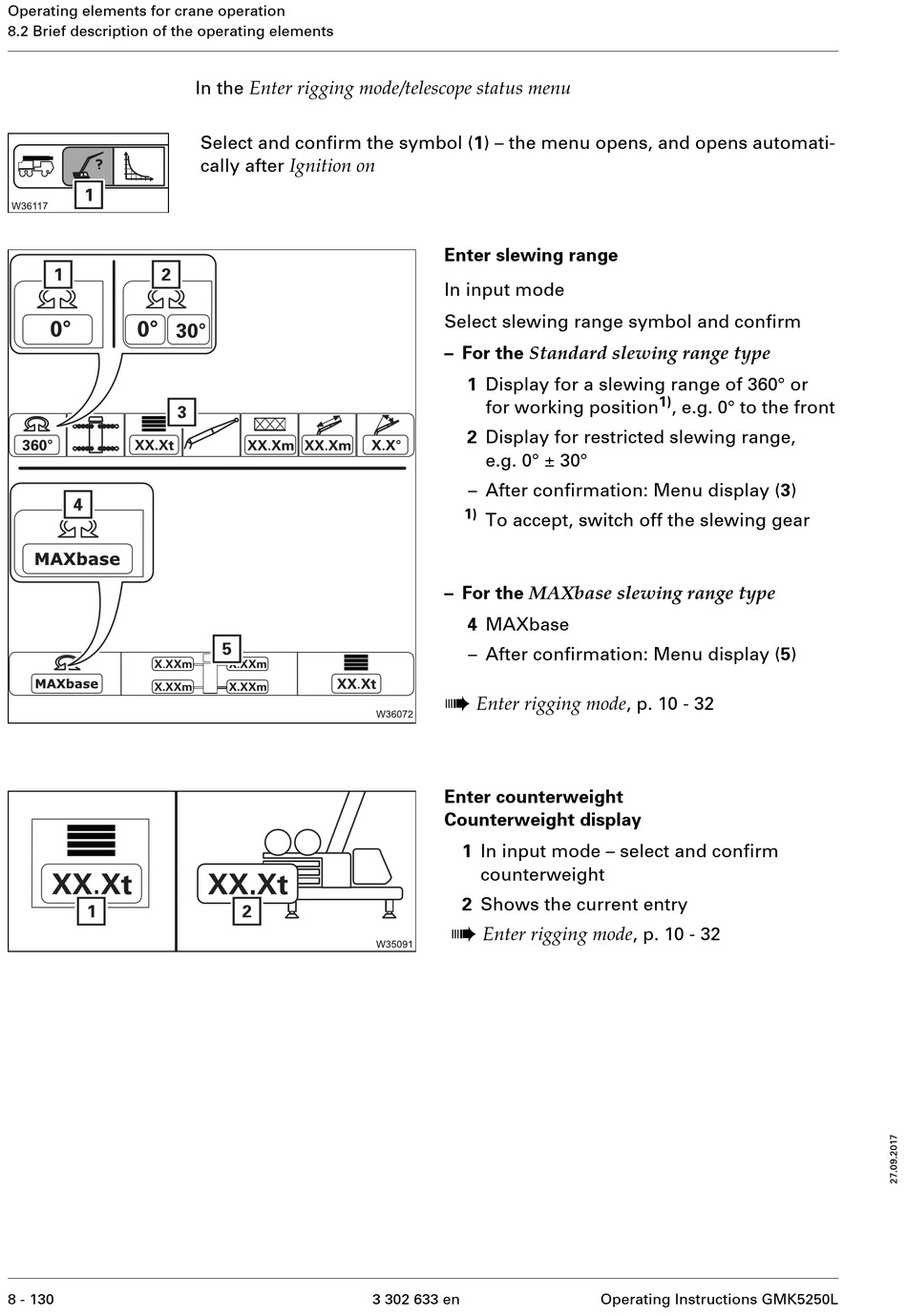

Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 130
In the Enter rigging mode/telescope status menu
Select and confirm the symbol (1) – the menu opens, and opens automati-
cally after Ignition on
Enter slewing range
In input mode
Select slewing range symbol and confirm
– For the Standard slewing range type
1 Display for a slewing range of 360° or
for working position
2 Display for restricted slewing range,
e.g. 0° ± 30°
– After confirmation: Menu display (3)
1)
To accept, switch off the slewing gear
– For the MAXbase slewing range type
4 MAXbase
– After confirmation: Menu display (5)
à
Enter rigging mode , p. 10 - 32
Enter counterweight
Counterweight display
1 In input mode – select and confirm
counterweight
2 Shows the current entry
à
Enter rigging mode , p. 10 - 32
3 302 633 en
1)
, e.g. 0° to the front
