Operating Instructions GMK5250L

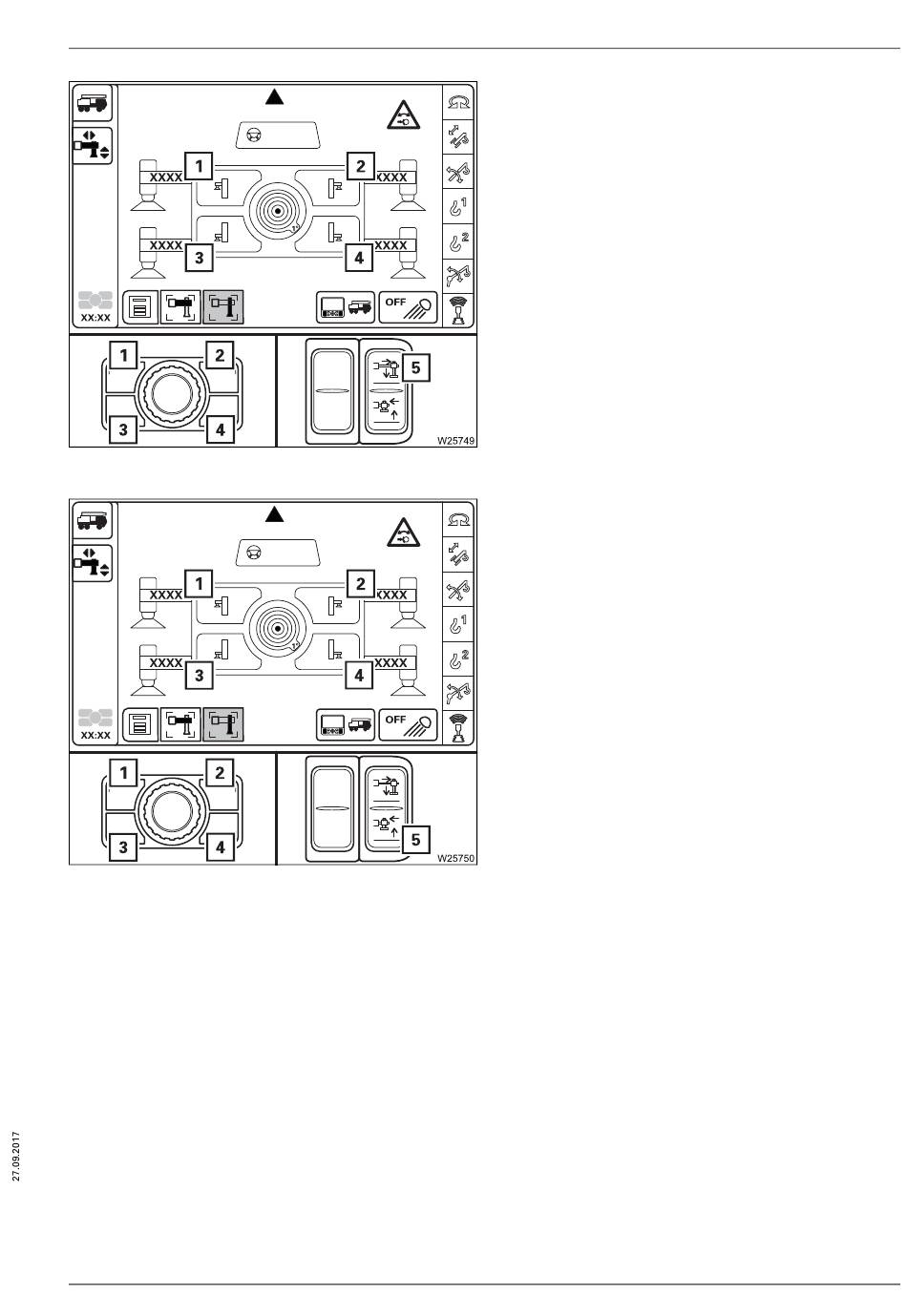

Extend
•
Press the button for the desired outrigger
cylinder.
1 Front left
2 Front right
3 Rear left
4 Rear right
•
Press the button (5) in at the top – the
selected outrigger beam extends.
Retract
•
Press the button for the desired outrigger
cylinder.
1 Front left
2 Front right
3 Rear left
4 Rear right
•
Press the button (5) in at the bottom – the
selected outrigger beam retracts.
3 302 633 en
Rigging work
11.8 Outrigger operation
11 - 57
