Manitowoc Grove GMK 5250L Operating Instructions Manual page 265

Examples
Switching off
Operating Instructions GMK5250L
This section only contains examples of the settings.
Always adjust the setting to the current conditions (warm, cold, damp).

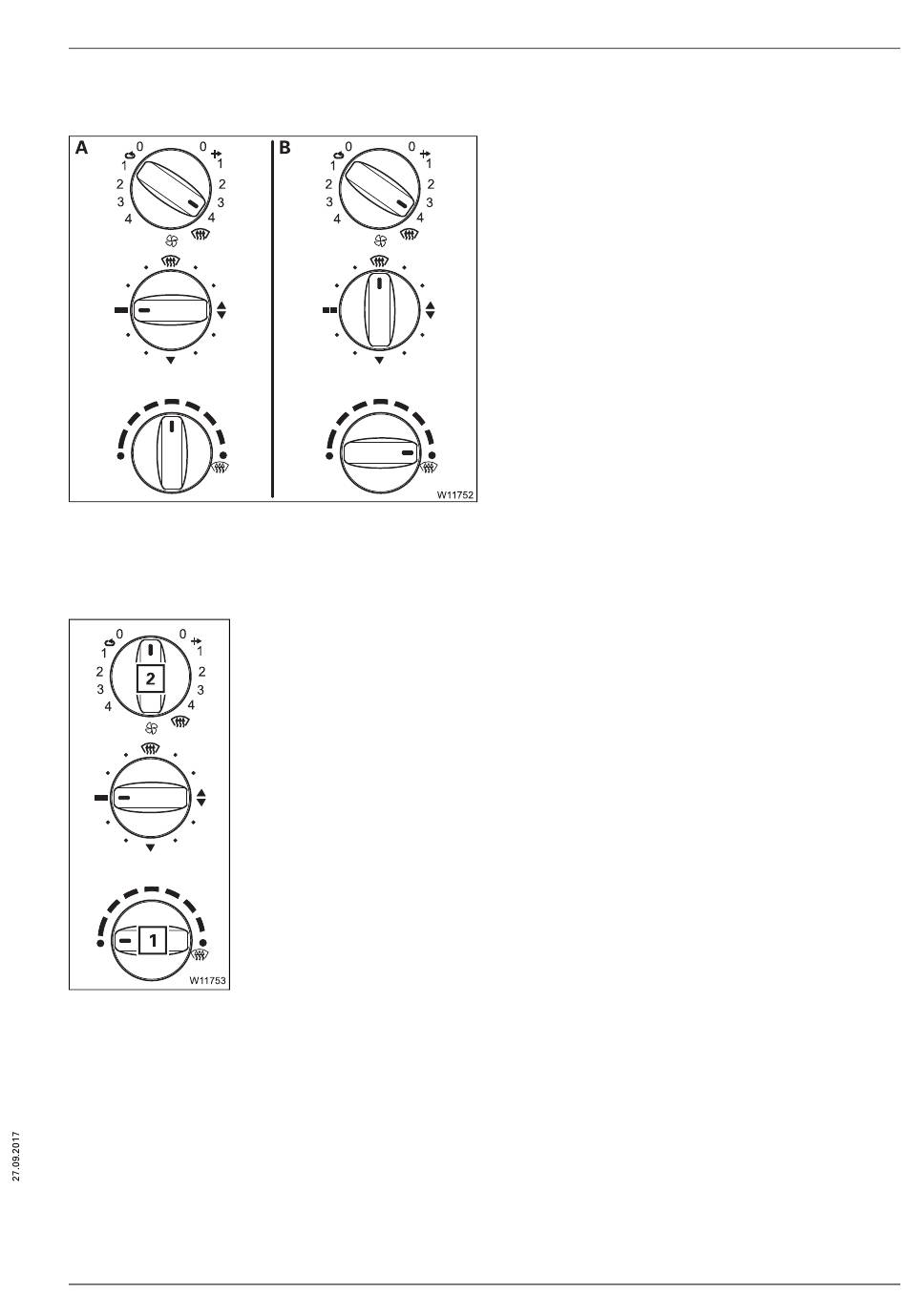

Switching off the heating system
•
Turn the switch (1) as far as it will go in a counter-clockwise direction,
to Cold .
Switching off the ventilation
•
Turn the switch (2) to the level 0.
(A) – Ventilate
– Turn the switches to the positions shown.
– If necessary, open the air vents for the side
and centre.
(B) – Defrosting the windscreen
– Turn the switches to the positions shown.
– Close the air vents for the side and centre.
3 302 633 en
5.6 Heating and air-conditioning system
Driving
5 - 65
