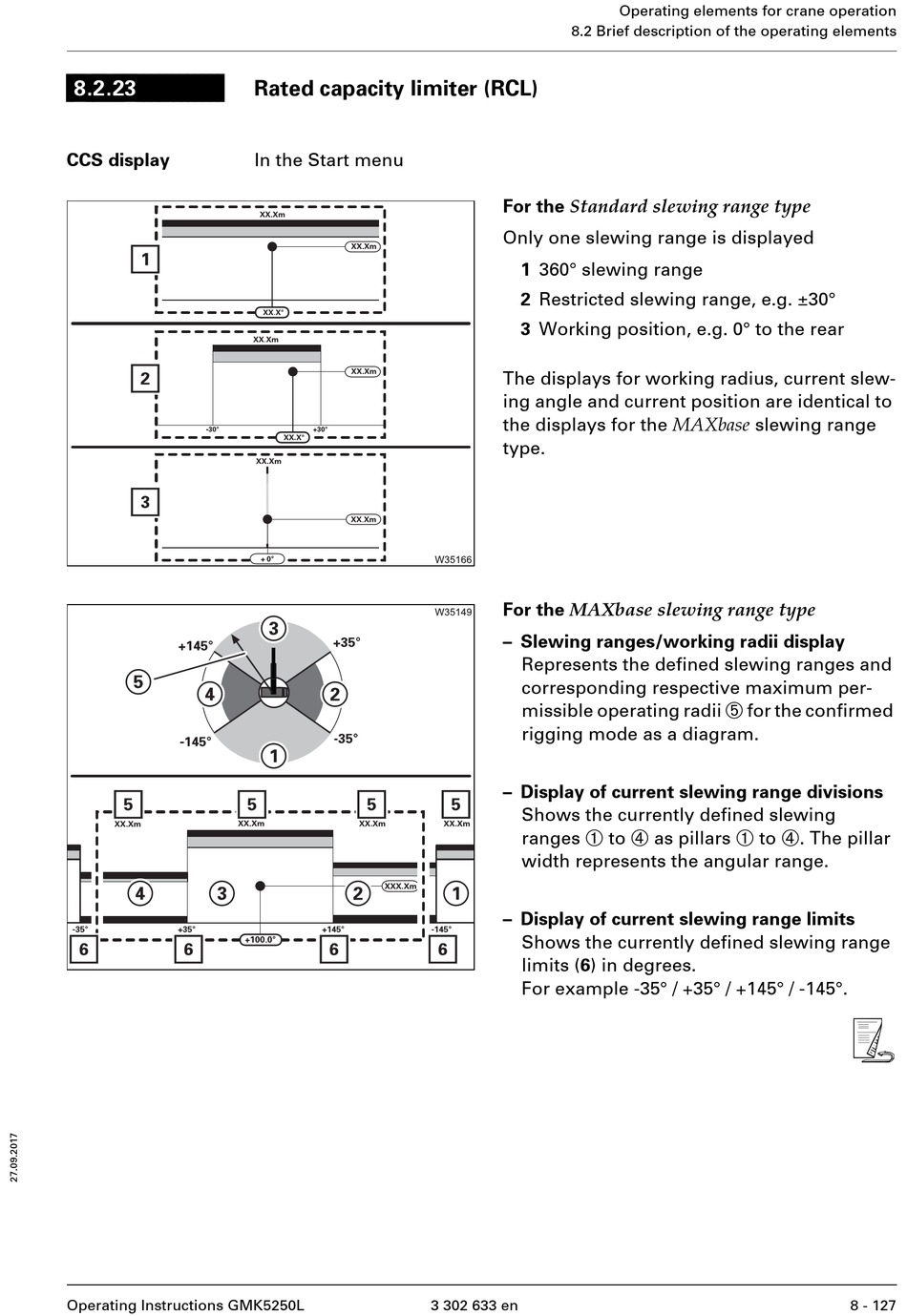

CCS display
Operating Instructions GMK5250L
Rated capacity limiter (RCL)
In the Start menu
8.2 Brief description of the operating elements
For the Standard slewing range type
Only one slewing range is displayed
1 360° slewing range
2 Restricted slewing range, e.g. ±30°
3 Working position, e.g. 0° to the rear
The displays for working radius, current slew-
ing angle and current position are identical to
the displays for the MAXbase slewing range
type.
For the MAXbase slewing range type
– Slewing ranges/working radii display
Represents the defined slewing ranges and
corresponding respective maximum per-
missible operating radii
rigging mode as a diagram.
– Display of current slewing range divisions
Shows the currently defined slewing
1
ranges
width represents the angular range.
– Display of current slewing range limits
Shows the currently defined slewing range
limits (6) in degrees.
For example -35° / +35° / +145° / -145°.
3 302 633 en
Operating elements for crane operation
5
for the confirmed
4
1
to
as pillars
to
4
. The pillar
s
8 - 127
