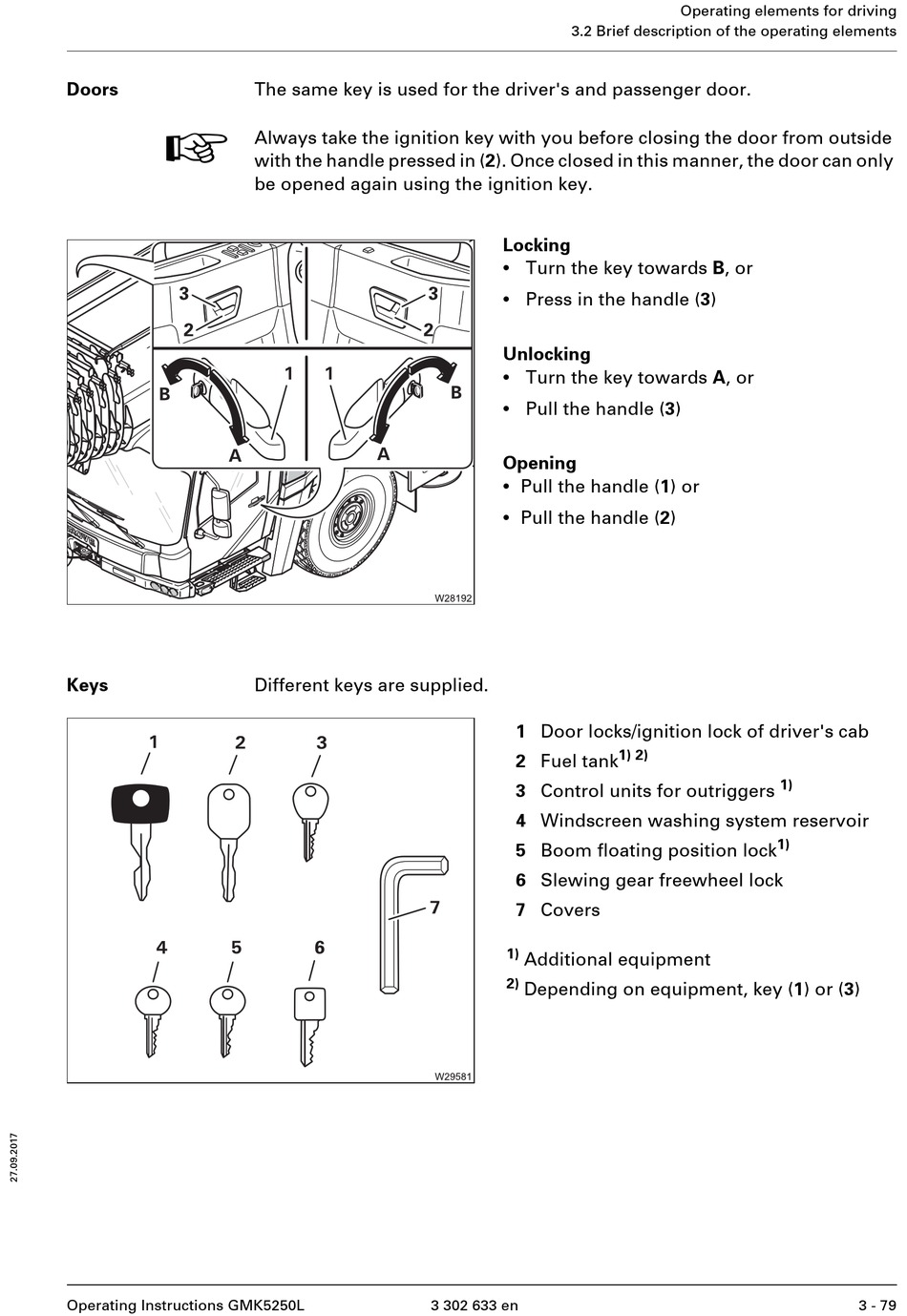

Doors
H
Keys
Operating Instructions GMK5250L
The same key is used for the driver's and passenger door.
Always take the ignition key with you before closing the door from outside
with the handle pressed in (2). Once closed in this manner, the door can only
be opened again using the ignition key.
Different keys are supplied.
3.2 Brief description of the operating elements
Locking
•
Turn the key towards B, or
•
Press in the handle (3)
Unlocking
•
Turn the key towards A, or
•
Pull the handle (3)
Opening
•
Pull the handle (1) or
•
Pull the handle (2)
1 Door locks/ignition lock of driver's cab
2 Fuel tank
3 Control units for outriggers
4 Windscreen washing system reservoir
5 Boom floating position lock
6 Slewing gear freewheel lock
7 Covers
1)
Additional equipment
2)
Depending on equipment, key (1) or (3)
3 302 633 en
Operating elements for driving
1) 2)
1)
1)
3 - 79
