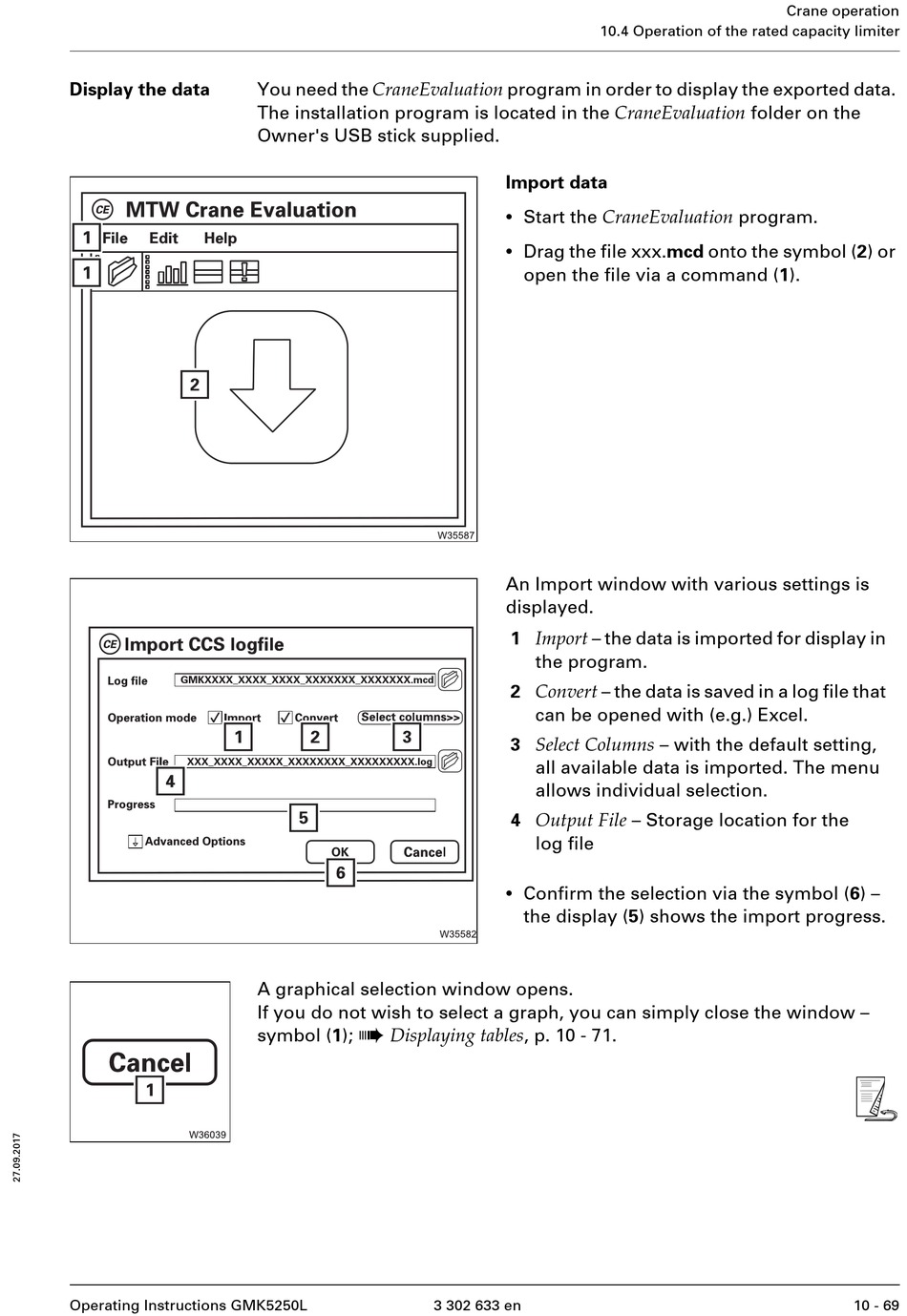

Display the data
GMKXXXX_XXXX_XXXX_XXXXXXX_XXXXXXX.mcd
XXX_XXXX_XXXXX_XXXXXXXX_XXXXXXXXX.log
Operating Instructions GMK5250L
You need the CraneEvaluation program in order to display the exported data.
The installation program is located in the CraneEvaluation folder on the
Owner's USB stick supplied.
A graphical selection window opens.
If you do not wish to select a graph, you can simply close the window –
à
Displaying tables , p. 10 - 71.
symbol (1);
10.4 Operation of the rated capacity limiter
Import data
•
Start the CraneEvaluation program.
•
Drag the file xxx.mcd onto the symbol (2) or
open the file via a command (1).
An Import window with various settings is
displayed.
1 Import – the data is imported for display in
the program.
2 Convert – the data is saved in a log file that
can be opened with (e.g.) Excel.
3 Select Columns – with the default setting,
all available data is imported. The menu
allows individual selection.
4 Output File – Storage location for the
log file
•
Confirm the selection via the symbol (6) –
the display (5) shows the import progress.
3 302 633 en
Crane operation
s
10 - 69
