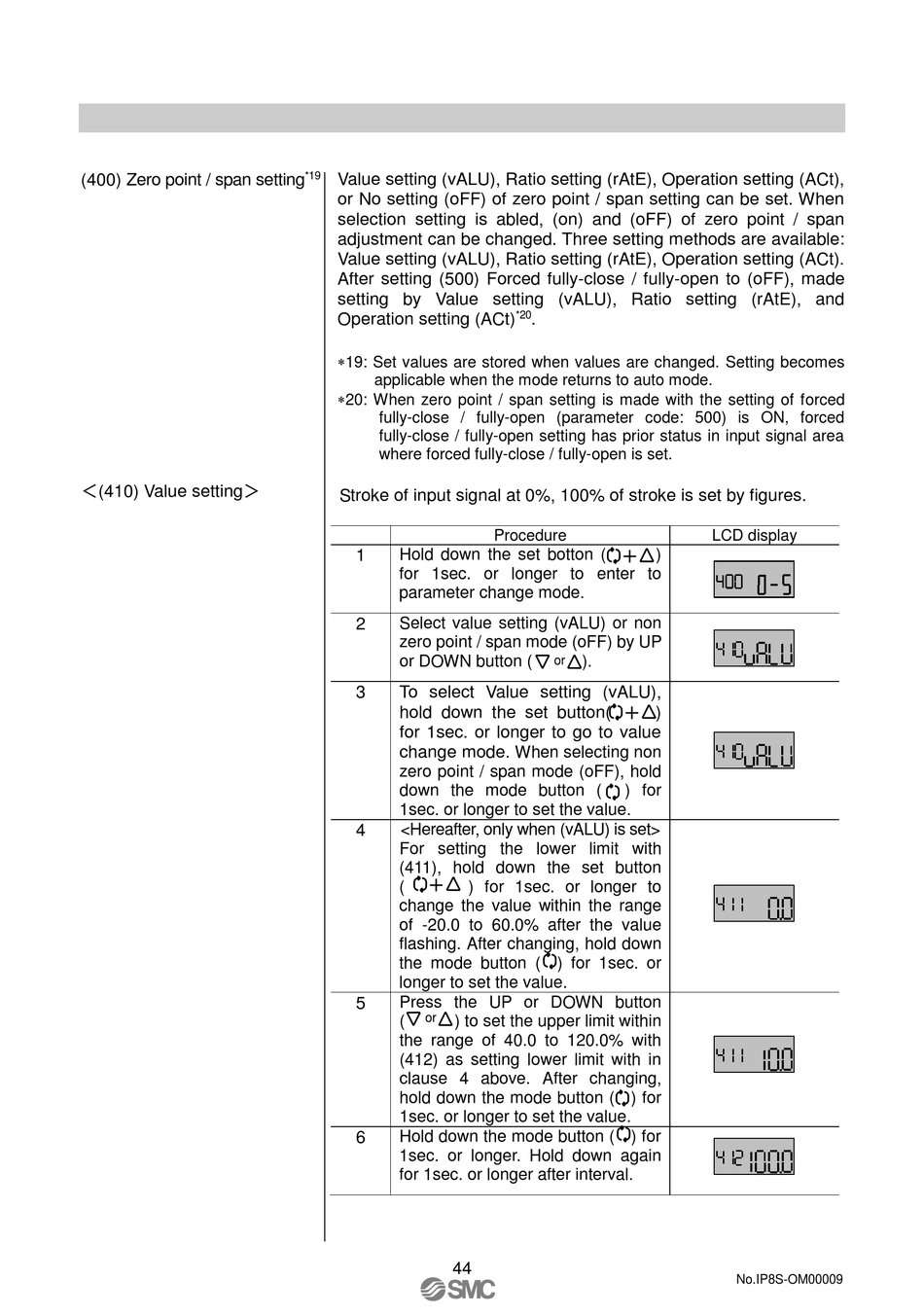

(400) Zero point / span setting
＜(410) Value setting＞
*19
Value setting (vALU), Ratio setting (rAtE), Operation setting (ACt),
or No setting (oFF) of zero point / span setting can be set. When
selection setting is abled, (on) and (oFF) of zero point / span
adjustment can be changed. Three setting methods are available:
Value setting (vALU), Ratio setting (rAtE), Operation setting (ACt).
After setting (500) Forced fully-close / fully-open to (oFF), made
setting by Value setting (vALU), Ratio setting (rAtE), and
Operation setting (ACt)
19: Set values are stored when values are changed. Setting becomes
applicable when the mode returns to auto mode.
20: When zero point / span setting is made with the setting of forced
fully-close / fully-open (parameter code: 500) is ON, forced
fully-close / fully-open setting has prior status in input signal area
where forced fully-close / fully-open is set.
Stroke of input signal at 0%, 100% of stroke is set by figures.
1 Hold down the set botton (
for 1sec. or longer to enter to
parameter change mode.
2 Select value setting (vALU) or non
zero point / span mode (oFF) by UP
or DOWN button (
3 To select Value setting (vALU),
hold down the set button(
for 1sec. or longer to go to value
change mode. When selecting non
zero point / span mode (oFF), hold
down the mode button (
1sec. or longer to set the value.
<Hereafter, only when (vALU) is set>
4
For setting the lower limit with
(411), hold down the set button
＋
( ) for 1sec. or longer to
change the value within the range
of -20.0 to 60.0% after the value
flashing. After changing, hold down
the mode button ( ) for 1sec. or
longer to set the value.
5 Press the UP or DOWN button
or
( ) to set the upper limit within
the range of 40.0 to 120.0% with
(412) as setting lower limit with in
clause 4 above. After changing,
hold down the mode button ( ) for
1sec. or longer to set the value.
6 Hold down the mode button ( ) for
1sec. or longer. Hold down again
for 1sec. or longer after interval.
44
*20
.
Procedure
＋ )
).
or
＋
)
) for
LCD display
