(300) Split range setting
The split range can be selected by setting ON or OFF. The default
when shipped is OFF. If ON is selected, the lower limit (310) (input
current range between 0.0 and 80.0%) and the upper limit (320)
(input current range between 40.0 to 125.0%) can be set. The
default value when shipped is (310) = 0.0%, and (320) = 100.0%.
However, the lower limit (310) and the upper limit (320) setting
cannot be established unless the following is satisfied.
"(320) - (310)" ≧ 40.0 %

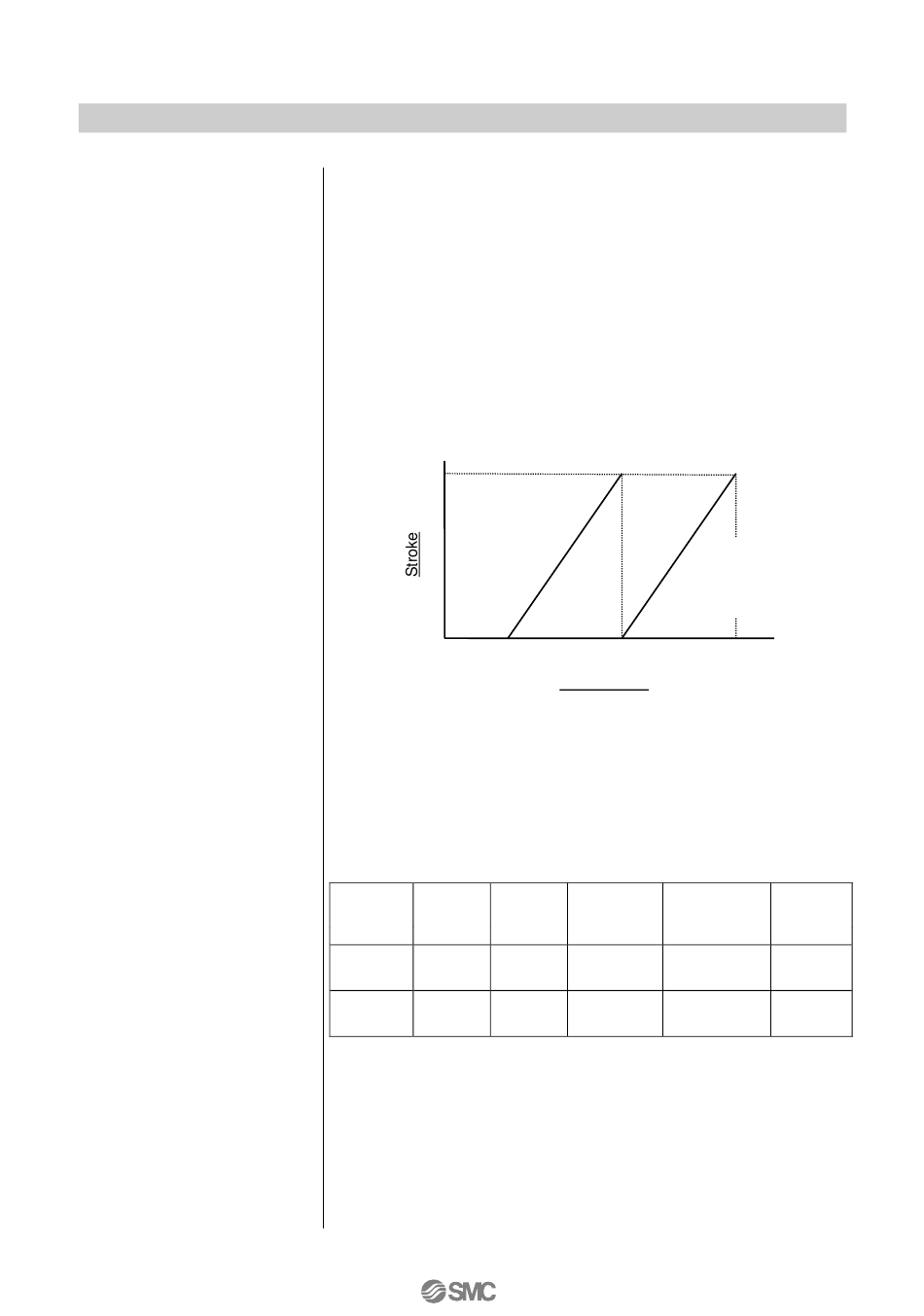

Example of connecting 2 units of IP8001 (unit 1 & unit 2) if (200)=
(dir) is selected:
100%
Unit 1
300=on
310=0.0
320=50.0
0%
0%
If the input current range is modified by setting the split range, an
input value (S value) is shown with determination of the modified
range as 100%. With the settings of (300) = ON, (310) = 0.0, and
(320) = 50.0, it is reflected to each item as shown on Table 10.
Suppose actuator full stroke is 30mm as an example.
Input
Split range
current
(S value)
setting
(mADC)
OFF 4-20
1/2
4-12
split
31
50%
Input current
Fig. 24
Table 11
Input Position
value value Actuator stroke
(P value)
(％) (％)
0-100 0-100
0-100 0-100
Unit 2
300=on
310=50.0
320=100.0
100%
Analog
output
(mm) (mADC)
0-30 4-20
0-30 4-20
