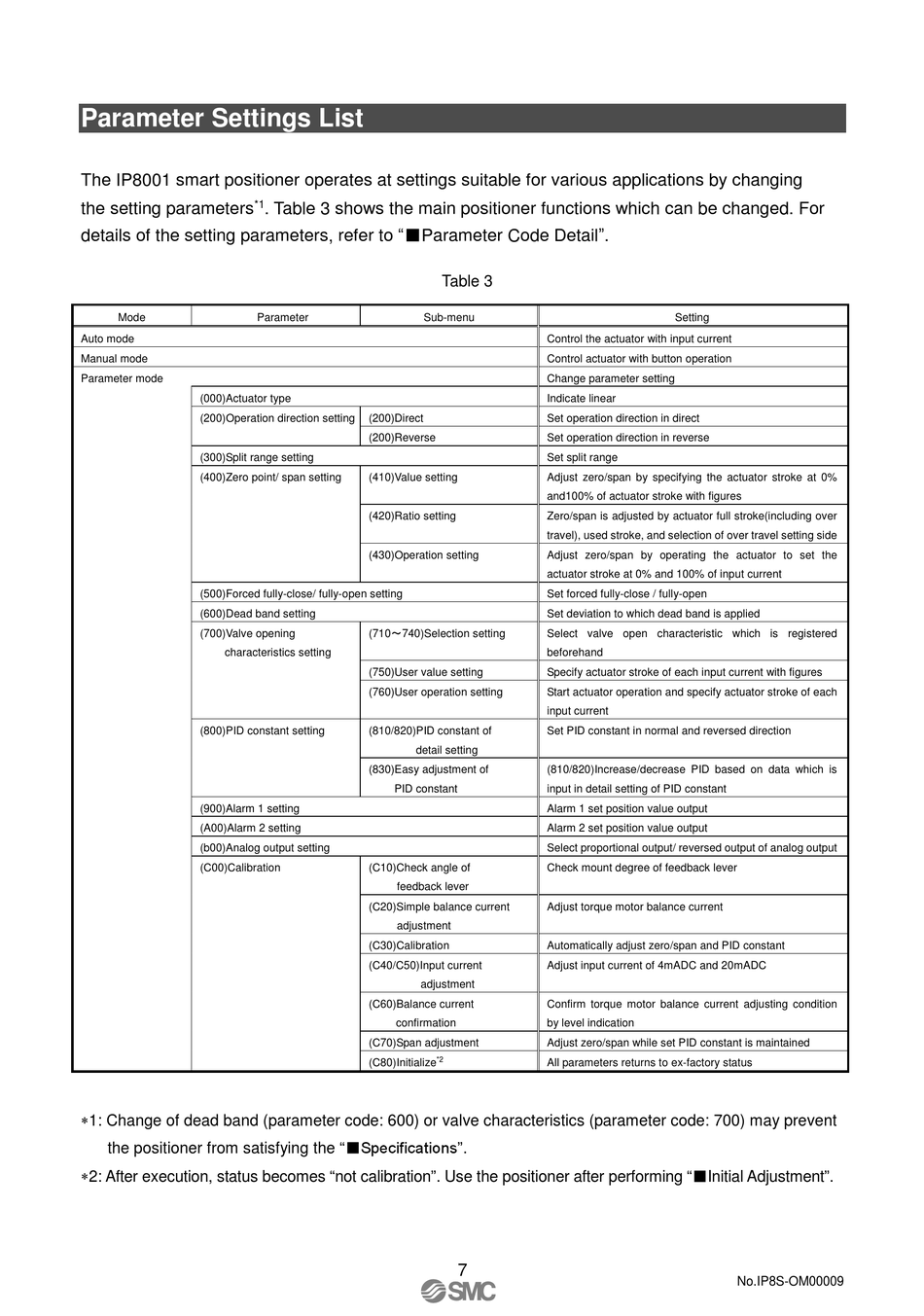

Parameter Settings List

The IP8001 smart positioner operates at settings suitable for various applications by changing
*1
the setting parameters
details of the setting parameters, refer to "■Parameter Code Detail".
Mode
Auto mode
Manual mode
Parameter mode
(000)Actuator type
(200)Operation direction setting
(300)Split range setting
(400)Zero point/ span setting
(500)Forced fully-close/ fully-open setting
(600)Dead band setting
(700)Valve opening
characteristics setting
(800)PID constant setting
(900)Alarm 1 setting
(A00)Alarm 2 setting
(b00)Analog output setting
(C00)Calibration
1: Change of dead band (parameter code: 600) or valve characteristics (parameter code: 700) may prevent
the positioner from satisfying the "■Specifications".
2: After execution, status becomes "not calibration". Use the positioner after performing "■Initial Adjustment".
. Table 3 shows the main positioner functions which can be changed. For
Parameter Sub-menu
(200)Direct
(200)Reverse
(410)Value setting
(420)Ratio setting
(430)Operation setting
(710～740)Selection setting
(750)User value setting
(760)User operation setting
(810/820)PID constant of
detail setting
(830)Easy adjustment of
PID constant
(C10)Check angle of
feedback lever
(C20)Simple balance current
adjustment
(C30)Calibration
(C40/C50)Input current
adjustment
(C60)Balance current
confirmation
(C70)Span adjustment
(C80)Initialize
Table 3
Control the actuator with input current
Control actuator with button operation
Change parameter setting
Indicate linear
Set operation direction in direct
Set operation direction in reverse
Set split range
Adjust zero/span by specifying the actuator stroke at 0%
and100% of actuator stroke with figures
Zero/span is adjusted by actuator full stroke(including over
travel), used stroke, and selection of over travel setting side
Adjust zero/span by operating the actuator to set the
actuator stroke at 0% and 100% of input current
Set forced fully-close / fully-open
Set deviation to which dead band is applied
Select valve open characteristic which is registered
beforehand
Specify actuator stroke of each input current with figures
Start actuator operation and specify actuator stroke of each
input current
Set PID constant in normal and reversed direction
(810/820)Increase/decrease PID based on data which is
input in detail setting of PID constant
Alarm 1 set position value output
Alarm 2 set position value output
Select proportional output/ reversed output of analog output
Check mount degree of feedback lever
Adjust torque motor balance current
Automatically adjust zero/span and PID constant
Adjust input current of 4mADC and 20mADC
Confirm torque motor balance current adjusting condition
by level indication
Adjust zero/span while set PID constant is maintained
*2
All parameters returns to ex-factory status
7
Setting
No.IP8S-OM00009
