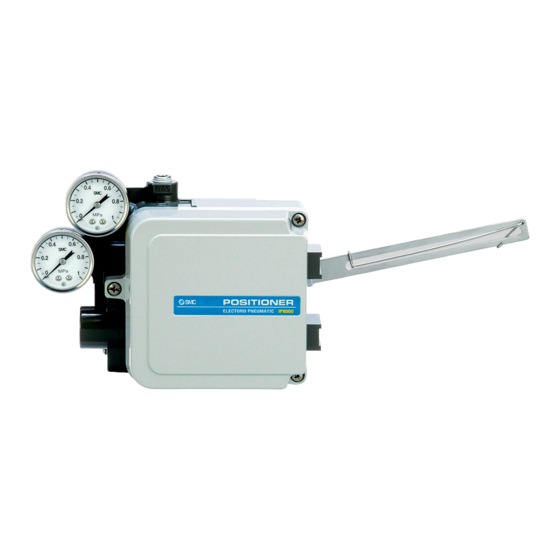

SMC Networks IP8000 Series Manual

Electro-pneumatic positioner
Hide thumbs Also See for IP8000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

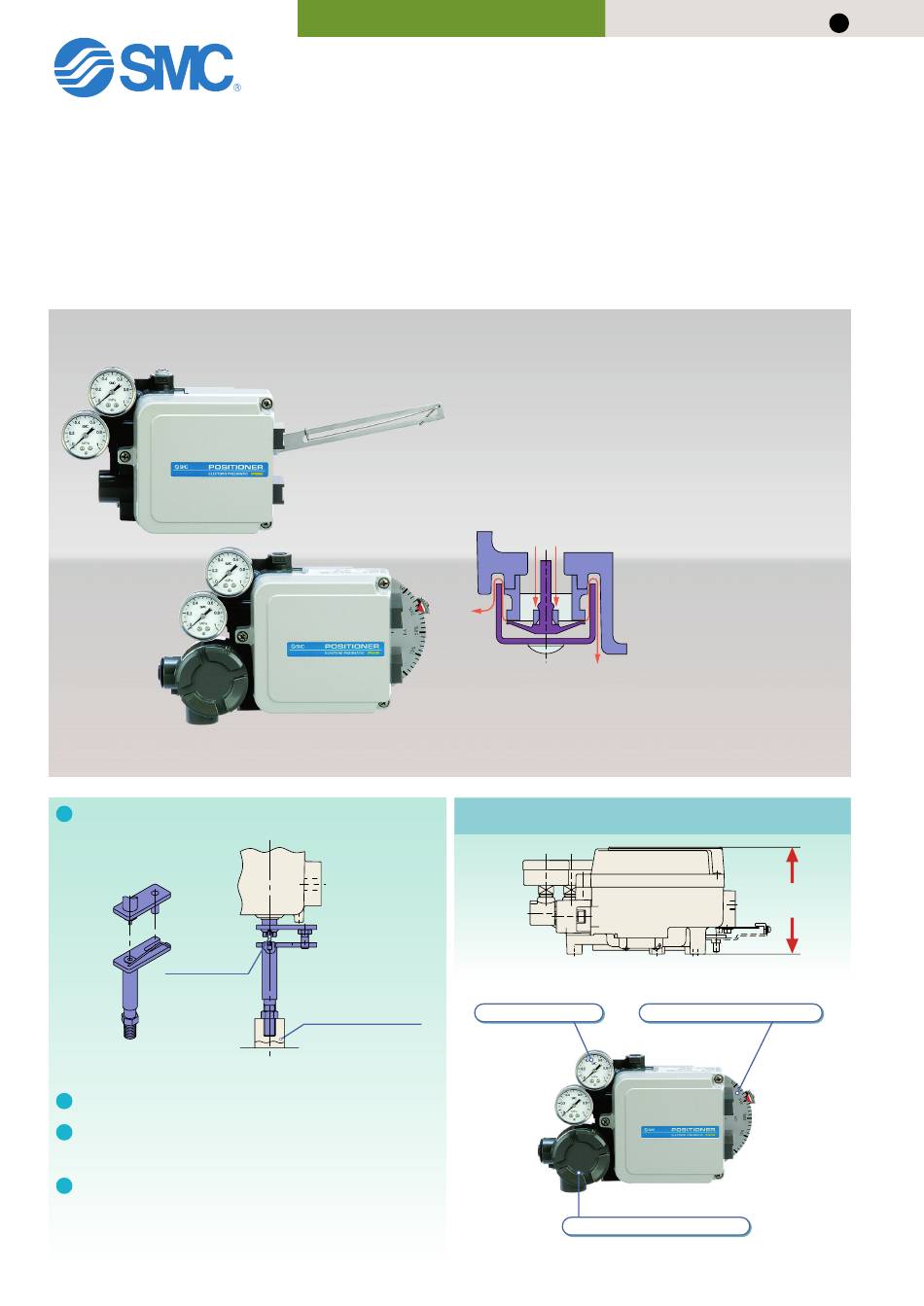

Electro-Pneumatic Positioner
Folk lever joints (Rotary type)
Can absorb off-centering.
Spring pin
A span adjuster achieves 1/2 split range
Opening current transmission (4 to 20mA DC)
Can detect remote position. Non-explosion proof rotary type only.
Mounting dimensions are same as convention
types, series IP6000/6100.
Vibration resistance : No resonances
Vibration resistance : No resonances
5
5
Dust resistance : Conforms to
Dust resistance : Conforms to
JIS F8007 IP65
JIS F8007 IP65
100mm in height
100mm in height
Actuator main shaft
200Hz
200Hz
to
to
EXH.AIR
A centralized exhaust
system employs the
combination of the check
valve and the labyrinth
effect enhancing both dust
resistance and water
resistance performance.
IP8000/8100
Series
(Lever type)
Pressure gauge (O. D. ø43)
External scale plate (Rotary type)
Enlarged O.D.
Improved visibility of
allows improved
opening indicator
visibility.
With terminal box (Explosion proof)
No terminal box (non-explosion proof) is available.
CAT.ES60-18
A
(Rotary type)
(shortened by 13%
(shortened by 13%
y 13%
(shortened by 13%
y 13%
compared with IP6100)
compared with IP6100)
compared with IP6100)
compared with IP6100)
compared with IP6100)
100
100
mm
mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP8000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks IP8000 Series

Summary of Contents for SMC Networks IP8000 Series

  • Page 1 CAT.ES60-18 Electro-Pneumatic Positioner Vibration resistance : No resonances Vibration resistance : No resonances 200Hz 200Hz Dust resistance : Conforms to Dust resistance : Conforms to JIS F8007 IP65 JIS F8007 IP65 EXH.AIR A centralized exhaust system employs the combination of the check valve and the labyrinth effect enhancing both dust resistance and water...

  • Page 2: How To Order

    Electro-Pneumatic Positioner IP8000/8100 Series How to Order Accessories Note 2) Type None (Standard) IP8000 has standard lever for stroke (10 to 85mm) Lever type feedback Note 3) ø0.7 Output restriction with pilot valve Accessory for IP8000, 8100 Rotary type small capacity actuator Note 3) ø1.0 Output restriction with pilot valve Pressure gauge...

  • Page 3: Exploded View

    IP8000 / 8100 Series Electro-Pneumatic Positioner Accessory / Option Pilot valve with output restriction (IP8000, 8100 type) External feedback lever (IP8000 type) In general, mounting on a small-size actuator may cause hunting. For Different feedback levers are available dependent upon valve prevention, a pilot valve with a built-in output restriction is available.
  • Page 4 IP8000/8100 Series Piping IP8000 / Lever type Single action Double action When the input signal is increased, the stem When the input signal is increased, the stem When the input signal is increased, the moves as allow mark. moves as allow mark. cylinder rod moves as allow mark.

  • Page 5: Installation

    IP8000 / 8100 Series Electro-Pneumatic Positioner Installation IP8000 type (Lever type lever feedback) 1 The unit should be mounted using bolts firmly fixed through mounting holes on the side or back of the positioner. Mounting examples Bracket Bracket Positioner Positioner Positioner Bracket Bracket...

  • Page 6: Principle Of Operation

    IP8000/8100 Series Principle of Operation IP8000 / Lever type When the input current increases, (11) the plate spring of (12) the torque motor will work as a pivot, (13) armature will receive a counter clockwise torque, (4) the counter weight will be pushed to the left, the clearance between (6) the nozzle and (5) the flapper will increase, and the nozzle back pressure will decrease.
  • Page 7 IP8000 / 8100 Series Electro-Pneumatic Positioner IP8100 / Rotary type When the input current increases, (12) the plate spring of (13) the torque motor will work as a pivot, (14) armature will receive a counter-clockwise torque, (4) the counter weight will be pushed to the left and the clearance between (6) the nozzle and (5) the flapper will increase, and the nozzle back pressure will decrease.
  • Page 8 IP8000/8100 Series Dimensions / IP8000 (Lever type) IP8000-0 0 (No terminal box) OUT2.Rc1/4 With plug OUT1.Rc1/4 2 x M8 x 1.25 depth12 SUP.Rc1/4 23.5 23.5 (Female thread for side mounting) OUT2 P O S I T I O N E R ELECTORO PNEUMATIC IP8000 At accessory “E”: 110 At accessory “F”: 110...
  • Page 9 IP8000 / 8100 Series Electro-Pneumatic Positioner Dimensions / IP8100 (Rotary type) IP8100-0 0 (No terminal box) OUT2.Rc1/4 OUT1.Rc1/4 SUP.Rc1/4 23.5 23.5 OUT2 P O S I T I O N E R ELECTORO PNEUMATIC IP8100 G1/2 4 x M8 x 1.25 depth12 View A Electric conduit Female for rear mounting...

  • Page 10: Safety Instructions

    IP8000/8100 Series Safety Instructions These safety instructions are intended to prevent a hazardous situation and/or equipment damage. These instructions indicate the level of potential hazard by a label of "Caution", "Warning" or "Danger". To ensure safety, be sure to observe , JIS B 8370 and other safety practices.
  • Page 11 IP8000/8100 Series Electro-Pneumatic Positioner Precautions Be sure to read before handling. Operation Maintenance Warning Warning 1. Do not operate the positioner outside the specified range as this may cause 1. After installation, repair or disassembly, connect compressed air and problems. (Refer to the specifications.) conduct tests to confirm appropriate function and leakage.
