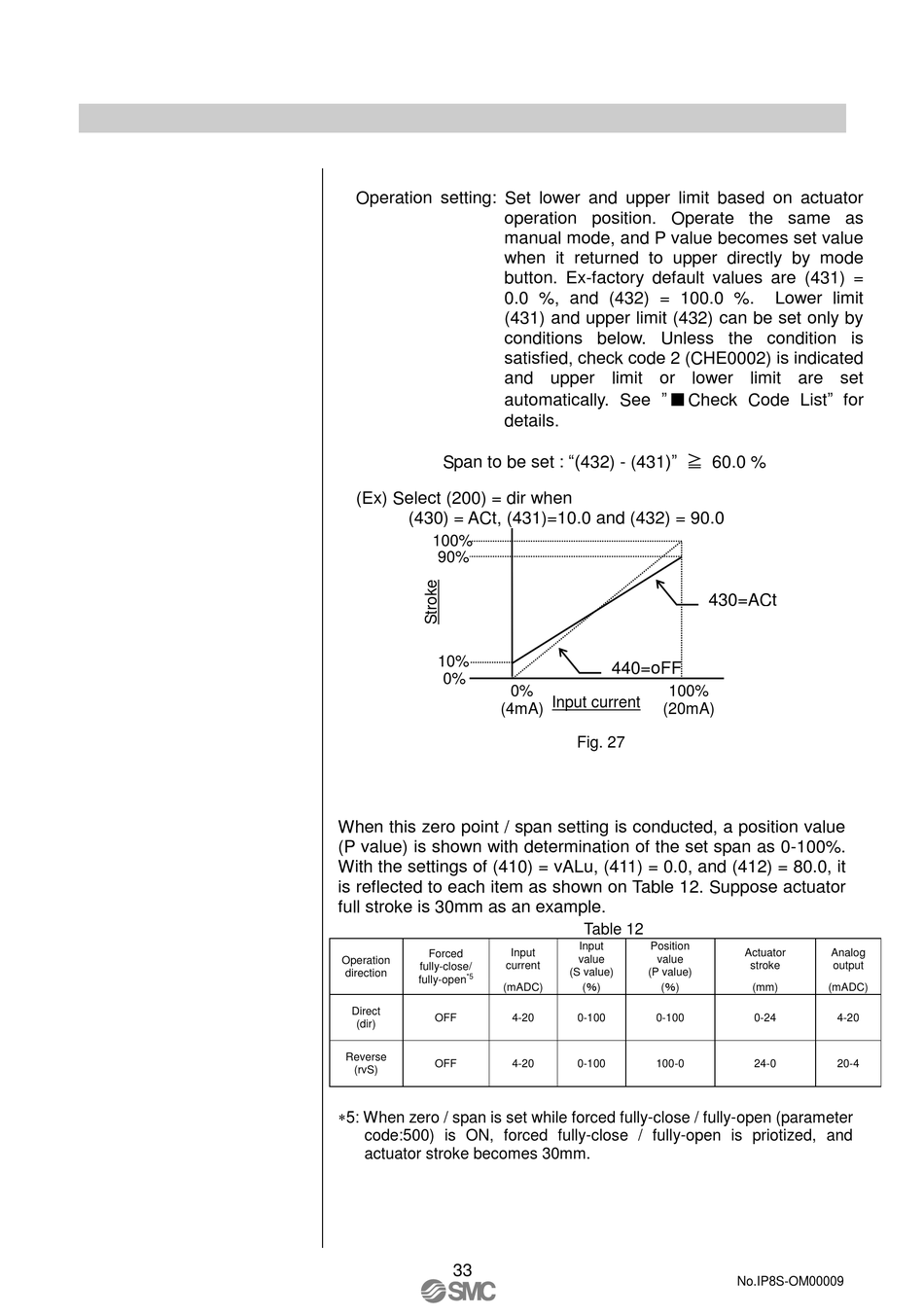

Operation setting: Set lower and upper limit based on actuator
operation position. Operate the same as
manual mode, and P value becomes set value
when it returned to upper directly by mode
button. Ex-factory default values are (431) =
0.0 %, and (432) = 100.0 %.
(431) and upper limit (432) can be set only by
conditions below. Unless the condition is
satisfied, check code 2 (CHE0002) is indicated
and upper limit or lower limit are set
automatically. See " ■ Check Code List" for
details.
Span to be set : "(432) - (431)" ≧ 60.0 %
(Ex) Select (200) = dir when
(430) = ACt, (431)=10.0 and (432) = 90.0
100%
90%
10%
0%
0%
(4mA)
When this zero point / span setting is conducted, a position value
(P value) is shown with determination of the set span as 0-100%.
With the settings of (410) = vALu, (411) = 0.0, and (412) = 80.0, it
is reflected to each item as shown on Table 12. Suppose actuator
full stroke is 30mm as an example.
Input
Forced
Operation
current
fully-close/
direction
*5
fully-open
(mADC)
Direct
OFF 4-20
(dir)
Reverse
OFF 4-20
(rvS)
5: When zero / span is set while forced fully-close / fully-open (parameter
code:500) is ON, forced fully-close / fully-open is priotized, and
actuator stroke becomes 30mm.
33
430=ACt
440=oFF
100%
Input current
(20mA)
Fig. 27
Table 12
Input Position
value value
(S value) (P value)
(％) (％)
0-100 0-100
0-100 100-0
Lower limit
Actuator Analog
stroke output
(mm) (mADC)
0-24 4-20
24-0 20-4
