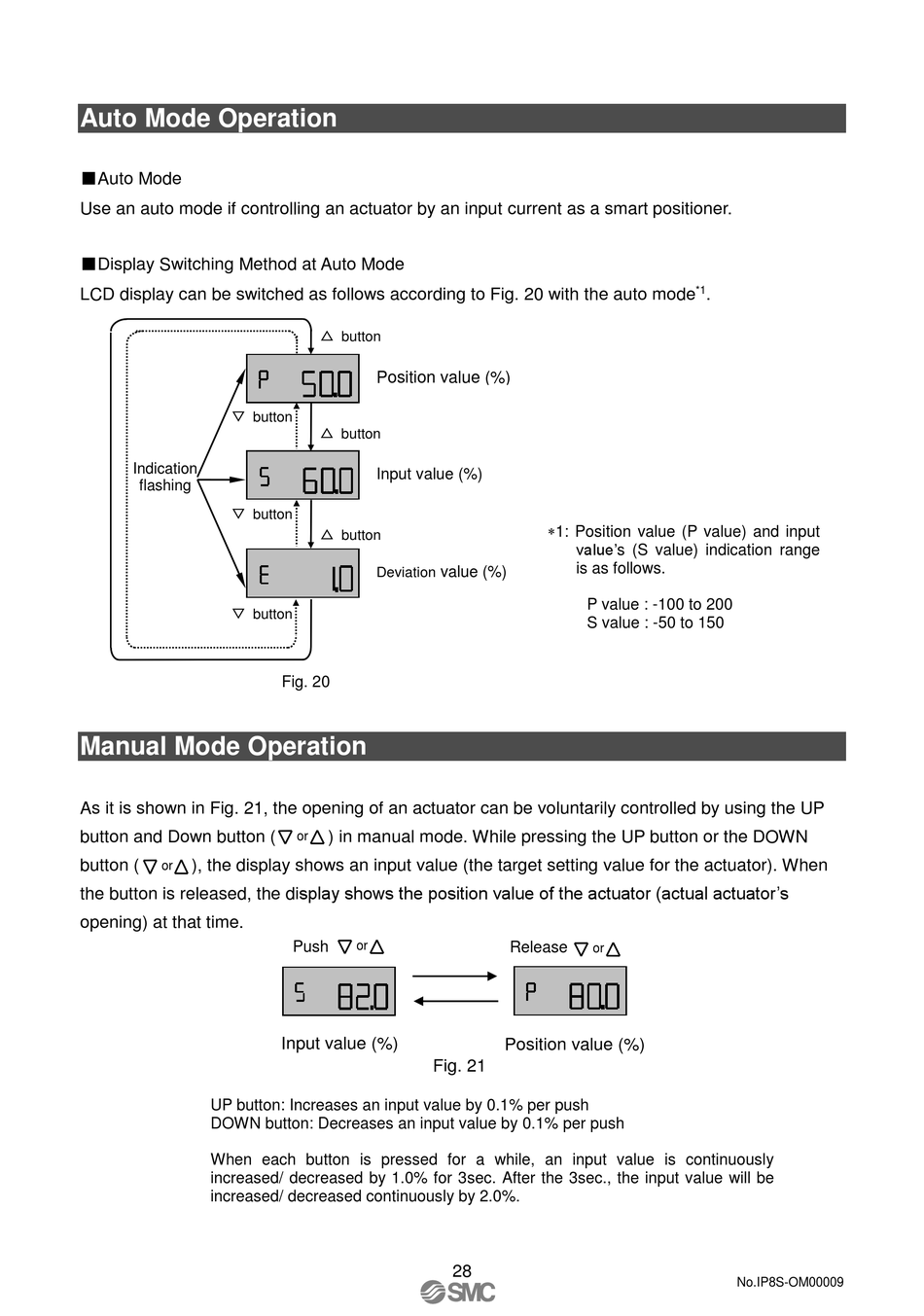

Auto Mode Operation

■Auto Mode

Use an auto mode if controlling an actuator by an input current as a smart positioner.

■Display Switching Method at Auto Mode

LCD display can be switched as follows according to Fig. 20 with the auto mode
▽ button
Indication
flashing
▽ button
▽ button

Manual Mode Operation

As it is shown in Fig. 21, the opening of an actuator can be voluntarily controlled by using the UP
button and Down button (
button ( ), the display shows an input value (the target setting value for the actuator). When
or
the button is released, the display shows the position value of the actuator (actual actuator's
opening) at that time.
UP button: Increases an input value by 0.1% per push
DOWN button: Decreases an input value by 0.1% per push
When each button is pressed for a while, an input value is continuously
increased/ decreased by 1.0% for 3sec. After the 3sec., the input value will be
increased/ decreased continuously by 2.0%.
△ button
Position value (%)
△ button
Input value (%)
△ button
value (%)
Deviation
Fig. 20
) in manual mode. While pressing the UP button or the DOWN
or
Push or
Input value (%)
Fig. 21
28
1: Position value (P value) and input
value's (S value) indication range
is as follows.
P value : -100 to 200
S value : -50 to 150
Release
or
Position value (%)
*1
.
No.IP8S-OM00009
