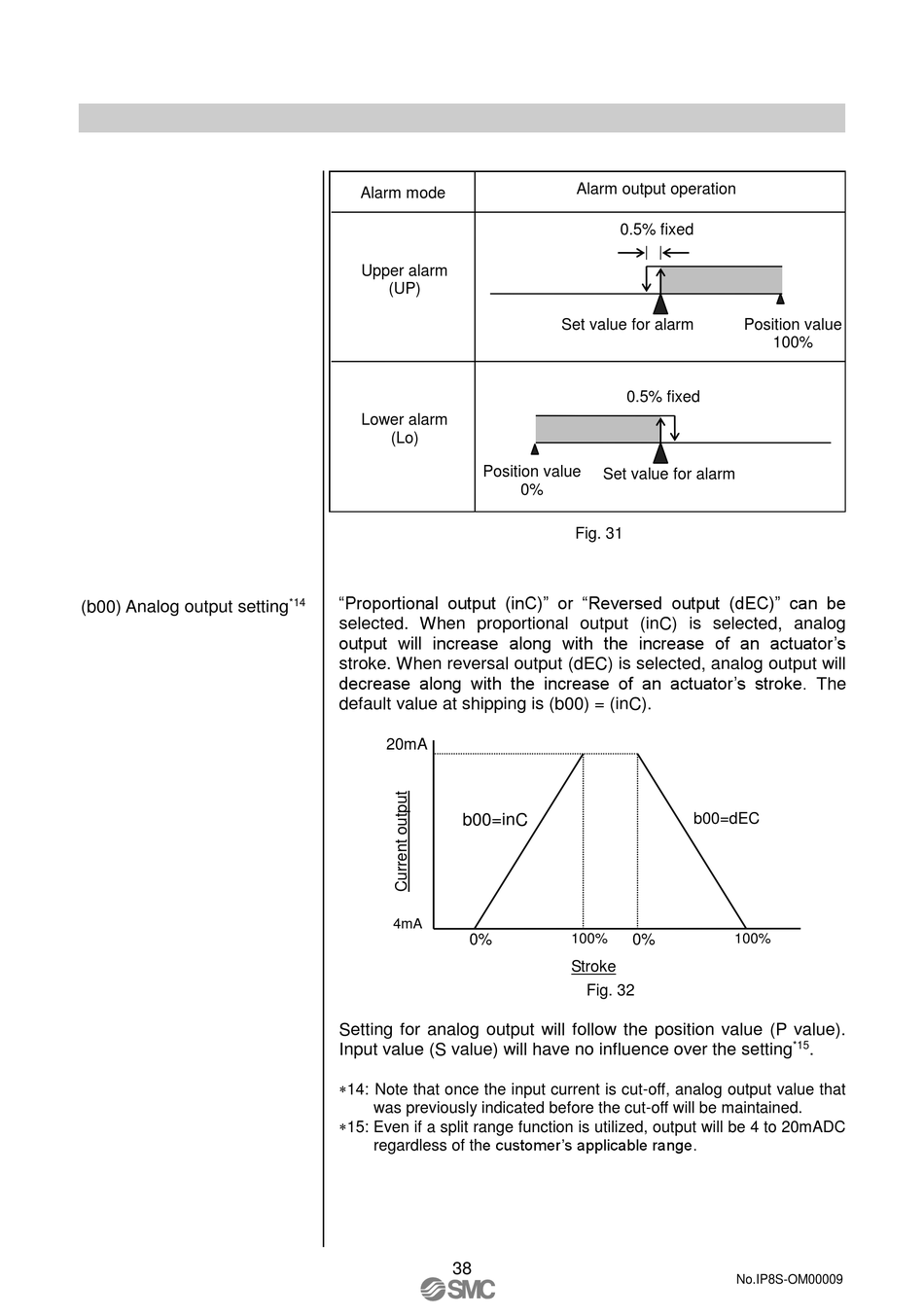

(b00) Analog output setting
Alarm mode
Upper alarm
(UP)
Lower alarm
(Lo)
"Proportional output (inC)" or "Reversed output (dEC)" can be
*14
selected. When proportional output (inC) is selected, analog
output will increase along with the increase of an actuator's
stroke. When reversal output (dEC) is selected, analog output will
decrease along with the increase of an actuator's stroke. The
default value at shipping is (b00) = (inC).
20mA
b00=inC
4mA
Setting for analog output will follow the position value (P value).
Input value (S value) will have no influence over the setting
14: Note that once the input current is cut-off, analog output value that
was previously indicated before the cut-off will be maintained.
15: Even if a split range function is utilized, output will be 4 to 20mADC
regardless of the customer's applicable range.
38
Alarm output operation
0.5% fixed
Set value for alarm
0.5% fixed
Position value
Set value for alarm
0%
Fig. 31
0% 100% 0%
Stroke
Fig. 32
Position value
100%
b00=dEC
100%
*15
.
No.IP8S-OM00009
