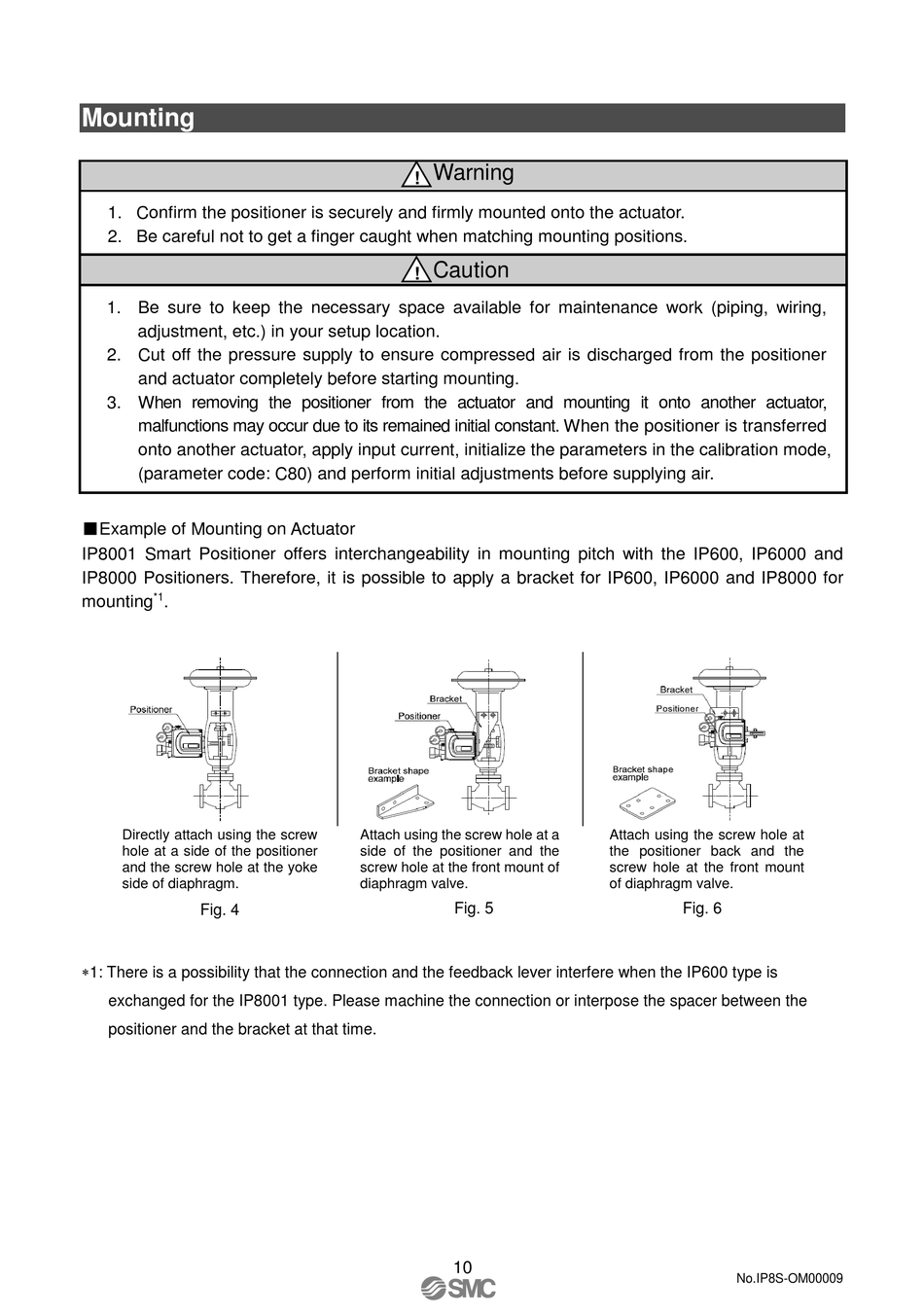

Mounting

1. Confirm the positioner is securely and firmly mounted onto the actuator.
2. Be careful not to get a finger caught when matching mounting positions.
1. Be sure to keep the necessary space available for maintenance work (piping, wiring,
adjustment, etc.) in your setup location.
2. Cut off the pressure supply to ensure compressed air is discharged from the positioner
and actuator completely before starting mounting.
3. When removing the positioner from the actuator and mounting it onto another actuator,
malfunctions may occur due to its remained initial constant. When the positioner is transferred
onto another actuator, apply input current, initialize the parameters in the calibration mode,
(parameter code: C80) and perform initial adjustments before supplying air.

■Example of Mounting on Actuator

IP8001 Smart Positioner offers interchangeability in mounting pitch with the IP600, IP6000 and
IP8000 Positioners. Therefore, it is possible to apply a bracket for IP600, IP6000 and IP8000 for
*1
mounting .
Directly attach using the screw
hole at a side of the positioner
and the screw hole at the yoke
side of diaphragm.
Fig. 4
1: There is a possibility that the connection and the feedback lever interfere when the IP600 type is
exchanged for the IP8001 type. Please machine the connection or interpose the spacer between the
positioner and the bracket at that time.
Warning
!
Caution
!
Attach using the screw hole at a
side of the positioner and the
screw hole at the front mount of
diaphragm valve.
Fig. 5
10
Attach using the screw hole at
the positioner back and the
screw hole at the front mount
of diaphragm valve.
Fig. 6
