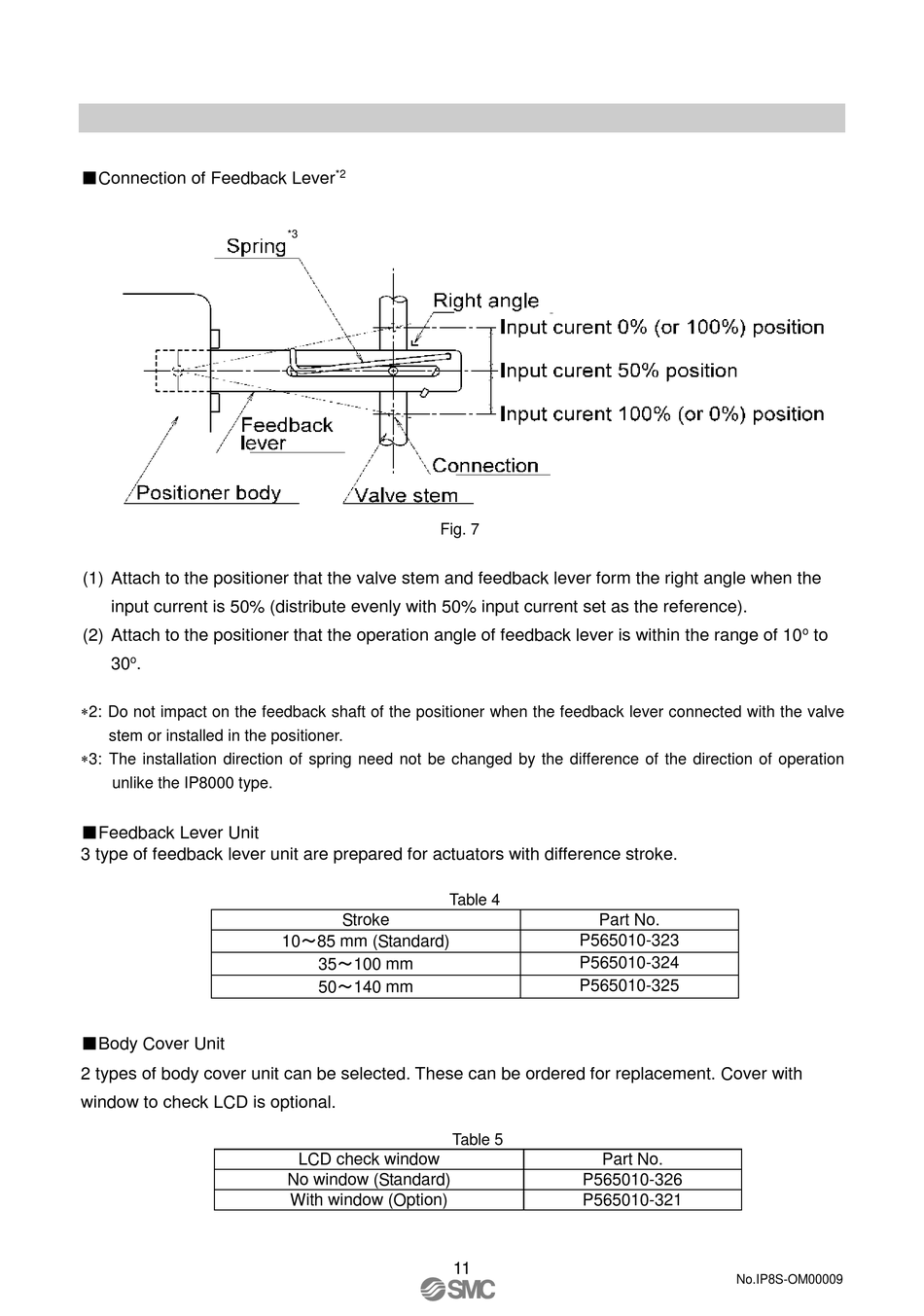

■Connection of Feedback Lever

(1) Attach to the positioner that the valve stem and feedback lever form the right angle when the
input current is 50% (distribute evenly with 50% input current set as the reference).
(2) Attach to the positioner that the operation angle of feedback lever is within the range of 10
o
30 .
2: Do not impact on the feedback shaft of the positioner when the feedback lever connected with the valve
stem or installed in the positioner.
3: The installation direction of spring need not be changed by the difference of the direction of operation
unlike the IP8000 type.

■Feedback Lever Unit

3 type of feedback lever unit are prepared for actuators with difference stroke.

■Body Cover Unit

2 types of body cover unit can be selected. These can be ordered for replacement. Cover with
window to check LCD is optional.
*2
*3
Fig. 7
Table 4
Stroke
10～85 mm (Standard)
35～100 mm
50～140 mm
Table 5
LCD check window
No window (Standard)
With window (Option)
11
Part No.
P565010-323
P565010-324
P565010-325
Part No.
P565010-326
P565010-321
No.IP8S-OM00009
o
to
