Installing the NetVanta VPN Accelerator Card (P/N 1202368L1)

The optional VPN Accelerator Card plugs into a 32-bit PCI slot and is designed to be used in the

NetVanta 4305 to provide encryption/decryption and security acceleration services. The card provides the

following security services to the host processor: DES, triple-DES (3DES), AES, SHA-1, MD5, and

random number generation. Performance metrics include 528 Mbps (DES), 176 Mbps (3DES), and

422 Mbps (AES). The power consumption of the card does not exceed 2 watts.

The accelerator card is intended to be installed only by qualified personnel.

Step

Remove power from the unit.

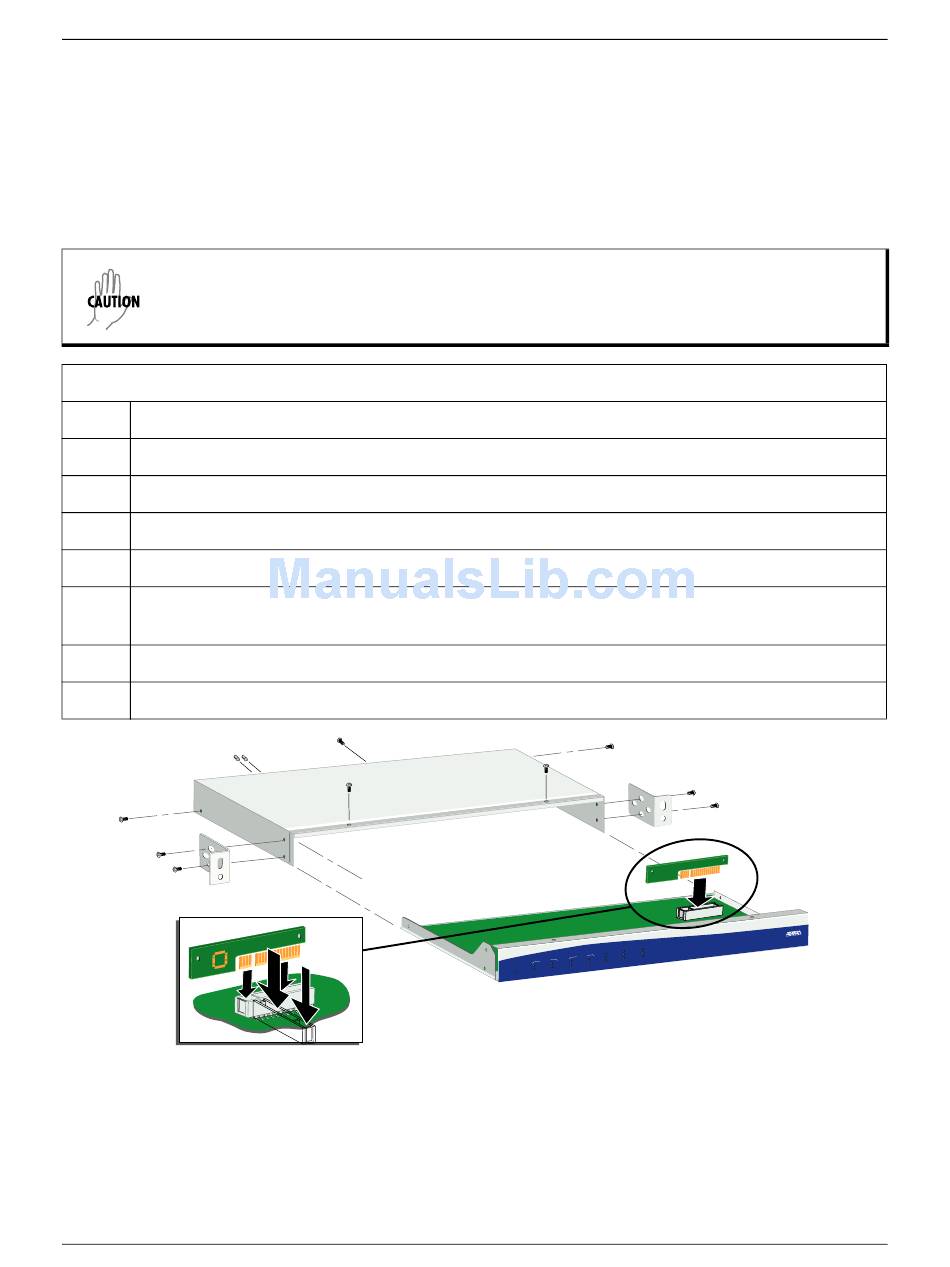

Remove the nine screws and, if necessary, two mounting brackets (see Figure 18).

Using a 3/16-inch hex driver, remove the two jack screws located on either side of the DB-9 port.

Carefully lift and remove the unit's cover to expose the circuit board.

Gently slide the accelerator card into the PC card slot as shown. The card is keyed to fit into the

slot only one way. To avoid damaging the card pins, do not use excessive force.

Replace the unit cover, screws, and mounting brackets.

Restore power to the unit.

Your NetVanta 4305 is now ready to be configured and connected to the network. For more information on

configuration for a specific application, refer to the quick start documents provided on your ADTRAN OS

System Documentation CD. For details on the CLI, refer to the AOS Command Reference Guide (also

included on your CD).
