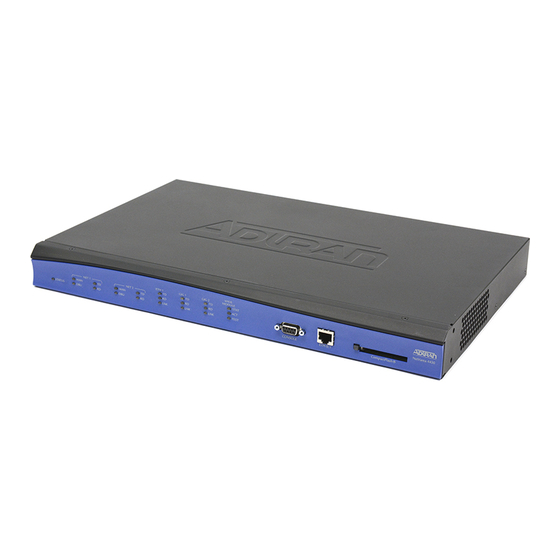

ADTRAN NetVanta 4430 Quick Start

N V
ET ANTA
P/N 1700630E1
G S
ETTING TARTED
Two configuration methods are available for your NetVanta router:
• Web-based graphical user interface (GUI)
• ADTRAN Operating System (AOS) command line interface (CLI)
The GUI lets you configure the main unit settings and provides online guidance and explanations
for each setting, and configuration wizards to help you get started. However, using the AOS CLI
may be necessary for more advanced configurations.
A GUI
CCESS THE
You may access the GUI from any web browser on your network by following these steps:
1. Connect the router to your PC using the ETH 0/1 port on the front of the unit and an Ethernet
cross-over cable.
2. Set your PC to a fixed IP address of 10.10.10.2. To change your PC IP address, navigate to
Computer > Control Panel > Network Connections > Local Area Connection >
Properties > IP (TCP/IP) and select Use this IP Address. Enter these parameters:
IP Address: 10.10.10.2
Subnet Mask: 255.255.255.0
Default Gateway: 10.10.10.1
You do not need to enter any domain naming server (DNS) server information. After the
information is entered, select Ok twice, and close the Network Connections dialog box. If
you cannot change the PC's IP address, you will need to change the unit's IP address using
the CLI. (Refer to the next two sections for instructions.)
3. Open a web browser and enter the unit's IP address in your browser address line as follows:
http://10.10.10.1. The default IP address is 10.10.10.1, but if you had to change the unit's IP
address using the CLI, enter that address in the browser line.
4. You will then be prompted for the user name and password (the default settings are admin
and password).
5. The initial GUI screen appears. You can access initial setup information by selecting Setup
Wizard from the menu on the left.
A CLI
CCESS THE
Access the AOS CLI via the CONSOLE port, a Telnet session, or from the GUI. To establish a
connection to the NetVanta router CONSOLE port, you need the following items:
• PC with VT100 terminal emulation software
• Straight-through serial cable with a DB-9 (male) connector on one end and the appropriate
interface for your terminal or PC communication port on the other end
There are many terminal emulation applications available on the web. PuTTY,
SecureCRT, and HyperTerminal are a few examples.
Quick Start Guide, 61700630E1-13D, February 2014
4430 R
OUTER
1
