Option Modules

NetVanta T1/FT1 NIM (P/N 1202862L1)

The T1/FT1 NIM (shown in Figure 5) provides a T1 (full T1 or fractional T1) WAN interface for the
NetVanta 4305. See Table A-4 on page 50 for the WAN-T1 connector pinouts and see Table A-4 on page
50 for the DBU connector pinouts. An optional DIM is required for dial backup applications.
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1/FT1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403,
Bellcore TR 194
• Line Rate: 1.544 Mbps +75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized (multiples
of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
• Network
• Internal
26
WAN-T1

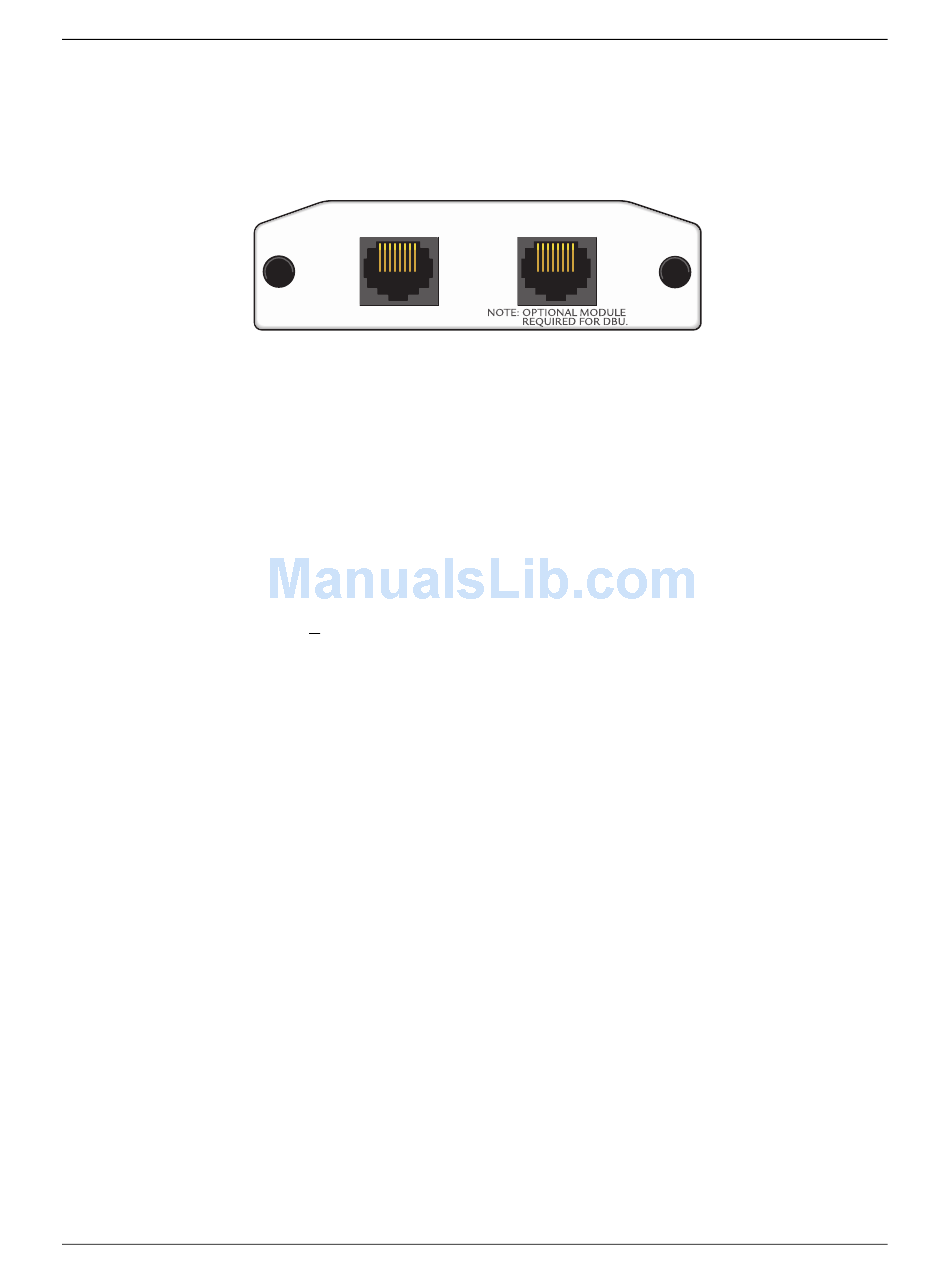

Figure 5. NetVanta T1/FT1 NIM

Features and Specifications
Diagnostics
•
•
•
•
Compliance
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2006 ADTRAN, Inc.
NetVanta 4305 Hardware Installation Guide
DBU
Test Pattern Generation and Detection:
511, QRSS, all ones, all zeros
Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
Alarm generation and detection
Network and user sets of performance data
(15 minutes and 24 hours)
EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
ACTA/FCC Part 68
IC CS-03
UL/CUL 60950
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
61200890L1-34H
