Option Modules

NetVanta ADSL NIM, Annex B (P/N 1200889E1/L1)

The NetVanta ADSL, Annex B (see Figure 13) adds ADSL capability to the NetVanta 4305. The module
provides a single 2.048 Mbps network interface. See Table A-8 on page 51 for the pinouts. See Table A-8
on page 51 for the DBU connector pinouts. An optional DIM is required for dial backup applications.
ADSL Interface
• ADSL over ISDN, Annex B
• Supported Standards: ITU-T G.992.1
Annex B (G.dmt)
• Connector: RJ-11C (6-pin jack,
inner pair)
ATM
• Multiple Protocol over AAL5 (RFC2684)
• PPP over ATM (RFC2364)
• PPP over Ethernet (RFC2516)
• ATM Forum UNI 3.1/4.0 PVC
• ATM Class of Service (UBR)
• ATM F5 OAM
• Up to 16 virtual circuits
36
WAN-ADSL

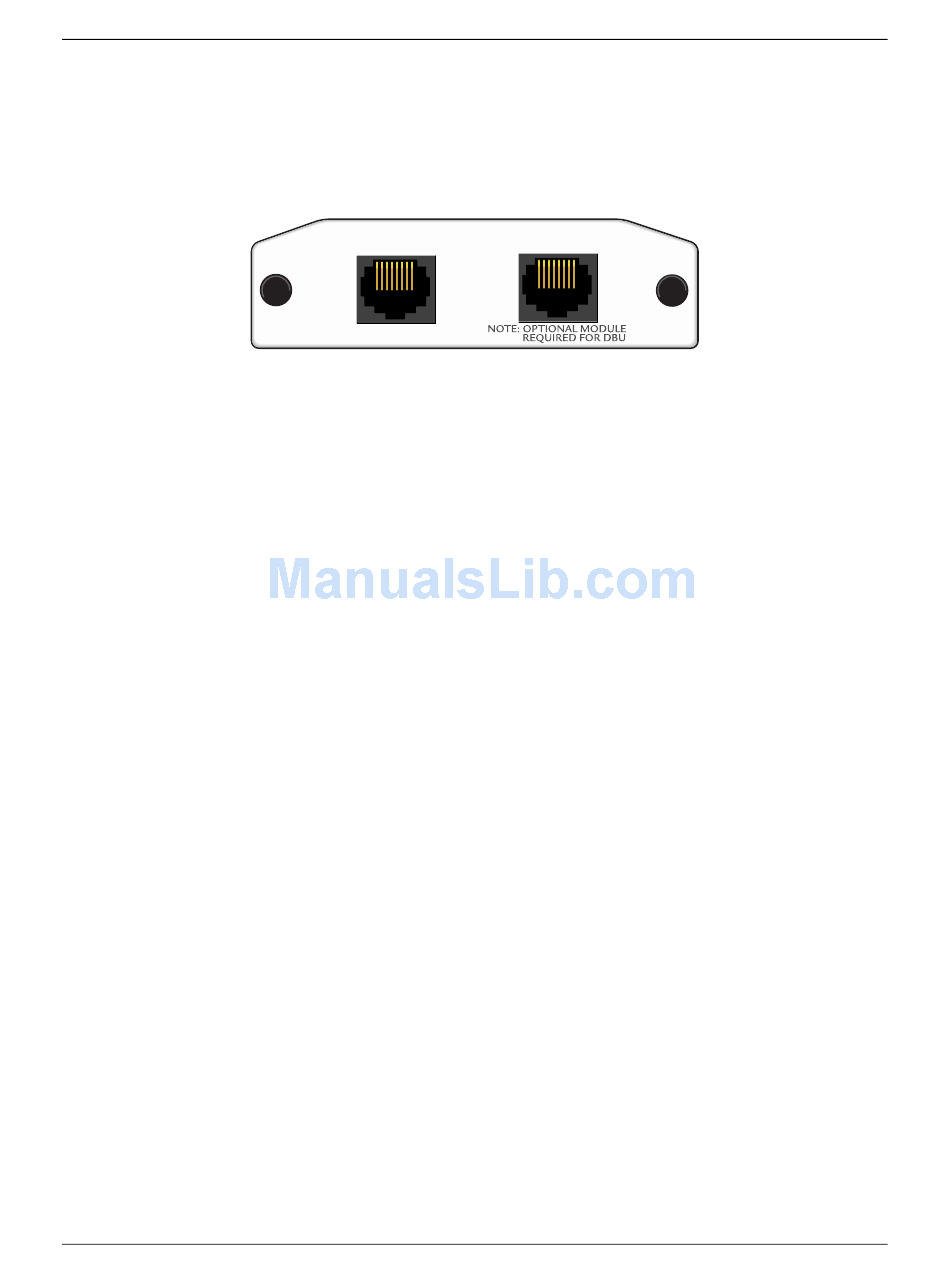

Figure 14. NetVanta ADSL NIM, Annex B

Features and Specifications
Copyright © 2006 ADTRAN, Inc.
NetVanta 4305 Hardware Installation Guide
DBU
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• AS/ACIF S043
• EN 60950
• IEC 60950
• AS/NZS 60950
• RoHS Compliant (1200889E1 only)
(Telecommunications exemption)
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
61200890L1-34H
