Unit Installation
Step
1
Remove power from the unit.
2
Slide the option module into the option slot until the module is firmly seated against the chassis.
3
Secure the pins at both edges of the module.
4
Connect the cables to the associated device(s).
5
Restore power to the unit.
CONSOLE
SLOT 3 WIDE MODULE
46
Instructions for Installing the NIMs and Wide NIMs

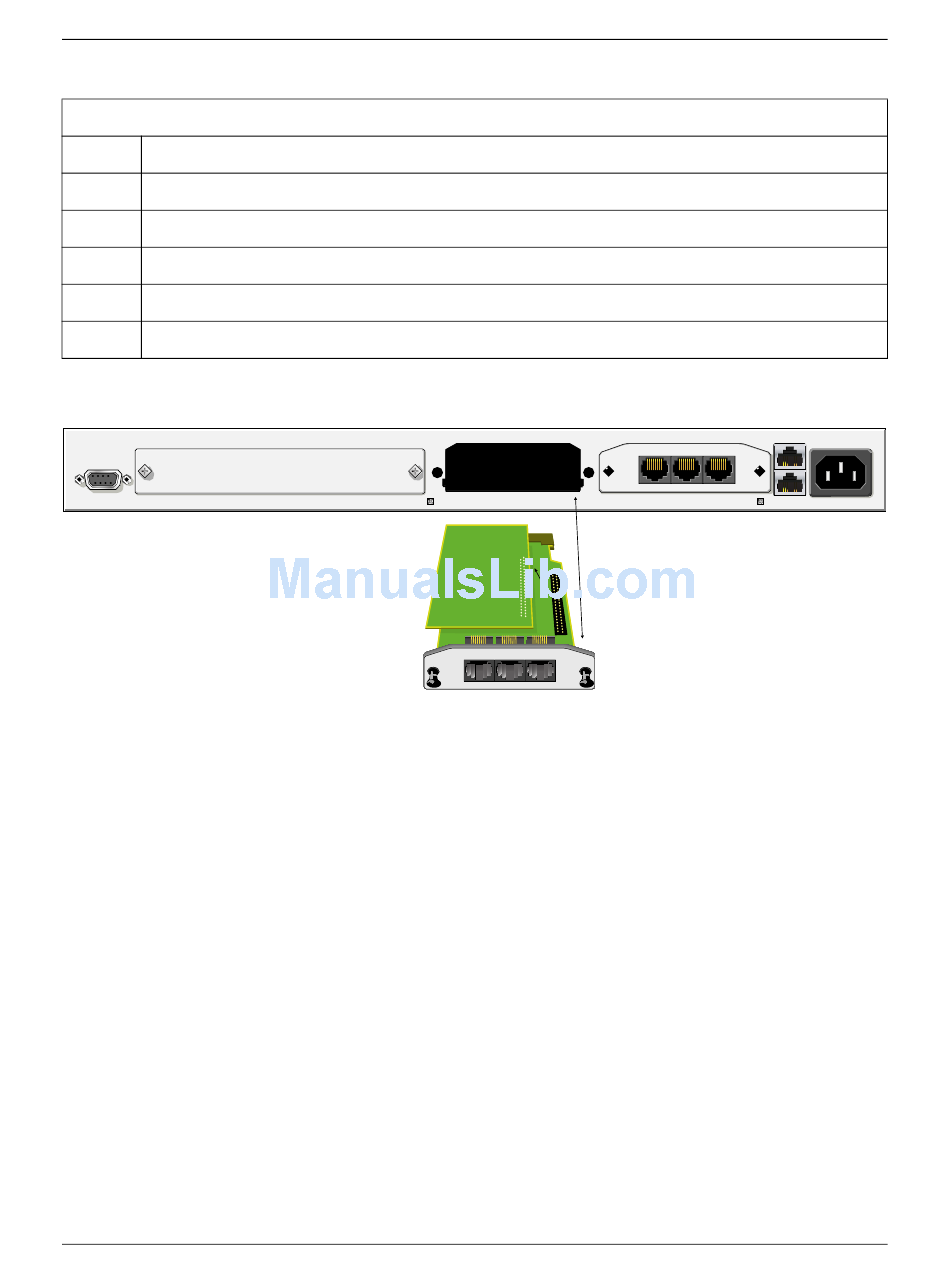

Figure 17. NIM and DIM Installation
Copyright © 2006 ADTRAN, Inc.
NetVanta 4305 Hardware Installation Guide
Action
WAN-T1
SLOT 2 NET/DBU
WAN-T1
DSX-1
DBU
ETH 0/2
100-250VAC
50/60Hz
DSX-1
DBU
SLOT 1 NET/DBU
ETH 0/1
61200890L1-34H
