NetVanta 4305 Hardware Installation Guide

NetVanta Dual T1 NIM (P/N 1200872L1)

The NetVanta Dual T1 NIM (see Figure 8) provides two WAN T1 interfaces for the NetVanta 4305. The
module provides up to 2.048 Mbps on each network interface. See Table A-4 on page 50 for the pinouts.
See Table A-4 on page 50 for the DBU connector pinouts. An optional DIM is required for dial backup
applications.
Operating Modes
Frame Relay, Multilink Frame Relay
PPP, Multilink PPP
HDLC
T1 Interface
Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403,
Bellcore TR 194
Line Rate: 1.544 Mbps +75 bps
Line Code: AMI or B8ZS
Framing: D4 (SF) or ESF
FT1 Line Rate: DS0 channelized
(multiples of 64 kbps)
Input Signal: 0 to -36 dB (DS1)
Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
DS0 Assignment: Programmable
Connector: RJ-48C
Clock Source
Network
Internal
Through
61200890L1-34H

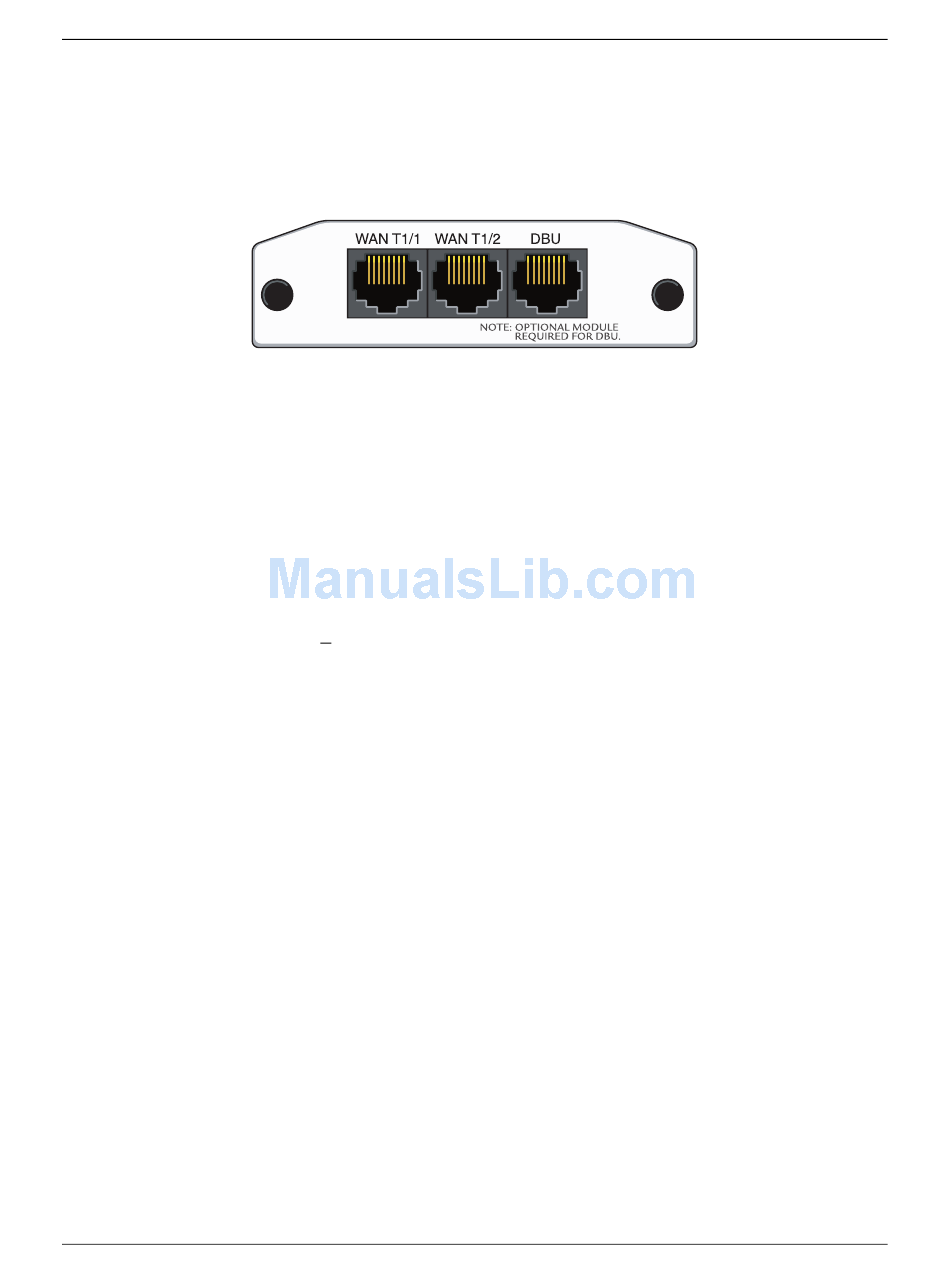

Figure 8. NetVanta Dual T1 NIM

Features and Specifications
Copyright © 2006 ADTRAN, Inc.
Diagnostics
Test Pattern Generation and Detection:
15
QRSS, 511, 2
- 1, 2
all zeros
Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
Alarm generation detection
Network performance data (15 minutes
and 24 hours)
Compliance
EMC - see Electromagnetic
Compatibility (EMC) Table on page 6
ACTA/FCC Part 68
IC CS-03
UL/CUL 60950
Environmental
Operating temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Physical
Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
20
- 1, all ones,
29
