Option Modules

NetVanta Octal T1/E1 Wide Module (P/N 1202843E1/L1)

The NetVanta Octal T1/E1 Wide Module second generation (shown in Figure 9) provides eight T1 or E1
interfaces with RJ-48C wire connections. These interfaces can be used independently or as aggregate
bandwidth using multi-link PPP protocol. Table A-4 on page 50 and Table A-5 on page 50 give the pinouts
for this module.
Features and Specifications
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
A dip-switch on the circuit board selects either T1 or E1 operation. All eight ports are
either T1 or E1. The default is T1. See T1/E1 Mode Dip-Switch on page 31 for more
information.
8xT1 Interfaces
• Supported Standards: AT&T TR 62411, AT&T 54016, ANSI T1.403, Bellcore TR 194
• Line Rate: 1.544 Mbps +75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized (multiples of 64 kbps)
• Input Signal: 0 to -36 dB (DS1); Support for Nx64 on all T1 interfaces
• Line Build-Out: 0, -7.5, -15, -22.5 dB (long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
8xE1 Interfaces
• Supported Standards: ITU G.703, ITU-T G704 (CRC-4), ITU-T G823, ITU-T G.797
• Line Rate: 2.048 Mbps +50 PPM
• Line Code: AMI or HDB3
• Framing: FAS/NFAS with optional CRC-4
• Input Signal: 0 to -30 dB (DS1) on all E1 interfaces (1 through 8)
• FE1 Line Rate: Channelized timeslot (in multiples of 64 kbps)
• Connector: RJ-48C
A different service provider can be used on each interface. Each interface has an
independent clock.
30

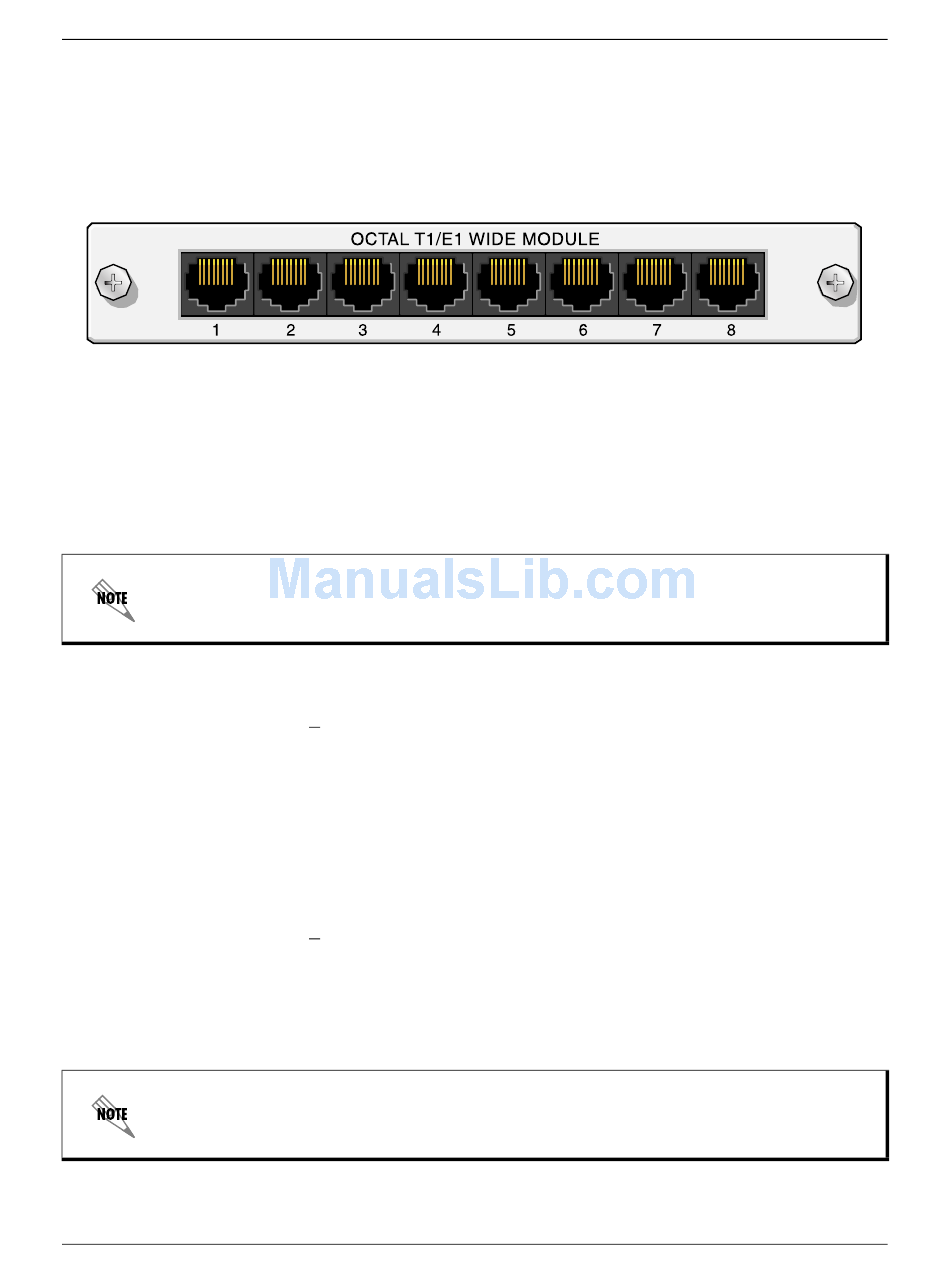

Figure 9. NetVanta Octal T1/E1 Wide Module
