Option Modules
NetVanta Serial NIM (P/N 1200866E1/L1)
The NetVanta Serial NIM (shown in Figure 12) can be configured by the user as a V.35, an X.21 (V.11), or
an EIA 530 interface. This module supports rates up to a maximum of 10 Mbps. An additional V.35
(ADTRAN P/N 1200873L1), X.21 (ADTRAN P/N 1200874L1), or EIA 530 (P/N 1200883L1) cable is
required (see Caution, below). See Table A-9 on page 52 for the Serial connector pinouts, and Table A-9
on page 52 for the DBU connector pinouts. An optional DIM is required for dial backup applications.
Cable length for the Serial NIM should not exceed 25 feet.
Operating Mode
•
DTE only
Serial Interface
•
Supported Standards: ISO 4903 (X.21),
CCITT V.35 Synchronous (V.35),
EIA 530 Synchronous
•
Provides V.35, X.21 (V.11), or EIA 530
electrical interface
•
Connector: 26-pin smart serial (DTE)
Compliance
•
EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
•
ETSI TBR1
•
ETSI TBR2
•
EN 60950
•
IEC 60950
•
UL/CUL 60950
•
AS/NZS 60950
•
RoHS Compliant (1200866E1 only)
(Telecommunications exemption)
34
SERIAL

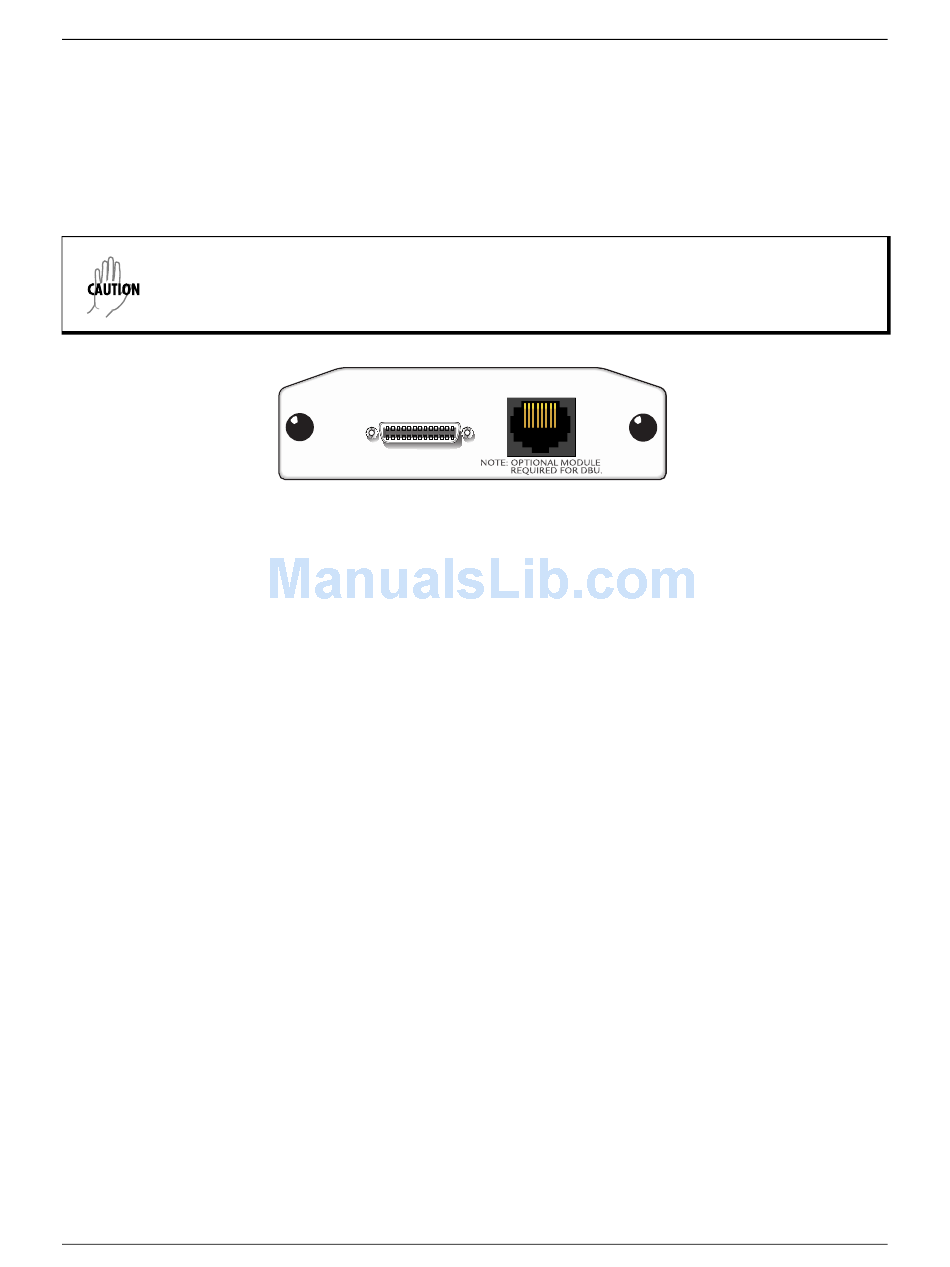

Figure 12. NetVanta Serial NIM
Features and Specifications
Environmental
•
•
•
Physical
•
Copyright © 2006 ADTRAN, Inc.
NetVanta 4305 Hardware Installation Guide
DBU
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
61200890L1-34H
