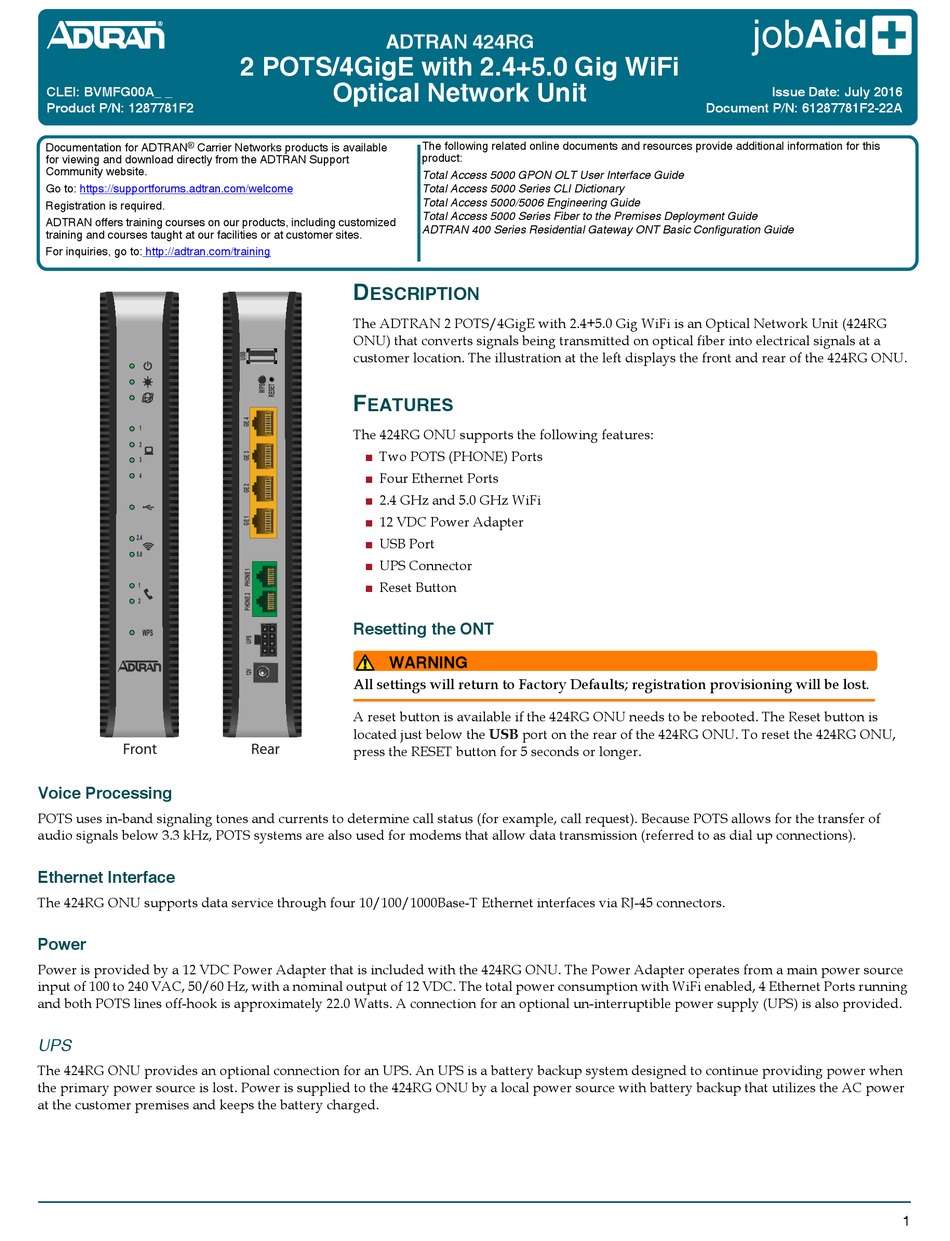

ADTRAN 424RG Job Aid

CLEI: BVMFG00A_ _
Product P/N: 1287781F2
®
Documentation for ADTRAN Carrier Networks products is available
for viewing and download directly from the ADTRAN Support
Community website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
1
2
3
4
2.4
5.0
1
2
Front
Voice Processing
POTS uses in-band signaling tones and currents to determine call status (for example, call request). Because POTS allows for the transfer of
audio signals below 3.3 kHz, POTS systems are also used for modems that allow data transmission (referred to as dial up connections).
Ethernet Interface
The 424RG ONU supports data service through four 10/100/1000Base-T Ethernet interfaces via RJ-45 connectors.
Power
Power is provided by a 12 VDC Power Adapter that is included with the 424RG ONU. The Power Adapter operates from a main power source
input of 100 to 240 VAC, 50/60 Hz, with a nominal output of 12 VDC. The total power consumption with WiFi enabled, 4 Ethernet Ports running
and both POTS lines off-hook is approximately 22.0 Watts. A connection for an optional un-interruptible power supply (UPS) is also provided.
UPS
The 424RG ONU provides an optional connection for an UPS. An UPS is a battery backup system designed to continue providing power when
the primary power source is lost. Power is supplied to the 424RG ONU by a local power source with battery backup that utilizes the AC power
at the customer premises and keeps the battery charged.
ADTRAN 424RG
2 POTS/4GigE with 2.4+5.0 Gig WiFi
Optical Network Unit
D
ESCRIPTION
The ADTRAN 2 POTS/4GigE with 2.4+5.0 Gig WiFi is an Optical Network Unit (424RG
ONU) that converts signals being transmitted on optical fiber into electrical signals at a

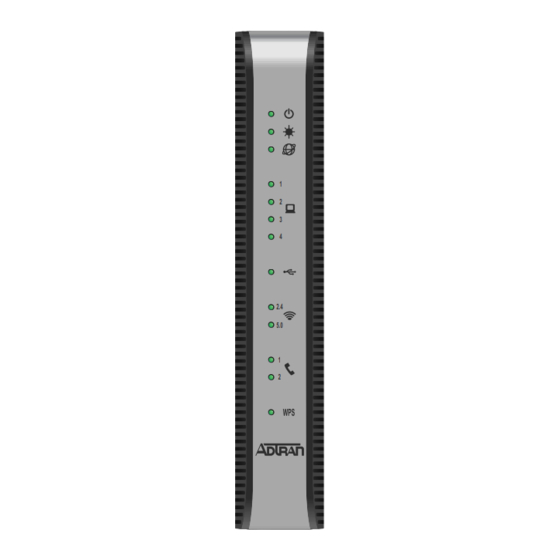

customer location. The illustration at the left displays the front and rear of the 424RG ONU.
F
EATURES
The 424RG ONU supports the following features:
■
Two POTS (PHONE) Ports
■
Four Ethernet Ports
■
2.4 GHz and 5.0 GHz WiFi
■
12 VDC Power Adapter
■
USB Port
■
UPS Connector
■
Reset Button
Resetting the ONT
!
WARNING
All settings will return to Factory Defaults; registration provisioning will be lost.
A reset button is available if the 424RG ONU needs to be rebooted. The Reset button is
located just below the
Rear
press the RESET button for 5 seconds or longer.
The following related online documents and resources provide additional information for this
product:
Total Access 5000 GPON OLT User Interface Guide
Total Access 5000 Series CLI Dictionary
Total Access 5000/5006 Engineering Guide
Total Access 5000 Series Fiber to the Premises Deployment Guide
ADTRAN 400 Series Residential Gateway ONT Basic Configuration Guide
USB
port on the rear of the 424RG ONU. To reset the 424RG ONU,
jobAid
Issue Date: July 2016
Document P/N: 61287781F2-22A
1
