NetVanta 4305 Hardware Installation Guide

Network Interface Modules

NetVanta 56K/64K NIM (P/N 1200861L1)

The 56K/64K NIM (shown in Figure 4) provides a
A-3 on page 50 for the WAN-DDS connector pinouts, and see Table A-3 on page 50 for the DBU
connector pinouts. An optional DIM is required for dial backup applications.
Operating Modes
• Dedicated DDS (leased line)
DDS Interface
• Supported Standards: AT&T TR 62310
• 4-wire, full-duplex
• Receiver Sensitivity: -45 dB, all rates
• Data Rates: 56K, 64K, and auto
• Connector: RJ-48C
Clock Source
• Network
• Internal
Diagnostics
• CSU and DSU Loopbacks
61200890L1-34H
WAN-DDS

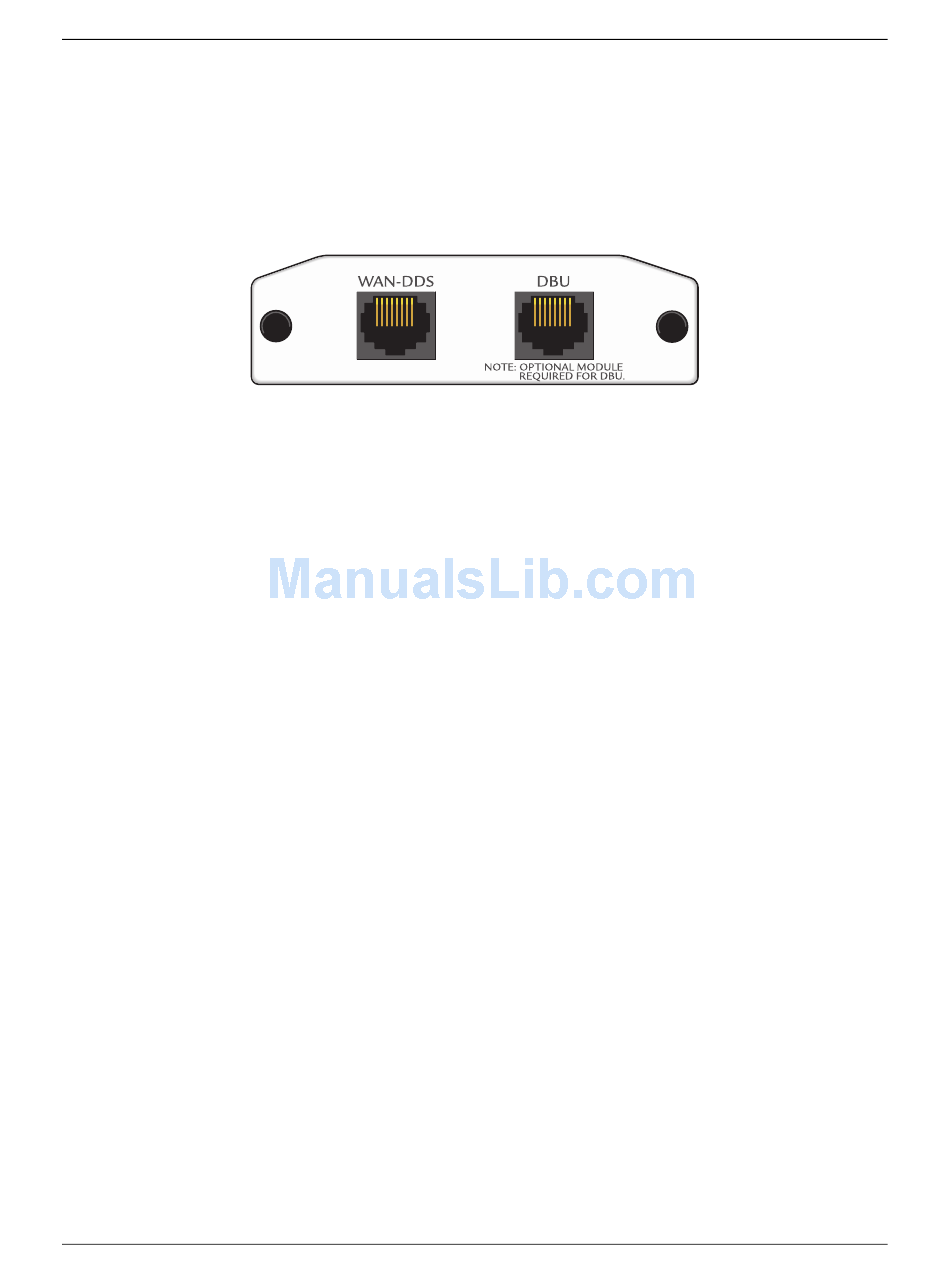

Figure 4. NetVanta 56K/64K NIM

Features and Specifications
Copyright © 2006 ADTRAN, Inc.
interface for the NetVanta 4305. See Table
Compliance
• EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
• ACTA/FCC Part 68
• IC CS-03
• UL/CUL 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
25
