ADTRAN NETVANTA 3200G Quick Start

N V 3200G 3G W
ET ANTA
P/N 4703863G1
3G CDMA NIM S
Wireless Technologies
Frequency Bands
Compliance
The 3G CDMA network interface module (NIM) device has been designed to operate with
the antennas listed below, and having a maximum gain of 2 dB. Antennas not included in
this list or having a gain greater than 2 dB are strictly prohibited for use with this device.
The required antenna impedance is 50 ohms.
Proper antennas are: Pulse/Larson Dipole Antenna, Part Number: SPDA24850/1900
To reduce potential radio interference to other users, the antenna type and its gain should
be chosen so that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
3G CDMA NIM LED D
LED Label LED Color
WWAN
Off
Green (solid)
Green (slow flash)
Green (intermittent flash)
RSSI
Off
(Received Red (solid)
Signal Amber (solid)
Strength
Green (solid)
Indication)
1xRTT Off
Green (solid)
EVDO Off
Green (solid)
A I
NTENNA NSTALLATION

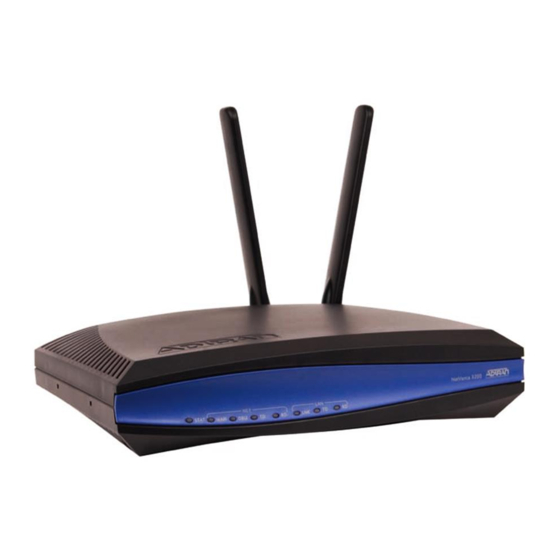

1. Place either of the two antennas directly onto the antenna port labeled ANT1 on the rear panel.
2. Using the thumb screws only, carefully thread the antenna onto the connector until it is secure.
3. Repeat Step 2 with the second antenna, attaching it to the ANT2 port.
4. Position antennas in a "V" shape at a 90 degree angle to each other.
Quick Start Guide, 64703863G1-13A, September 2009
IRELESS
PECIFICATIONS
1xRTT
1xEVDO Revision 0
1xEVDO Revision A
Band Class 0 (Cellular 800 MHz)
Band Class 1 (PCS 1.9 GHz)
FCC Part 15, Class A
FCC Parts 2, 22, 24
UL/CUL 60950-1
RSS 102
IC ES-003
RSS 129/133
RSS 132/133
ESCRIPTIONS
Indication
3G modem is not powered.
3G modem is powered, associated, and authenticated, but
not transmitting or receiving.
3G modem is powered and searching, but not associated or
authenticated.
3G modem activity is proportional to transmitting/receiving
speed (3 Hz minimum rate, 20 Hz maximum rate).
No service or no signal detected.
Low signal strength.
Medium signal strength.
High signal strength.
No 1xRTT service is available.
1xRTT service is available.
No 1xEVDO service is available.
1xEVDO service is available.
I
NSTRUCTIONS
R
OUTER
1
