NetVanta 4305 Hardware Installation Guide

Wall Mounting NetVanta 4305

Step

Remove the mounting ears. Rotate them 90

mounting holes is flush with the bottom of the chassis, and reattach them to the chassis.

Decide on a location for the NetVanta 4305. Keep in mind that the unit needs to be mounted at

or below eye level so that the LEDs are visible.

Important! Mount the chassis with LEDs facing to the side (not facing up or down).

Warning! Do not mount the chassis with the right-side fans facing down.

Prepare the mounting surface by attaching a board (typically plywood, 3/4-inch to 1-inch thick)

to a wall stud.

Important! Mounting to a stud ensures stability. Using sheetrock anchors may not provide

sufficient long-term stability.

Have an assistant hold the unit in position as you install two 3/32-inch to 1/8-inch

(1 1/ 2-inch or greater in length) wood screws through the unit's brackets and into the mounted

board.

Proceed to the steps given in Supplying Power to the Unit on page 44.

61200890L1-34H

Instructions for Wall Mounting NetVanta 4305

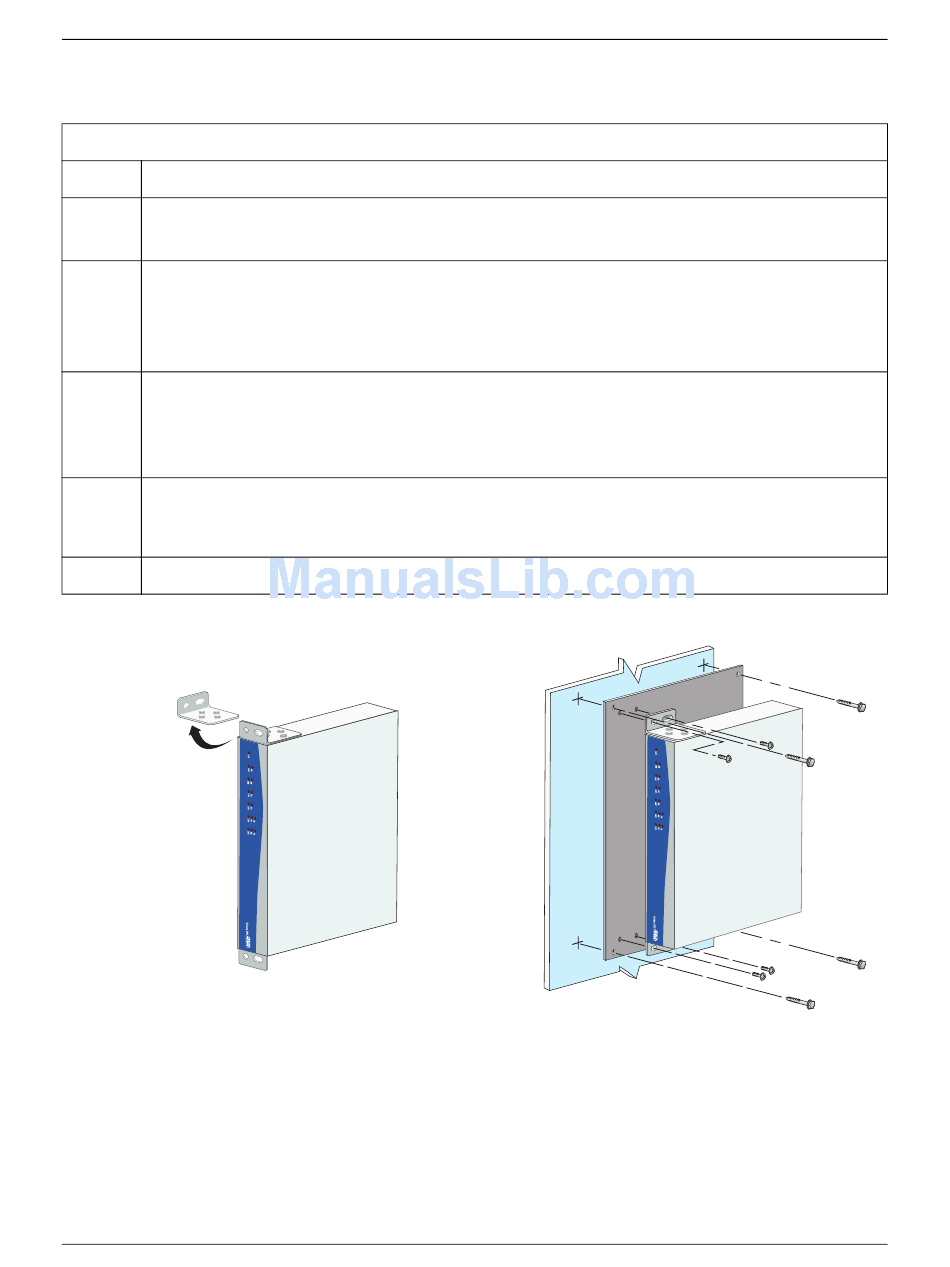

Figure 15. Wall Mounting the Unit

Action

so that the portion of the bracket with the

Unit Installation
