NetVanta E1/FE1 NIM (P/N 1200868E1/L1)

The NetVanta E1 NIM (see Figure 10) provides a
requirements of ITU-T G.703/G.704. The module provides a single 2.048 Mbps network interface. See
Table A-5 on page 50 for the pinouts. See Table A-5 on page 50 for the DBU connector pinouts. An
optional DIM is required for dial backup applications.
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
WAN-E1 Interface
• Supported Standards: ITU G.703,
ITU-T G.704 (CRC-4), ITU-T G.823,
ITU-T G.797
• Line Rate: 2.048 Mbps +50 PPM
• Line Code: AMI or HDB3
• Framing: FAS with optional CRC-4
• FE1 Line Rate: Channelized timeslot (in
multiples of 64 kbps)
• Receiver Sensitivity: -30 dB
• Connector: RJ-48C
Clock Source
• Network
• Internal
Diagnostics
• Test Pattern Generation and Detection:
QRSS, 511, all ones, all zeros
• Network loopbacks
• Network performance data (15 minutes
and 24 hours)
• Alarm generation and detection
32
WAN-E1
WAN-E1

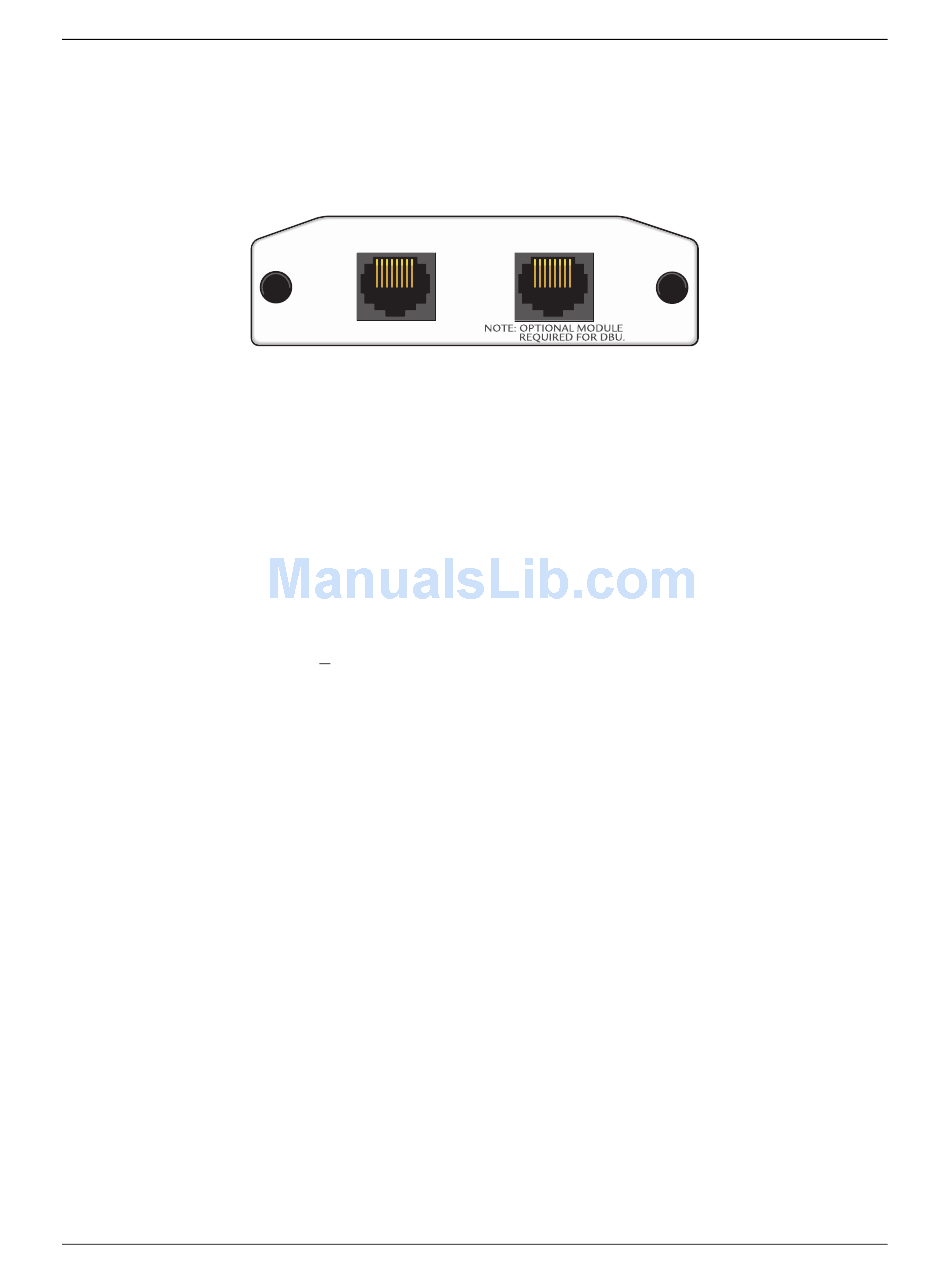

Figure 10. NetVanta E1/FE1 NIM

Features and Specifications
Copyright © 2006 ADTRAN, Inc.
NetVanta 4305 Hardware Installation Guide
interface for the NetVanta 4305 meeting the
DBU
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• AS/ACIF S016
• ETSI TBR 12/TBR 13
• EN 60950
• IEC 60950
• AS/NZS 60950
• RoHS Compliant (1200868E1 only)
(Telecommunications exemption)
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
