Emergency-Stop Push Button; Main Switch; Drilling Table - Optimum OPTIdrill B 40GSP Operating Manual

1.9.1

EMERGENCY-STOP push button

CAUTION!
Also after actuating the EMERGENCY-
STOP switch, the drilling spindle is
turning - depending on the previously
selected speed - for a few seconds
more.
1.9.2

Main switch

The lockable main switch can be secured
in position "0" by a padlock to prevent
unauthorized or accidental activation.
When the main switch is off, the power
supply to the machine is completely inter-
rupted.
Except for the areas marked by the pictogram in the margin. In these areas there might be volt-
age, even if the main switch is switched-off.
1.9.3

Drilling table

Seats for T-slots are attached to the drill-
ing table.
WARNING!
Risk of injury due to parts flying off at
high speed. Securely fix the workpiece
on the drilling table.
Safety
Version 2.1.1 - 2020-07-27

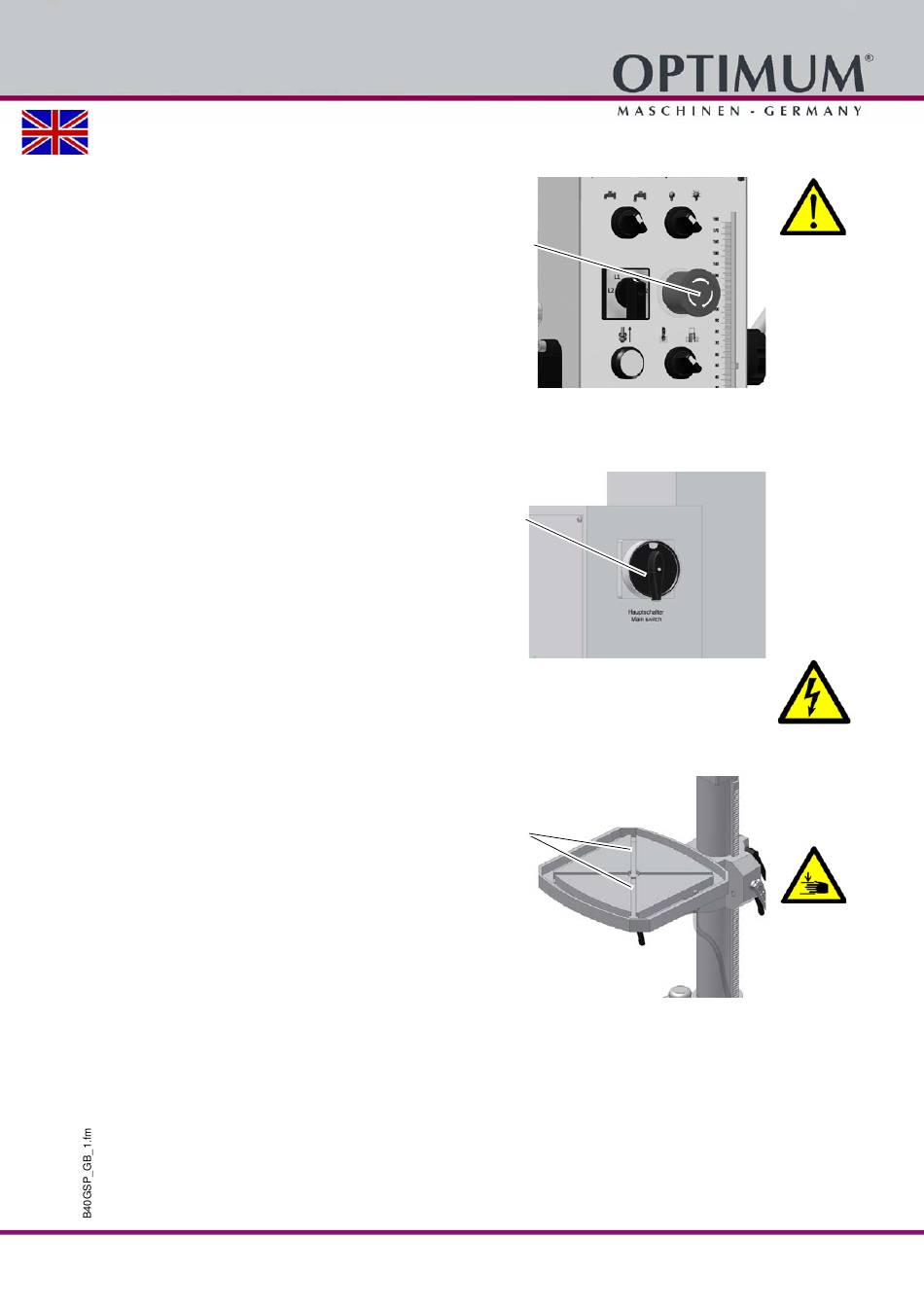

EMERGENCY-
STOP button
Img.1-2:
Main switch
Img.1-3:
Seats for clamping
blocks
Img.1-4:
Translation of original instruction
EMERGENCY-STOP button
Main switch
Drilling table
