Operating manual
Version 1.0
Drilling machine
3008201
3008203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTI DRILL B20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Optimum OPTI DRILL B20

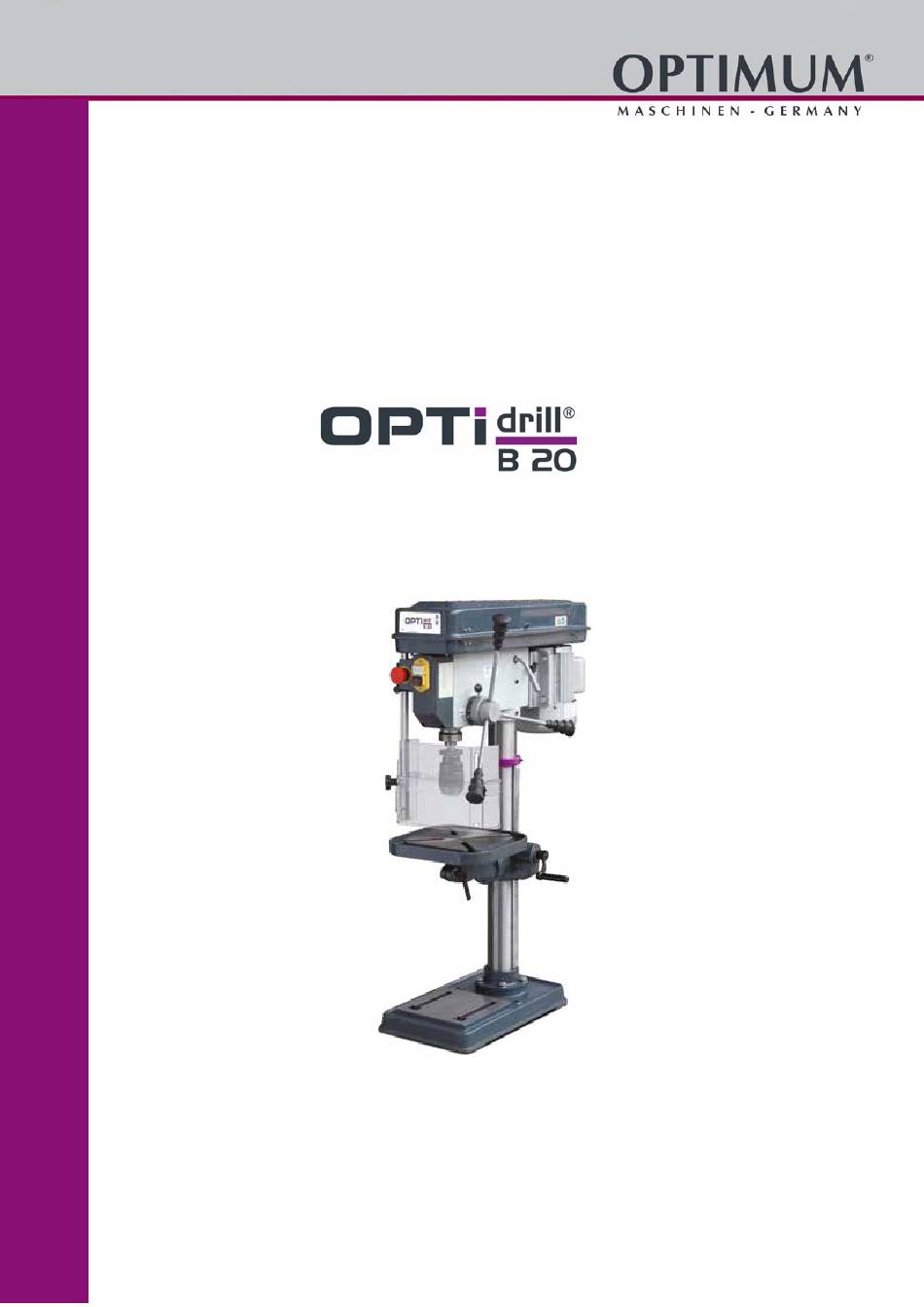

  • Page 1 Operating manual Version 1.0 Drilling machine 3008201 3008203...
  • Page 2: Table Of Contents

    Table of contents Safety Rating plate...............................5 Safety instructions (warning notes)......................5 1.2.1 Classification of hazards .......................5 1.2.2 Other pictograms ...........................6 Intended use .............................7 Reasonably foreseeable misuse.......................8 1.4.1 Avoiding misuse ..........................8 Possible dangers caused by the drilling machine..................8 Qualification ..............................9 1.6.1 Private Users ..........................9 1.6.2 Obligations of the User ........................9 1.6.3 Craftsman or industrial use ......................9 User positions ............................10...
  • Page 3 3.7.1 Electrical connection ........................25 Operation Control and indicating elements ......................26 Safety ..............................26 Operating elements ..........................27 4.3.1 Drill depth stop ..........................27 4.3.2 Table Inclination .......................... 27 Speed variation ............................27 4.4.1 Speed tables ..........................29 Drill chuck ............................... 30 4.5.1 Function quick action drill chuck ....................
  • Page 4 Dear customer, Thank you very much for purchasing a product made by OPTIMUM. OPTIMUM metal working machines offer a maximum of quality, technically optimum solutions and convince by an outstanding price performance ratio. Continuous enhancements and prod- uct innovations guarantee state-of-the-art products and safety at any time.
  • Page 5: Safety

    Safety Glossary of symbols  provides further instructions  calls on you to act  listings This part of the operating instructions  explains the meaning and use of the warning notes included in these operating instructions,  defines the intended use of the drilling machine, ...
  • Page 6: Other Pictograms

    Symbol Alarm expression Definition / consequence Situation that could cause damage to the drilling machine and product, as well as other types of damage. ATTENTION! No risk of injury to persons. Practical tips and other important or useful information and notes. No dangerous or harmful consequences for people or objects.
  • Page 7: Intended Use

    If the drilling machine is used in any way other than described above, modified without authori- zation of Optimum Maschinen Germany GmbH, then the geared drill is being used improperly. We will not be held liable for any damages resulting from any operation which is not in accord- ance with the intended use.
  • Page 8: Reasonably Foreseeable Misuse

    Reasonably foreseeable misuse Any use other than that specified under "Intended use" or any use beyond that described will be deemed non-intended use and is not permissible. Any other use has to be discussed with the manufacturer. It is only allowed to process metal, cold and non-inflammable materials with the drilling machine.
  • Page 9: Qualification

    If the drilling machine is used and maintained by personnel who are not duly qualified, there may be a risk resulting from incorrect or unsuitable maintenance of the geared drill. INFORMATION Everyone involved in the assembly, commissioning, operation and maintenance must ...
  • Page 10: User Positions

    WARNING! Always disconnect the drilling machine from the electrical power supply. This will prevent it from being used by unauthorized persons. The qualifications of the personnel for the different tasks are mentioned below: Operator The operator has been instructed by the operating company regarding the assigned tasks and possible risks in case of improper behaviour.
  • Page 11: Safety Measures During Operation

    Safety measures during operation CAUTION! Danger due to inhaling dust and mist that is hazardous to health. Dependent on the material which need to be processed and the used auxiliaries dusts and mist may be caused which might impair you health. Ensure that the harmful dust and mist generated are safely sucked off at the point of origin and routed away from the working area or filtered.
  • Page 12  once a week (with the machine in operation) and  after all maintenance and repair work. Check that prohibition, warning and information signs and the labels on the drilling machine  are legible (clean them, if necessary)  are complete (replace if necessary). INFORMATION Organise the checks according to the following table;...
  • Page 13: Emergency Stop Button

    1.11 Emergency stop button ATTENTION! The drilling spindle keeps turning for a short time even after actuating the emergency stop push button depending on the preset speed. Emergency stop button 1.12 Drill chuck guard INFORMATION The machine cannot be started, if the drill chuck guard is not closed. Adjust the guard to the correct height before you start working.
  • Page 14: Protective Cover Of V-Belt

    1.13 Protective cover of V-belt. INFORMATION The machine cannot be started, if the protective cover is not closed. Protective cover 1.14 Personal protective equipment For some works you need personnel protective equipment as protective equipment. These are  safety helmet, ...
  • Page 15: Safety During Maintenance

    Check if they are working properly! 1.18 Accident report Inform your supervisors and Optimum Maschinen Germany GmbH immediately in the event of accidents, possible sources of danger and any actions which almost led to an accident (near misses). There are many possible causes for "near misses".
  • Page 16: Electronics

    1.19 Electronics Craftsman or industrial use Have the machine and/or the electric equipment checked regularly. Immediately eliminate all defects such as loose connections, defective wires, etc. A second person must be present during work on live components to disconnect the power in the event of an emergency.
  • Page 17: Technical Specification

    Technical specification Electrical connection 3 x 400 V ; 550 W or 230 V ; 550 W 400V~50Hz (~60Hz) 230 V 550 W Drilling capacity Drilling capacity in steel [mm] Throat [mm] Spindle sleeve stroke [mm] Spindle seat Spindle seat Drilling table Table size [mm] Length x Width of the working surface 275 x 275...
  • Page 18: Emissions

    2.10 Emissions The generation of noise emitted by the drilling machine is lower than 80 dB(A). If the drilling is installed in an area where various machines are in operation, the noise exposure (immission) on the operator of the drilling machine at the working place may exceed 80 dB(A). INFORMATION This numerical value was measured on a new machine under the operating conditions specified by the manufacturer.
  • Page 19: Scope Of Delivery

    Store packed and unpacked parts only under the intended environmental conditions. Follow the instructions and information on the transport box. Consult Optimum Maschinen Germany GmbH if the machine and accessories are stored for more than three months or are stored under different environmental conditions than those spec- ified here .
  • Page 20: Installation And Assembly

    Installation and assembly 3.4.1 Installation site requirements Organize the working area around the drilling machine according to the local safety regulations. WARNING! The drilling machine must be connected to the substructure. INFORMATION In order to attain good functionality as well as a long service life of the machine, the place of installation should fulfil certain criteria.
  • Page 21: Assembly Drilling Column

     Put the stand on the floor and fix the drill column to the stand. Hexagon bolts are provided to fix it. Drill column Hexagon screws Base Img.3-1: Stand 3.5.2 Assembly drilling column Assemble of the drill table INFORMATION The longer side of the toothed rack without toothing must be upside. ...
  • Page 22  Clamp the crank handle with the threaded pin. Hand crank Img.3-4: Assembly crank handle  Place the drilling table at the drilling table support. Mount the clamping lever. Clamping lever Img.3-5: Assembly clamping lever Fitting the drill head  Put the drilling head on the drill column and turn it as much until is aligned with the stand.
  • Page 23 Fixture Setscrew Aluminium profile including mounted safety screen Img.3-7: Mounting drill chuck protection WARNING! Make sure that the hexagon socket screw and the locking washer are mounted and tightly screwed. Otherwise the aluminium profile would slide out of the fixture when the setting screw is screwed off.
  • Page 24: Installation

    Setscrew Img.3-9: Mounting drill chuck protection Installation WARNING! The condition of the underground and the fixing type of the machine foot to the underground must be in a way that it can bear the loads of the drilling machine. The foundation must be level.
  • Page 25: First Commissioning

    OPTIMUM. Only use tool holders in the intended admissible speed range. Tool holders may only be modified in compliance with the recommendation of OPTIMUM or of the manufacturer of the clamping devices. There is a danger to persons and equipment, if the first commissioning of the drilling machine is carried out by inexperienced personnel.
  • Page 26: Operation

    Operation Control and indicating elements Pos. Designation Pos. Designation Lever for spindle sleeve feed Emergency-stop switch Drilling table Table height adjustment Drill depth stop Adjustment for the inclination of the table Drill chuck guard Clamping lever Belt drive with housing Direction of rotation switch (on 400V machine only) Belt tension handle...
  • Page 27: Operating Elements

    Operating elements 4.3.1 Drill depth stop Use the drilling depth stop when drilling several holes of the same depth. Locking screw Drill depth stop Scale Img.4-1: Drill depth stop  Loosen the locking screw and turn the graduated collar until the required drilling depth matches with the indicator.
  • Page 28  Open the protective cover of the belt drive.  Loosen the clamping screw of the V-belt tension and slide the motor in direction drill chuck. V-belt Clamping screw V-belt tension Img.4-3: Speed variation INFORMATION A handle is attached to the drills with which the motor can be pushed towards the drill chuck. ...
  • Page 29: Speed Tables

    4.4.1 Speed tables Speed table B20 ~50Hz Spindle Motor Speed table B20 ~ 60Hz Spindle Motor 1164 1776 1248 2664 1896 1404 Version 1.0 - 2020-08-11 Translation of original instruction...
  • Page 30: Drill Chuck

    Drill chuck Mounting Morse taper and drill chuck A friction-locking connector holds and centres the drill chuck in the B16 holding fixture.  Check and clean the conical seat at the drill spindle and on drill chuck.  Push the drill chuck with a firm jerk onto the B16 receptacle. The drill chuck with MT taper is secured through a form-fit union (driver) against twisting in the drilling spindle.
  • Page 31: Dismounting The Quick Action Drill Chuck

    4.5.2 Dismounting the quick action drill chuck WARNING! Only disassemble the drill chuck if the drilling machine is disconnected from the electrical supply.  Disconnect the machine from the electrical supply.  The cone connection can be separated with a plastic or a rubber hammer. The drill chuck and the taper mandrel are loosened from the drill spindle by means of a drill drift.
  • Page 32: Before Starting Work

    Before starting work Before starting work, select the desired speed. It is depending on the used drilling diameter and on the material. WARNING! For drilling jobs, it is necessary to clamp the workpiece firmly to prevent the bit catching on the pieces. A machine vice or clamping claws is a suitable clamping device. Put a wooden or plastic board beneath the workpiece to avoid drilling through to the work table, vice, etc.
  • Page 33: Maintenance

    Maintenance In this chapter you will find important information about  Inspection,  Maintenance and  Repair. ATTENTION!  Properly performed regular maintenance is an essential prerequisite for  operational safety,  failure-free operation,  long service life of the machine and ...
  • Page 34: Inspection And Maintenance

    Inspection and maintenance The type and level of wear depends to a large extent on the individual usage and operating conditions. Any indicated intervals therefore are only valid for the corresponding approved con- ditions. Interval Where? What? How? Start of shift After each ...
  • Page 35 Interval Where? What? How? Any unusual rattling noises can be eliminated by regreasing. The sleeve (1) moves downwards or upwards with the toothed spindle (2) in the fixed driven sleeve (3) during drill feed. The noises are caused by the necessary clearance between the two toothings of the sleeve and spindle.
  • Page 36: Repair

    If the repairs are carried out by qualified technical personnel, they must follow the indications given in these operating instructions. Optimum Maschinen Germany GmbH accepts no liability nor does it guarantee against damage and operating malfunctions resulting from failure to observe these operating instructions.
  • Page 37: Malfunctions

    Malfunctions Cause/ Malfunction Solution possible effects Noise during work. • Spindle is too little lubricated • Grease spindle • Tool is blunt or wrongly • Use new tool and check tension clamped (fixed setting of the bit, drill chuck and taper mandril) Bit „burnt“...
  • Page 38: Appendix 7.1 Copyright

     Liability or warranty claims are processed at OPTIMUM GmbH's discretion either directly or through one of its dealers. Any defective products or components of such products will either be repaired or replaced by components which are free from defects.
  • Page 39: Advice For Disposal / Options Of Reuse

    - Non reproducible software errors  Any services, which OPTIMUM GmbH or one of its agents performs in order to fulfil any additional warranty are neither an acceptance of the defects nor an acceptance of its obli- gation to compensate. These services neither delay nor interrupt the warranty period.
  • Page 40: Disposal Of Electrical And Electronic Components

    Please note that the electrical devices comprise a variety of reusable materials as well as envi- ronmentally hazardous components. Please ensure that these components are disposed of separately and professionally. In case of doubt, please contact your municipal waste manage- ment.
  • Page 41: Determining The Cutting Speed And The Speed

    Determining the cutting speed and the speed Table cutting speeds / infeed Material table Recommended infeed f in mm/revolution Recommended Material to be processed cutting speed Drill bit diameter d in mm Vc in m/min 2...3 >3...6 >6...12 >12...25 >25...50 Unalloyed construction steels 30 - 35 0.05...
  • Page 42 Drill bit Ø Speed n in rpm in mm 1062 1274 1415 1769 2123 2477 2831 3539 4246 5662 7077 1146 1274 1592 1911 2229 2548 3185 3822 5096 6369 1042 1158 1448 1737 2027 2316 2895 3474 4632 5790 1062 1327 1592...
  • Page 43: Examples To Calculatory Determine The Required Speed For Your Drilling Machine

    Drill bit Ø Speed n in rpm in mm 39,0 40,0 41,0 42,0 43,0 44,0 45,0 46,0 47,0 48,0 49,0 50,0 8.2.1 Examples to calculatory determine the required speed for your drilling machine The necessary speed is depending on the diameter of the drill bit, on the material which is being machined as well as on the cutting material of the drill bit.
  • Page 44: Ersatzteile - Spare Parts

    Ersatzteile - Spare parts Ersatzteilbestellung - Ordering spare parts Bitte geben Sie folgendes an - Please indicate the following :  Seriennummer - Serial No.  Maschinenbezeichnung - Machines name  Herstellungsdatum - Date of manufacture  Artikelnummer - Article no. Die Artikelnummer befindet sich in der Ersatzteilliste.
  • Page 45: Bohrfutterschutz - Drill Chuck Protection

    Bohrfutterschutz - Drill chuck protection Abb.9-1: Bohrfutterschutz - Drill chuck protection de | en Version 1.0 - 2020-8-11 Originalbetriebsanleitung...
  • Page 46: 9.4.1 Ersatzteilliste - Parts List - Bohrfutterschutz - Drill Chuck Protection

    9.4.1 Ersatzteilliste - Parts list - Bohrfutterschutz - Drill chuck protection Bohrfutterschutz - Drill chuck protection Menge Grösse Artikelnummer Bezeichnung Designation Qty. Size Item no. Spezialschraube M5x10 Beilagscheibe Innensechskantschraube Rändelschraube 030031712014 Mikroschalter 030031712018 Abdeckung Halter 030031712019 Aluprofil B20/B25/B32 03011233209 Sichtschutzscheibe 03003171207 Nutschraube M5x20...
  • Page 47: Ersatzteilzeichnung - Parts Drawing

    Ersatzteilzeichnung - Parts drawing Abb.9-2: B20 / B25 de | en Version 1.0 - 2020-8-11 Originalbetriebsanleitung...
  • Page 48: 9.5.1 Ersatzteilliste - Parts List

    9.5.1 Ersatzteilliste - Parts list Menge Grösse Artikelnummer Bezeichnung Designation Qty. Size Item no. Bodenplatte Base 0300820101 Säulenflansch 0300820102 Scheibe Washer Schraube Screw Säule Column 0300820105 Zahnstange Rack 0300820106 Säulenring Colum Ring 0300820107 Madenschraube Grub screw M 8x10 Bohrtischhalter Support 0300820109 Kurbel+Schraube Crank+Sscrew...
  • Page 49 Federscheibe Lock washer Mutter Mutter M 10 Scheibe Washer Gleitstange 0300820146 Schraube Screw M 6x12 Excenter Eccentric 0300820148 Schaltergehäuse Switch housing 230 V 0300820149 Schaltergehäuse Switch housing 400 V 0300820349 Bleichschraube Screw Schalter Switch 230 V 0300820152 Schalter Switch 400 V 0300820352 Anschlusskabel Power Wire...
  • Page 50 Trafogehäuse Transformer housing 03008201205 94-1 Deckel Trafo Transformer cover 0300820194-1 Transformator Transformer 230V 03021303RK Transformator Transformer 400V 03302300TC Emergency Stop switch from Not-Aus-Schalter ab 2012 LA103 0460058 2012 Klemmkasten ab 2012 Terminal box from 2012 03003171114 Ein-Aus-Taster ab 2012 On-off button from 2012 230V 03008131216 Ein-Aus-Taster ab 2012...
  • Page 51: Schaltplan - Wiring Diagram - ~230V

    Schaltplan - Wiring diagram - ~230V Abb.9-3: Schaltplan - Wiring diagram B13/ B14/ B16/ B20 (~230V) de | en Version 1.0 - 2020-8-11 Originalbetriebsanleitung...
  • Page 52: Schaltplan - Wiring Diagram ~400V

    Schaltplan - Wiring diagram ~400V Abb.9-4: Schaltplan - Wiring diagram B20/ B25/ B32 (~400V) de | en Originalbetriebsanleitung Version 1.0 - 2020-8-11...
  • Page 53: 9.7.1 Ersatzteilliste Elektrik- Parts List Electrical Components ~230V

    9.7.1 Ersatzteilliste Elektrik- Parts list electrical components ~230V B20 - 230V Menge Grösse Artikelnummer Bezeichnung Designation Qty. Size Item no. EIN-AUS-Taster ON-OFF-switch 230V 03008131216 Not-Aus-Schalter Emergency Stop switch 0460058 1B2.1 Schalter Schutzabdeckung Cover safety switch 0302024192 1B2.2 Schalter Borhfutterschutz Drilling chuck safety switch 030081312031 Transformator Trafo...
  • Page 54 EC - Declaration of Conformity according to Machinery directive 2006/42/EC, Annex II 1.A The manufacturer / distributor Optimum Maschinen Germany GmbH Dr.-Robert-Pfleger-Str. 26 D - 96103 Hallstadt, Germany hereby declares that the following product Product designation: Drilling machine Type designation: fulfills all the relevant provisions of the directive specified above and the additionally applied directives (in the following) - including the changes which applied at the time of the declaration.
  • Page 55 Index Accident report ............15 Classification of hazards .........5 Control and indicating elements ......26 Copyright ...............38 Customer service ..........36 Customer service technician .........36 Disposal ..............40 Drill chuck .............30 Drill depth stop ............27 EC - Declaration of Conformity ......54 Electronics ............16 Inspection ..............33 Intended use ............7 Maintenance ............33 Misuse ..............8...
  • Page 56 Quellenverzeichnis von Ihrem Fachhändler Metallbau Mehner Optimum Bohrmaschinen: OPTIdrill B 20 • ◦ OPTIdrill B 20 Ersatzteile ◦ OPTIdrill B 20 Zubehör OPTIdrill Zubehör • Ihr Ersatzteil nicht in den Listen? Direkt zum >>Formular Download<<. Tragen sie Ihr Maschinenmodell, samt Bauteil und Artikelnr.
